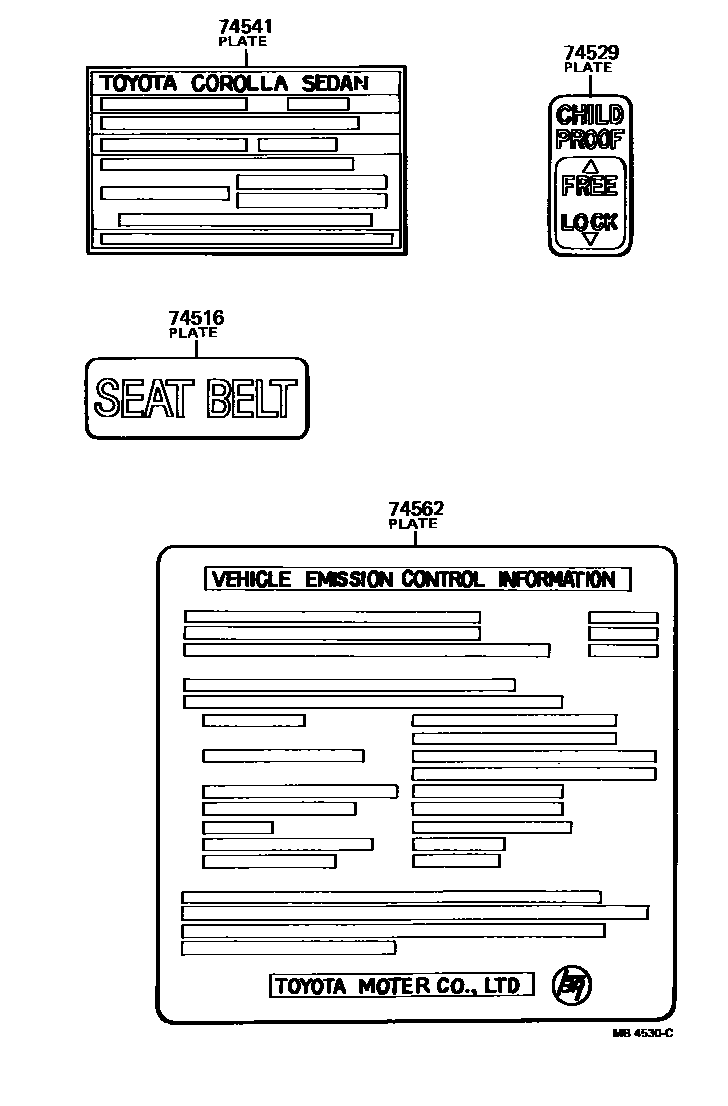

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74516 | Duty-free seat belt instruction plate | 74516-13010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-14010 |
| 74541 | tire pressure warning plate | 42661-12040 · 42661-12120 · 42661-12130 · 42661-12131 · 42661-12140 · 42661-12210 · 42661-13060 · 42661-13070 · 74552-12230 · 74552-12240 · 74552-12270 · 74552-13090 |
| 74562 | Emission control system information plate | 74519-12112 · 74519-12131 |
