Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 3 PNC and OE references.

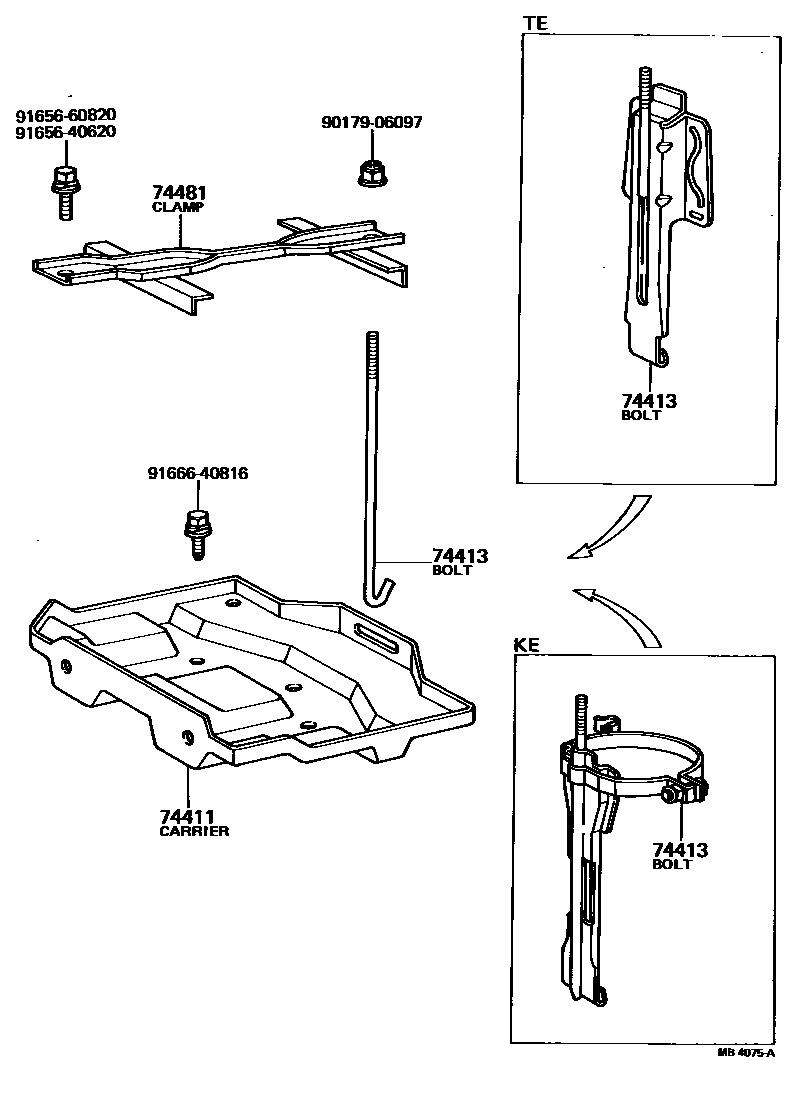

Toyota COROLLA battery holder EPC diagram — MB4075A
battery holder — MB4075A (197408 – 999999)

PNC and OE references

PNCPart nameOE numbers
74411battery holder74411-12070 · 74411-12080 · 74411-12090 · 74411-12100
74413Battery clamp bolt74407-12020 · 74407-12041 · 74451-30050
74481Battery fixing clip74404-12050 · 74404-12060 · 74404-12070 · 74404-12090 · 74404-12100
