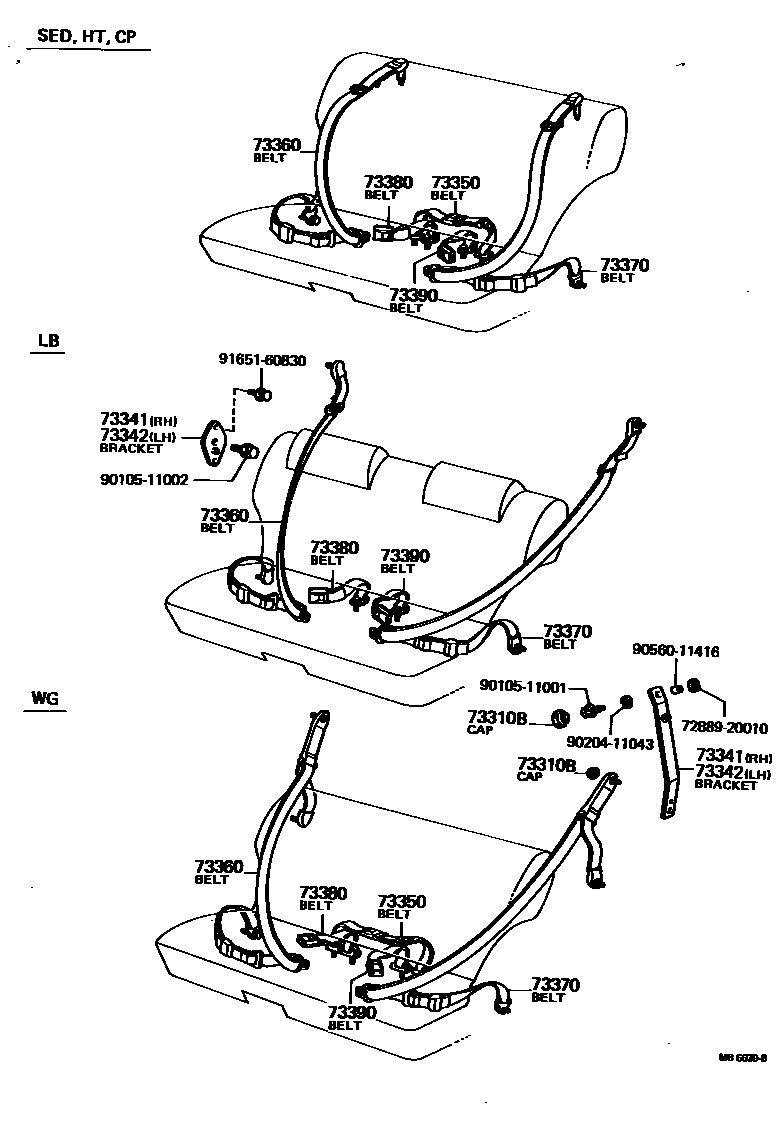

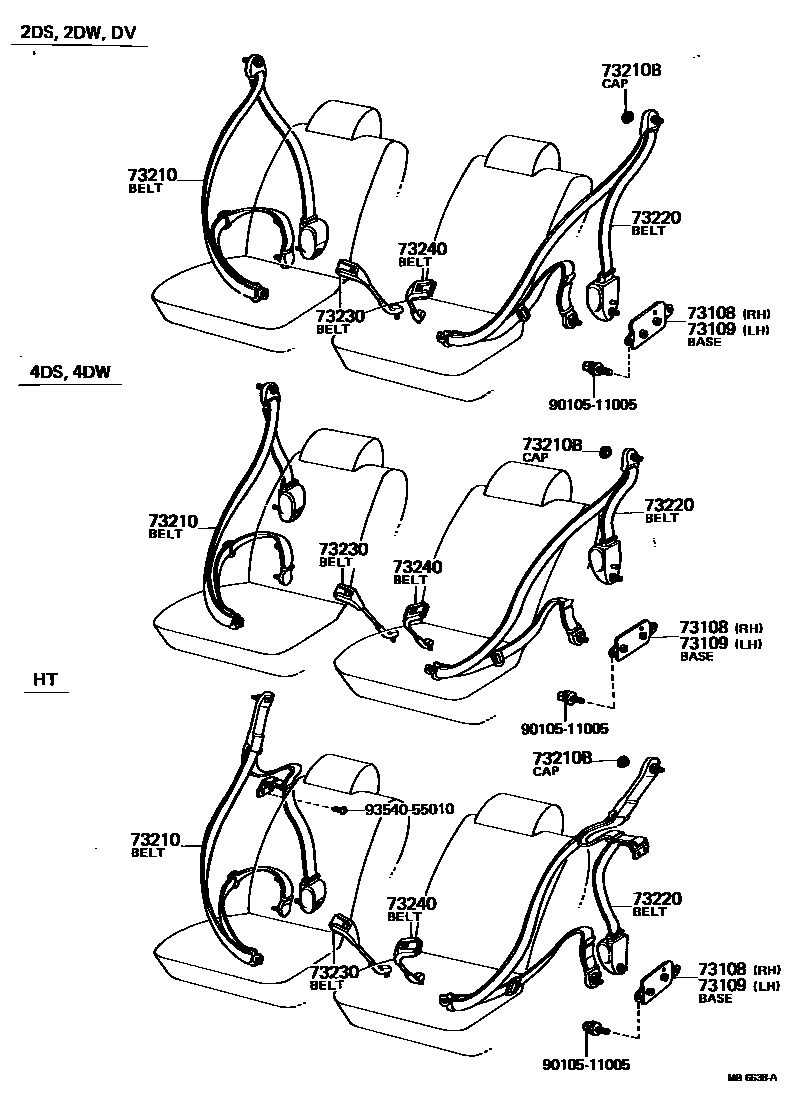

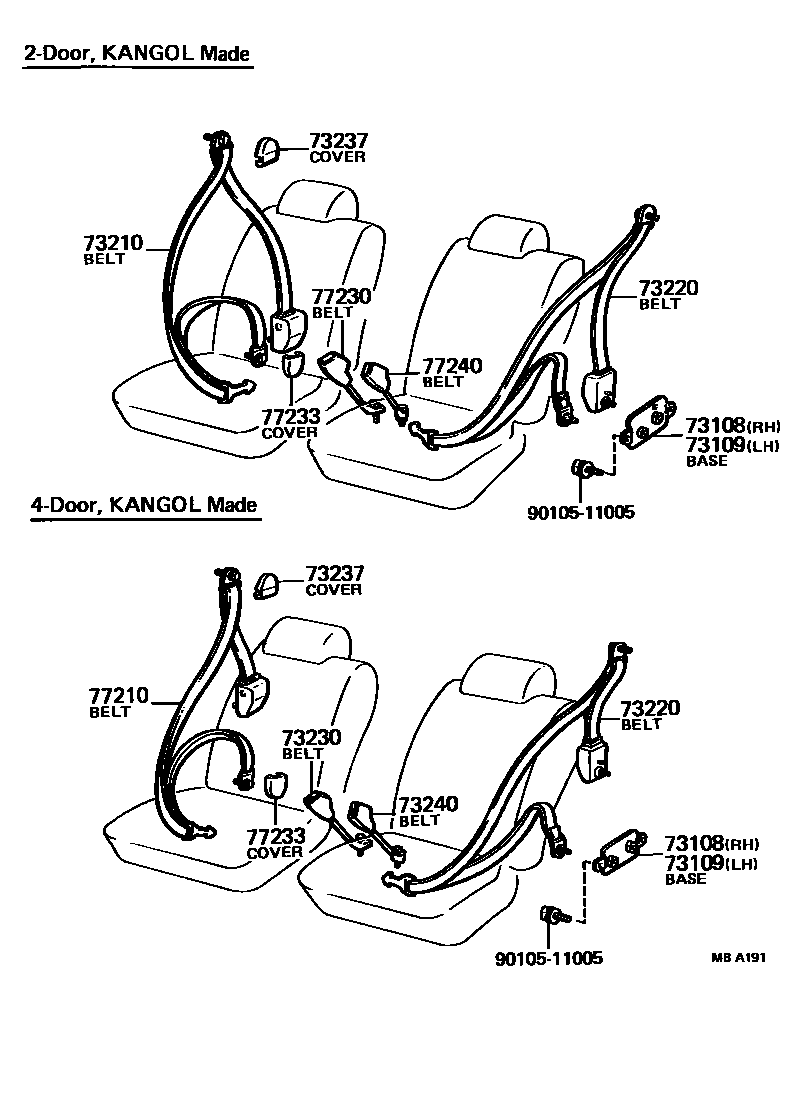

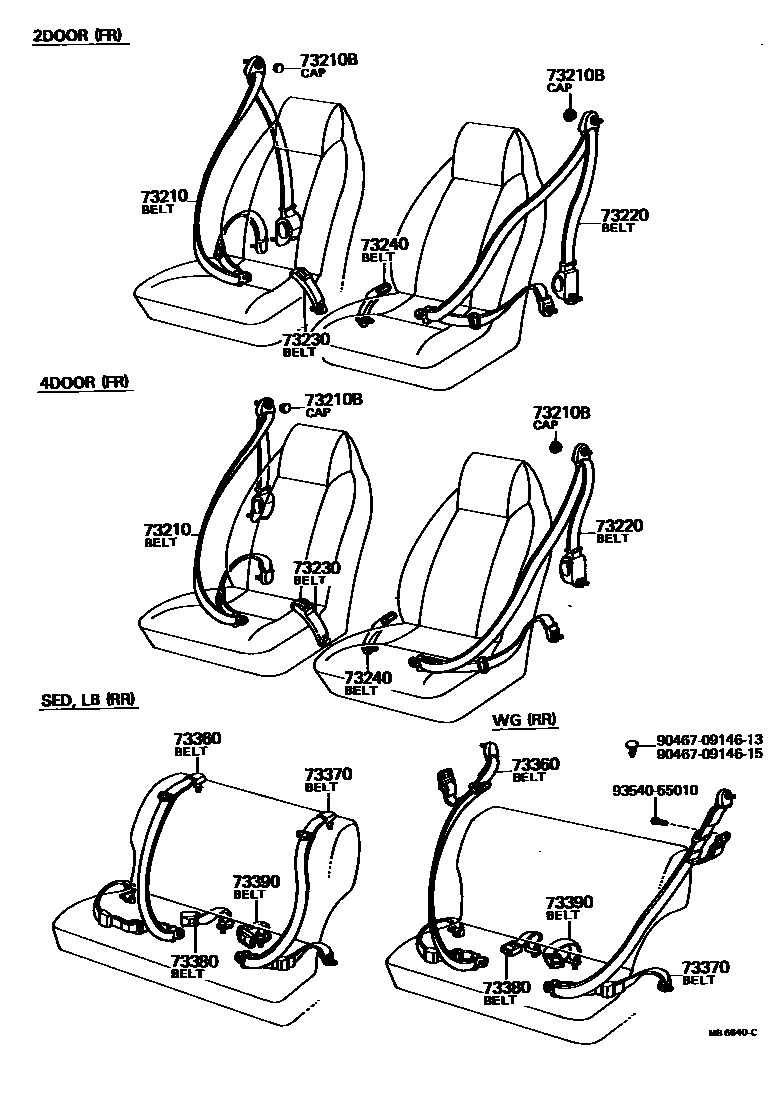

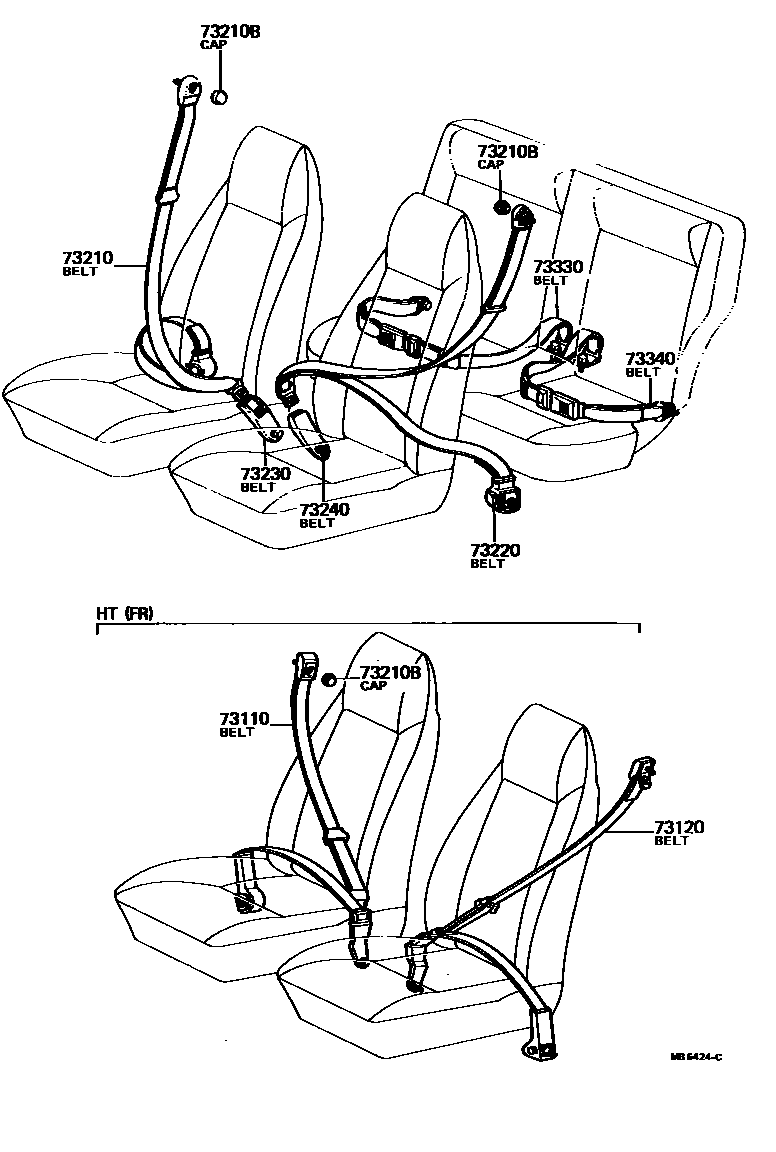

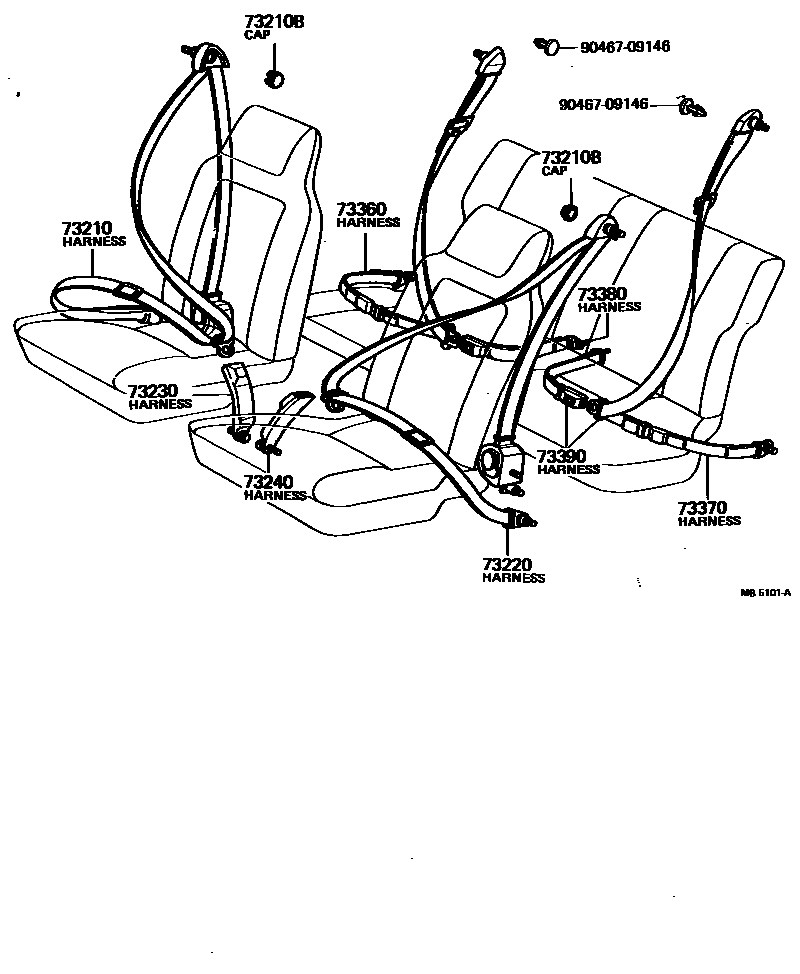

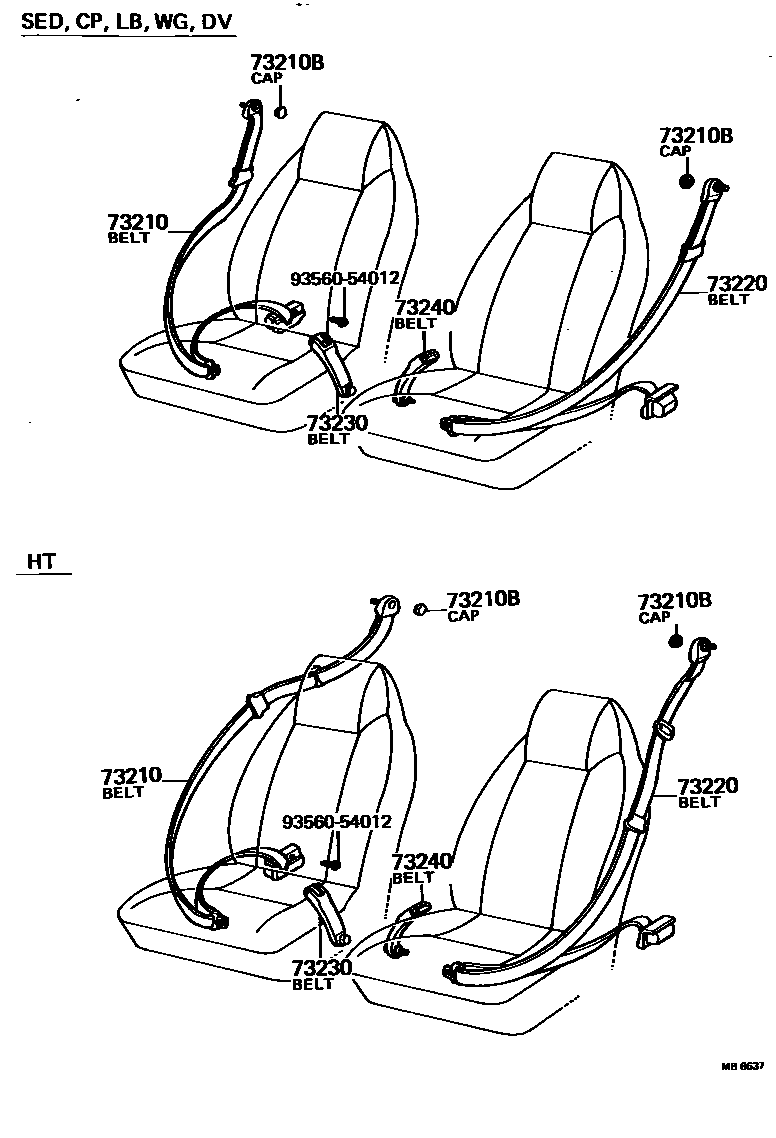

Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104
Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 7 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73108 | Front right seat seat belt anchor base sub-assembly | 73108-12010 |
| 73109 | Front left seat belt anchor base sub-assembly | 73109-12010 |
| 73210 | Front right seat outer seat belt assembly | 73210-12020 · 73210-12030 · 73210-12060 · 73210-13020 · 73210-13050 |
| 73220 | Front left seat outer seat belt assembly | 73210-12020 · 73210-12030 · 73210-12060 · 73210-13020 · 73210-13050 |
| 73230 | Front right seat inner seat belt assembly | 73230-12020 · 73230-12040 · 73230-13010 |
| 73233 | Lap belt outer anchor cover | 73233-13010 |
| 73237 | Shoulder belt anchor cover | 73237-13010 |
| 73240 | Front left seat inner seat belt assembly | 73230-12020 · 73230-12040 · 73230-13010 |
| 73341 | Rear right shoulder seat belt retractor bracket | 73341-12010 · 73341-13010 |
| 73342 | Rear left shoulder seat belt retractor bracket | 73341-12010 · 73341-13010 |
| 73360 | Rear right seat three-point outer seat belt assembly | 73360-12010 · 73360-13010 |
| 73370 | Three-point outer safety belt assembly for the left rear seat | 73360-12010 · 73360-13010 |
| 73380 | Three-point inner safety belt assembly for the right rear seat | 73380-12010 · 73380-13010 |
| 73390 | Three-point inner safety belt assembly for the left rear seat | 73380-12010 · 73380-13010 |
