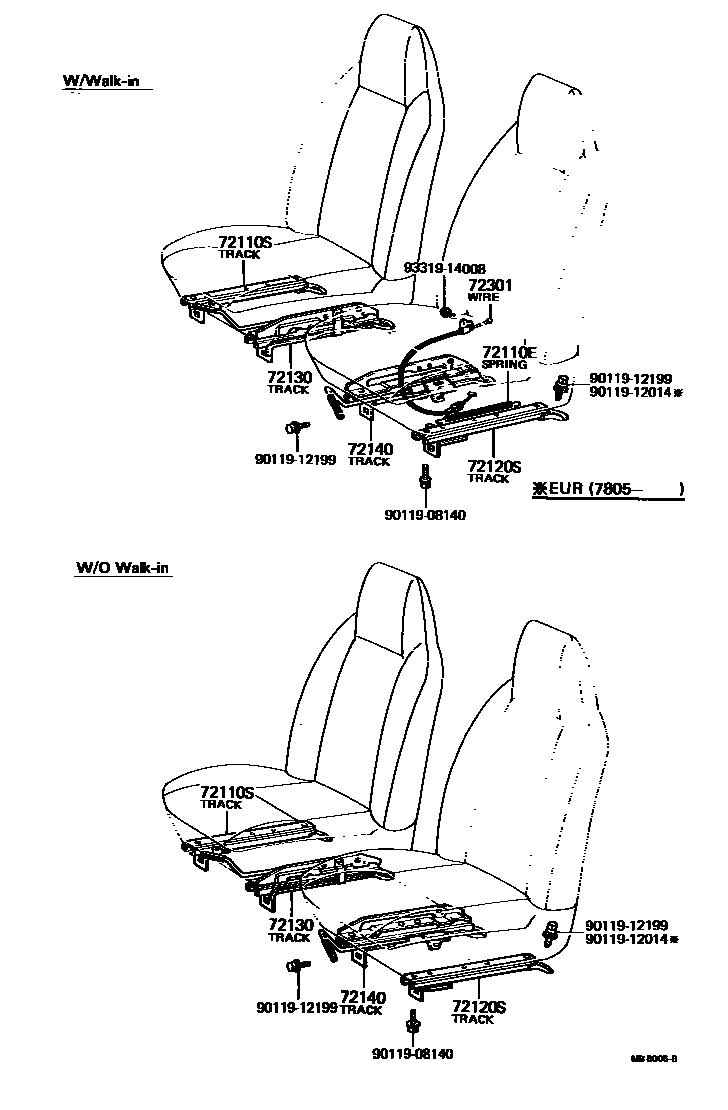

Toyota COROLLA 座椅滑轨 — Figure 7103
Toyota COROLLA EPC diagram 7103, 座椅滑轨, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72110E | No. 1 tensioning spring (for seat slide rail) | 90506-18439 |
| 72110S | Right seat outer slide rail assembly (for separate seats) | 72110-12050 · 72110-12081 · 72110-12100 · 72110-12110 |
| 72120S | Left side seat outer slide rail assembly (for separate seats) | 72120-12050 · 72120-12081 · 72120-12100 · 72120-12110 |
| 72130 | Right seat inner slide rail assembly | 72130-12060 · 72130-12081 · 72130-12100 · 72130-12110 |
| 72140 | Left seat inner slide rail assembly | 72140-12030 · 72140-12061 · 72140-12080 · 72140-12090 |
| 72301 | Seat slide rail balance harness sub-assembly | 72210-12010 · 72210-12020 |
