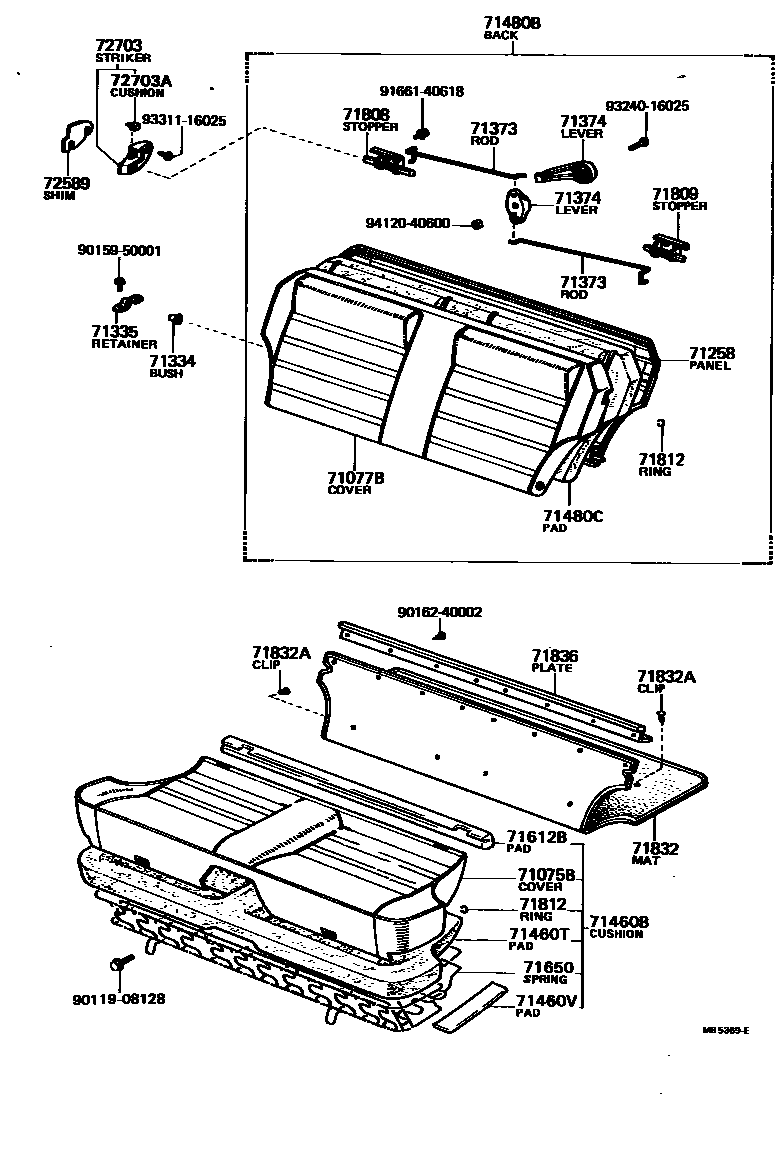

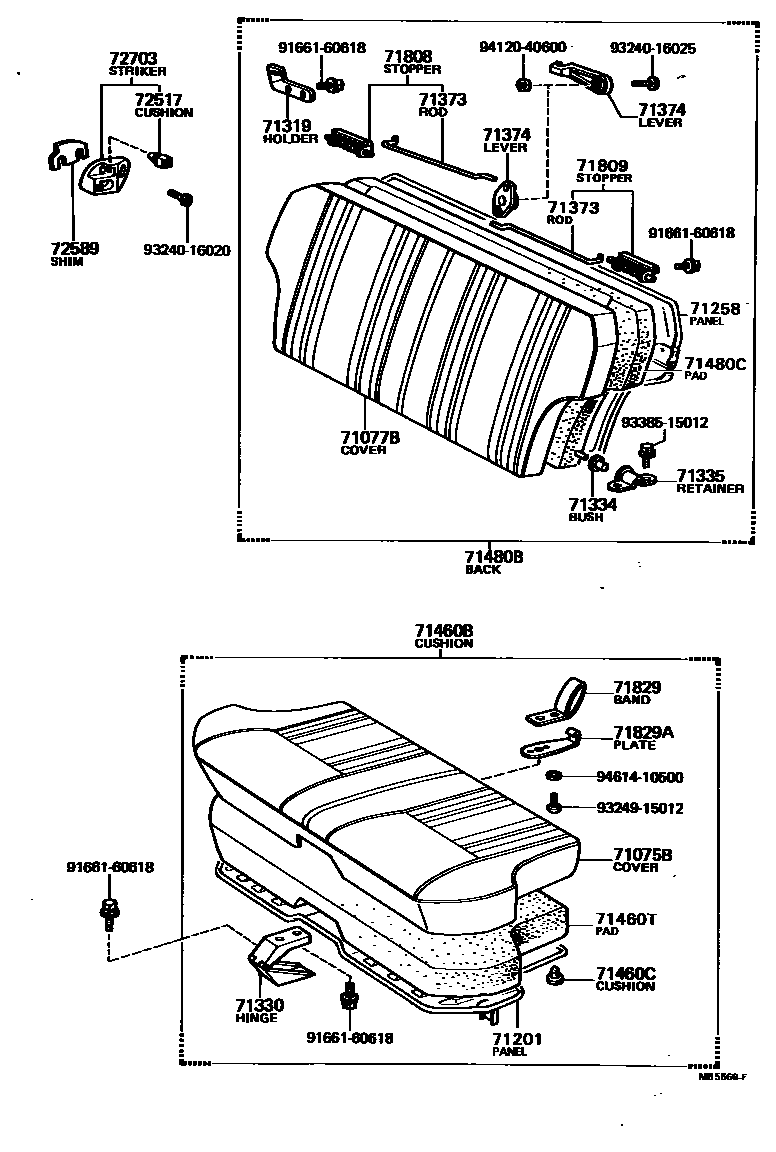

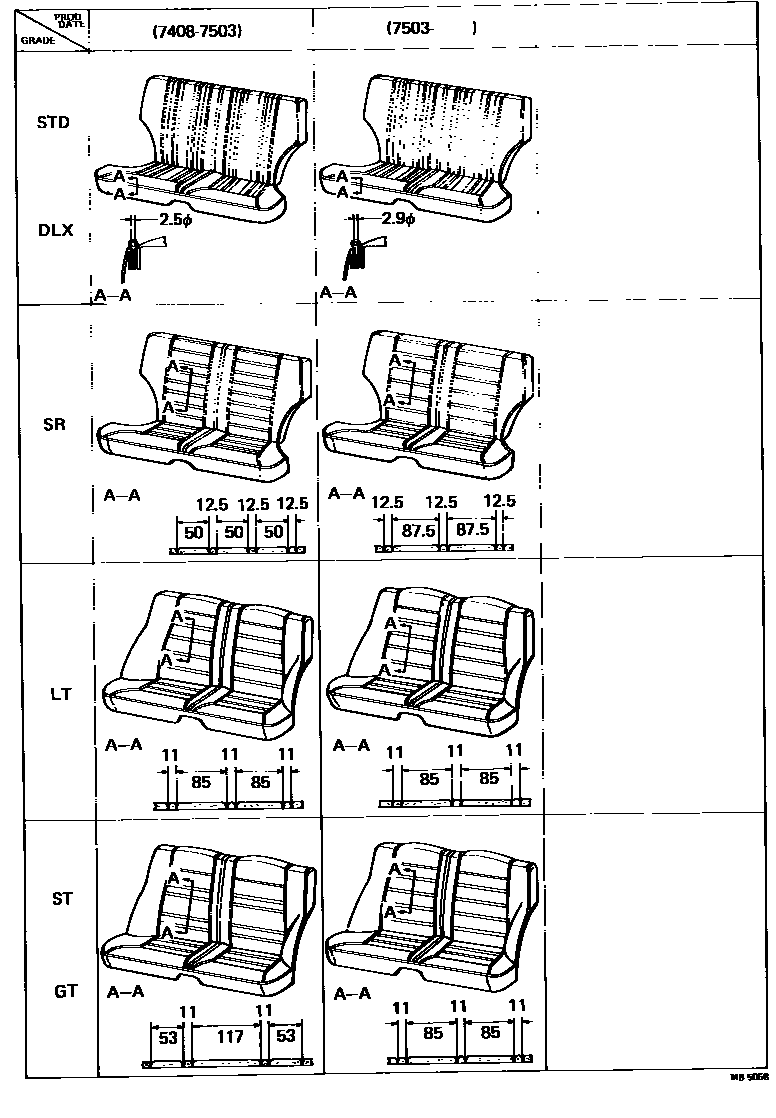

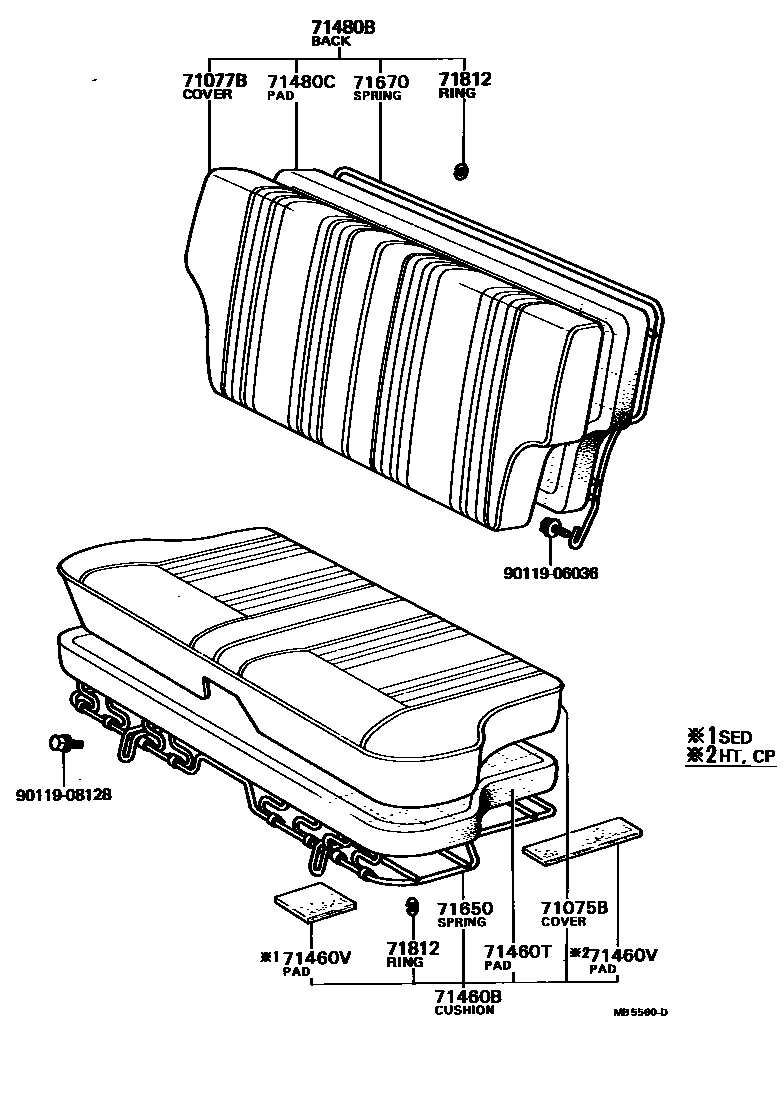

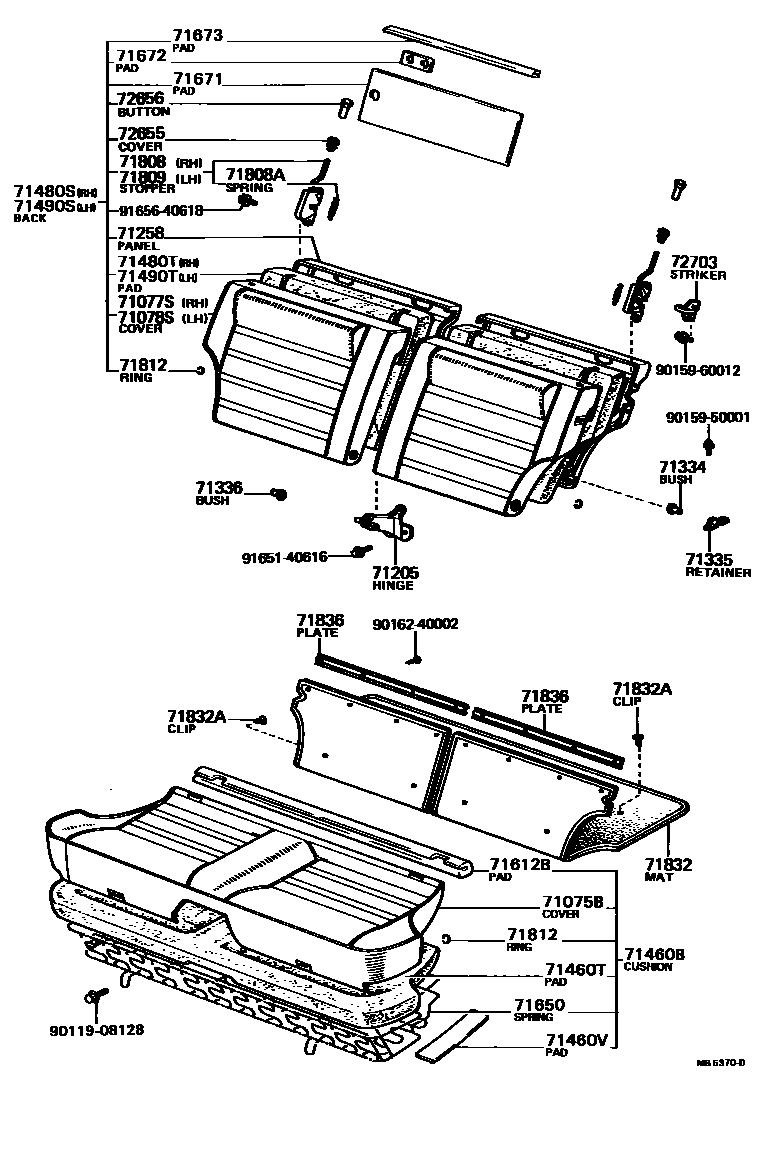

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 6 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71201 | Rear seat cushion panel sub-assembly | 71201-13030 |
| 71205 | Rear outer seat back hinge sub-assembly | 71305-12010 |
| 71258 | Rear seat back panel sub-assembly | 71202-12010 · 71202-12020 · 71202-13080 · 71202-13090 · 71203-12010 |
| 71319 | Rear seat back retainer | 71398-13010 |
| 71330 | Rear seat cushion hinge assembly | 71301-13010 |
| 71334 | Rear seat cushion pivot bushing | 71331-13010 |
| 71335 | Rear seat backrest pivot upper seat ring | 71327-12010 · 71327-13010 |
| 71336 | Rear seat back hinge bushings or spacers | 71331-13010 |
| 71373 | Rear seat back lock lever | 72625-12020 · 72625-13010 · 72626-12020 · 72626-13010 |
| 71374 | Rear seat back lever control lever | 72636-13010 · 72637-13030 · 72638-13010 |
| 71460C | Seat cushion (for rear seat cushion) | 90541-07025 · 90541-09011 |
| 71460T | Rear No. 1 seat cushion cushion sub-assembly | 71405-12071 · 71405-12081 · 71611-12250 · 71621-12130 · 71621-13041 · 71621-13060 |
| 71460V | Rear seat No. 3 seat cushion muffler | 71645-12030 · 71648-12010 |
| 71480C | Rear No. 1 seat back cushion sub-assembly (for bench seat) | 71407-12041 · 71407-12051 · 71661-12110 · 71661-13041 |
| 71480T | Rear right seat back cushion (for split seats) | 71661-12100 |
| 71490T | Rear left seat back cushion (for split seats) | 71662-12010 |
| 71612B | Rear B seat cushion | 71613-12300 |
| 71650 | Rear seat cushion spring assembly | 71650-12111 · 71650-12120 · 71650-12130 · 71650-12150 |
| 71670 | Rear seat back spring assembly (for bench seat) | 71670-12051 · 71670-12061 |
| 71671 | Rear A seat back muffler | 71663-12060 |
| 71672 | Rear B seat back muffler | 71689-12010 |
| 71673 | Rear C seat back muffler | 71899-12010 |
| 71808 | Rear right seat backrest block sub-assembly | 72630-12010 · 72630-12020 · 72630-13020 · 72630-13030 |
| 71808A | Rear seat back limit spring | 90506-08003 |
| 71809 | Rear left seat backrest block sub-assembly | 72640-12010 · 72640-12020 · 72640-13020 · 72640-13030 |
| 71829A | Rear seat cushion strap support plate | 71897-13020 |
| 71836 | Rear seat backrest felt pad or backrest pad support plate | 71882-12010 |
| 72517 | Rear seat backrest stop cushion | 90541-06141 |
| 72589 | Rear seat back stop gasket | 72589-13030 · 72589-91060 · 72669-13010 |
| 72655 | Rear seat backrest stopper handle cover | 72655-20020 |
| 72656 | Rear seat back stop release button | 72656-20010 |
| 72703 | Rear seat backrest block lock sub-assembly | 72601-12010 · 72601-12020 · 72601-13020 · 72604-12010 · 72604-12020 · 72604-13020 |
| 72703A | Rear seat backrest stop lock cushion | 90541-06065 |
