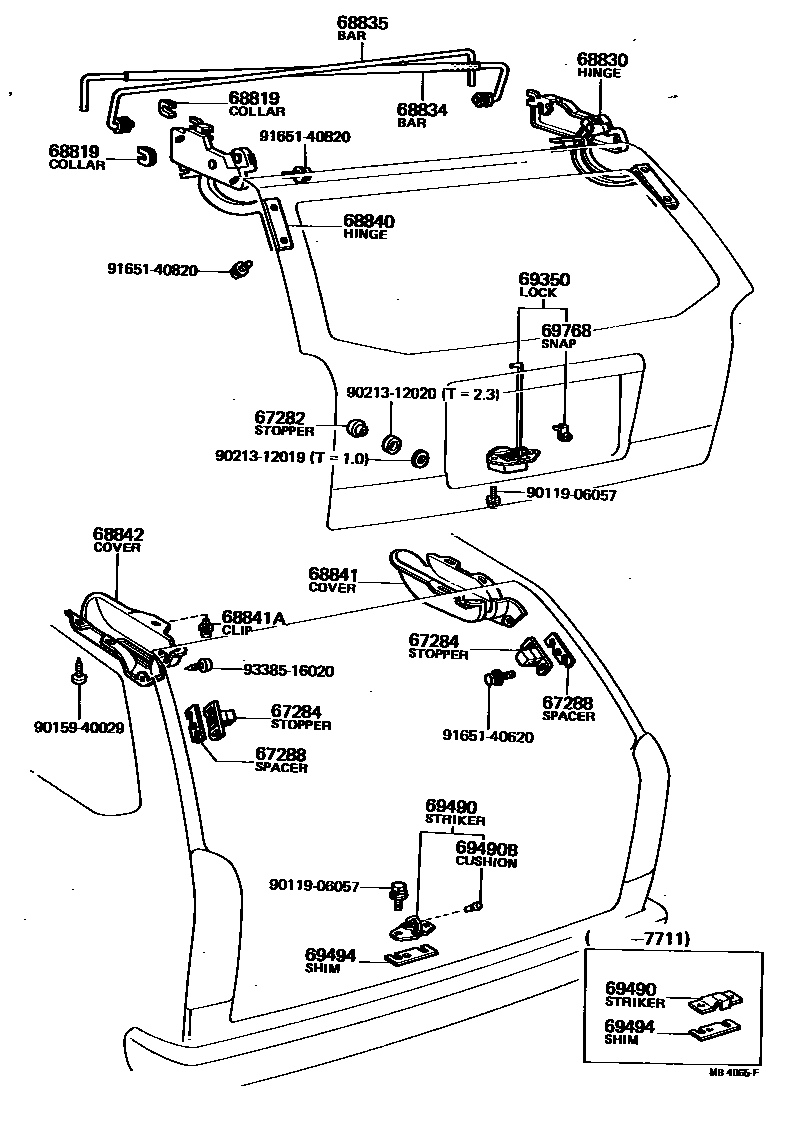

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67282 | No. 1 rear door stop | 67281-13030 |
| 67284 | No. 2 rear door stop | 61778-13030 |
| 67288 | Back door side stop upper spacer | 67295-13010 · 67296-13010 |
| 68819 | Torsion bar support ring No. 1 | 68847-13020 |
| 68830 | Back door right hinge assembly | 68801-13040 · 68810-12010 |
| 68834 | Rear door right torsion bar | 68807-13040 · 68807-13050 · 68807-13060 |
| 68835 | Rear door left torsion bar | 68808-13040 · 68808-13050 · 68808-13060 |
| 68838 | Back door hinge No. 1 gasket | 68863-12010 |
| 68839 | Back door hinge No. 2 gasket | 68861-12020 · 68862-12010 |
| 68840 | Back door left hinge assembly | 68802-13040 · 68802-13070 · 68820-12010 |
| 68841 | Right torsion bar cover | 68841-13030 |
| 68842 | Left torsion bar cover | 68842-13030 |
| 68970 | Back door right support rod assembly | 68950-12010 |
| 68977 | Rear door support rod bracket | 68955-12010 |
| 68980 | Back door support rod assembly | 68950-12010 |
| 69350 | Rear door lock assembly | 69350-12010 · 69350-13030 · 69350-13031 |
| 69350A | Spring (for rear door lock) | 90506-08107 |
| 69490 | Back door lock assembly | 69430-12010 · 69430-15010 · 69451-21010 |
| 69490A | Spring (for rear door latch) | 90501-07484 |
| 69490B | Cushion pad (for rear door latch) | 90541-06002 |
| 69494 | Back door latch gasket | 69469-91256 · 69469-91257 |
| 69768 | Rear door lock control link buckle | 69768-21010 |
