Toyota COROLLA 背门板和背门玻璃 — Figure 6708

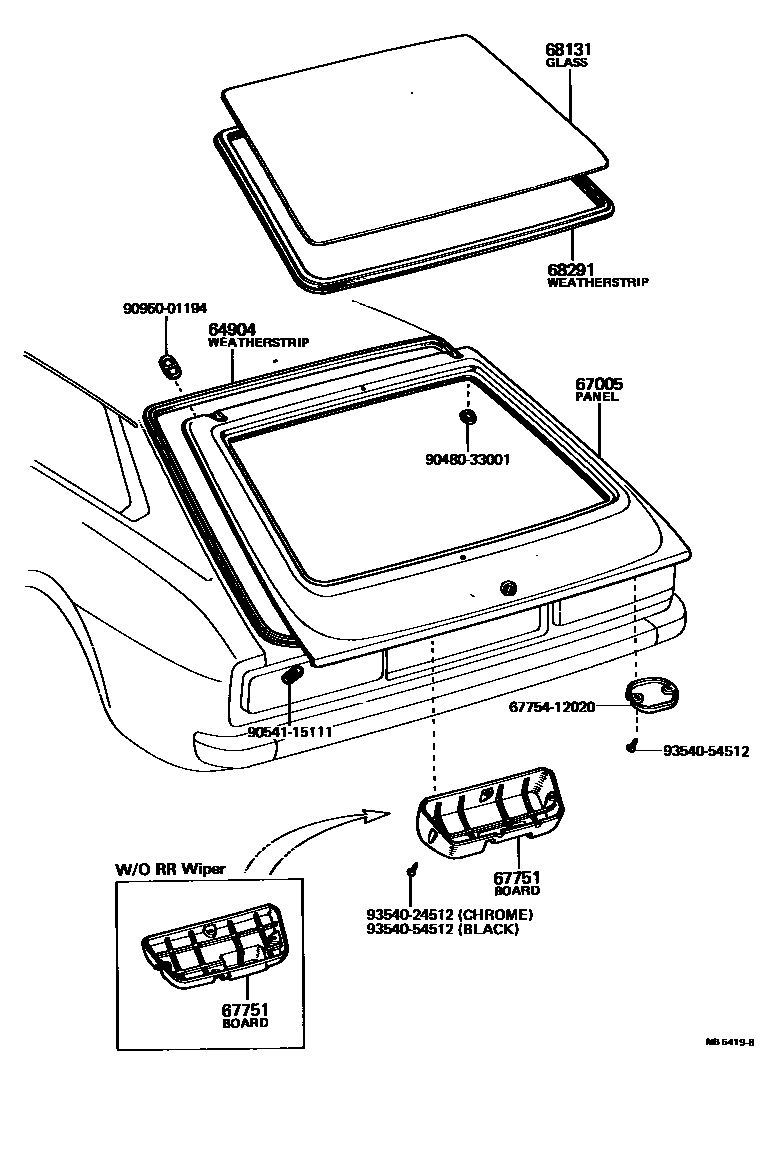

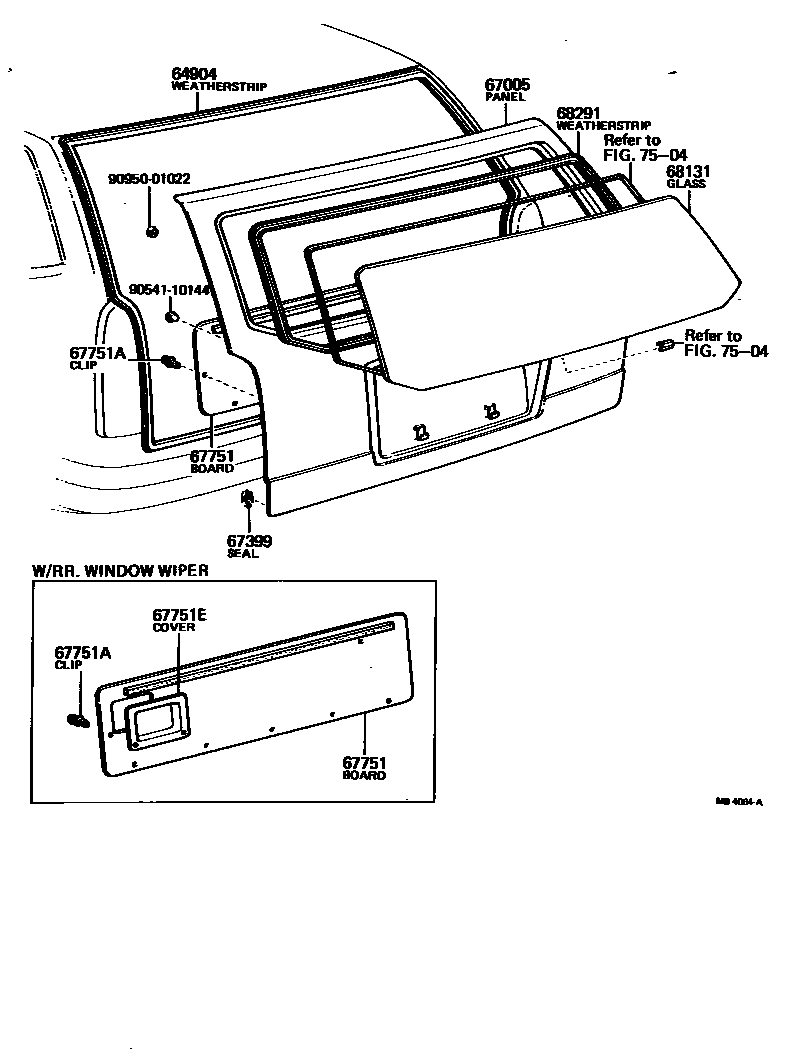

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64904 | Rear door sealing strip sub-assembly | 67881-12010 · 67881-13030 |
| 67005 | Rear door panel sub-assembly | 67005-12010 · 67005-12020 · 67005-12050 · 67005-12060 · 67005-13100 · 67005-13210 · 67005-13220 · 67005-13240 |
| 67399 | Back door drain hole dust seal | 67399-13010 |
| 68131 | back door glass | 68105-12010 · 68105-12020 · 68105-12030 · 68105-13030 · 68105-13040 · 68131-12030 · 68131-13090 · 68131-13110 |
| 68291 | Rear door glass seal strip | 68291-12010 · 68291-13060 |
