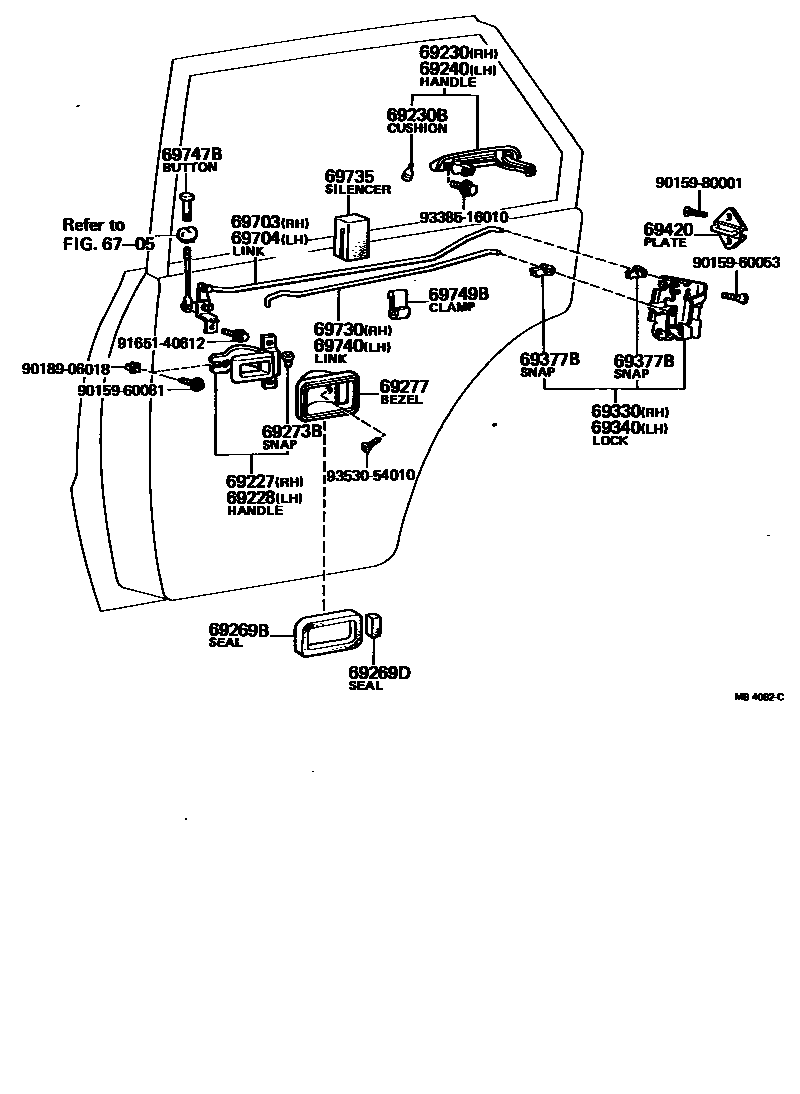

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69227 | Right rear door inner handle | 69207-10010 |
| 69228 | Left rear door inner handle | 69208-10010 |
| 69230 | Right rear door outer handle assembly | 69230-12030 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-03021 |
| 69240 | Left rear door outer handle assembly | 69240-12030 |
| 69269B | Door No. 1 inner handle seal (for rear door) | 69269-12010 |
| 69269D | Door No. 2 inner handle seal (for rear door) | 69289-12010 |
| 69273B | Inner door handle lever buckle (for rear door) | 69279-12010 |
| 69277 | Rear door inner handle frame | 69276-10012 |
| 69330 | Right rear door door lock assembly | 69330-12040 · 69330-20040 |
| 69340 | Left rear door lock assembly | 69340-12040 · 69340-20040 |
| 69377B | Rear door lock lever buckle | 69377-30020 |
| 69420 | Rear door lock plate assembly | 69410-20050 |
| 69703 | Right rear door lock control link sub-assembly | 69730-12030 |
| 69704 | Left rear door lock control link sub-assembly | 69740-12030 |
| 69730 | Right rear door opening control linkage assembly | 69713-12010 |
| 69735 | Rear door lock link silencer | 69759-12011 |
| 69740 | Left rear door opening control linkage assembly | 69714-12020 |
| 69747B | Door lock button (for rear doors) | 69741-20020 · 69747-30012 |
| 69749B | Rear door lock link clamp | 69749-12010 |
