Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

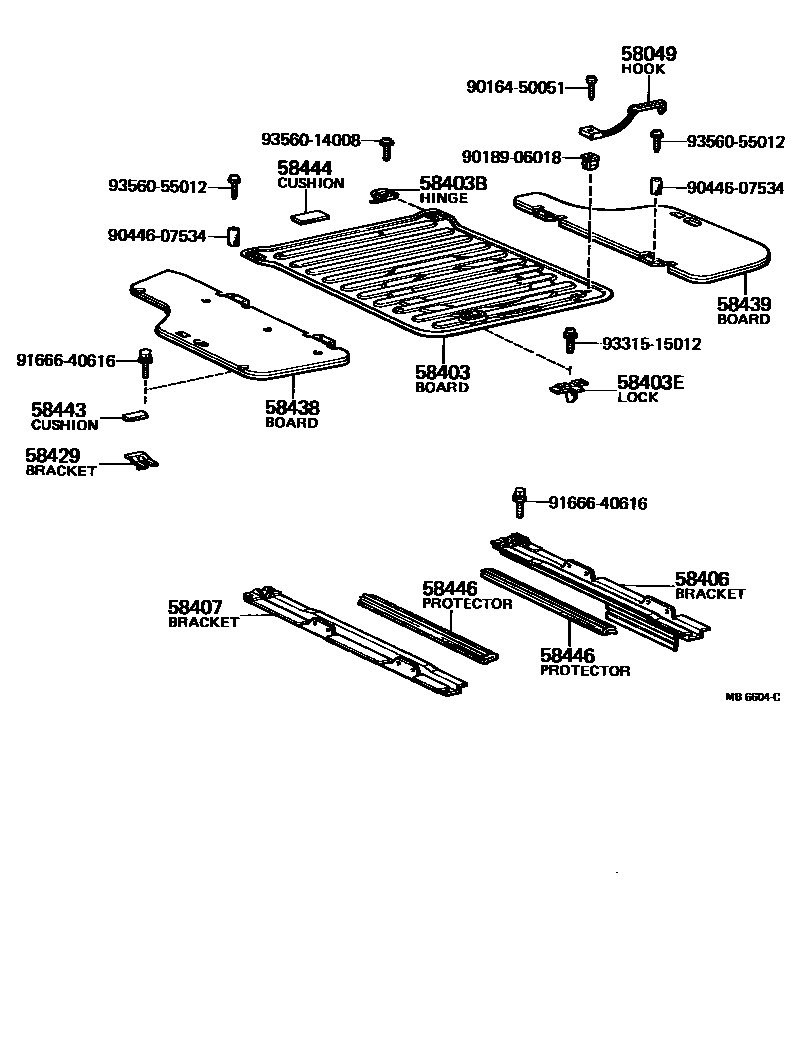

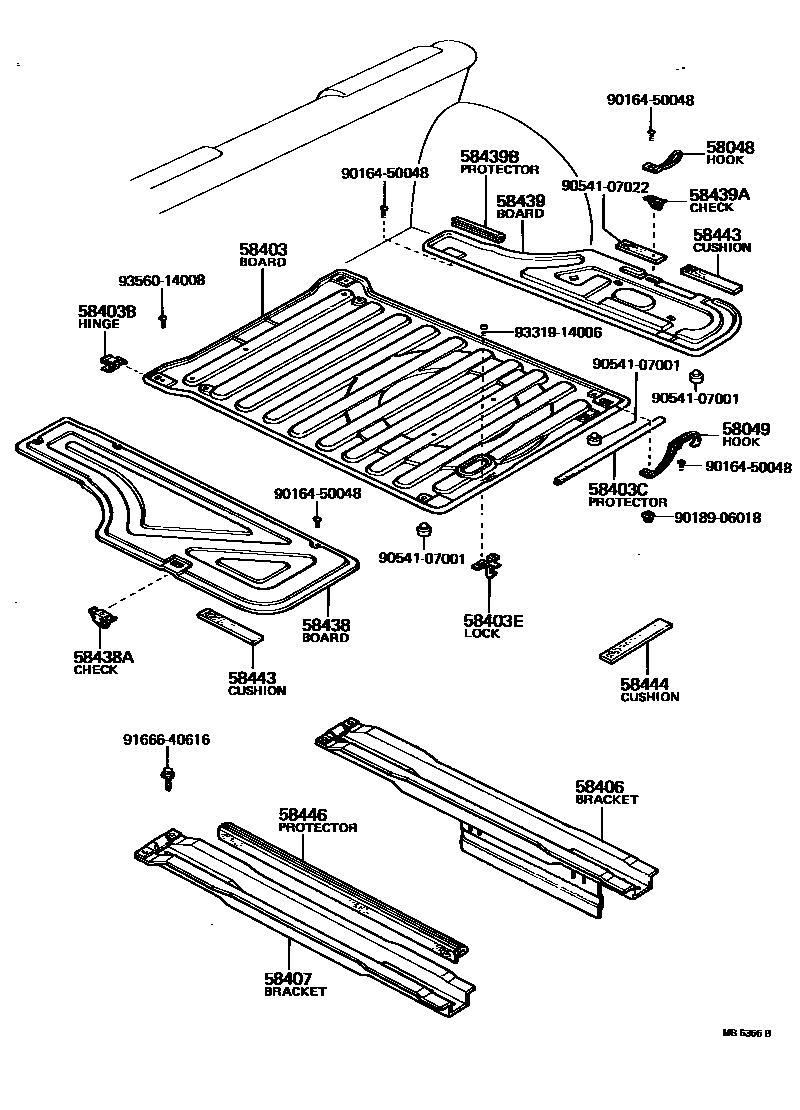

| 58048 | Bottom plate hook No. 1 | 58048-12010 |
| 58049 | Bottom plate hook No. 2 | 58049-12010 |

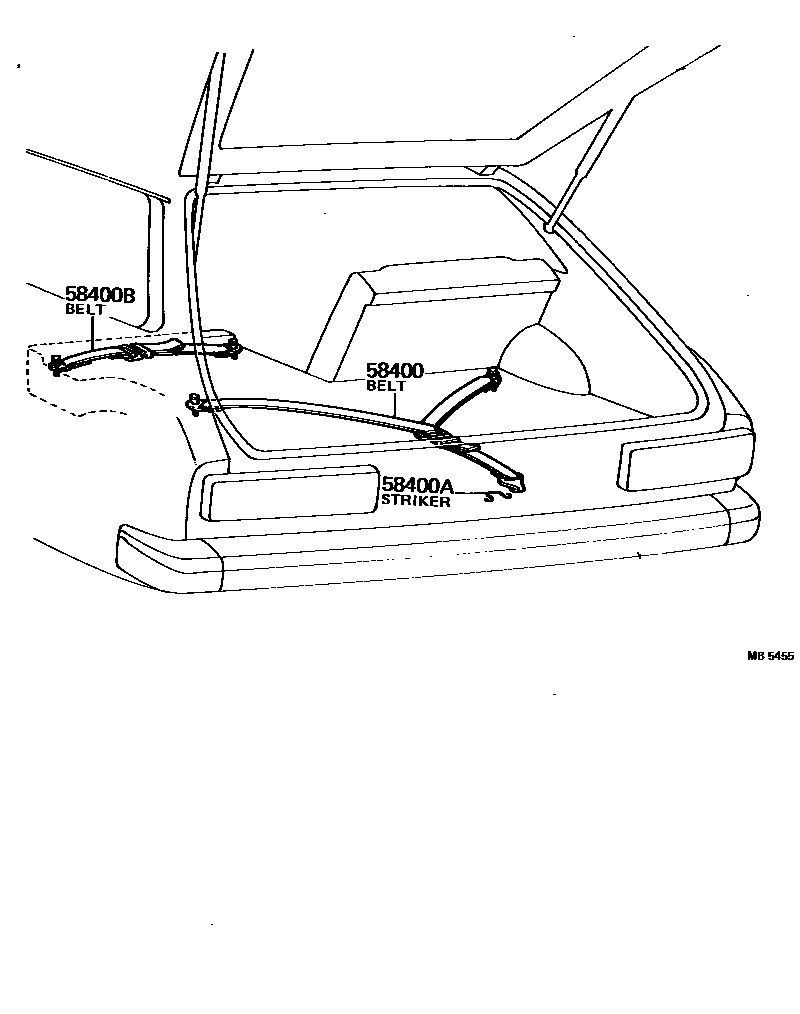

| 58400A | Suitcase fixing strap lock | 58461-14010 |
| 58403 | Floor sub-assembly | 58408-12900 · 58408-12901 · 58412-12900 |
| 58403B | base hinge | 58482-12010 |
| 58403C | Bottom plate protective cover No. 2 | 58478-12010 |
| 58403E | Bottom plate lock assembly | 58405-12010 |
| 58406 | Base plate right bracket sub-assembly | 58406-12020 · 58406-12030 |
| 58407 | Base plate left bracket sub-assembly | 58407-12010 · 58407-12020 |
| 58429 | No. 4 bottom plate bracket | 58427-12010 |
| 58438 | Base plate No. 2 | 58438-12010 · 58438-12020 |
| 58438A | Bottom plate limiter No. 2 | 58414-12020 |
| 58439 | Bottom plate No. 1 | 58401-12900 · 58411-12030 |
| 58439A | Bottom plate limiter No. 1 | 58414-12020 |
| 58439B | Base plate protective cover No. 1 | 58477-12010 |
| 58443 | Base plate cushion No. 1 | 58443-12010 · 58445-12010 · 58445-12020 |
| 58444 | Base plate cushion No. 2 | 58444-12010 |
| 58446 | Bottom bracket protector | 58446-12010 · 58446-12020 |

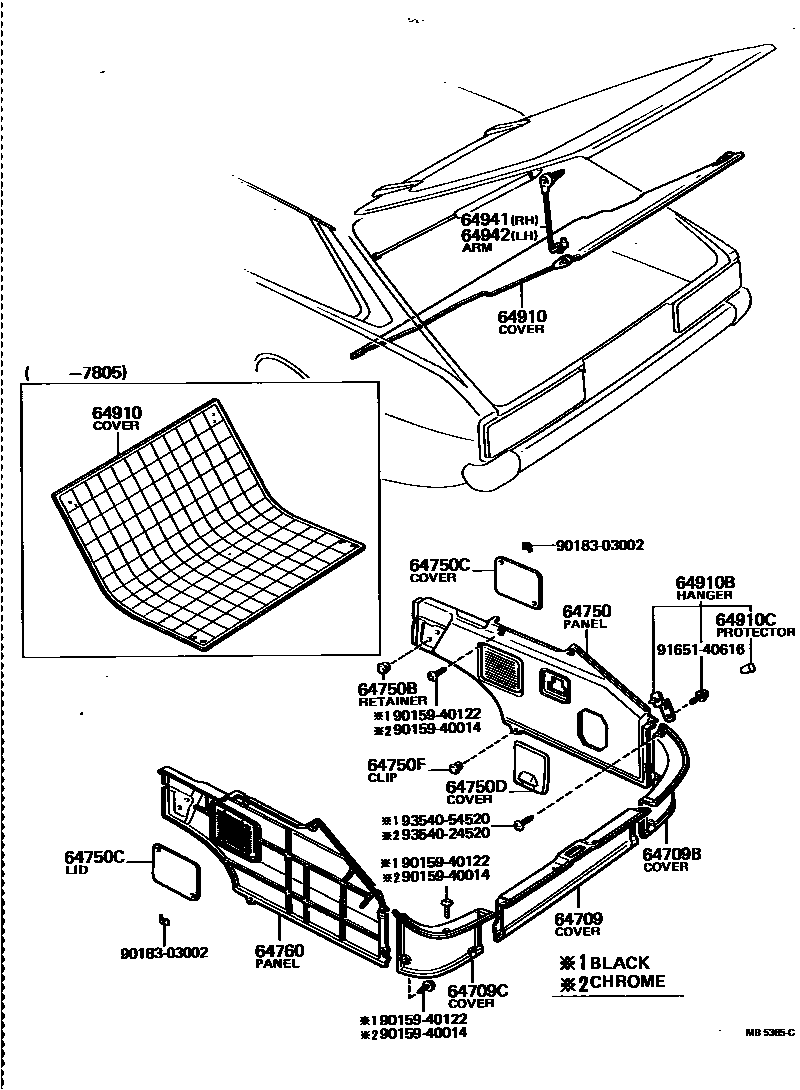

| 64750C | Speaker grille floor side decorative cover | 64795-12010 |
| 64910 | Luggage cover assembly | 64902-12010 |
| 64910B | Luggage cover hanger | 64903-12010 · 64904-12010 |
| 64910C | Luggage cover hanger protection parts | 64934-12010 |
| 64941 | Right trunk trim cover lift arm sub-assembly | 64905-12010 |
| 64942 | Left trunk trim cover lift arm sub-assembly | 64906-12010 |
