Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

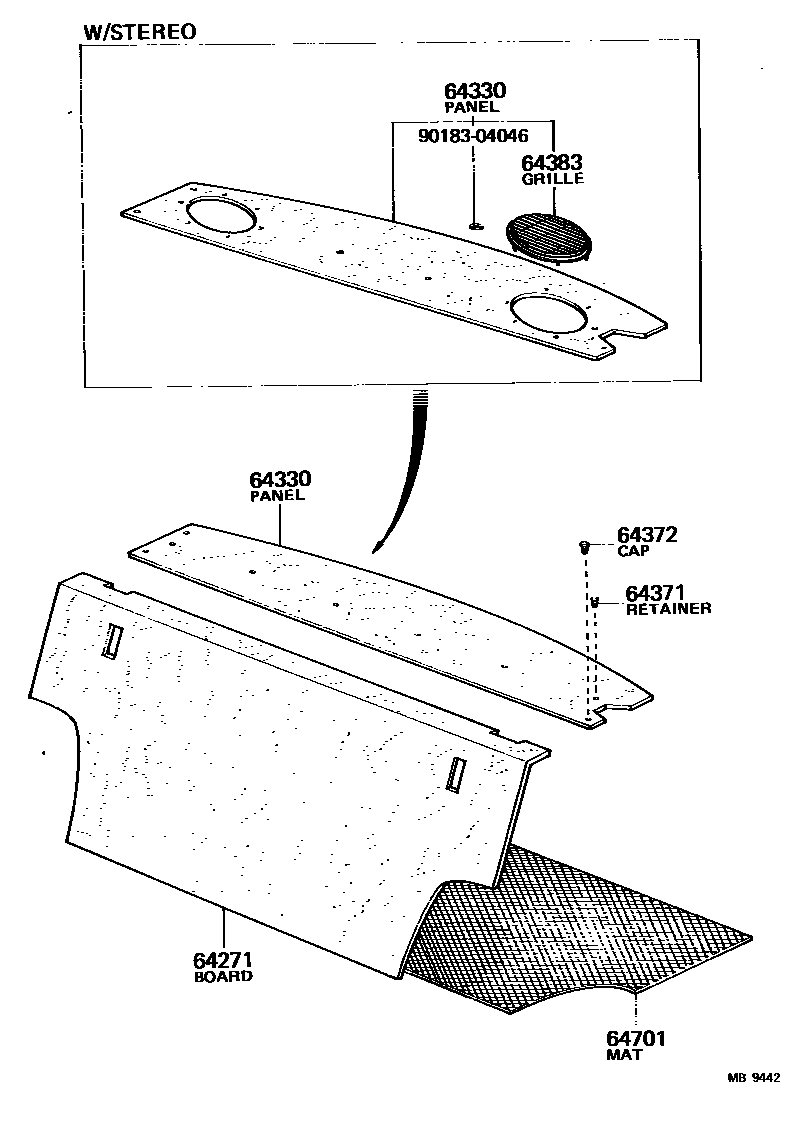

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64271 | No. 1 compartment partition | 64271-12030 |
| 64330 | Glove box decorative panel assembly | 64330-12100 · 64330-12110 · 64330-12120 · 64330-12130 · 64330-12140 · 64330-12150 |
| 64372 | Glove box decorative cover | 90467-14077 |
| 64383 | rear speaker grille | 64383-22011 |
| 64701 | Luggage pad assembly | 64701-12020 · 64711-12040 · 64711-12050 |
