Toyota COROLLA 角窗 — Figure 6103

Toyota COROLLA EPC diagram 6103, 角窗, with 3 images and 40 PNC and OE references.

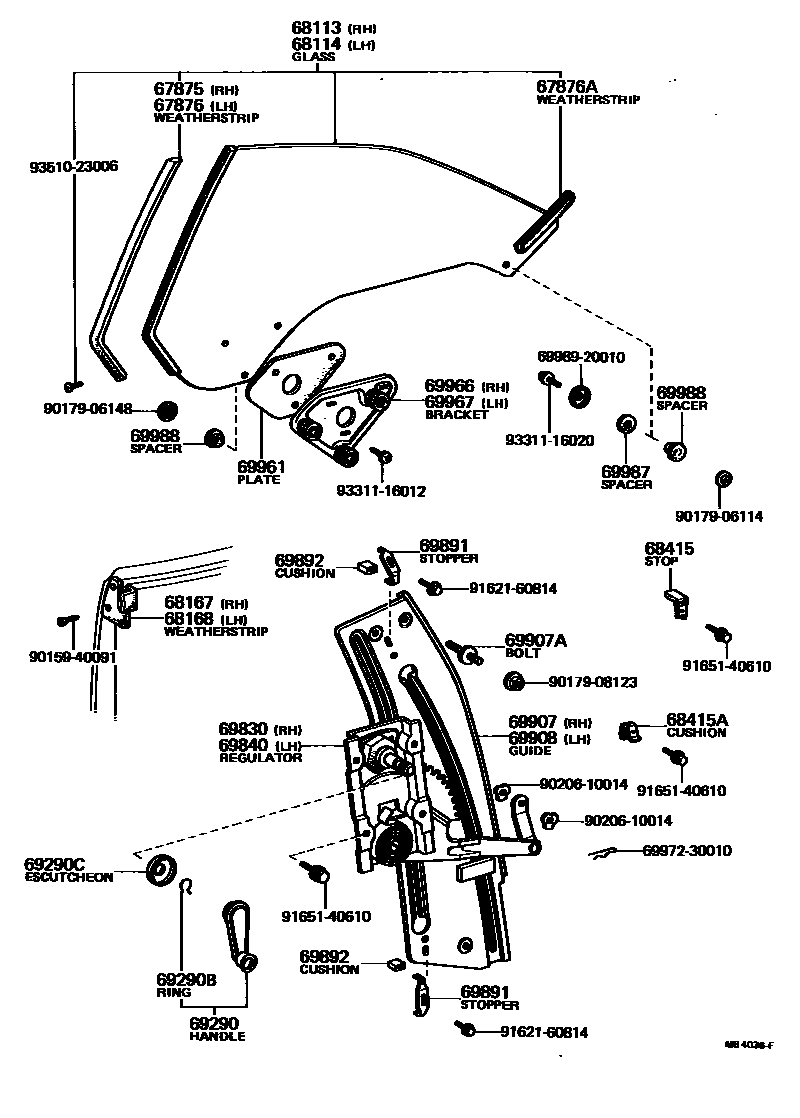

Toyota COROLLA 角窗 EPC diagram — MB4036F
角窗 — MB4036F (197408 – 999999)

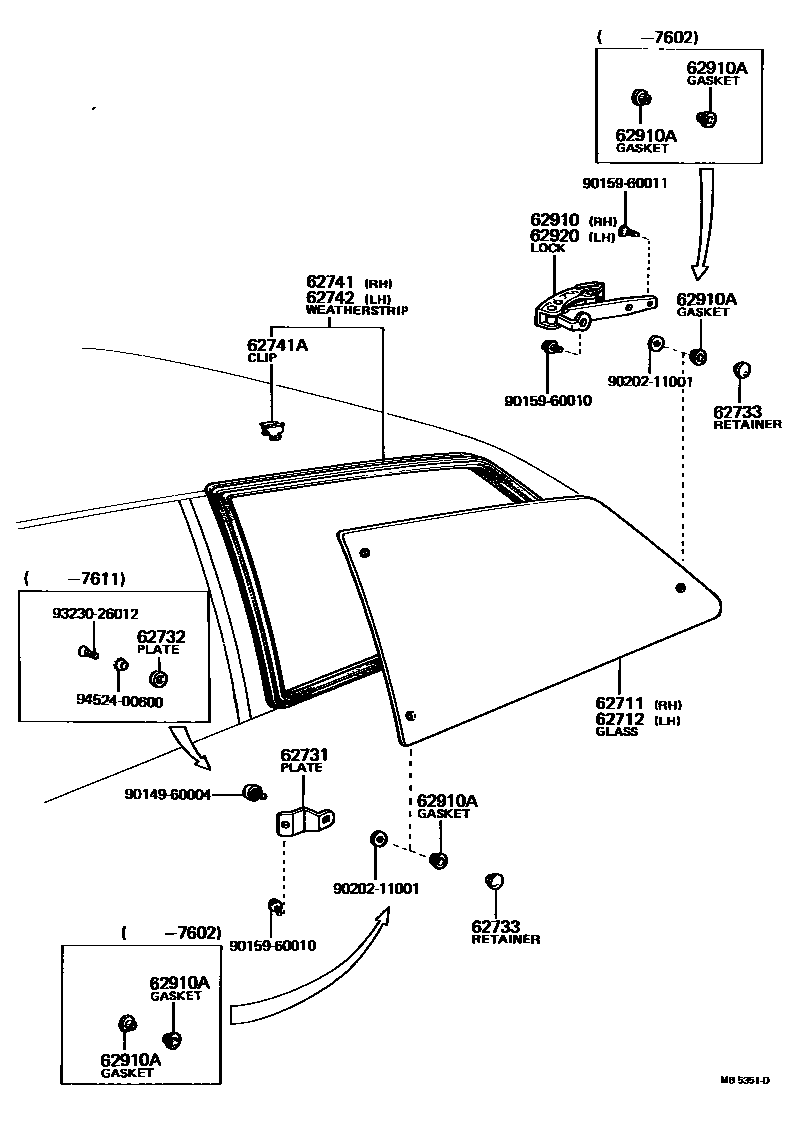

Toyota COROLLA 角窗 EPC diagram — MB5351D
角窗 — MB5351D (197408 – 999999)

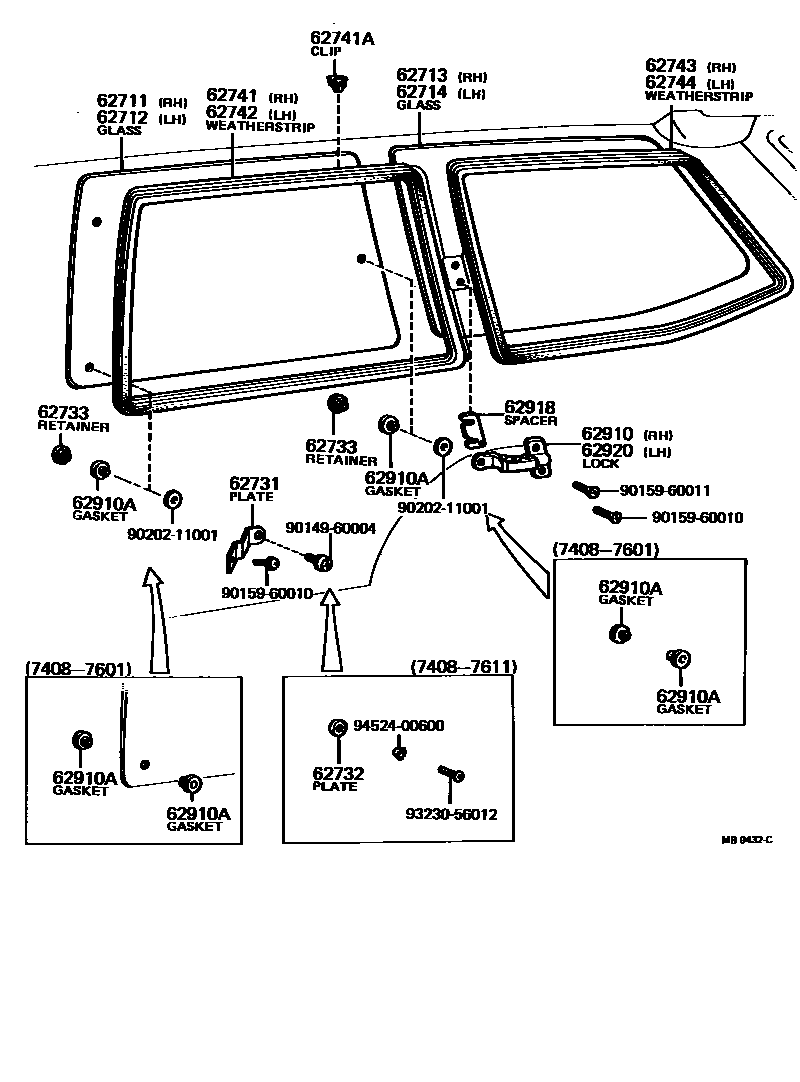

Toyota COROLLA 角窗 EPC diagram — MB9432C
角窗 — MB9432C (197408 – 999999)

PNC and OE references

PNCPart nameOE numbers
62711Right corner window glass62711-12130 · 62711-12131 · 62711-12140 · 62711-12141 · 62711-12160 · 62711-12161 · 62711-12210 · 62711-12230 · 62711-13040 · 62711-13041 · 62711-13050
62712Left corner window glass62712-12130 · 62712-12131 · 62712-12140 · 62712-12141 · 62712-12160 · 62712-12161 · 62712-12210 · 62712-12230 · 62712-13040 · 62712-13041 · 62712-13050
62713Right rear corner window glass62713-13060
62714left rear corner window glass62714-13060
62731Corner or side window hinge panels62731-12040 · 62731-12050 · 62731-12051 · 62731-12052 · 62731-12060 · 62731-12061 · 62731-12062 · 62731-13020 · 62731-13021 · 62731-13022
62732Corner or side window hinge trim62732-12010 · 62739-12010 · 62739-12011
62733Corner or side window hinge fixings62733-12010 · 62735-12010
62741Right corner window sealing strip62741-12050 · 62741-12060 · 62741-12070 · 62741-13030 · 62741-13040
62741ACorner window sealing strip clip62759-12010
62742Left corner window sealing strip62742-12050 · 62742-12060 · 62742-12070 · 62742-13030 · 62742-13040
62743Right rear corner window sealing strip62743-13040
62744Left rear corner window sealing strip62744-13040
62910Right corner window or side window lock assembly62910-12040 · 62910-12041 · 62910-12042 · 62910-12050 · 62910-12051 · 62910-12052 · 62910-12060 · 62910-12070 · 62910-13030 · 62910-13031 · 62910-13032
62910APads (for corner or side window locks or hinges)62734-12010 · 62737-12010 · 90385-11001
62918Corner window lock bracket spacer62928-13010 · 62928-13011
62920Left corner window lock assembly62910-12050 · 62910-12051 · 62910-12052 · 62910-12060 · 62920-12010 · 62920-12011 · 62920-12012 · 62920-12020 · 62920-13030 · 62920-13031 · 62920-13032
67875Right rear corner window glass seal strip67081-12010 · 67081-12011
67876Left rear corner window glass sealing strip67082-12010 · 67082-12011
67876ACorner window glass lower sealing strip67883-12010 · 68169-14010
68113Right corner window glass62071-12090 · 62071-12100 · 62071-12120
68114Left corner window glass62072-12090 · 62072-12100 · 62072-12120
68167Right rear corner window front corner sealing strip67941-12010
68168Left rear corner window front corner sealing strip67942-12010
68415Rear corner window glass upper stopper67241-20020
68415ACushion (for corner window glass stop)68139-12010
69290Corner window lift handle assembly69260-12010 · 69260-14010
69290BSnap ring (for corner window lift handle)90520-01002 · 90520-01274
69290CEscutcheon (for corner window lift handle)69266-22010 · 69285-22010
69830Right rear corner window lift assembly69830-12060 · 69830-12061 · 69830-12062
69840Left rear corner window lift assembly69840-12060 · 69840-12061 · 69840-12062
69891Corner window glass upper stop69891-14020
69892Corner window glass stop cushion69892-14020
69907Right corner window lifter roller guide sub-assembly67435-12010
69907ANo. 1 studs (for corner window lift roller guide)90116-08294
69908Left corner window lifter roller guide sub-assembly67436-12010
69961Rear corner window glass bracket plate69985-12010
69966Right rear corner window glass bracket69905-12030
69967Left rear corner window glass bracket69906-12030
69987Corner window glass fixing with spacer69988-20010
69988Corner window glass spacer69988-30010
