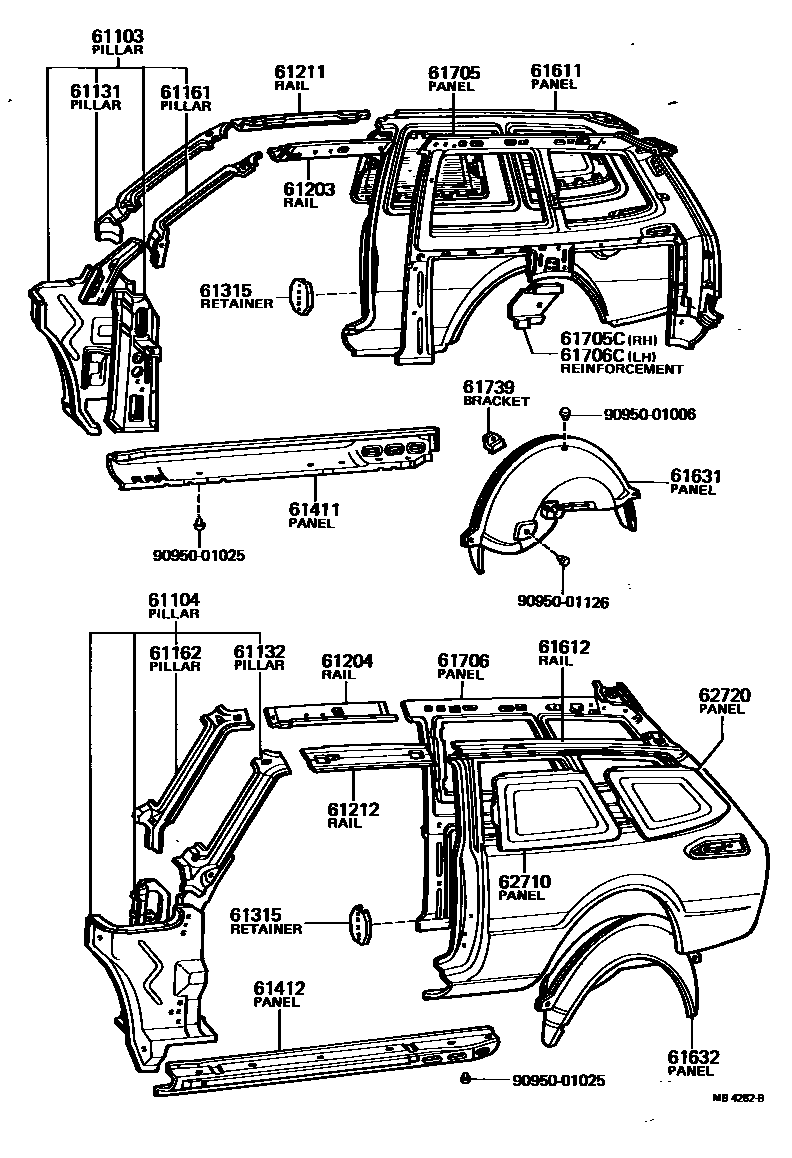

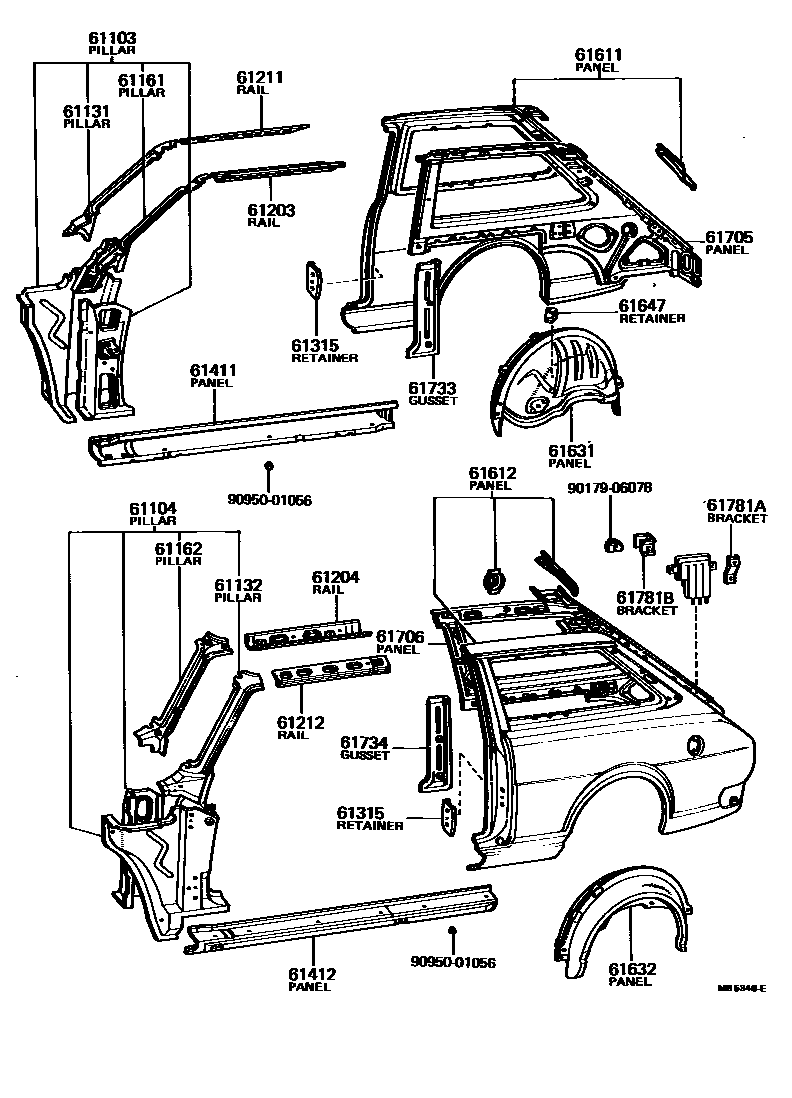

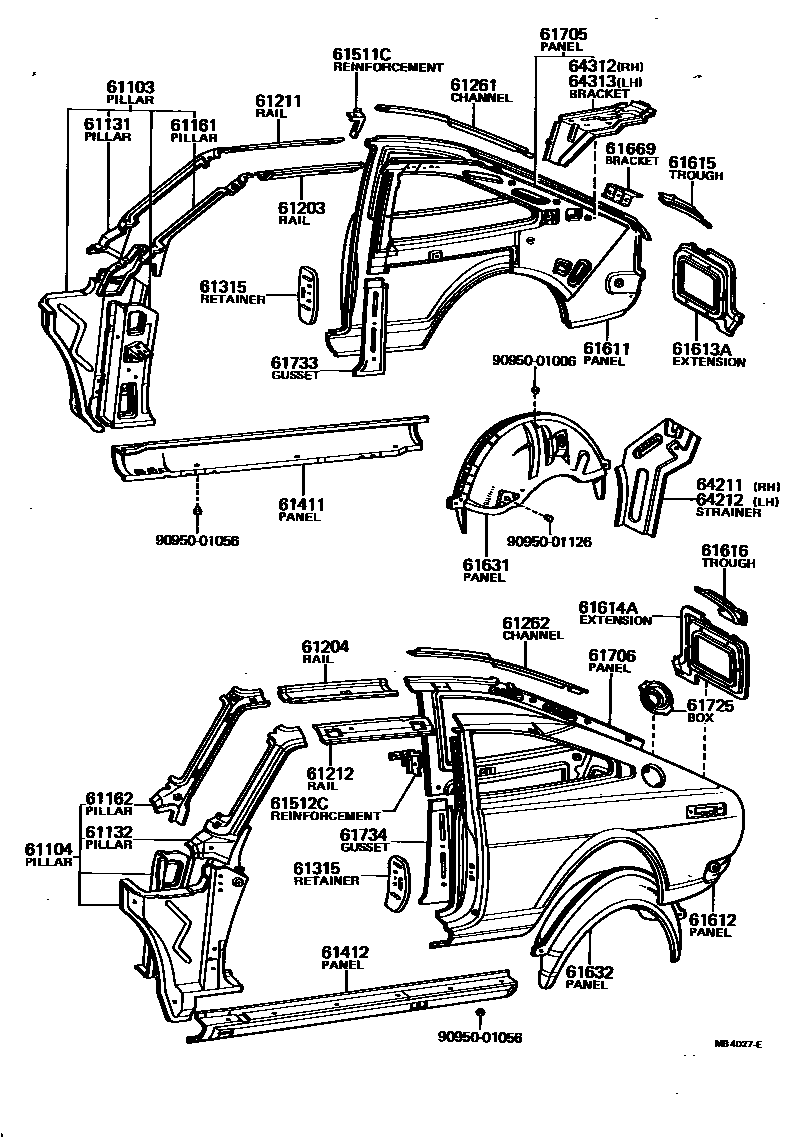

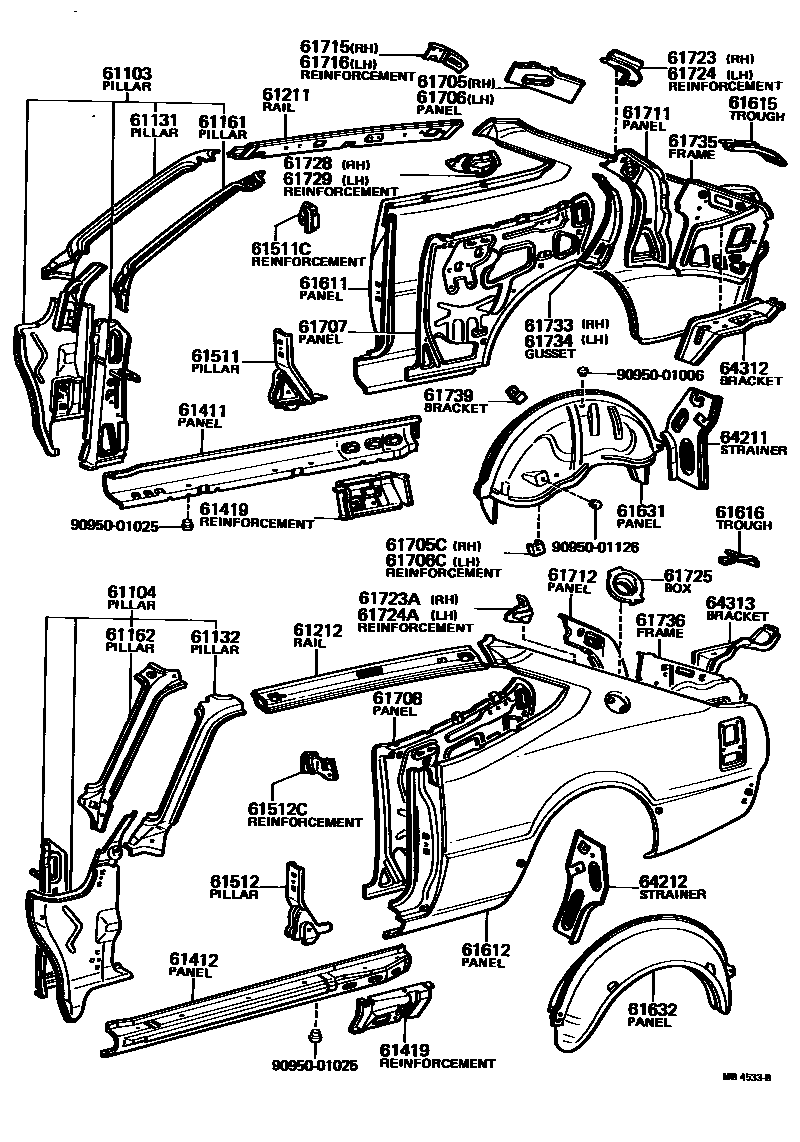

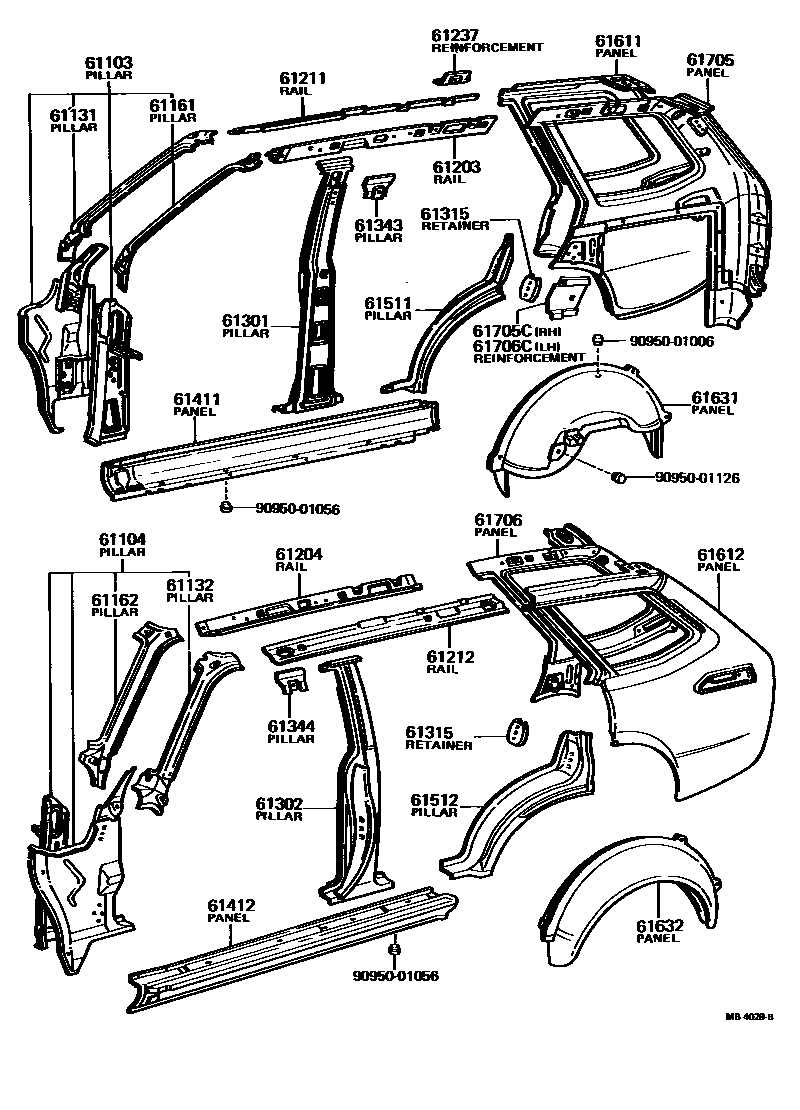

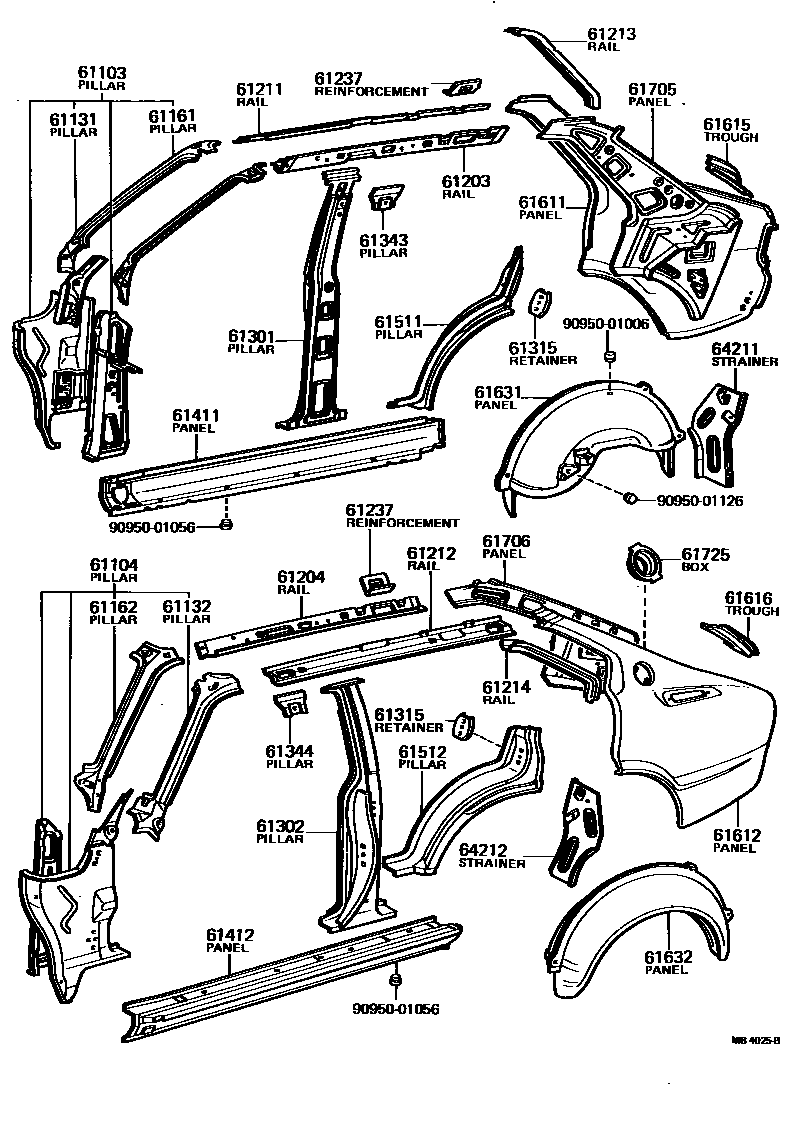

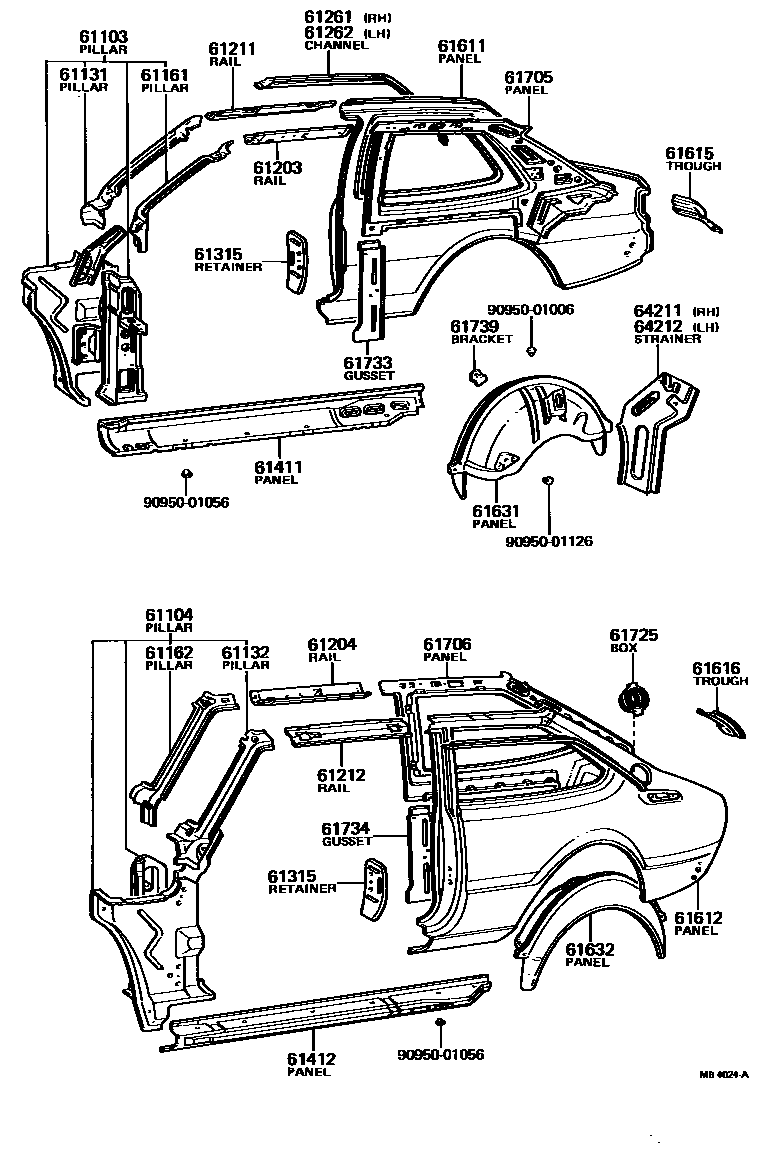

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 7 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61103 | Right body front pillar sub-assembly | 61021-12021 · 61021-12040 · 61021-12041 · 61021-12050 · 61021-12060 · 61021-12110 · 61021-12120 · 61103-12090 · 61103-12091 · 61103-12130 · 61103-12160 · 61103-12161 · 61103-12180 · 61103-12181 |
| 61104 | Left body front pillar sub-assembly | 61022-12030 · 61022-12031 · 61022-12070 · 61022-12080 · 61022-12081 · 61022-12130 · 61022-12160 · 61104-12090 · 61104-12091 · 61104-12130 · 61104-12131 · 61104-12190 · 61104-12191 · 61104-12200 |
| 61131 | Right body outer front upper pillar | 61131-12070 · 61131-12100 · 61131-12120 |
| 61132 | Left body outer front upper pillar | 61132-12070 · 61132-12080 · 61132-12100 |
| 61161 | Right upper body inner front pillar | 61161-12050 · 61161-12060 · 61161-12070 |
| 61162 | Left side inner front upper pillar | 61162-12050 · 61162-12060 · 61162-12070 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61231-12080 · 61231-12090 · 61231-12110 · 61231-12120 · 61231-12140 · 61231-12141 · 61231-12160 · 61231-13020 · 61231-13021 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61232-12080 · 61232-12090 · 61232-12091 · 61232-12110 · 61232-12120 · 61232-13020 · 61232-13021 |
| 61211 | Roof right outer longitudinal beam | 61201-12010 · 61211-12070 · 61211-12080 · 61211-12100 · 61211-12120 · 61211-13020 · 61211-13021 |
| 61212 | Roof left outer longitudinal beam | 61202-12010 · 61212-12070 · 61212-12080 · 61212-12100 · 61212-12120 · 61212-13020 · 61212-13021 |
| 61213 | Right rear roof outer longitudinal beam | 61531-12010 |
| 61214 | Left rear roof rail | 61532-12010 |
| 61237 | Safety strap anchor reinforcement | 61237-12051 · 61237-12052 · 61237-12053 · 61237-13020 · 61237-13021 · 61238-12041 · 61238-12042 · 61238-12043 · 61238-13020 · 61238-13021 |
| 61261 | Drainage channel on the right side of the roof | 61261-12080 · 61261-12090 |
| 61262 | Drainage channel on the left side of the roof | 61262-12080 · 61262-12090 |
| 61301 | Right body center pillar sub-assembly | 61301-12030 · 61301-12050 |
| 61302 | Left body center pillar sub-assembly | 61302-12050 · 61302-12080 |
| 61315 | Door latch plate fixing parts | 61309-12030 · 61309-20010 |
| 61343 | Right inner middle pillar | 61341-12030 · 61341-13010 |
| 61344 | Left side inner center pillar | 61342-12030 · 61342-13010 |
| 61411 | Right door outer sill panel | 61411-12130 · 61411-12131 · 61411-12140 · 61411-12150 · 61411-12901 · 61411-12902 · 61411-12903 |
| 61412 | Left door outer sill panel | 61412-12130 · 61412-12131 · 61412-12140 · 61412-12150 · 61412-12901 · 61412-12902 · 61412-12903 |
| 61419 | Door outer sill reinforcement | 61418-12010 · 61418-12011 · 61419-12010 · 61419-12011 |
| 61511 | Right side locking post | 61503-12010 · 61511-12030 |
| 61511C | Right side locking column reinforcement | 61623-12010 · 61623-12020 |
| 61512 | Left side locking post | 61504-12010 · 61512-12030 |
| 61512C | Left side locking column reinforcement | 61624-12010 · 61624-12020 |
| 61611 | Right side hoarding | 61601-12140 · 61601-12240 · 61601-13010 · 61601-13011 · 61601-13901 · 61601-13904 · 61611-12010 · 61611-12040 · 61611-12050 · 61611-12051 · 61611-12070 · 61611-12190 |
| 61612 | left side panel | 61602-12060 · 61602-12140 · 61602-13010 · 61602-13901 · 61612-12010 · 61612-12040 · 61612-12050 · 61612-12051 · 61612-12070 · 61612-12190 |
| 61613A | Right rear side panel extension | 61625-12010 |
| 61614A | Left rear side panel extension | 61626-12010 |
| 61615 | Luggage right opening slot | 61621-12010 · 61621-12020 · 61621-12030 |
| 61616 | Luggage trunk left opening slot | 61622-12010 · 61622-12020 · 61622-12030 |
| 61631 | Right wheel cover panel | 61603-12080 · 61603-12110 · 61603-12901 · 61603-13040 · 61603-13050 · 61631-12900 |
| 61632 | Left side wheel cover panel | 61604-12080 · 61604-12110 · 61604-12901 · 61604-13040 · 61604-13050 · 61632-12900 |
| 61647 | Rear seat backrest pivot lower seat | 61647-12030 · 61648-12030 |
| 61669 | Washer water tank inlet hose bracket | 61669-12010 |
| 61705 | Roof right inner panel sub-assembly | 61705-12090 · 61705-12140 · 61705-12280 · 61705-12923 · 61705-12925 · 61705-12927 · 61705-12928 · 61705-12929 · 61705-13120 · 61705-13121 · 61705-13130 · 61705-13140 · 61705-13141 · 61705-13142 · 61705-13151 · 61705-13152 · 61705-13160 · 61705-13161 · 61731-12130 |
| 61705C | Rear right seat belt anchor reinforcement | 61665-14010 · 61766-13030 |
| 61706 | Roof left inner panel sub-assembly | 61706-12090 · 61706-12140 · 61706-12290 · 61706-12923 · 61706-12925 · 61706-12927 · 61706-12928 · 61706-12929 · 61706-13120 · 61706-13130 · 61706-13140 · 61706-13141 · 61706-13171 · 61706-13180 · 61706-13220 · 61706-13230 · 61732-12130 |
| 61706C | Rear left seat belt anchor reinforcement | 61665-14010 · 61767-13020 |
| 61707 | Right side enclosure inner panel sub-assembly | 61733-12060 |
| 61708 | Left side enclosure inner panel sub-assembly | 61734-12050 |
| 61711 | Roof right side outer panel | 61711-12230 |
| 61712 | Roof left outer panel | 61712-12260 |
| 61715 | Right rear roof inner reinforcement | 61737-12020 |
| 61716 | Left rear roof inner reinforcement | 61738-12030 |
| 61723 | Right rear corner window opening fixing | 61723-12030 |
| 61723A | No. 1 right corner window opening fixing piece | 61723-12040 |
| 61724 | Left rear corner window opening fixing | 61724-12030 |
| 61724A | No. 1 left corner window opening fixing piece | 61724-12040 |
| 61725 | Fuel inlet | 61725-12060 · 61725-12070 · 61725-12080 |
| 61728 | Right front side panel reinforcement | 61703-12010 |
| 61729 | Left front side panel reinforcement | 61704-12040 |
| 61733 | Right side enclosure inner corner panel | 61077-12010 · 61733-12040 · 61733-12050 |
| 61734 | Left side enclosure inner corner panel | 61078-12010 · 61734-12040 · 61734-12060 |
| 61735 | Roof right side panel frame | 61735-12050 |
| 61736 | Roof left side panel frame | 61736-12050 |
| 61739 | Rear body inner trim panel bracket | 61647-14010 · 61753-13010 |
| 61781A | No. 1 fuel vapor separator bracket | 61781-12010 |
| 61781B | No. 2 fuel vapor separator bracket | 61782-12010 |
| 62710 | No. 1 side window panel assembly | 62071-13030 · 62072-13040 · 62901-13010 · 62902-13010 |
| 62720 | No. 2 side window panel assembly | 62073-13010 · 62074-13010 · 62903-13010 · 62904-13020 |
| 64211 | Glove box to floor right filter | 64211-12010 |
| 64212 | Glove box to floor left filter | 64212-12010 |
| 64312 | Glove box right bracket | 64312-12020 · 64312-12030 |
| 64313 | Glove box left bracket | 64313-12020 · 64313-12030 |
