Toyota COROLLA 地板垫 — Figure 5803

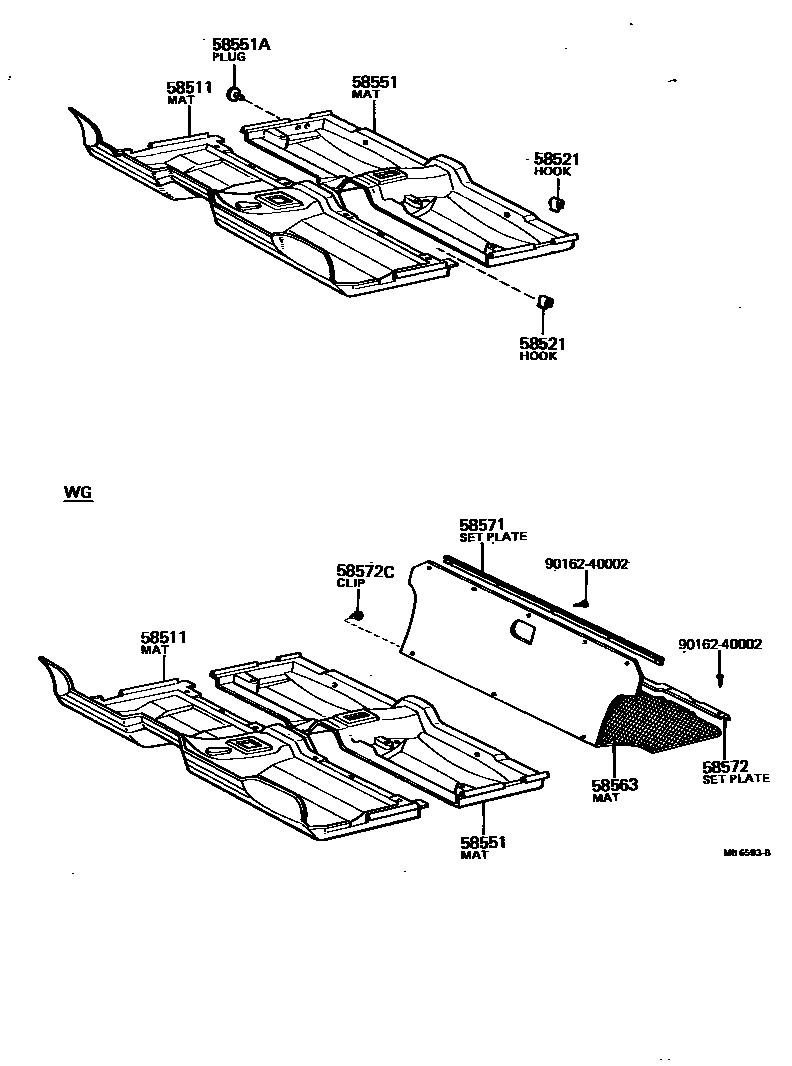

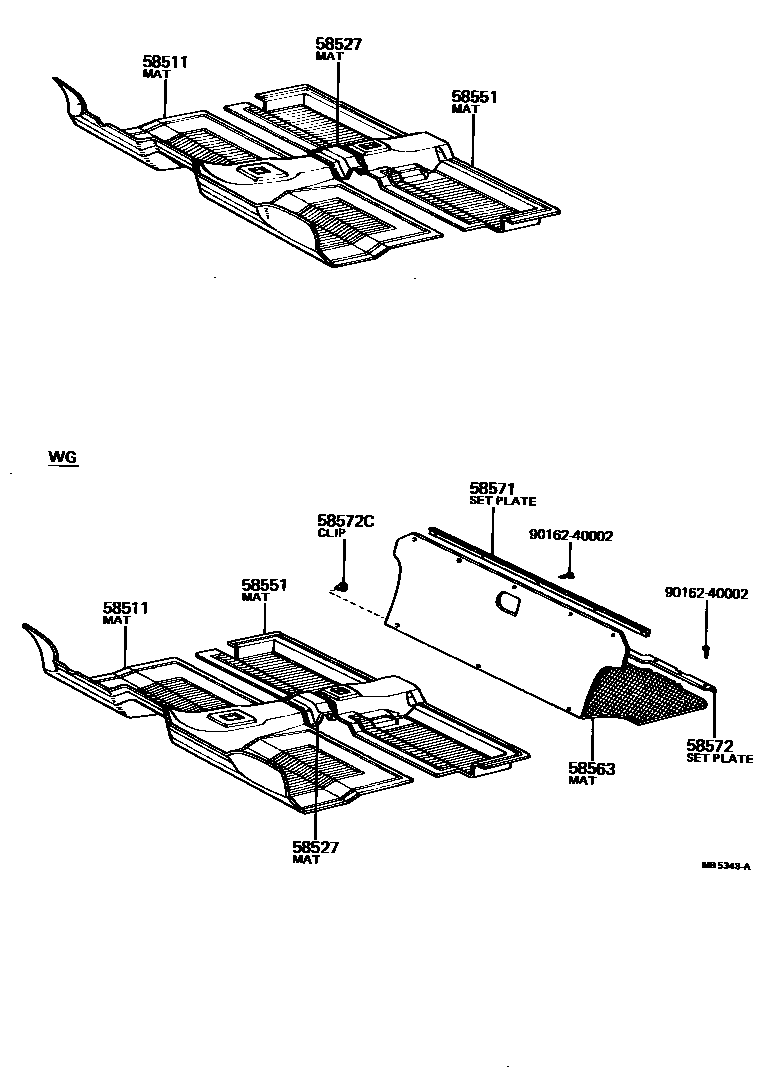

Toyota COROLLA EPC diagram 5803, 地板垫, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58521 | No. 1 outer hook | 58521-22040 |
| 58563 | rear floor mat | 58581-13010 |
| 58571 | Rear floor mat front fixing plate | 71882-13010 |
| 58572 | Rear floor mat rear fixing plate | 58573-13010 · 58573-13011 |
