Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

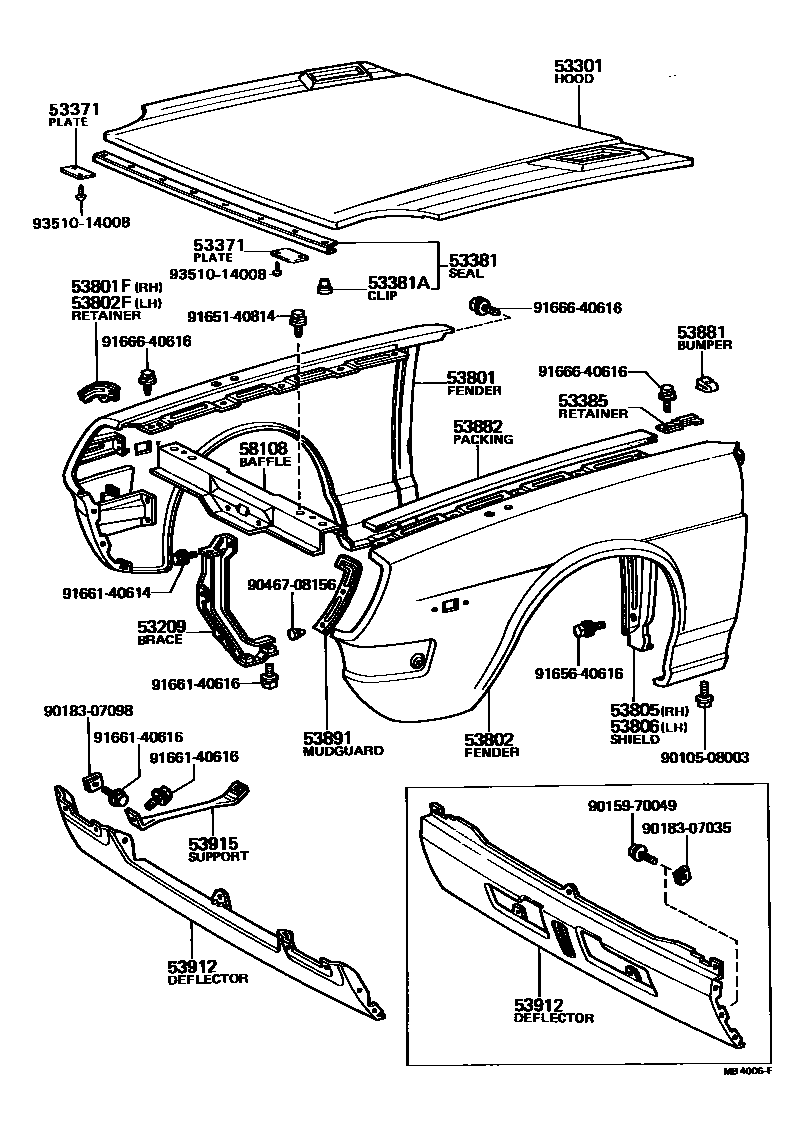

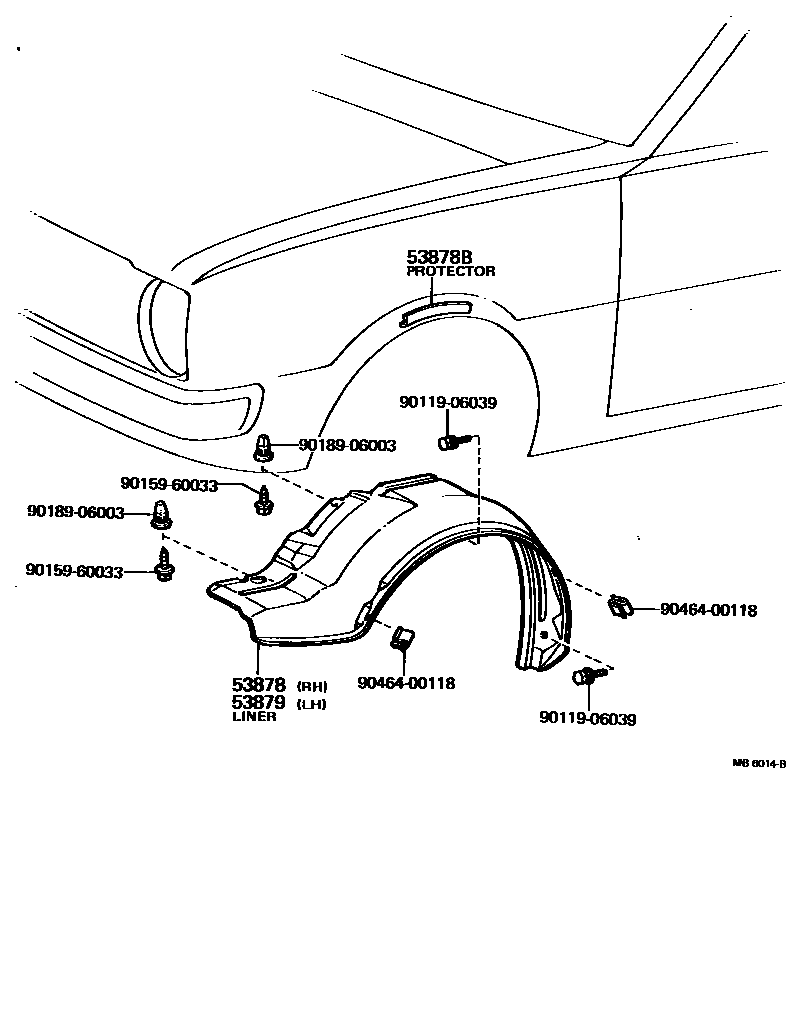

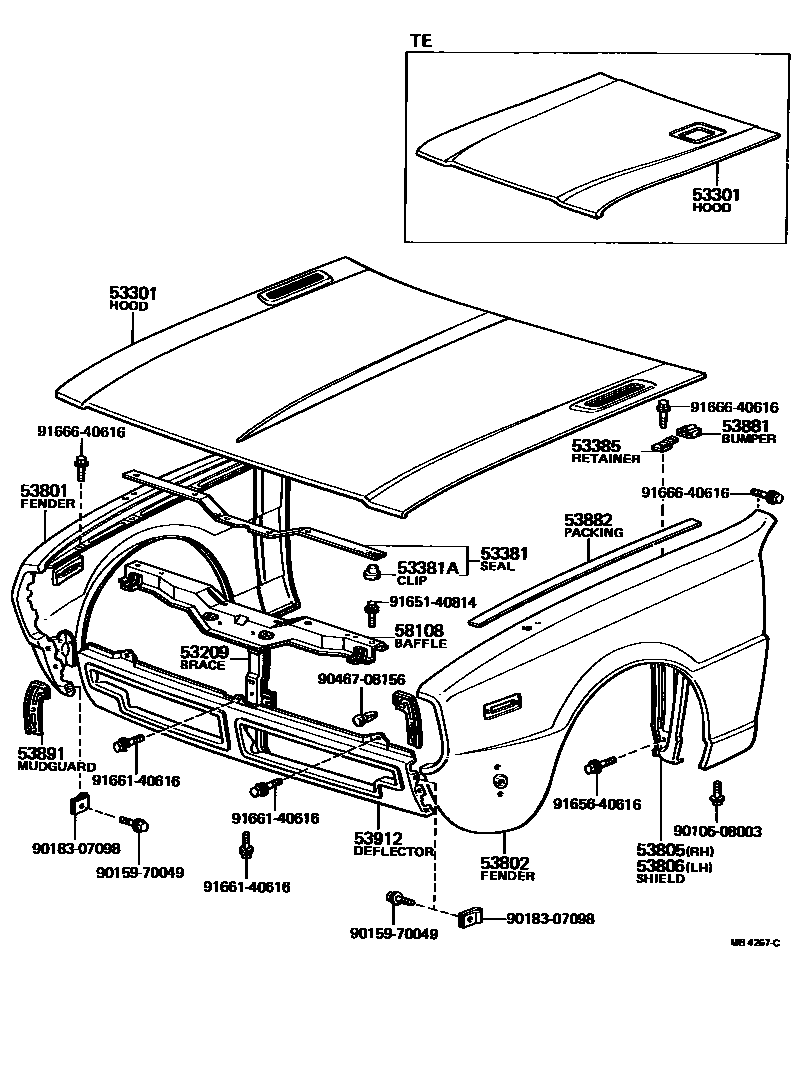

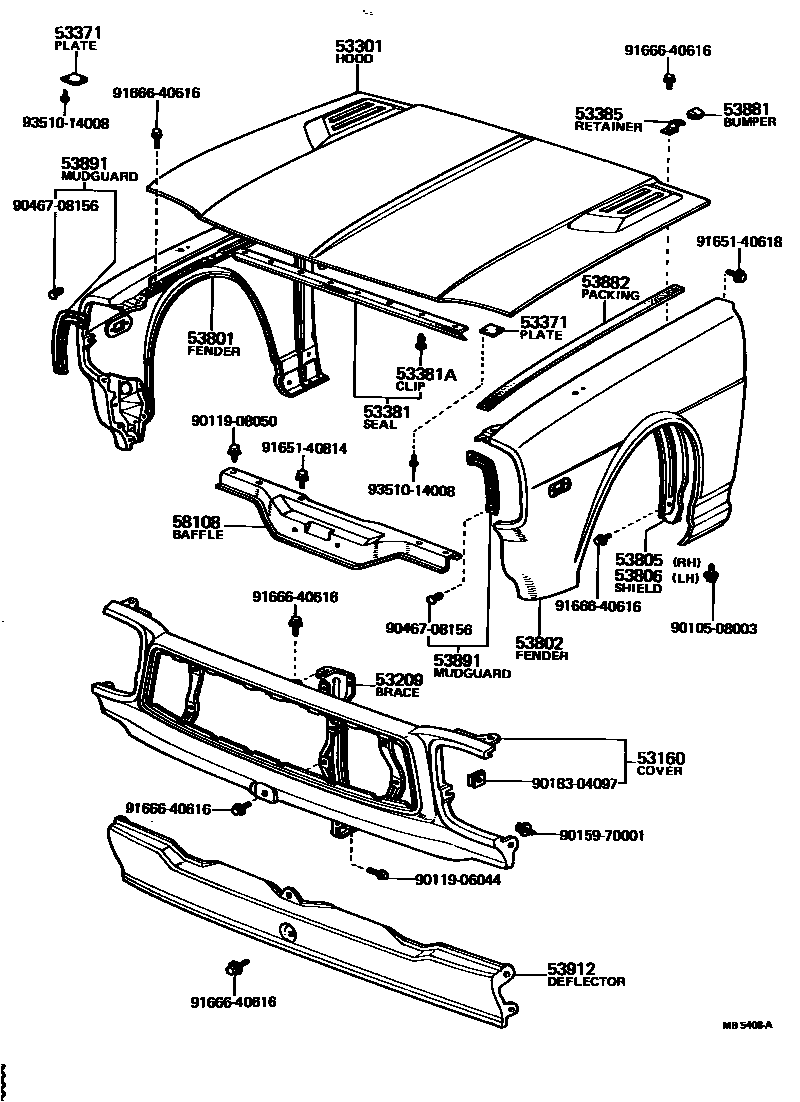

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53160 | Radiator cover assembly | 53903-12010 · 53903-12011 |
| 53209 | Engine cover lock bracket sub-assembly | 53208-12020 · 53208-12021 · 53208-12030 · 53209-12060 · 53209-12061 · 53209-12062 · 53209-12063 · 53209-12070 · 53209-12071 · 53209-12090 |
| 53301 | Engine cover sub-assembly | 53301-12050 · 53301-12051 · 53301-12060 · 53301-12061 · 53301-12070 · 53301-12090 · 53301-12091 · 53301-12092 · 53301-12110 · 53301-12130 · 53301-12170 |
| 53371 | Radio interference suppression board | 53371-12010 |
| 53381 | Engine cover to radiator bracket seal | 53381-12010 · 53381-12020 · 53381-12030 · 53381-12050 · 53381-12070 · 53381-12080 · 53381-12090 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-07050 · 90467-08008 · 90467-08011 |
| 53385 | Engine cover buffer block fixing | 53385-14010 · 53386-14010 |
| 53801 | Right front fender sub-assembly | 53801-12491 · 53801-12492 · 53801-12520 · 53801-12540 · 53801-12550 · 53801-12750 · 53801-12903 · 53801-12905 · 53801-12907 · 53801-12908 · 53801-12910 · 53801-12911 · 53801-12917 · 53801-12918 · 53801-12919 · 53801-12920 · 53801-12922 · 53801-12923 · 53801-12924 · 53801-12925 · 53801-12926 · 53801-12927 · 53801-12930 |
| 53801F | Right front fender splash guard fixing | 53893-12010 |
| 53802 | Left front fender sub-assembly | 53802-12491 · 53802-12492 · 53802-12520 · 53802-12540 · 53802-12550 · 53802-12770 · 53802-12903 · 53802-12905 · 53802-12907 · 53802-12908 · 53802-12910 · 53802-12911 · 53802-12917 · 53802-12918 · 53802-12919 · 53802-12920 · 53802-12922 · 53802-12923 · 53802-12924 · 53802-12925 · 53802-12930 |
| 53802F | Left front fender splash guard fixing | 53894-12010 |
| 53805 | Right front fender splash guard sub-assembly | 53805-12040 · 53805-12050 |
| 53806 | Left front fender splash guard sub-assembly | 53806-12040 · 53806-12050 |
| 53878 | Right front fender lining | 53875-12010 · 53875-12030 |
| 53878B | Front fender lining protector | 53891-12040 |
| 53879 | Left front fender lining | 53876-12010 · 53876-12030 |
| 53881 | fender to engine cover buffer block | 53384-14010 |
| 53882 | Front fender main seal | 53882-12030 |
| 53891 | Front fender to side fender fender | 53891-12020 · 53891-12030 · 53892-12020 · 53892-12030 |
| 53912 | Front bumper stone guard | 53901-12020 · 53911-12010 · 53911-12020 · 53911-12030 · 53911-12031 · 53911-12032 · 53911-12060 |
| 53915 | Front fender bracket | 53915-12020 · 53915-12030 · 53916-12020 |
| 58108 | Radiator upper partition sub-assembly | 53205-12060 · 53205-12061 · 53216-12040 · 53216-12041 · 53216-12042 |
