Toyota COROLLA radiator grille — Figure 5301

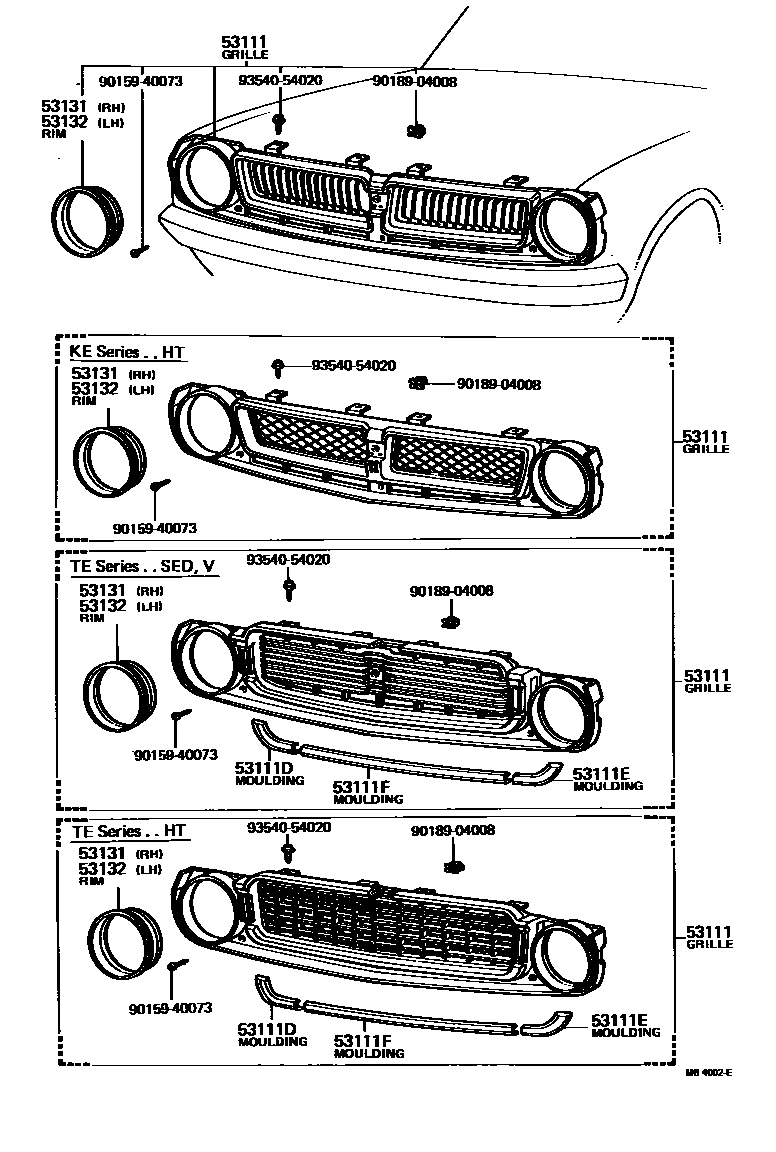

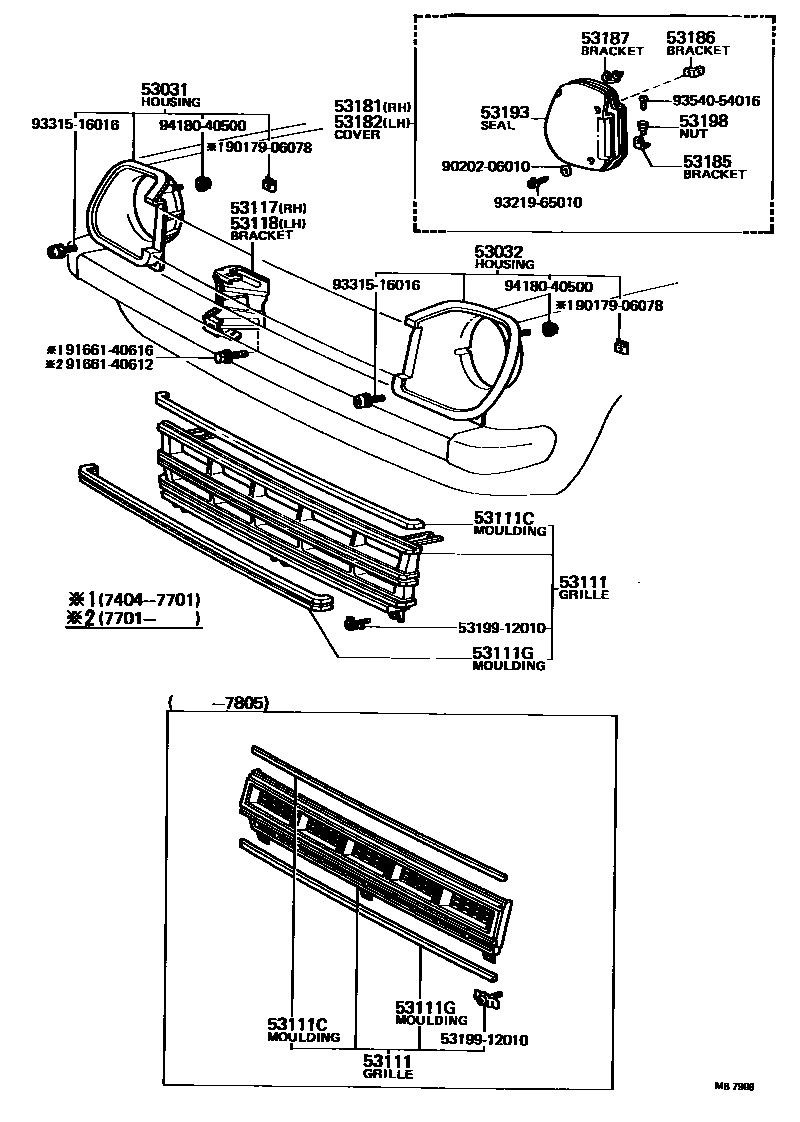

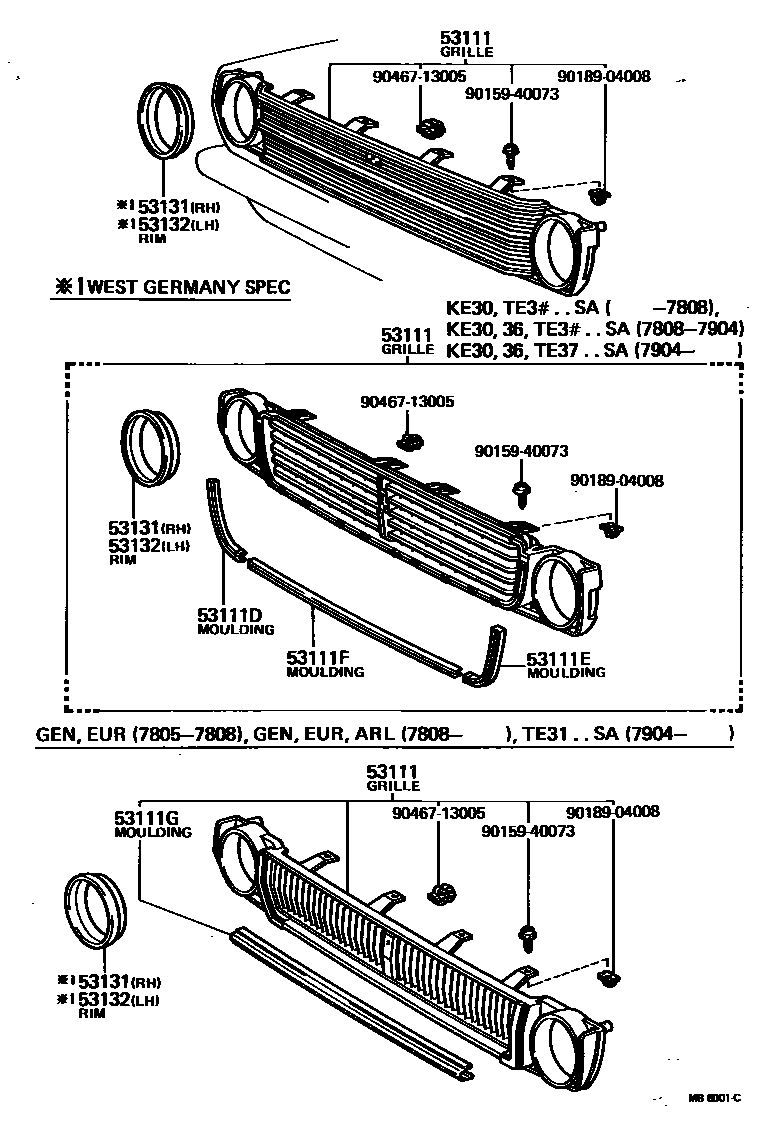

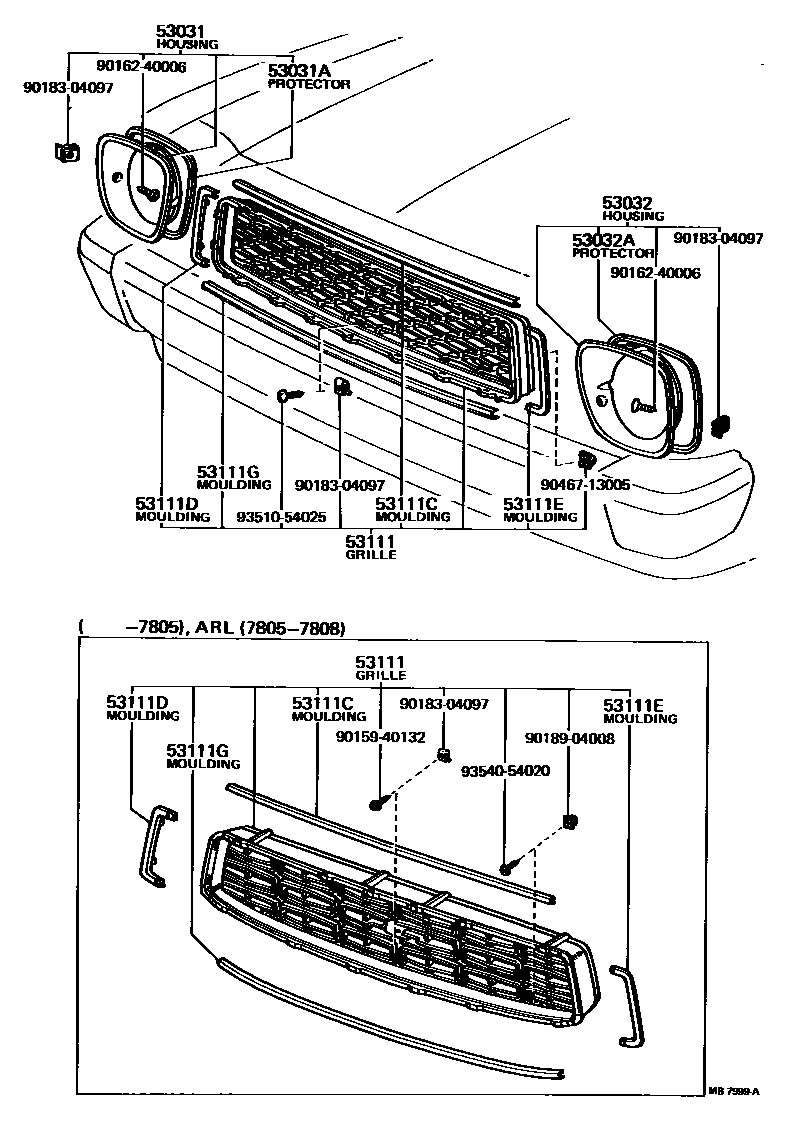

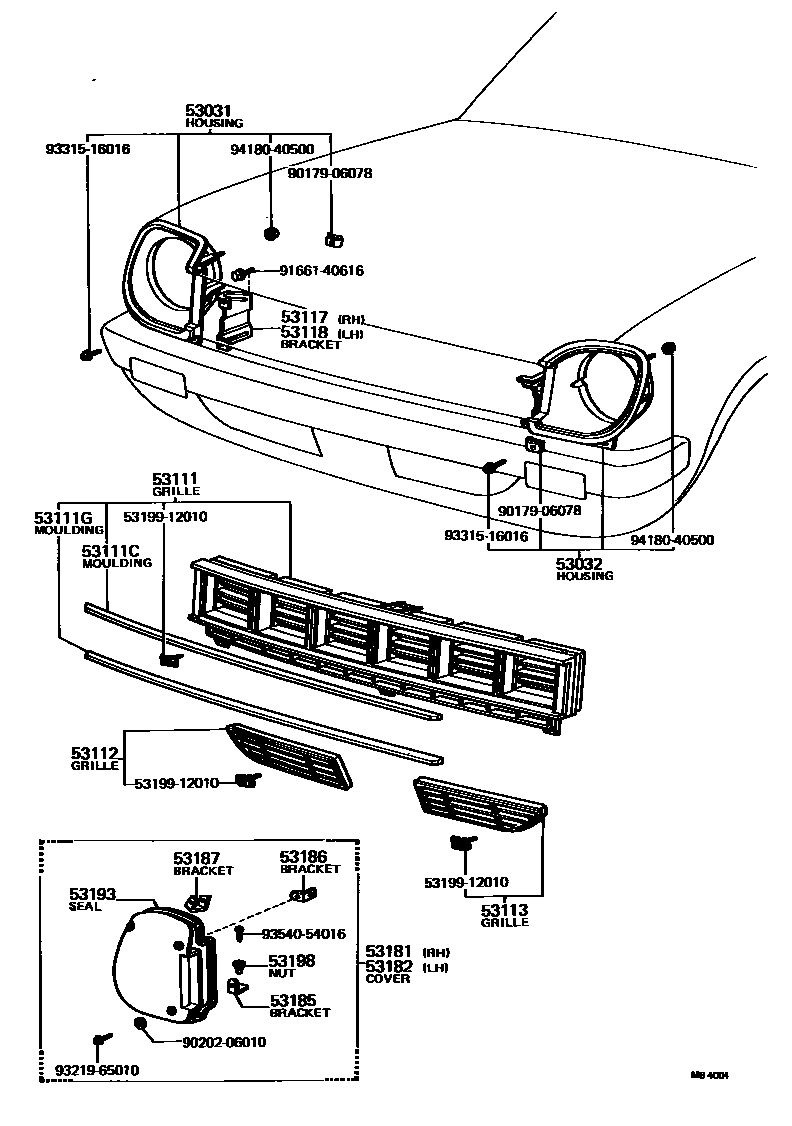

Toyota COROLLA EPC diagram 5301, radiator grille, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53031 | Right headlight housing | 53031-19075 · 53031-19085 · 53131-19205 · 53131-19215 · 53131-19216 · 53131-19217 |
| 53031A | Right headlight guard | 53139-12050 |
| 53032 | Left headlight housing | 53032-19065 · 53032-19075 · 53132-19205 · 53132-19215 · 53132-19216 · 53132-19217 |
| 53032A | Left headlight guard | 53139-12050 |
| 53111 | radiator grille | 53100-12010 · 53100-12060 · 53100-19015 · 53100-19025 · 53101-19265 · 53101-19266 · 53101-19275 · 53101-19276 · 53101-19285 · 53101-19286 · 53101-19295 · 53101-19305 · 53101-19306 · 53101-19325 · 53101-19326 · 53101-19375 · 53101-19385 · 53101-19395 |
| 53111C | Protective strips on radiator grille | 53121-12020 · 53121-12021 · 53121-12070 · 75511-12070 · 75511-12071 |
| 53111D | Protective strip on the right side of the radiator grille | 75513-12040 · 75513-12041 · 75515-12040 · 75516-12010 |
| 53111E | Radiator grille left protective strip | 75514-12030 · 75514-12031 · 75516-12030 · 75517-12050 |
| 53111F | Radiator grille central protective strip | 75515-12010 · 75517-12070 |
| 53111G | Radiator grille lower protective strip | 53122-12020 · 53122-12021 · 53122-12060 · 75512-12030 · 75512-12031 · 75512-12050 · 75512-12060 |
| 53112 | Right radiator grille or upper radiator grille | 53112-12020 |
| 53113 | Left radiator grille or lower radiator grille | 53113-12060 |
| 53117 | Radiator grille right bracket | 53055-12010 · 53055-12011 · 53117-12060 |
| 53118 | Radiator grille left bracket | 53056-12010 · 53056-12011 · 53118-12050 |
| 53131 | Right headlight frame | 53131-12070 · 53131-12220 · 53131-12230 |
| 53132 | Left headlight frame | 53131-12070 · 53131-12220 · 53131-12230 |
| 53181 | Right headlight cover | 53107-19015 |
| 53182 | Left headlight cover | 53108-19015 |
| 53185 | Headlight cover mounting bracket | 53185-12010 |
| 53186 | Headlight cover mounting bracket | 53186-12010 |
| 53187 | Headlight cover outer mounting bracket | 53187-12010 · 53188-12010 |
| 53193 | Headlight cover seal | 53183-12010 · 53184-12010 |
| 53198 | Headlight cover mounting nut | 53198-12010 |
