Toyota COROLLA 后保险杠及附件 — Figure 5202

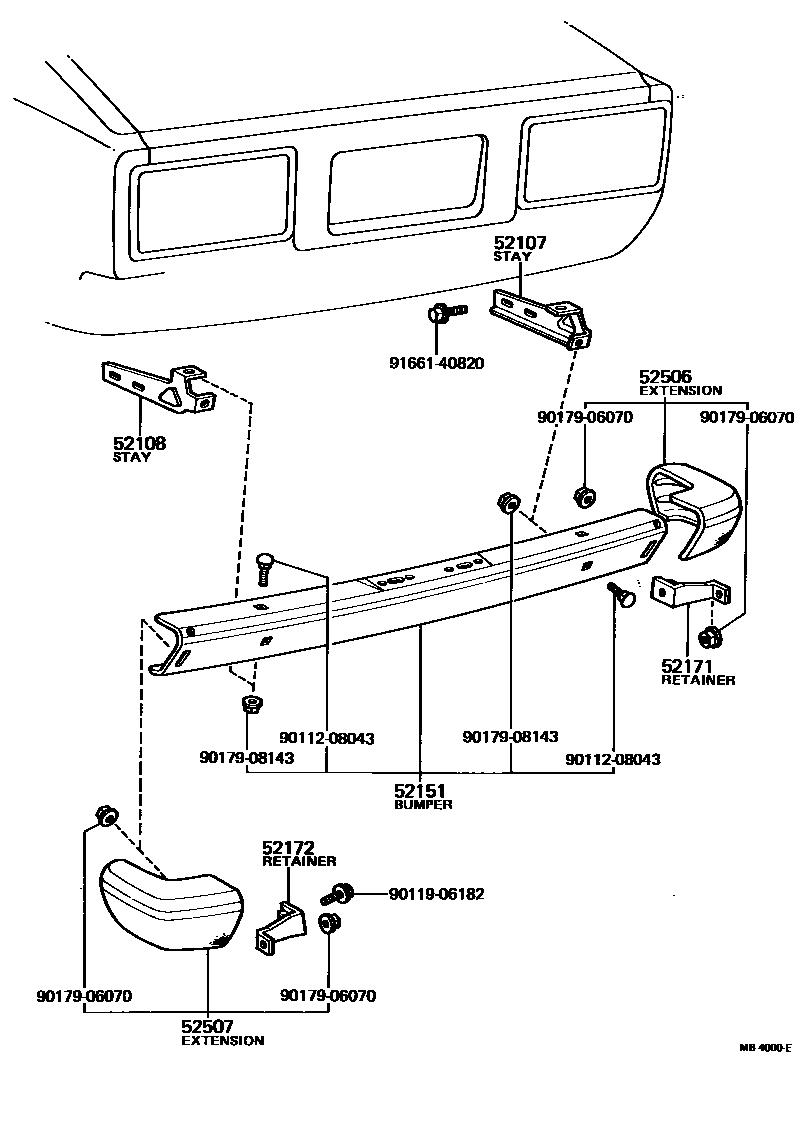

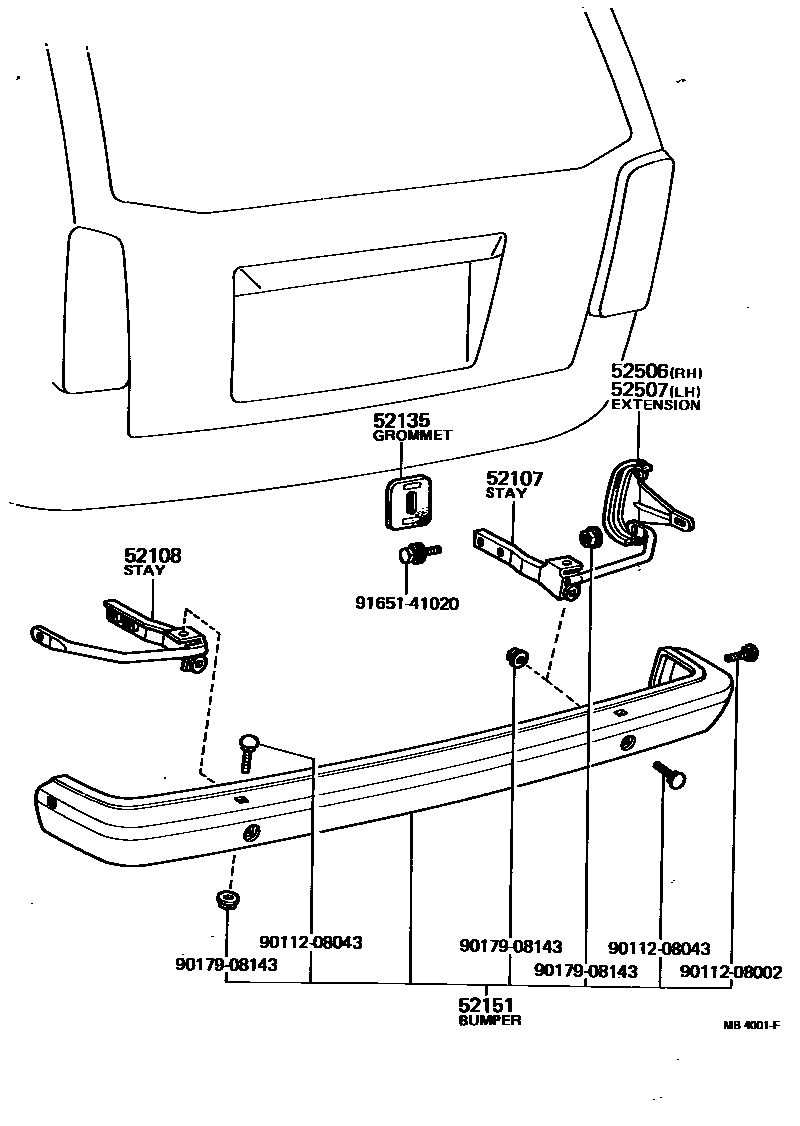

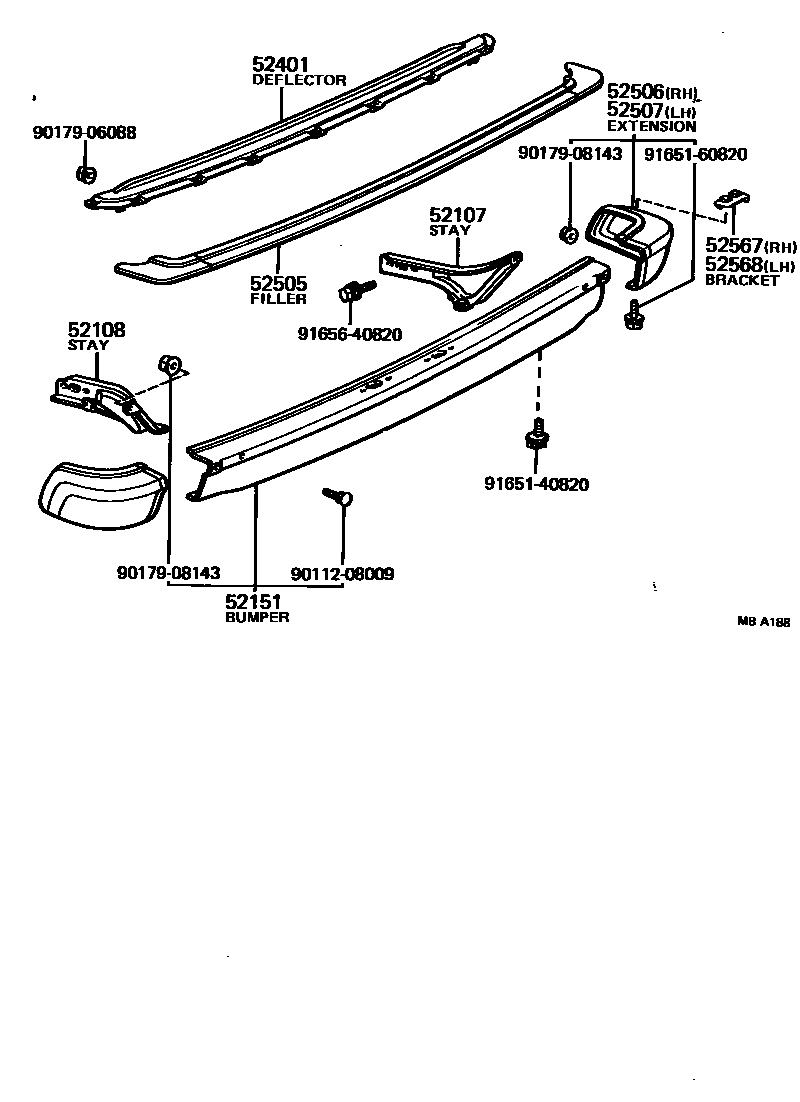

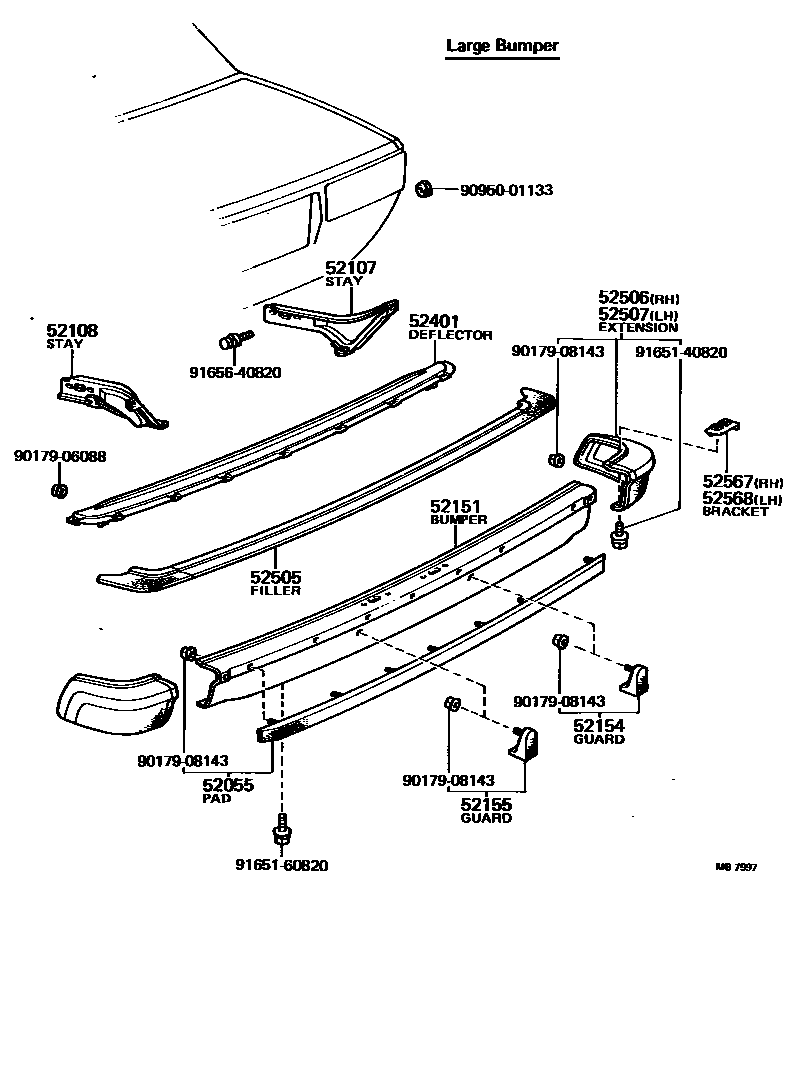

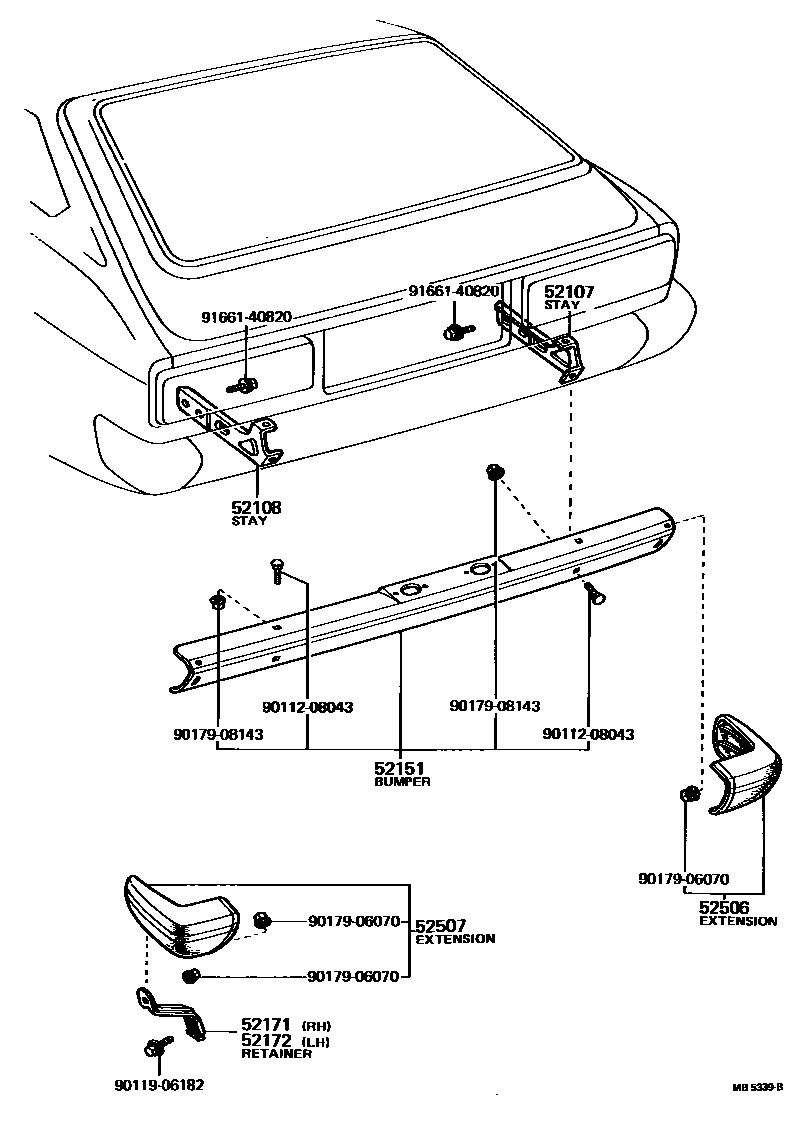

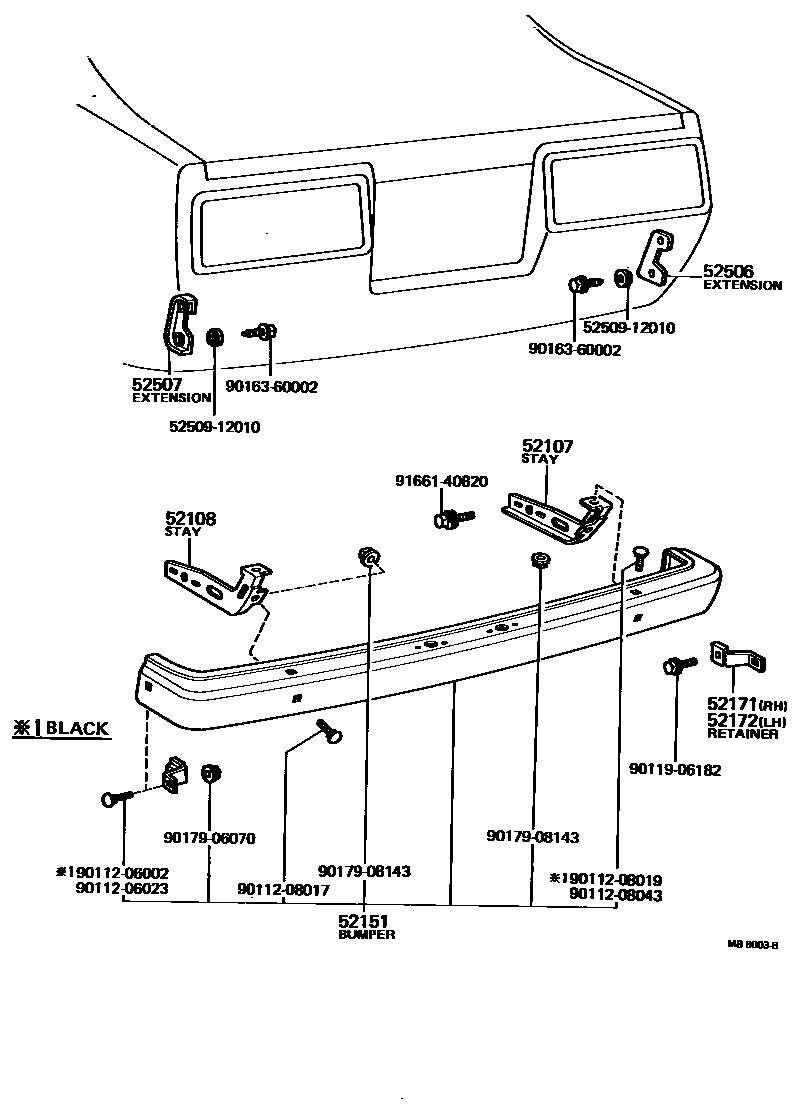

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 6 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52055 | Rear bumper gasket sub-assembly | 52055-19015 |
| 52107 | Rear bumper right side stay sub-assembly | 52015-12040 · 52015-13020 · 52181-12070 · 52181-12080 · 52181-12100 |
| 52108 | Rear bumper left side stay sub-assembly | 52016-12040 · 52016-13020 · 52182-12070 · 52182-12080 · 52182-12100 |
| 52135 | Rear bumper stay gasket | 52191-13030 |
| 52151 | Rear bumper assembly | 52151-12160 · 52151-19265 · 52151-19275 · 52151-19285 · 52151-19505 · 52151-19515 |
| 52154 | Rear bumper right anti-collision bar | 52405-19055 |
| 52155 | Rear bumper left anti-collision bar | 52405-19055 |
| 52171 | Rear bumper right side fixing bracket | 52185-12020 · 52185-12030 · 52185-12050 |
| 52172 | Rear bumper left side fixing bracket | 52185-12050 · 52186-12020 · 52186-12030 |
| 52401 | Rear bumper stone guard | 58401-12011 |
| 52505 | Rear bumper arc filler sub-assembly | 52505-12020 |
| 52506 | Rear bumper right extension section sub-assembly | 52045-13010 · 52106-19085 · 52405-19035 · 52405-19065 · 52581-12010 · 52581-12020 |
| 52507 | Rear bumper left extension section sub-assembly | 52046-13010 · 52107-19115 · 52406-19035 · 52406-19055 · 52582-12010 · 52582-12020 |
| 52567 | Rear bumper right extension bracket | 52167-12010 |
| 52568 | Rear bumper left extension bracket | 52167-12010 |
