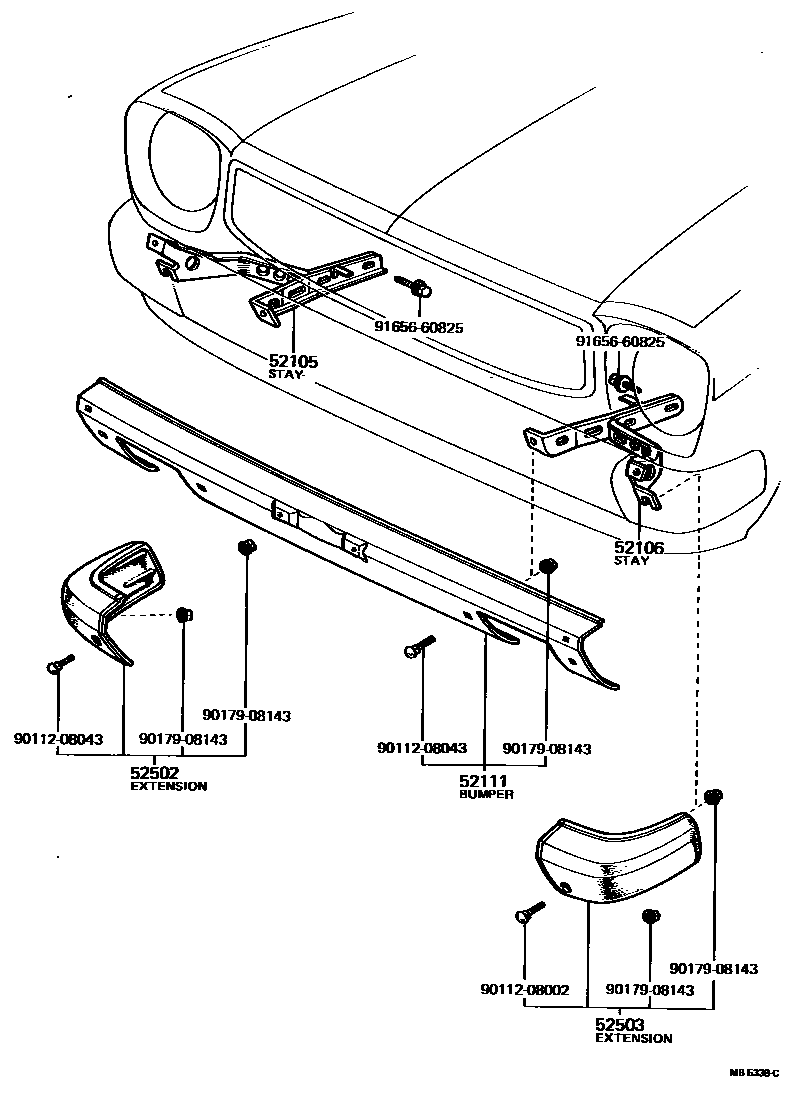

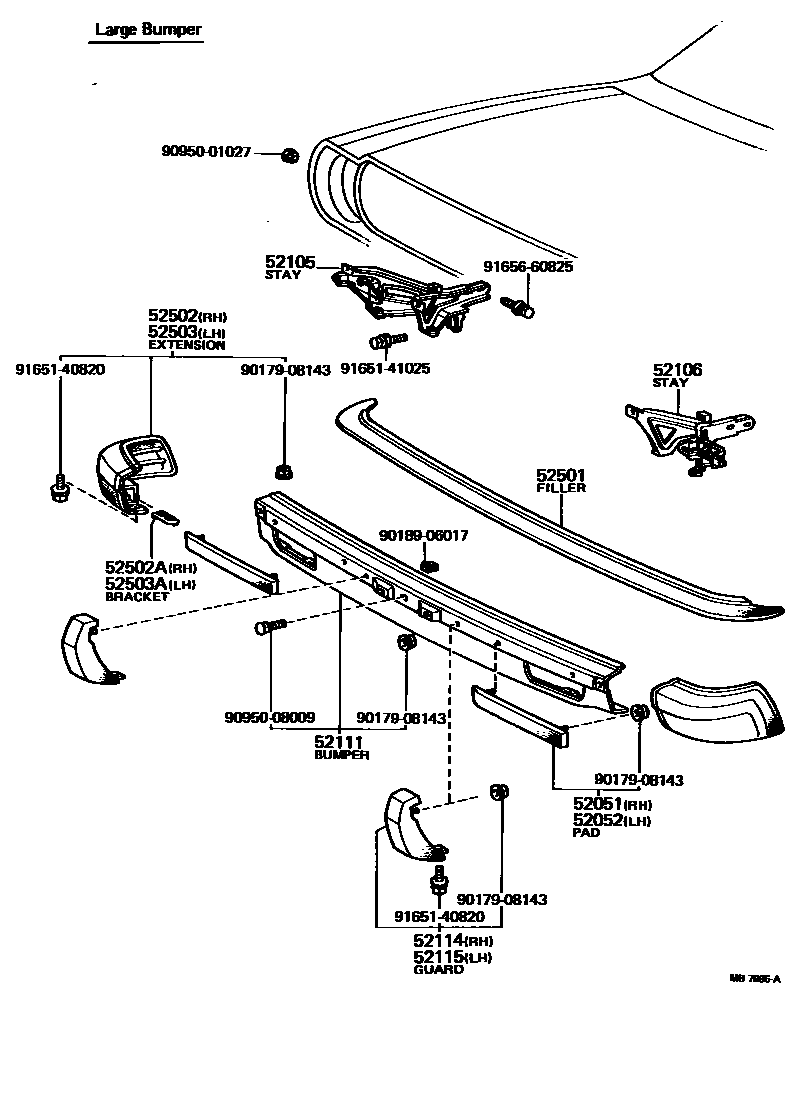

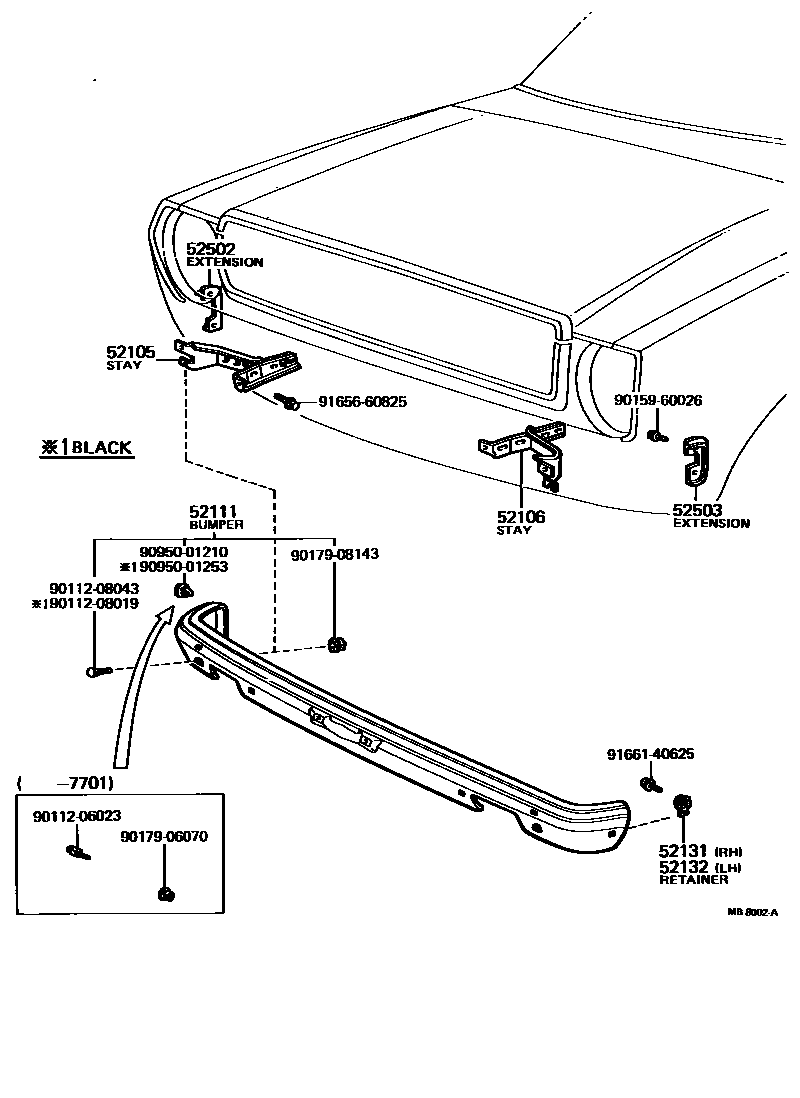

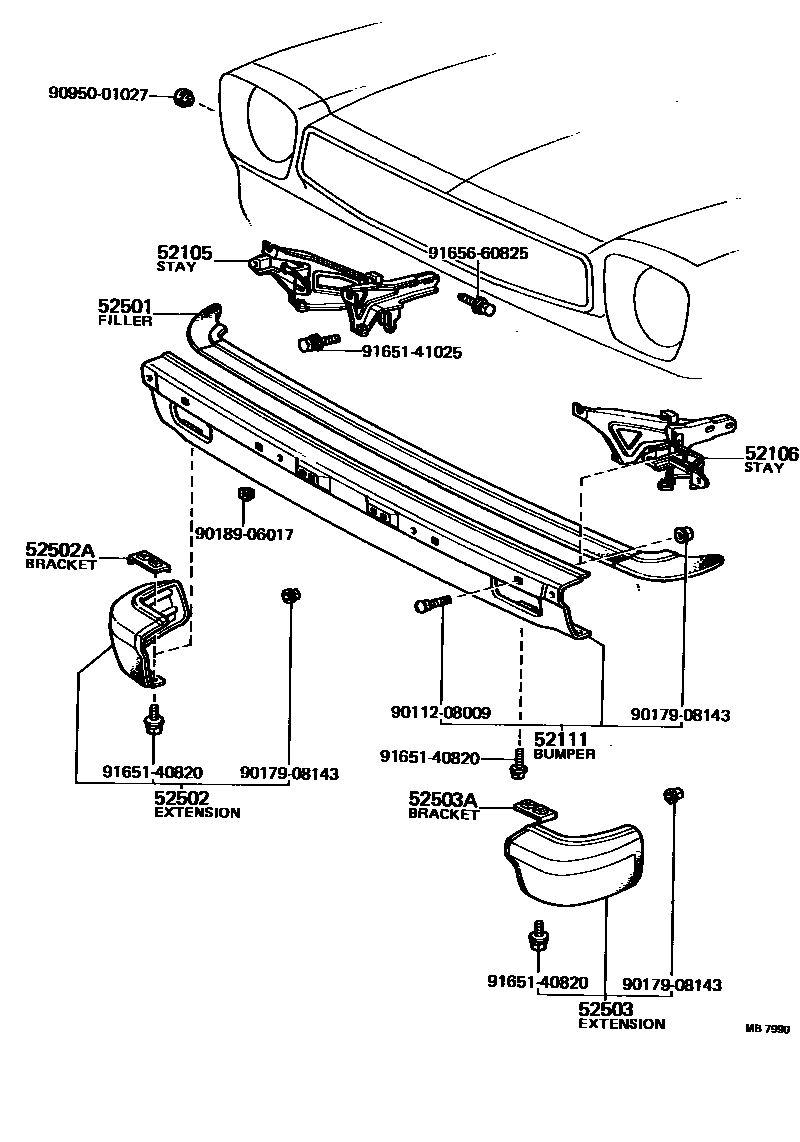

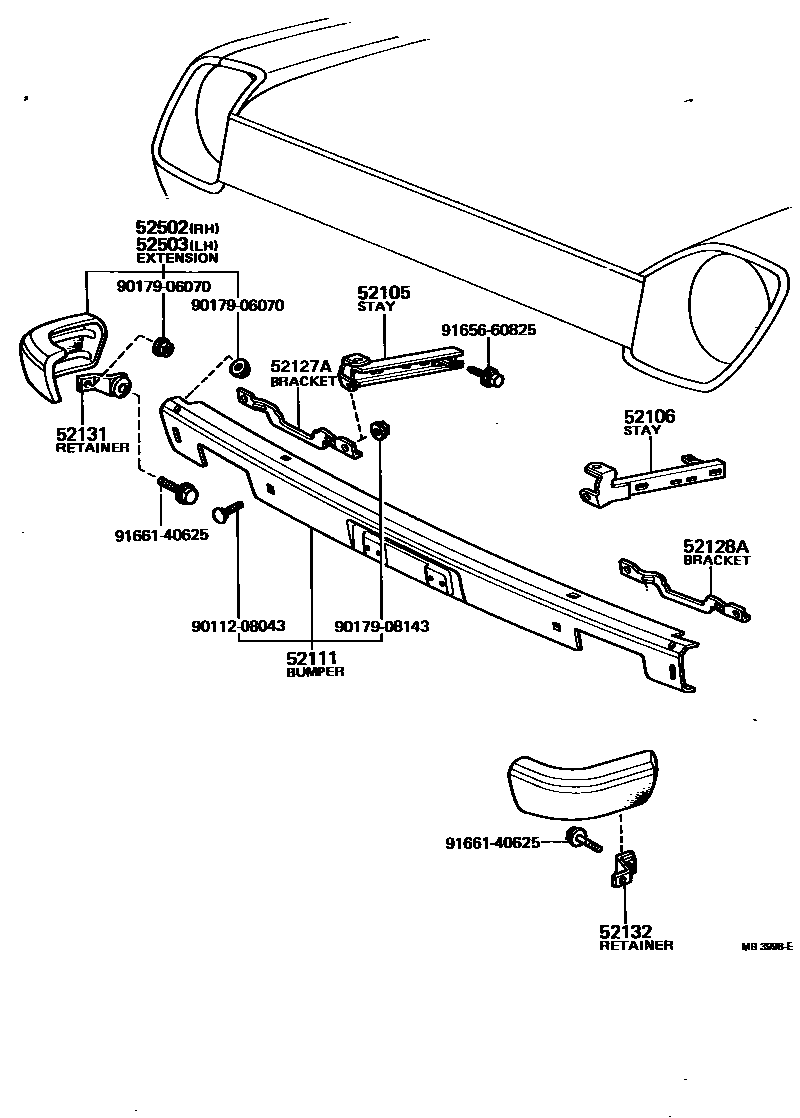

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52051 | Front bumper right side pad sub-assembly | 52051-19015 |
| 52052 | Front bumper left side pad sub-assembly | 52052-19015 |
| 52105 | Front bumper right side stay sub-assembly | 52011-12010 · 52011-12020 · 52011-12022 · 52011-12040 · 52011-12070 |
| 52106 | Front bumper left stay sub-assembly | 52012-12010 · 52012-12020 · 52012-12022 · 52012-12040 · 52012-12070 |
| 52111 | front bumper assembly | 52111-19205 · 52111-19215 · 52111-19226 · 52111-19235 · 52111-19255 · 52111-19275 · 52111-19435 · 52111-19445 |
| 52114 | Front bumper right anti-collision bar | 52401-19055 |
| 52115 | Front bumper left anti-collision bar | 52401-19055 |
| 52127A | Right front turn signal lamp mounting bracket | 52127-12020 |
| 52128A | Left front turn signal lamp mounting bracket | 52128-12020 |
| 52131 | Front bumper right side fixing bracket | 52145-12020 · 52145-12030 |
| 52132 | Front bumper left fixed bracket | 52145-12020 · 52145-12030 |
| 52501 | Front bumper arc filler sub-assembly | 52501-12010 |
| 52502 | Front bumper right extension section sub-assembly | 52102-19115 · 52401-19035 · 52401-19065 · 52541-12010 |
| 52502A | Front bumper right extension section mounting bracket | 52167-12010 |
| 52503 | Front bumper left extension section sub-assembly | 52103-19105 · 52402-19035 · 52402-19055 · 52542-12010 |
| 52503A | Front bumper left extension section mounting bracket | 52167-12010 |
