Toyota COROLLA 制动配管和卡箍 — Figure 4708

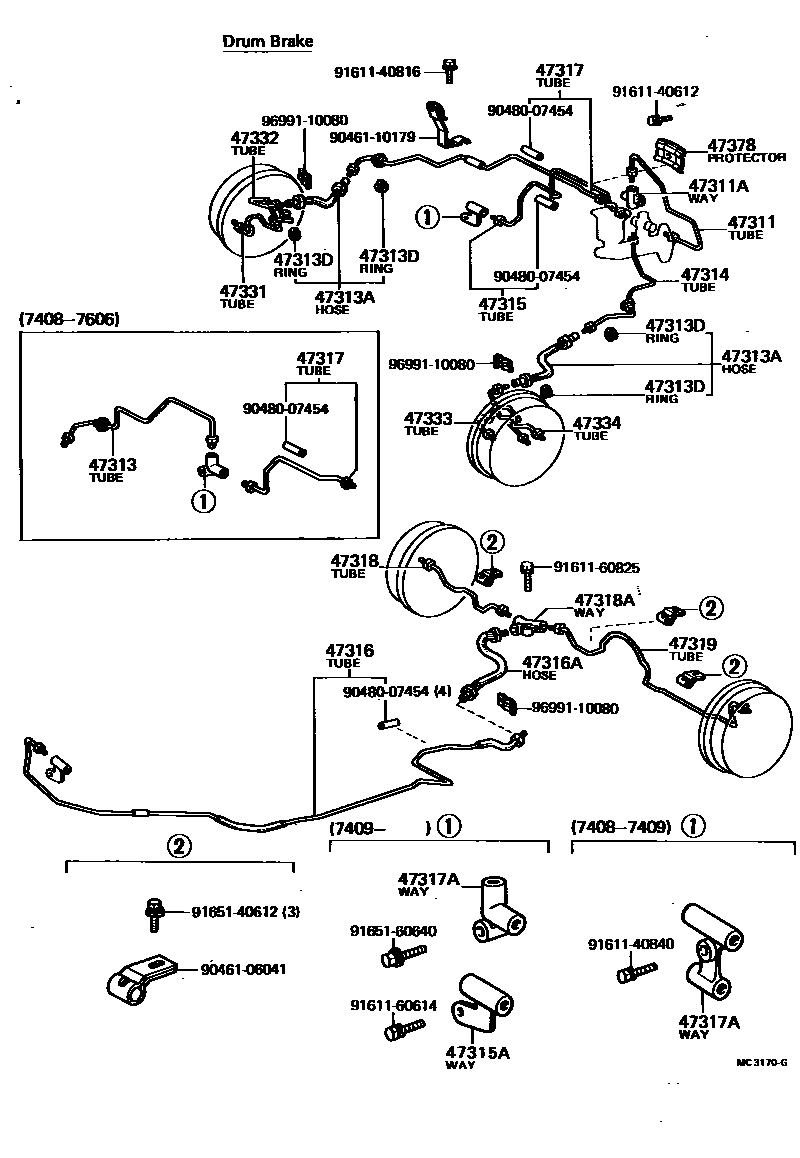

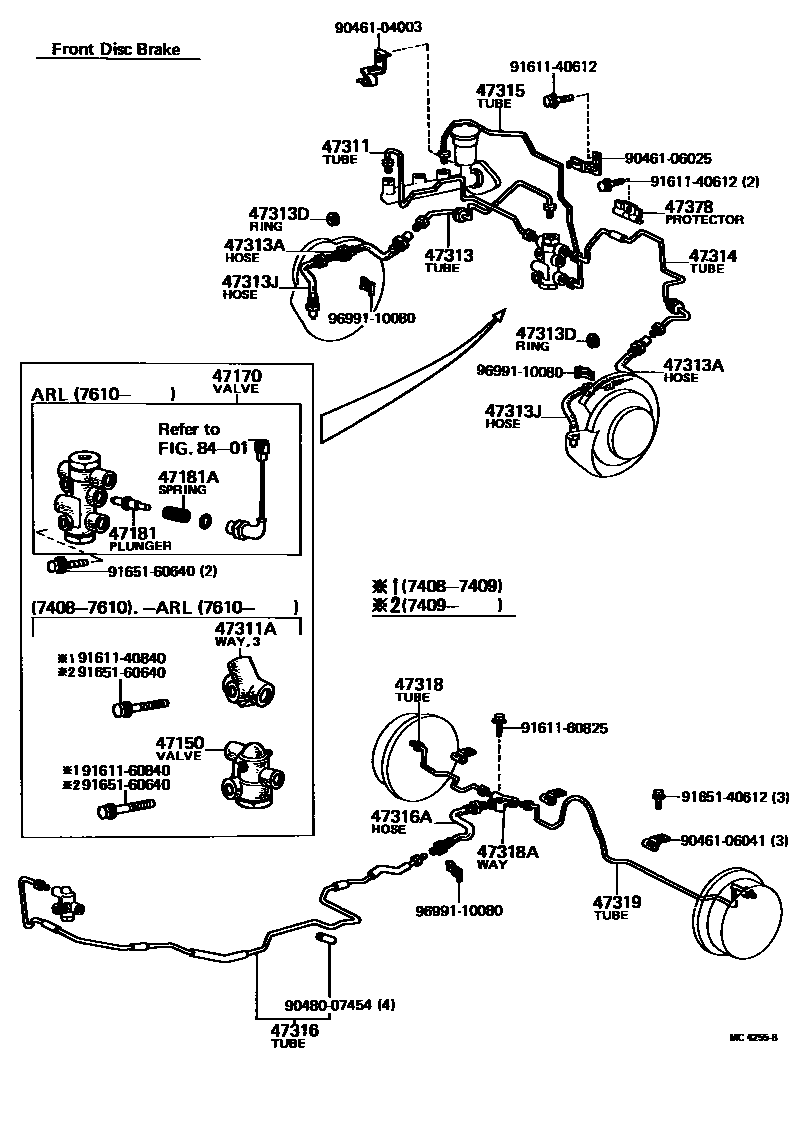

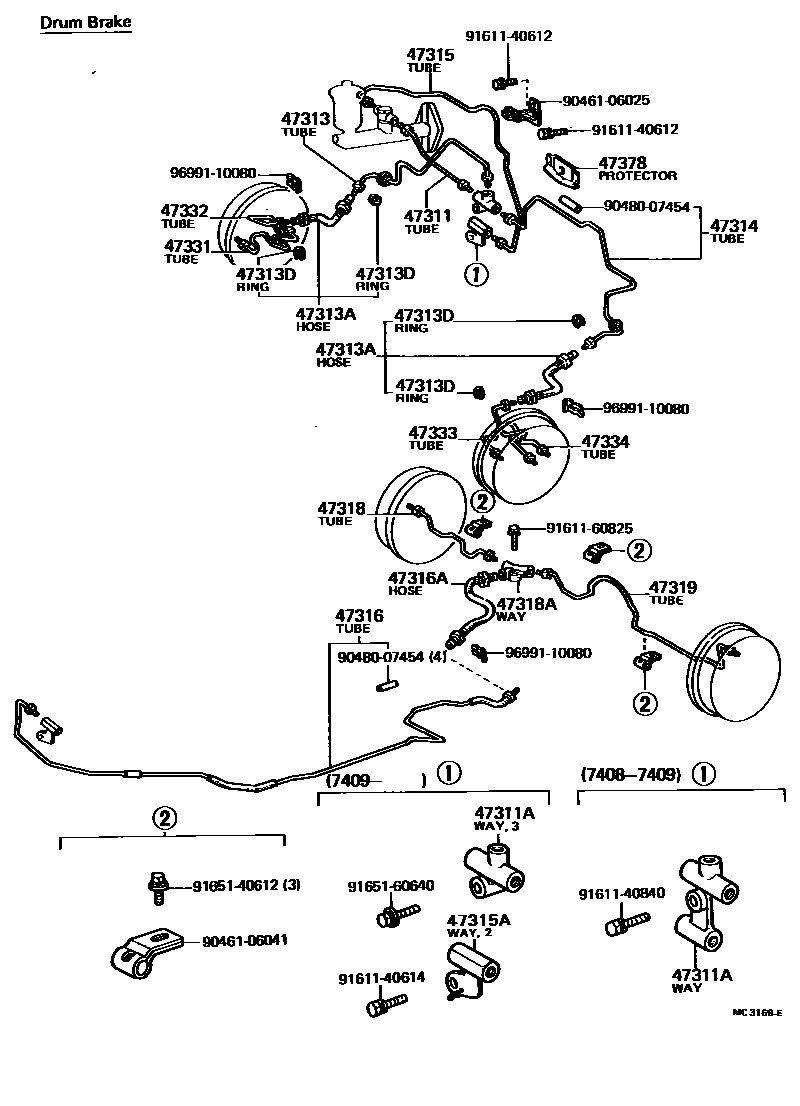

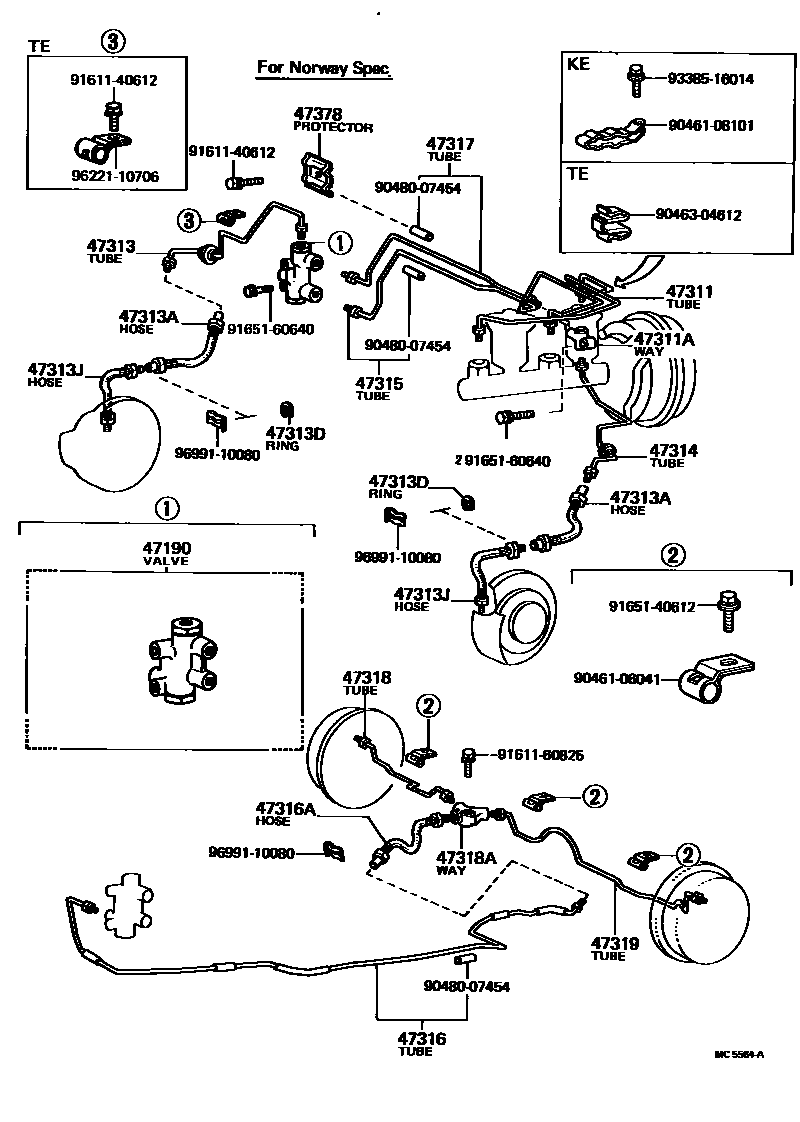

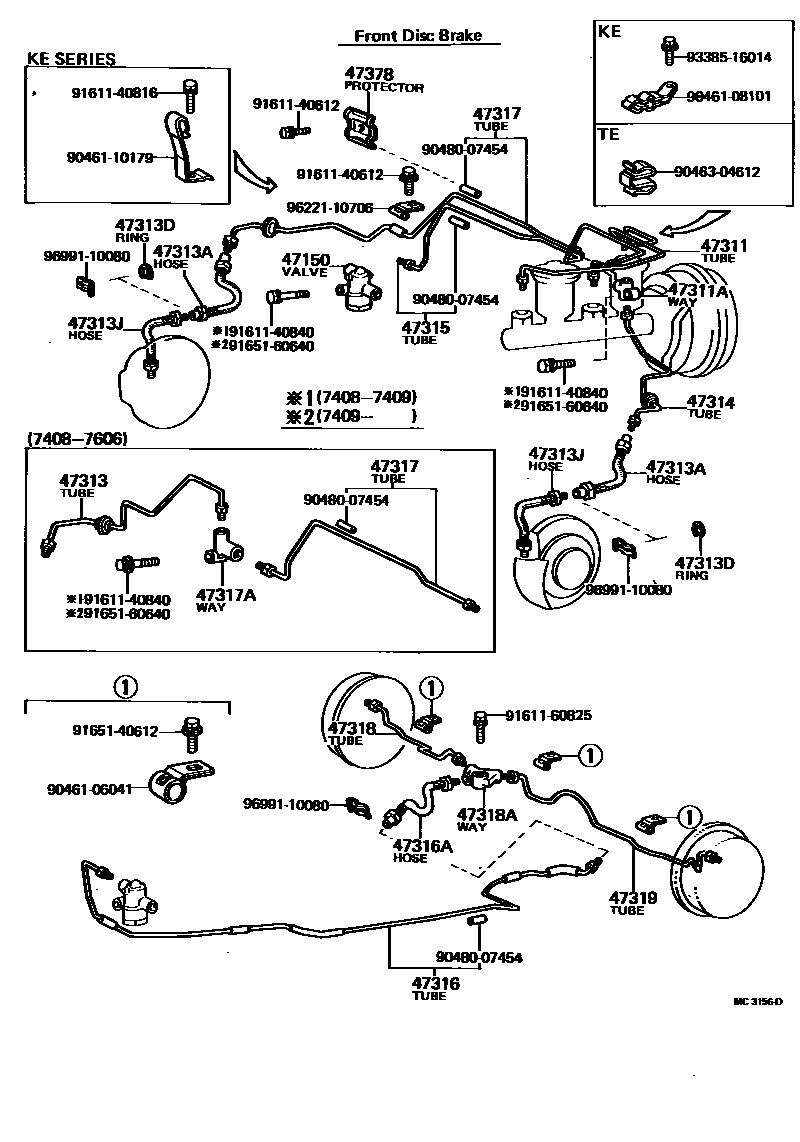

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 5 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47150 | Proportional valve assembly | 47150-12030 · 47150-12031 · 47150-12040 · 47150-12041 |
| 47170 | Brake combination valve assembly | 47170-13020 · 47170-22020 |
| 47181 | Differential pressure valve switch plunger | 47181-12010 |
| 47181A | Compression spring (for pressure differential valve switch) | 90501-05002 |
| 47190 | Proportional and bypass valve assembly | 47190-12010 |
| 47311 | No. 1 front brake pipe | 47311-12200 · 47311-12201 · 47311-12210 · 47311-12260 · 47311-12270 · 47311-12280 · 47311-12290 · 47311-12300 · 47311-12310 · 47311-12330 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10002 · 90413-10138 · 90413-10148 · 90415-10012 |
| 47313 | No. 3 front brake pipe | 47313-12080 · 47313-12090 · 47313-12101 |
| 47313A | No. 1 front flexible hose | 90947-02122 · 90947-02233 · 96950-32854 |
| 47313D | E-ring (used to secure the front flexible hose) | 96160-01200 |
| 47313J | No. 2 front flexible hose | 90947-02224 |
| 47314 | No. 4 front brake pipe | 47314-12080 · 47314-12090 · 47314-12100 |
| 47315 | No. 5 front brake pipe | 47315-12160 · 47315-12161 · 47315-12180 · 47315-12190 · 47315-12200 · 47315-12210 · 47315-12220 · 47315-12230 |
| 47315A | Pipe fitting or coupling (for rear brake pipe) | 90412-10001 |
| 47316 | No. 6 front brake pipe | 47316-12140 · 47316-12141 · 47316-12150 · 47316-12151 · 47316-13130 · 47316-13131 · 47316-13140 · 47316-13141 |
| 47316A | Flexible hose (for rear brake pipe) | 96940-31303 · 96940-33005 |
| 47317 | No. 7 front brake pipe | 47312-12010 · 47312-12020 · 47313-12110 · 47313-12120 |
| 47317A | Pipe fitting (for brake pipe) | 90412-10082 · 90412-10083 |
| 47318 | No. 8 front brake pipe | 47318-12090 · 47318-12091 · 47318-12100 · 47318-12101 · 47318-12110 · 47318-12111 · 47318-12120 · 47318-12121 · 47318-12130 · 47318-12140 |
| 47318A | Pipe fitting (for right rear brake pipe) | 90413-10029 · 90413-10139 |
| 47319 | No. 9 front brake pipe | 47319-12090 · 47319-12091 · 47319-12100 · 47319-12101 · 47319-12110 · 47319-12111 · 47319-12120 · 47319-12121 · 47319-12130 · 47319-12140 |
| 47331 | No. 10 rear brake pipe | 47331-12020 |
| 47332 | No. 11 rear brake pipe | 47332-12040 |
| 47333 | No. 12 rear brake pipe | 47331-12020 |
| 47334 | No. 13 rear brake pipe | 47334-12030 |
| 47378 | Brake pipe guard | 47378-12020 · 47378-12030 |
