Toyota COROLLA 前鼓式制动器分泵和底板 — Figure 4704

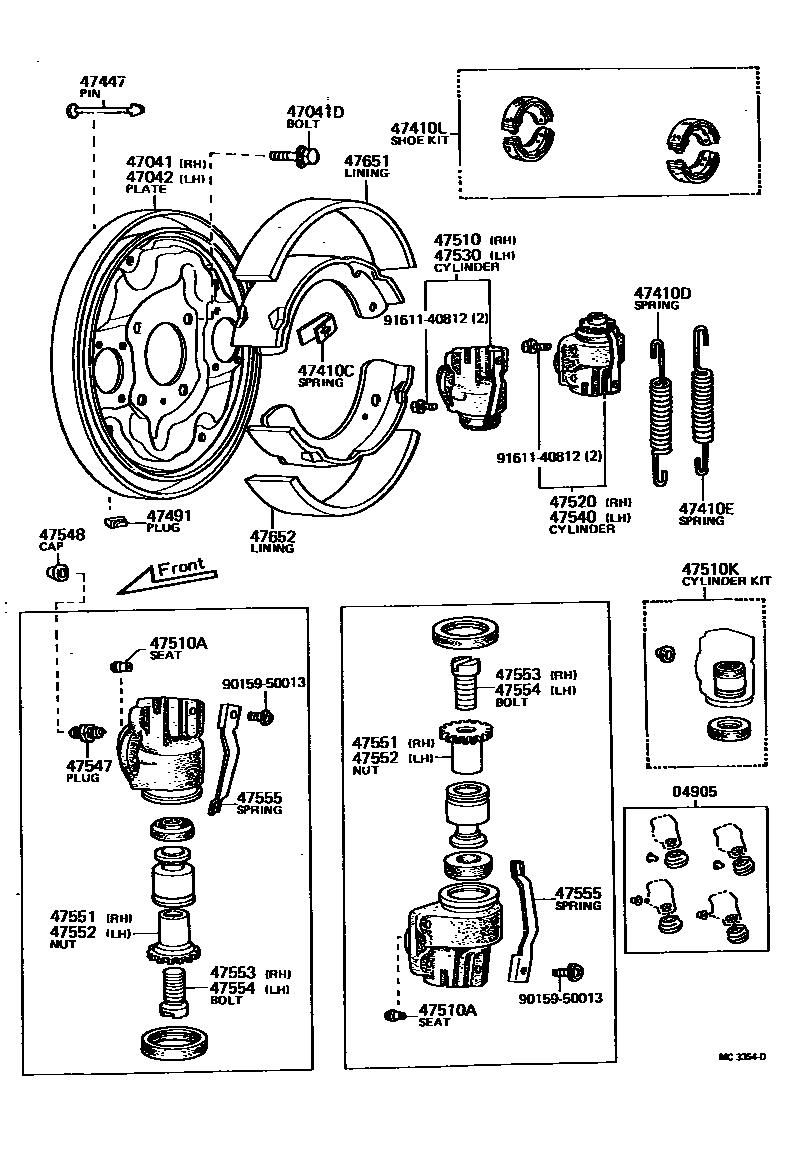

Toyota COROLLA EPC diagram 4704, 前鼓式制动器分泵和底板, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04905 | Front wheel cylinder cup assembly | 04905-12020 |
| 47041 | Right front brake base plate sub-assembly | 47041-12040 |
| 47041D | Bolts (used to secure the base plate to the steering knuckle) | 90119-10009 · 90119-10082 · 90119-10188 |
| 47042 | Left front brake base plate sub-assembly | 47042-12040 |
| 47410C | Limit spring (for front brake shoes) | 47446-10010 |
| 47410D | Tension spring (for front brake shoe return) | 90506-16464 · 90506-20013 |
| 47410E | Tension spring (for front brake shoe return) | 90506-16464 · 90506-20013 |
| 47410L | front brake shoe assembly | 04494-12040 · 04494-12050 |
| 47447 | Brake shoe limit spring pin (for front wheel brake) | 47447-11010 |
| 47491 | Hole plug (for front wheel brake) | 47491-20020 |
| 47510 | Right front wheel brake cylinder assembly (for front or upper side) | 47510-19075 |
| 47510A | Joint base (for front wheel brake cylinder) | 90410-03015 |
| 47510K | Front wheel cylinder assembly | 04473-12021 |
| 47520 | Right front wheel brake cylinder assembly (for rear or lower side) | 47520-19065 |
| 47530 | Left front wheel brake cylinder assembly (for front or upper side) | 47530-19075 |
| 47540 | Left front wheel brake cylinder assembly (for rear or lower side) | 47540-19065 |
| 47547 | Bleed plug (for front drum brake) | 47547-12010 |
| 47548 | Bleeder plug cap (for front drum brake) | 31478-30010 |
| 47551 | Right front wheel cylinder adjustment nut (for front wheel brake) | 47551-14010 · 47551-14011 |
| 47552 | Left front wheel cylinder adjustment nut (for front wheel brake) | 47552-14010 · 47552-14011 |
| 47553 | Right front wheel cylinder adjustment bolt (for front wheel brake) | 47553-12011 · 47553-20020 |
| 47554 | Left front wheel cylinder adjustment bolt (for front wheel brake) | 47554-12011 · 47554-20020 |
| 47555 | Adjuster locking spring (for front wheel brake) | 47555-12050 · 47555-14011 · 47556-12030 · 47556-14011 |
| 47651 | Front brake shoe friction lining (for front or upper side) | 47651-12050 · 47651-12070 |
| 47652 | Front brake shoe friction lining (for rear or lower side) | 47651-12050 · 47651-12070 |
