Toyota COROLLA Parking Brake & Cable — Figure 4601

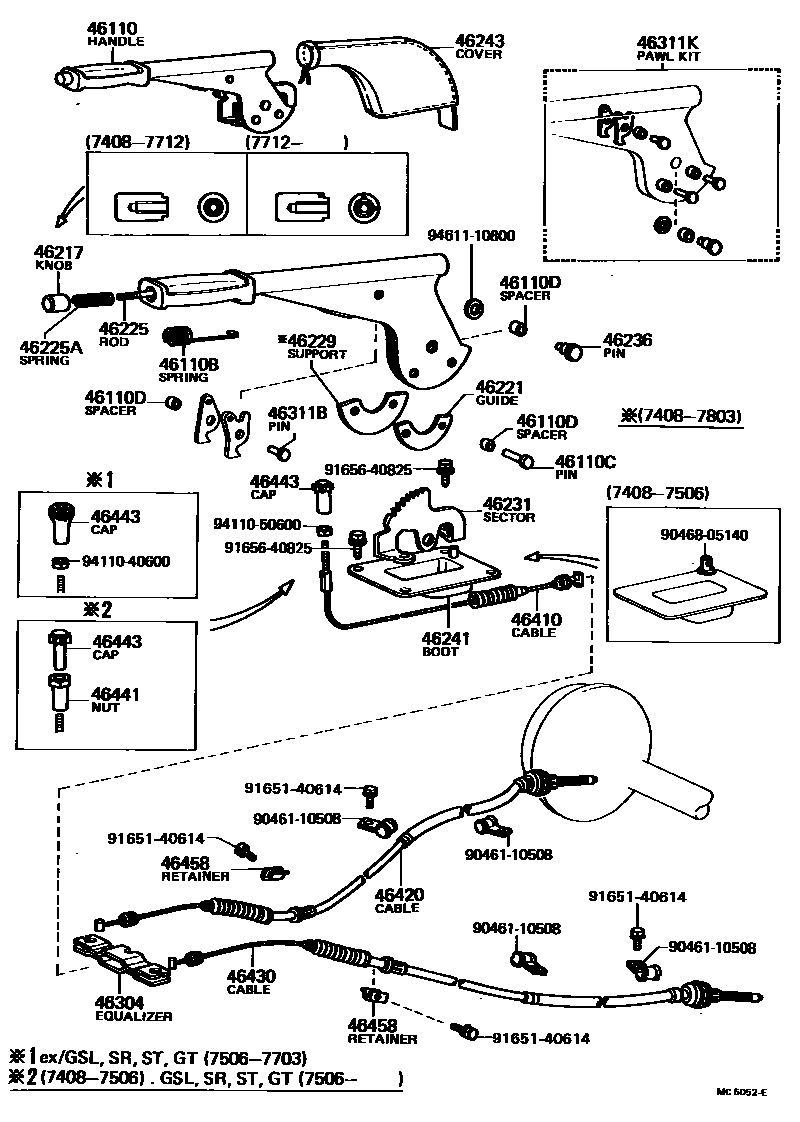

Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46110 | Parking brake control handle assembly | 46201-12020 |
| 46110B | Tension spring (for parking brake control handle) | 90507-08001 |
| 46110C | Pin (for parking brake control handle assembly) | 90243-06018 |
| 46110D | Spacer (for parking brake control handle) | 90560-06195 · 90560-06201 · 90560-10200 |
| 46217 | Parking brake release lever handle | 46217-10013 |
| 46221 | Parking brake cable guide | 46221-12010 |
| 46225 | Parking brake pawl release lever | 46225-12012 |
| 46225A | Compression spring (for parking brake pawl lever) | 90501-12160 |
| 46229 | Parking brake cable guide bracket | 46229-12010 |
| 46231 | Parking brake lever sector plate | 46231-12020 |
| 46236 | Parking brake lever pivot pin | 46236-12010 |
| 46241 | Parking brake lever dust cover | 46241-12020 |
| 46304 | Parking brake balancer sub-assembly | 46341-12010 |
| 46311B | Parking brake pawl pivot pin | 90243-06017 |
| 46311K | Parking brake pawl assembly | 04461-12010 |
| 46410 | Parking brake cable assembly No. 1 | 46410-14020 |
| 46420 | Parking brake No. 2 cable assembly | 46420-12090 · 46420-12091 · 46420-12110 · 46420-12111 · 46420-12130 · 46420-12131 |
| 46430 | Parking brake No. 3 cable assembly | 46430-12010 · 46430-12011 · 46430-12030 · 46430-12031 · 46430-12050 · 46430-12051 · 46430-12090 · 46430-12091 |
| 46441 | No. 1 cable adjustment nut | 46441-14010 |
| 46443 | cable adjustment cover | 46443-12020 · 46443-12040 · 46443-14010 |
| 46458 | Cable fixings | 46458-20020 |
