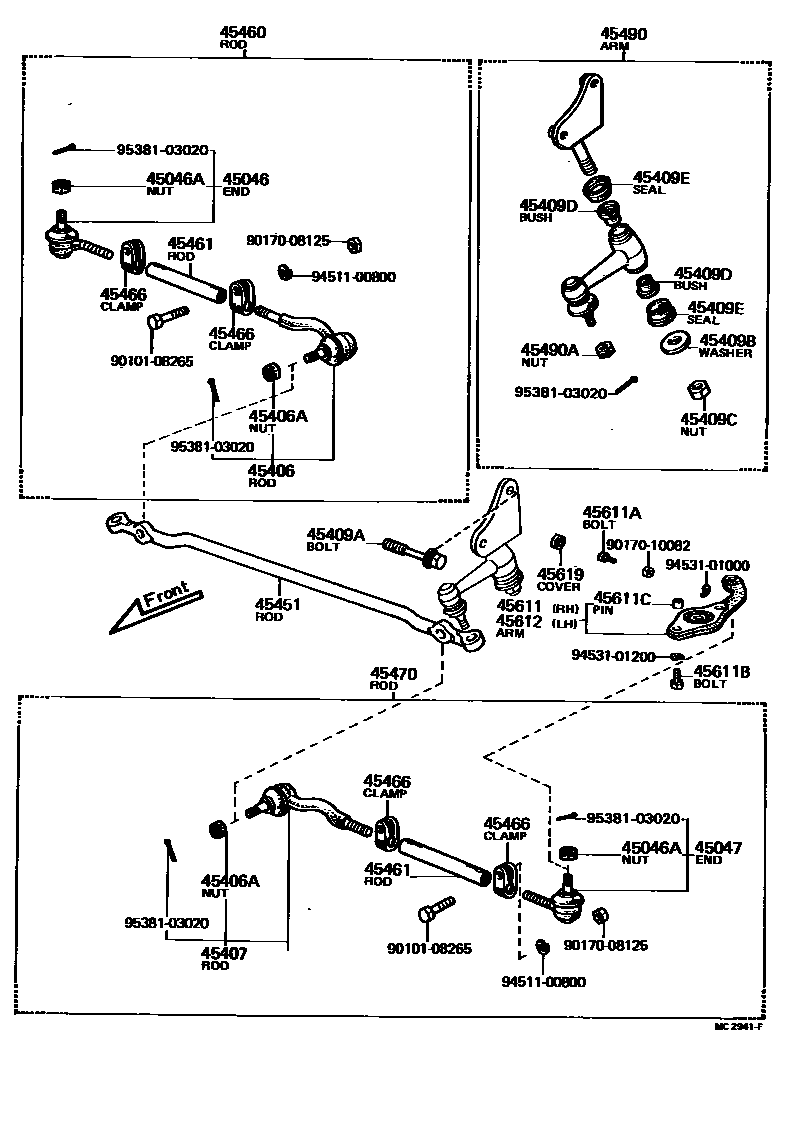

Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-19065 · 45046-19075 · 45046-19085 · 45046-19135 · 45046-29075 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-19065 · 45046-19075 · 45046-19085 · 45046-19135 · 45046-29075 |
| 45406 | Right tie rod sub-assembly | 45406-19025 · 45406-19045 |
| 45406A | Castle nuts (for tie rods) | 90171-12028 |
| 45407 | Left tie rod sub-assembly | 45406-19025 · 45406-19045 |
| 45409A | Hexagonal bolts (used to secure the follower arm bracket) | 90119-10021 · 90119-10100 |
| 45409B | Flat Washer (for follower arm rubber bushing) | 90201-14519 |
| 45409C | Nut (for follower arm bracket) | 94182-11400 |
| 45409D | Bushing (for follower arm) | 90385-18068 |
| 45409E | Dust seal (for follower arm bracket) | 90304-31012 |
| 45451 | Steering intermediate tie rod | 45451-12030 · 45451-13010 |
| 45460 | Right tie rod assembly | 45460-19065 · 45460-19085 |
| 45461 | steering tie rod | 45465-22010 |
| 45466 | Tie rod end clamp | 45466-22010 |
| 45470 | Left tie rod assembly | 45460-19065 · 45460-19085 |
| 45490 | Steering follower arm assembly | 45490-19125 · 45490-19135 |
| 45490A | Castle nut (for follower arm) | 90171-12028 |
| 45611 | Right steering knuckle arm | 45611-12907 · 45611-12908 |
| 45611A | Steering knuckle limit bolt | 90106-10002 · 90106-10006 |
| 45611B | Hexagonal bolt (for steering knuckle to shock absorber) | 90101-12295 |
| 45611C | Direct sales (for steering knuckle to shock absorber) | 90253-15016 |
| 45612 | Left steering knuckle arm | 45612-12907 · 45612-12908 |
| 45619 | Steering knuckle stop cover | 45619-14010 · 45619-14020 |
