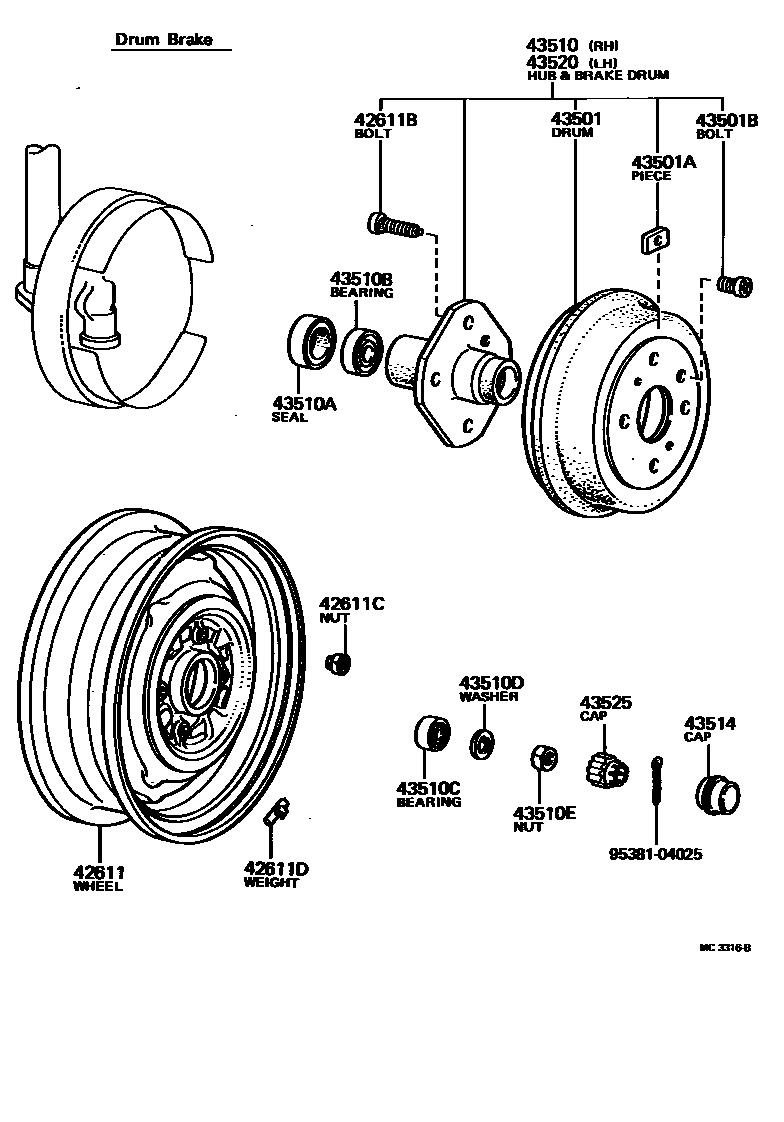

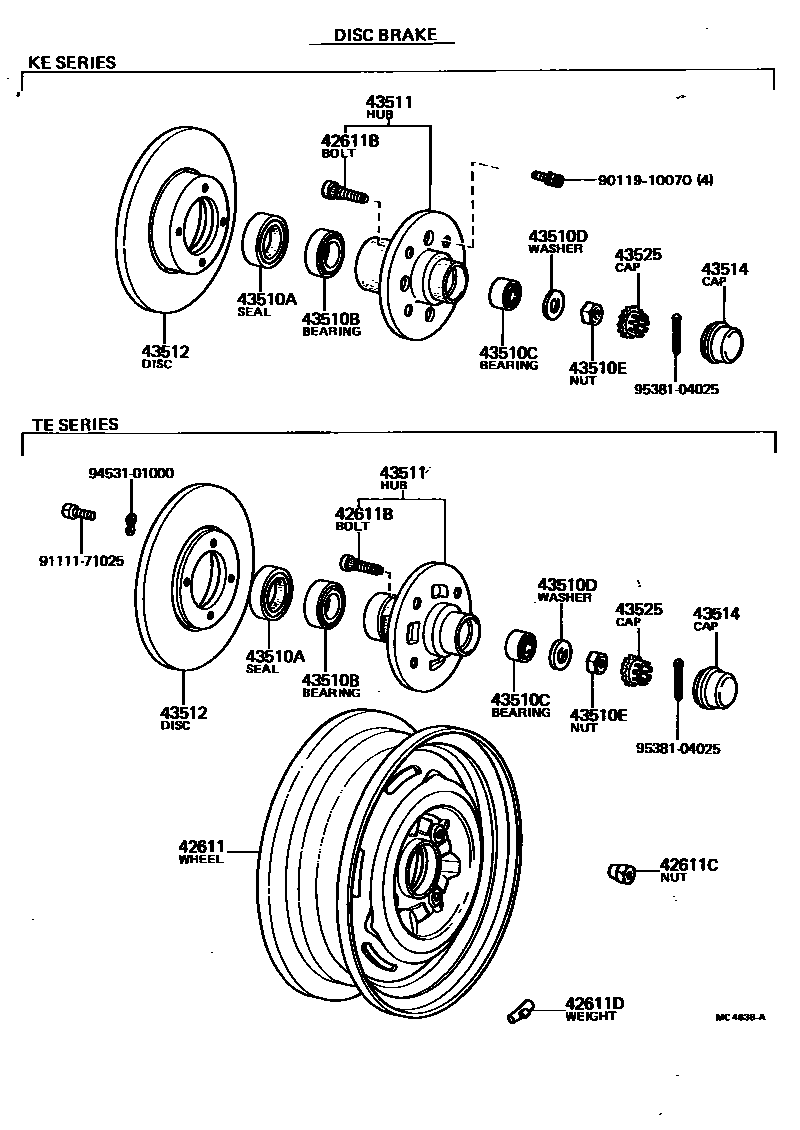

Toyota COROLLA Front Axle Hub — Figure 4303
Toyota COROLLA EPC diagram 4303, Front Axle Hub, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42611 | spoke wheel | 42611-12241 · 42611-12401 · 42611-12430 · 42611-13040 · 42611-14060 · 42611-14100 · 42611-14101 · 42611-14110 · 42611-14120 · 42611-14130 · 42611-14240 · 42611-14242 · 42611-14300 · 42611-14310 · 42611-14320 · 42611-14330 · 42611-14331 · 42611-14350 · 42611-20050 · 42611-20060 · 42611-20090 · 42611-20091 · 42611-20160 · 42611-22080 · 42611-22090 · 42611-22121 |
| 42611C | Hub nut (for front axle) | 90942-01007 · 90942-01017 · 90942-01020 · 90942-01021 · 90942-01026 |
| 42611D | Balance weight (for front spoke wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03092 · 90942-03093 · 90942-03094 · 90942-03095 · 90942-03096 · 90942-03097 |
| 43501 | Front brake drum sub-assembly | 43512-12050 |
| 43501A | Balance weight (for front brake drum) | 90937-01096 · 90937-01097 · 90937-01098 · 90937-01099 · 90937-01100 |
| 43501B | Fixing bolt (for fixing front brake drum) | 90113-10007 |
| 43510 | Right front axle hub and brake drum assembly | 43510-12050 |
| 43520 | Left front axle hub and brake drum assembly | 43510-12050 |
