Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102

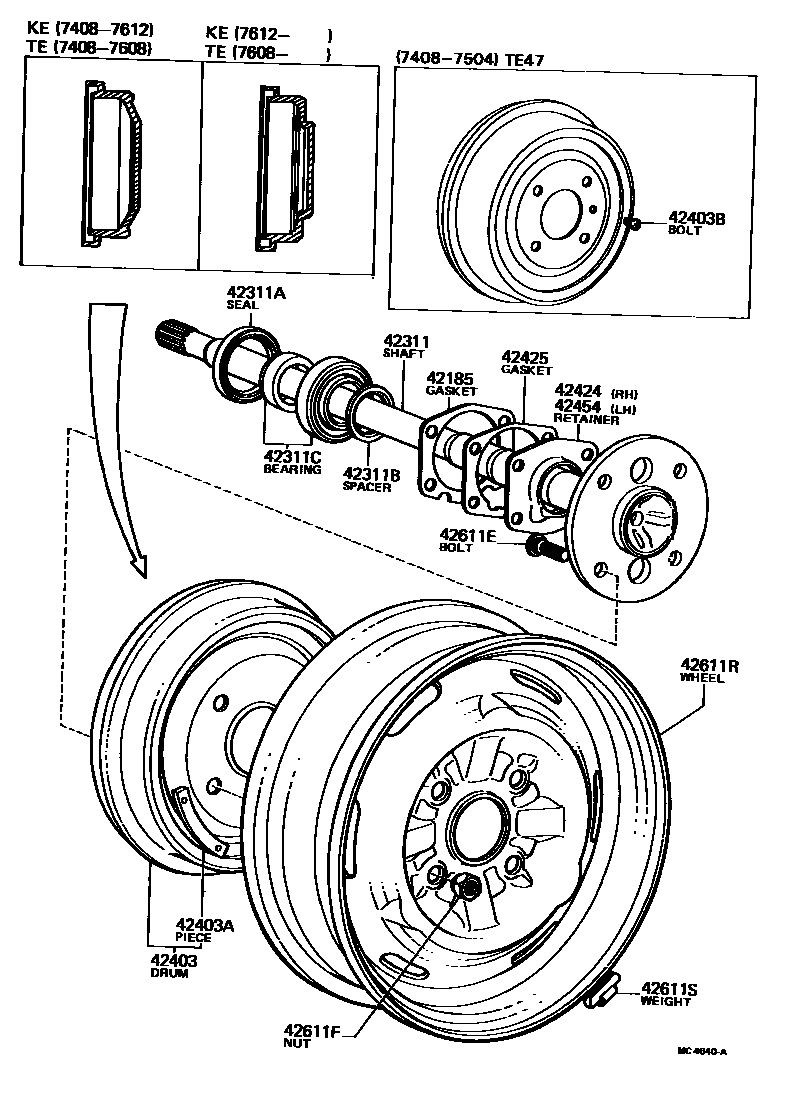

Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42185 | Rear axle housing end gasket | 42185-12010 · 42185-13010 · 42185-13020 · 42185-22010 · 42185-22020 |
| 42311 | Rear axle half shaft | 42311-12050 · 42311-12051 · 42311-12052 · 42311-12120 · 42311-12121 · 42311-15010 · 42311-20042 · 42311-20060 |
| 42311A | Oil seal (for rear axle half shaft) | 90311-42055 · 90311-52059 |
| 42311B | Spacer (for rear axle half shaft bearing) | 90560-30152 · 90560-35153 |
| 42311C | Bearings (for rear axle half shaft) | 04421-12010 · 04421-13010 · 04421-30010 · 04421-30011 |
| 42403 | Rear brake drum sub-assembly | 42431-12020 · 42431-12021 · 42431-12040 · 42431-12050 · 42431-12060 · 42431-14060 · 42431-20040 · 42431-22050 |
| 42403A | Balance weight (for rear brake drum) | 90937-01117 · 90937-01118 · 90937-01119 · 90937-01120 · 90937-01121 · 90937-01122 · 90937-01141 · 90937-01142 · 90937-01143 · 90937-01144 · 90937-01145 · 90937-01195 · 90937-01196 · 90937-01197 |
| 42403B | Fixing bolt (for fixing the rear brake drum) | 90113-10007 |
| 42424 | Rear axle right bearing outer retainer | 42424-20010 · 42424-21010 |
| 42425 | Rear axle bearing retainer gasket | 42425-13010 · 42425-20010 · 42425-22020 |
| 42454 | Rear axle left bearing outer retainer | 42454-20010 · 42454-21010 |
| 42611E | Hub bolts (for rear axle) | 90942-02021 · 90942-02032 · 90942-02035 |
| 42611F | Hub nut (for rear axle) | 90942-01007 · 90942-01017 · 90942-01020 · 90942-01021 · 90942-01026 |
| 42611R | Spoke wheels (for rear tires) | 42611-12241 · 42611-12401 · 42611-12430 · 42611-13040 · 42611-14060 · 42611-14100 · 42611-14101 · 42611-14110 · 42611-14120 · 42611-14130 · 42611-14240 · 42611-14242 · 42611-14300 · 42611-14310 · 42611-14320 · 42611-14330 · 42611-14331 · 42611-14350 · 42611-20050 · 42611-20060 · 42611-20090 · 42611-20091 · 42611-20160 · 42611-22080 · 42611-22090 · 42611-22121 |
| 42611S | Balance weight (for rear spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03092 · 90942-03093 · 90942-03094 · 90942-03095 · 90942-03096 · 90942-03097 |
