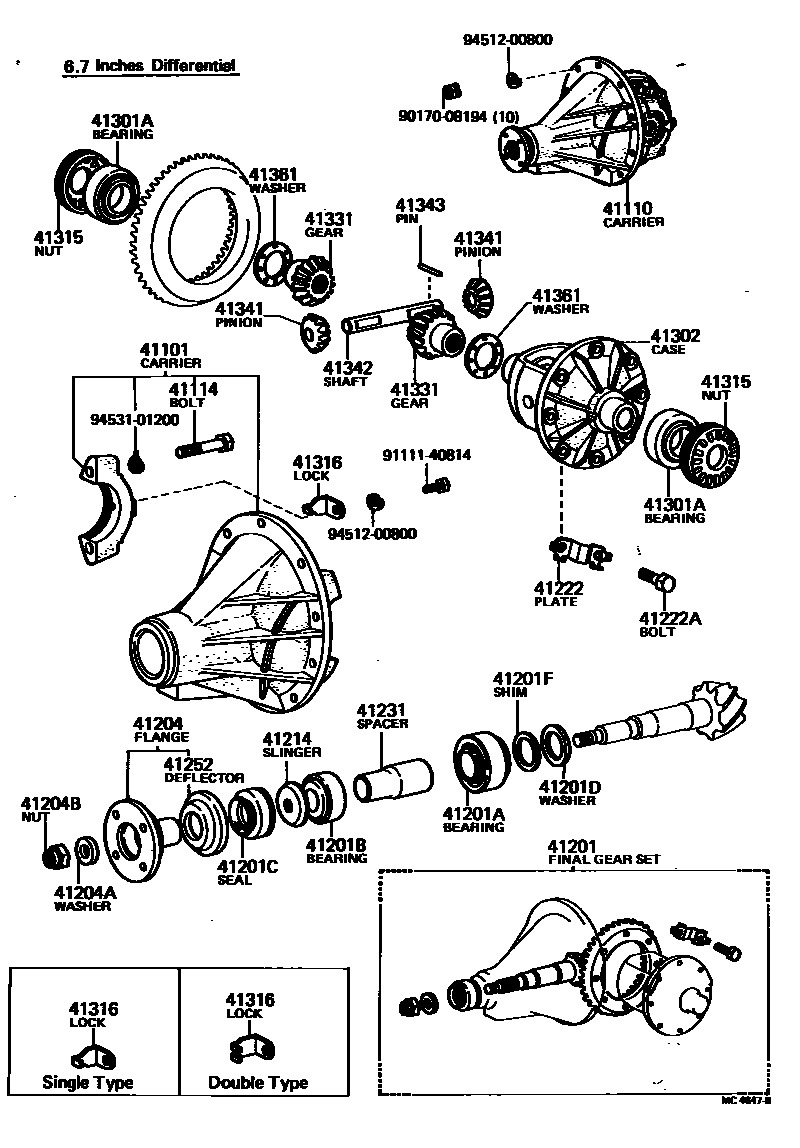

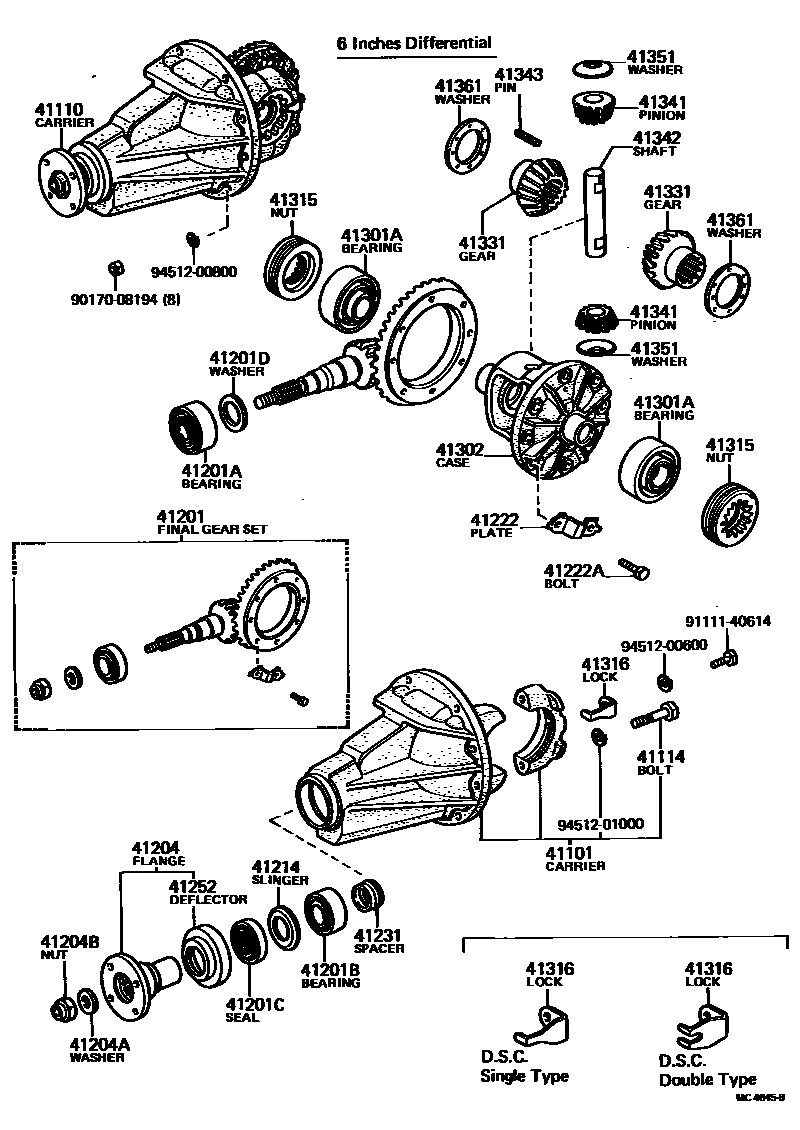

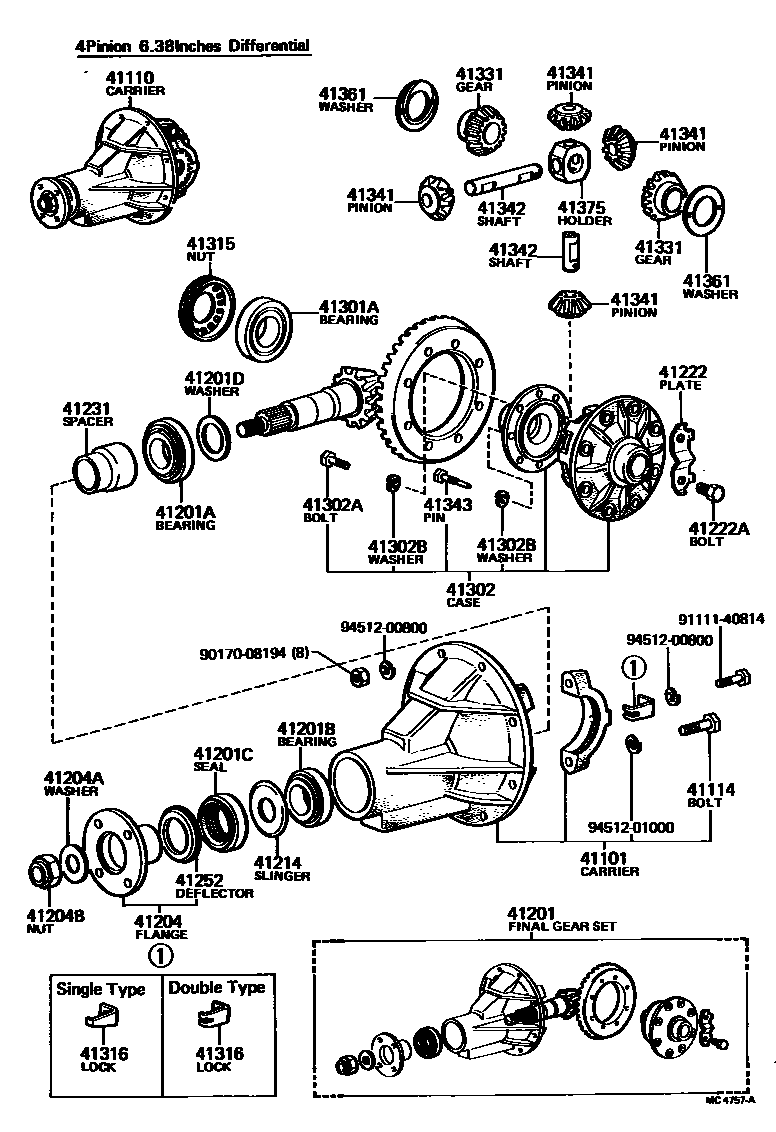

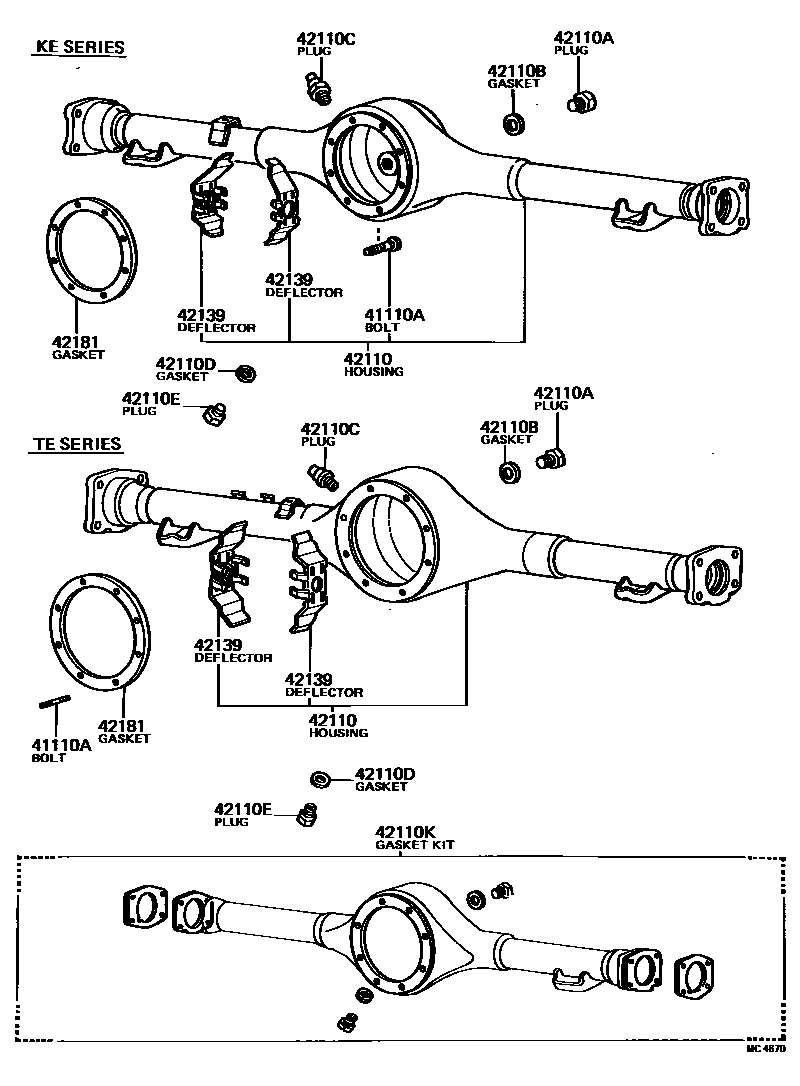

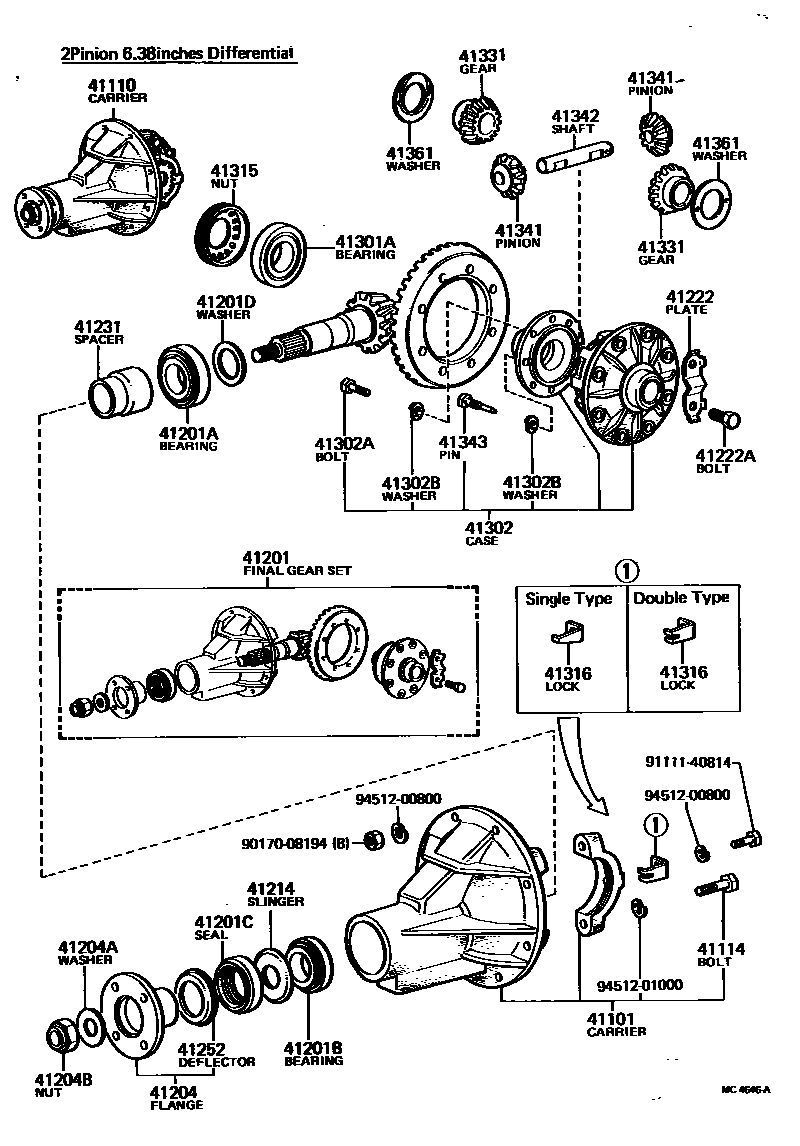

Toyota COROLLA 后桥壳和差速器 — Figure 4101
Toyota COROLLA EPC diagram 4101, 后桥壳和差速器, with 5 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41101 | Rear differential bracket sub-assembly | 41101-12020 · 41101-12030 · 41101-20010 · 41101-20011 · 41101-22010 |
| 41110 | Rear differential bracket assembly | 41110-10080 · 41110-12041 · 41110-12050 · 41110-12060 · 41110-12110 · 41110-20121 · 41110-20180 · 41110-20260 · 41110-22013 |
| 41110A | Bolt No. 1 (for rear differential case assembly) | 90114-08003 · 90116-08235 · 90116-08236 |
| 41114 | Rear differential bearing cap bolts | 90101-10128 · 90101-12371 · 90105-10008 |
| 41201 | Rear differential final drive gear assembly | 41201-19176 · 41201-19177 · 41201-19185 · 41201-19186 · 41201-19195 · 41201-19196 · 41201-19205 · 41201-19225 · 41201-19226 · 41201-29038 · 41201-29195 · 41201-29196 · 41201-29205 · 41201-29206 · 41201-29355 · 41201-29356 |
| 41201A | Rear bearing (for rear drive pinion) | 90368-30069 · 90368-33021 · 90368-34049 |
| 41201B | Front bearing (for rear drive pinion) | 90366-25047 · 90368-30002 · 90368-30069 |
| 41201C | Oil seal (for rear differential case) | 90311-35131 · 90311-38014 · 90311-38015 · 90311-38124 |
| 41201D | Flat washer (for rear differential drive pinion) | 90201-30234 · 90201-30235 · 90201-30236 · 90201-30237 · 90201-30238 · 90201-30239 · 90201-30240 · 90201-30241 · 90201-30242 · 90201-30539 · 90201-30540 · 90201-30541 · 90201-30542 · 90201-30543 · 90201-30544 · 90201-35396 · 90201-35397 · 90201-35398 · 90201-35399 · 90201-35400 · 90201-35401 · 90201-35402 · 90201-35403 · 90201-35404 · 90201-35435 · 90201-35436 · 90201-35437 · 90201-35438 · 90201-35439 · 90201-35440 · 90209-33038 · 90209-33039 · 90209-33040 · 90209-33041 · 90209-33042 · 90209-33043 · 90209-33044 · 90209-33045 · 90209-33046 |
| 41201F | Rear adjustment shim (for rear differential drive pinion spacer) | 90564-35067 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-12020 · 41204-20012 · 41204-20020 |
| 41204A | Flat washer (for rear drive pinion) | 90201-16244 · 90201-18485 |
| 41204B | Nut (for rear driving pinion) | 90179-16052 · 90179-18001 · 90179-18060 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-12020 · 41214-20020 |
| 41222 | Rear differential ring gear fixing bolt locking plate | 41222-12020 · 41222-12030 · 41222-20020 · 41222-20021 · 41222-30030 |
| 41222A | Bolt (for rear differential ring gear assembly) | 90101-11353 · 90101-11365 · 90109-10015 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-12020 · 41231-20020 · 41231-22010 |
| 41252 | Dust cover (for rear differential) | 37341-20010 · 41252-12020 · 41252-22010 |
| 41301A | Bearings (for rear differential housing) | 90368-34020 · 90368-41050 |
| 41302 | Rear differential housing sub-assembly | 41301-22011 · 41301-22012 · 41301-22020 · 41301-22021 · 41311-12020 · 41311-12021 · 41311-12030 · 41311-22030 |
| 41302A | Bolt (for rear differential case) | 90101-08241 |
| 41302B | Spring washer (for rear differential case) | 90204-08024 |
| 41315 | Rear differential bearing adjusting nut | 41315-12010 · 41315-12020 · 41315-20010 · 41315-20011 · 41315-22011 |
| 41316 | Rear differential bearing adjustment nut locking piece | 41316-12010 · 41316-20010 · 41316-20020 · 41316-22011 · 41317-12010 · 41317-22011 |
| 41331 | rear differential side gear | 41331-20010 · 41331-20011 · 41331-22011 · 41331-22020 |
| 41341 | rear differential pinion | 41341-20010 · 41341-20011 · 41341-22010 · 41341-22011 · 41341-22020 |
| 41342 | Rear differential planetary gear shaft | 41342-12010 · 41342-20010 · 41342-20020 · 41342-22010 |
| 41343 | Rear differential planetary gear pin | 41343-22010 · 90250-04053 · 90250-04193 |
| 41351 | Rear differential planetary gear thrust washer | 41351-12010 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-12010 · 41361-12020 · 41361-12030 · 41361-12040 · 41361-12050 · 41361-12060 · 41361-12070 · 41361-12080 · 41361-12090 · 41361-12100 · 41361-12110 · 41361-12120 · 41361-22010 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41362-22010 · 41363-22010 |
| 41375 | Rear differential planetary gear shaft support | 41375-20010 |
| 42110 | Rear axle housing assembly | 42101-12060 · 42101-12061 · 42101-13040 · 42101-13041 · 42110-12040 · 42110-12041 · 42110-12050 · 42110-12052 · 42110-13021 · 42110-13060 · 42110-19035 |
| 42110A | Screw plug (for rear axle housing oil filling port) | 90341-18049 |
| 42110B | Gasket (for rear axle housing oil filling plug) | 12157-10010 |
| 42110C | Breather plug (for rear axle housing) | 90930-03031 |
| 42110D | Gasket (for rear axle housing drain plug) | 12157-10010 |
| 42110E | Screw plug (for rear axle housing oil drain port) | 90341-18057 |
| 42110K | Differential case gasket assembly | 04412-10011 · 04412-13010 · 04412-22010 · 04412-22060 |
| 42139 | Rear axle housing oil baffle | 42139-12010 · 42139-12020 · 42139-20030 |
| 42181 | Rear differential case gasket | 42181-12010 · 42181-20010 · 42181-22010 |
