Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514

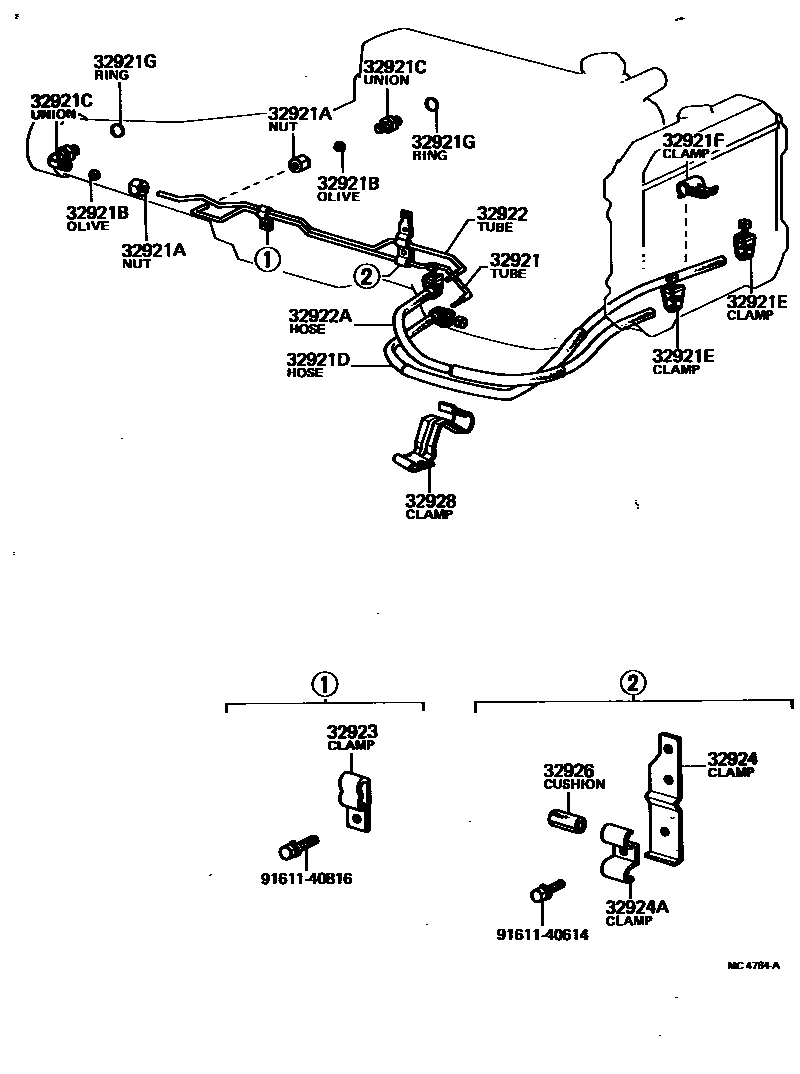

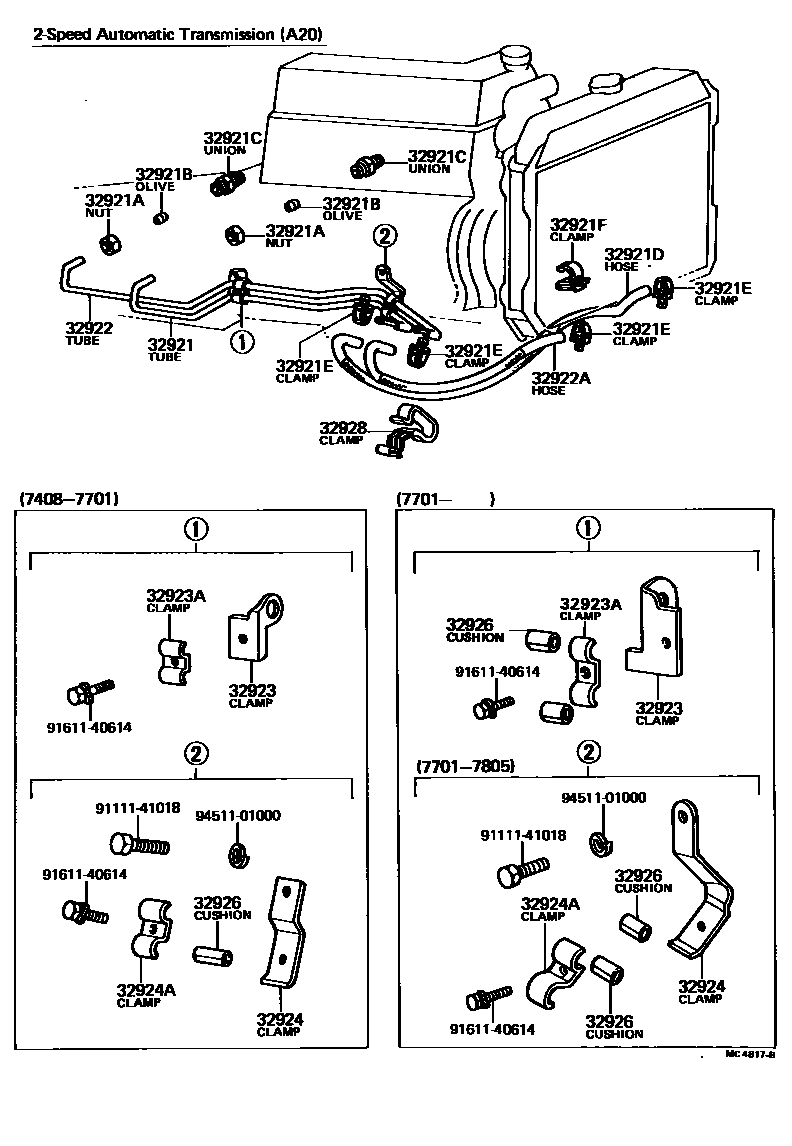

Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-10011 · 32921-12051 · 32921-12060 · 32921-12070 |
| 32921A | Union nut (for transmission oil cooler tube) | 90402-13041 |
| 32921B | Olive-shaped piece (for transmission oil cooler pipe) | 96395-71400 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13105 · 90404-13265 · 90407-13060 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-10020 · 32941-12010 |
| 32921E | Hose clamp (for transmission oil cooler) | 90460-01075 |
| 32921F | Clamp (for transmission oil cooler tube) | 90463-06599 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-10011 · 32922-12012 · 32922-12050 · 32922-12060 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 32941-12010 · 32942-12010 · 32942-12020 |
| 32923 | Automatic transmission oil cooler pipe clamp | 32923-12020 · 32923-12021 · 90461-08039 |
| 32923A | Automatic transmission oil cooler pipe clamp | 90462-12084 · 90462-12085 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-12010 · 32924-12021 · 32924-14010 |
| 32924A | Clamp (for No. 2 transmission oil cooler tube) | 90462-12085 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30011 |
| 32928 | No. 1 Flexible Hose Clamp | 90463-06600 |
