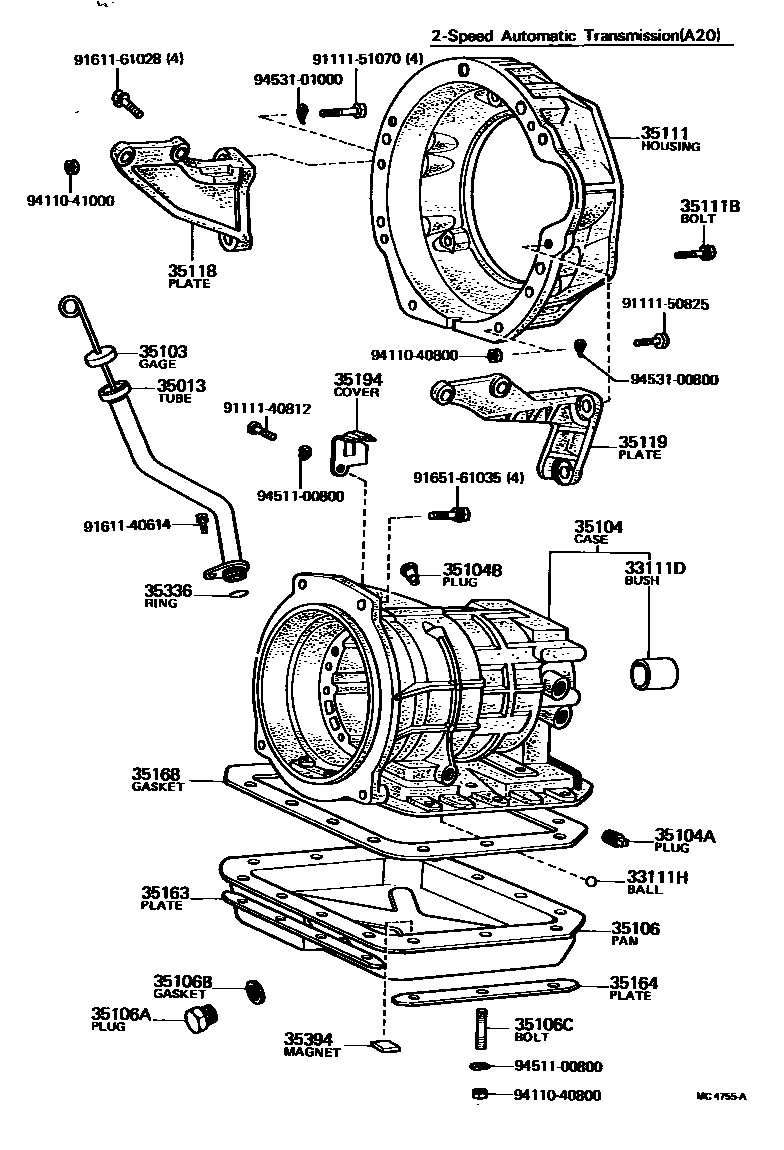

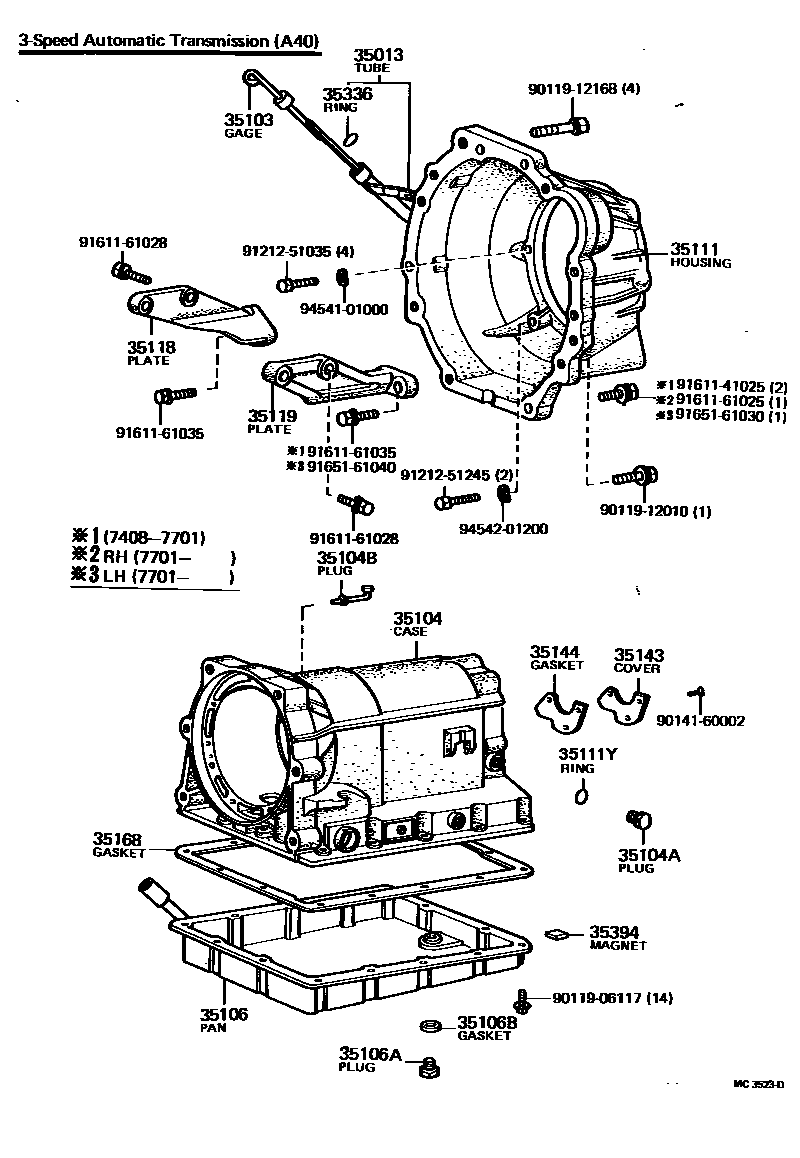

Toyota COROLLA 变速器壳和油底壳(ATM) — Figure 3503
Toyota COROLLA EPC diagram 3503, 变速器壳和油底壳(ATM), with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111D | Bimetallic bushing (for gearbox) | 90999-73039 |
| 33111H | Steel ball (for throttle relay valve) | 90360-06004 |
| 35013 | Transmission oil pipe sub-assembly | 35013-12050 · 35013-13010 |
| 35103 | Transmission oil level scoring assembly | 35103-12012 · 35103-12022 |
| 35104 | Automatic transmission housing sub-assembly | 35104-20020 · 35104-22021 · 35104-22022 |
| 35104A | automatic transmission plug | 90341-08079 · 90345-51005 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03001 · 90930-03061 |
| 35106 | Automatic transmission oil pan sub-assembly | 35106-22010 · 35106-22020 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-10078 · 90341-18057 |
| 35106B | Drain plug gasket (ATM) | 12157-10010 · 90202-10110 |
| 35106C | Stud bolts (for securing automatic transmission oil pan) | 90116-08037 |
| 35111 | automatic transmission housing | 35111-12020 · 35111-12040 |
| 35111B | Bolts (used to secure transmission housing and engine) | 90119-12004 · 91619-61265 |
| 35111Y | O-ring (for automatic transmission) | 90301-06196 |
| 35118 | Right reinforcement plate (ATM) | 33118-12020 · 33118-12050 |
| 35119 | Left reinforcement plate (ATM) | 33119-12010 · 33119-12011 · 33119-12020 · 33119-12021 |
| 35143 | Gearbox rear cover | 35143-22010 |
| 35144 | Transmission rear cover gasket | 35144-22010 |
| 35163 | No. 1 transmission oil pan flange piece | 35163-12010 |
| 35164 | No. 2 transmission oil pan flange piece | 35164-12010 |
| 35168 | Automatic transmission oil pan gasket | 35168-12010 · 35168-22010 |
| 35194 | Gearbox dust cover | 35194-12010 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 · 90301-17006 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
