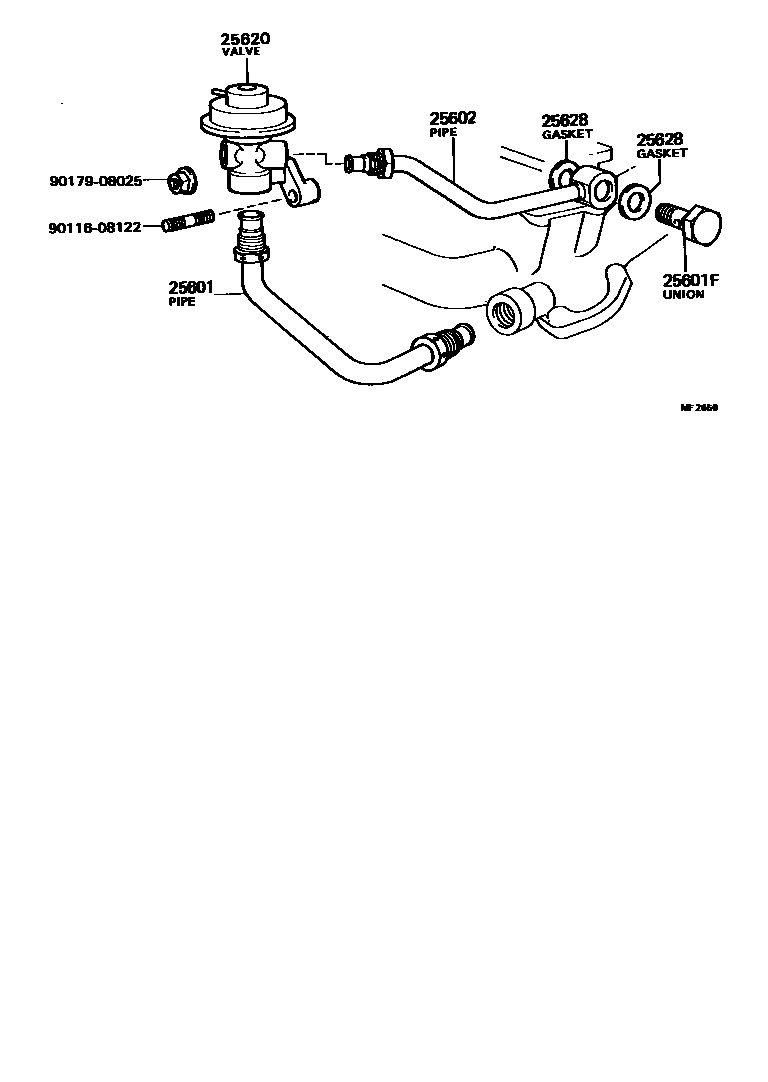

Toyota COROLLA 废气再循环系统 — Figure 2501
Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-13030 |
| 25601F | Connector (for No. 1 EGR tube) | 90401-18005 |
| 25602 | No. 2 EGR pipe assembly | 25602-13010 |
| 25620 | EGR valve assembly | 25620-13110 · 25620-13120 |
| 25628 | EGR air intake gasket | 90430-18006 |
