Toyota COROLLA 燃油管和卡箍 — Figure 2101

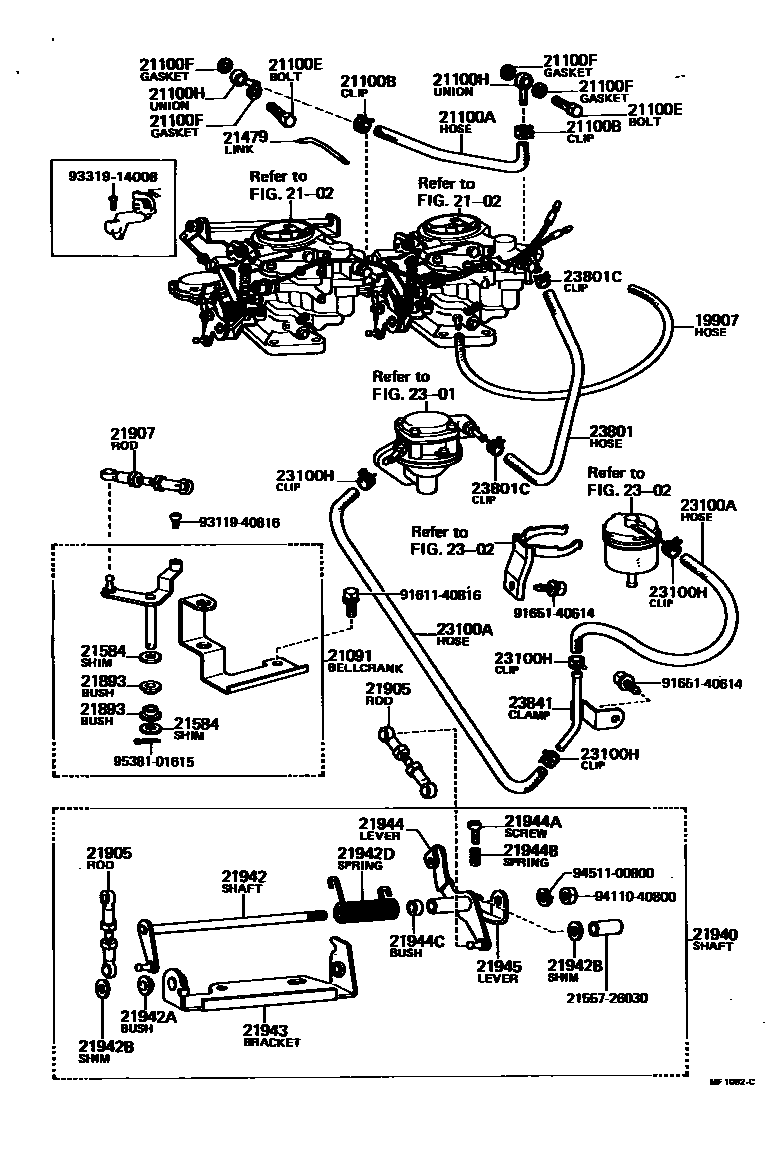

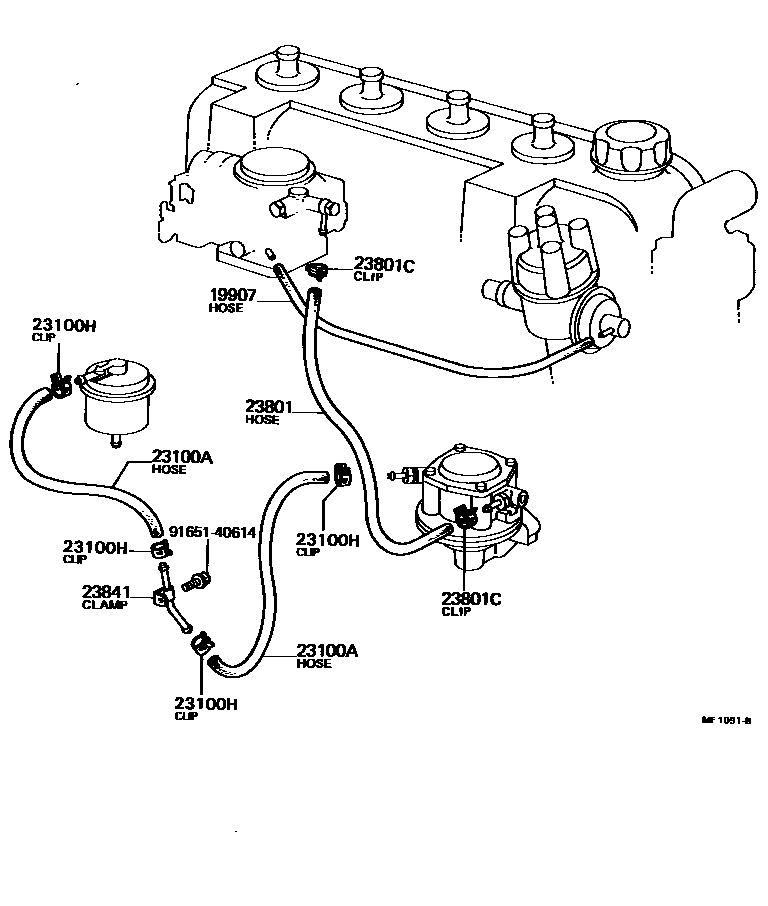

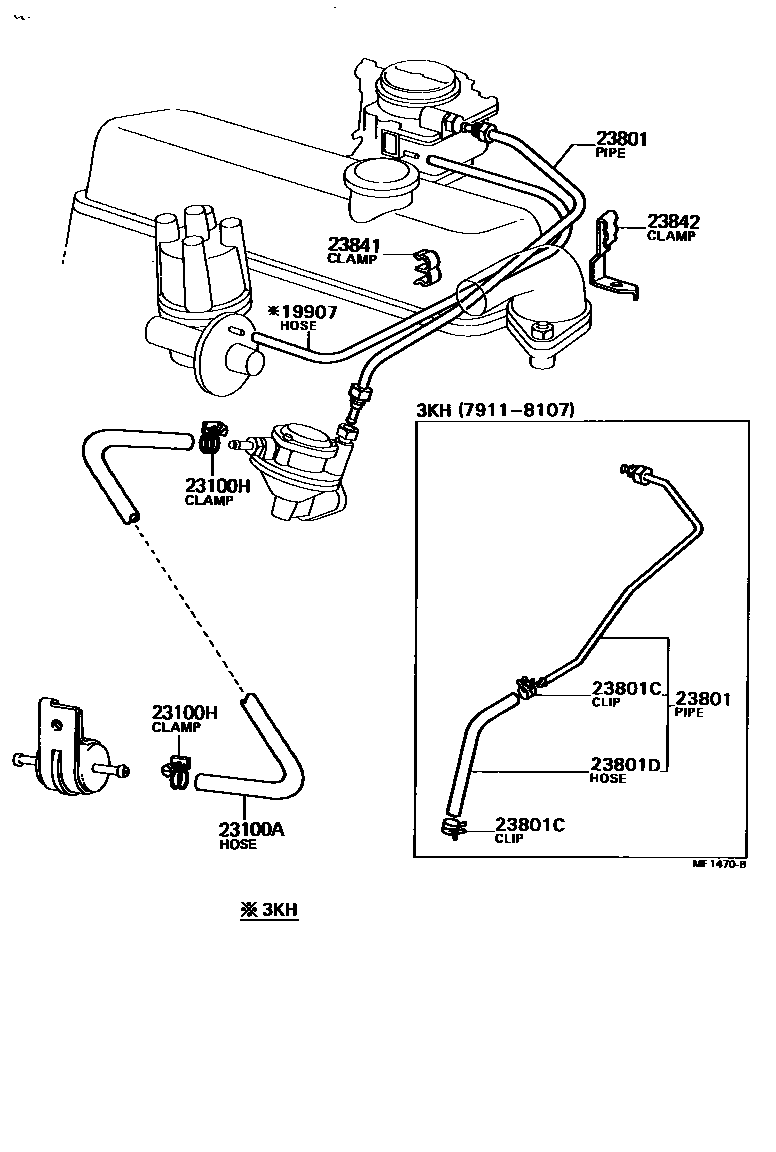

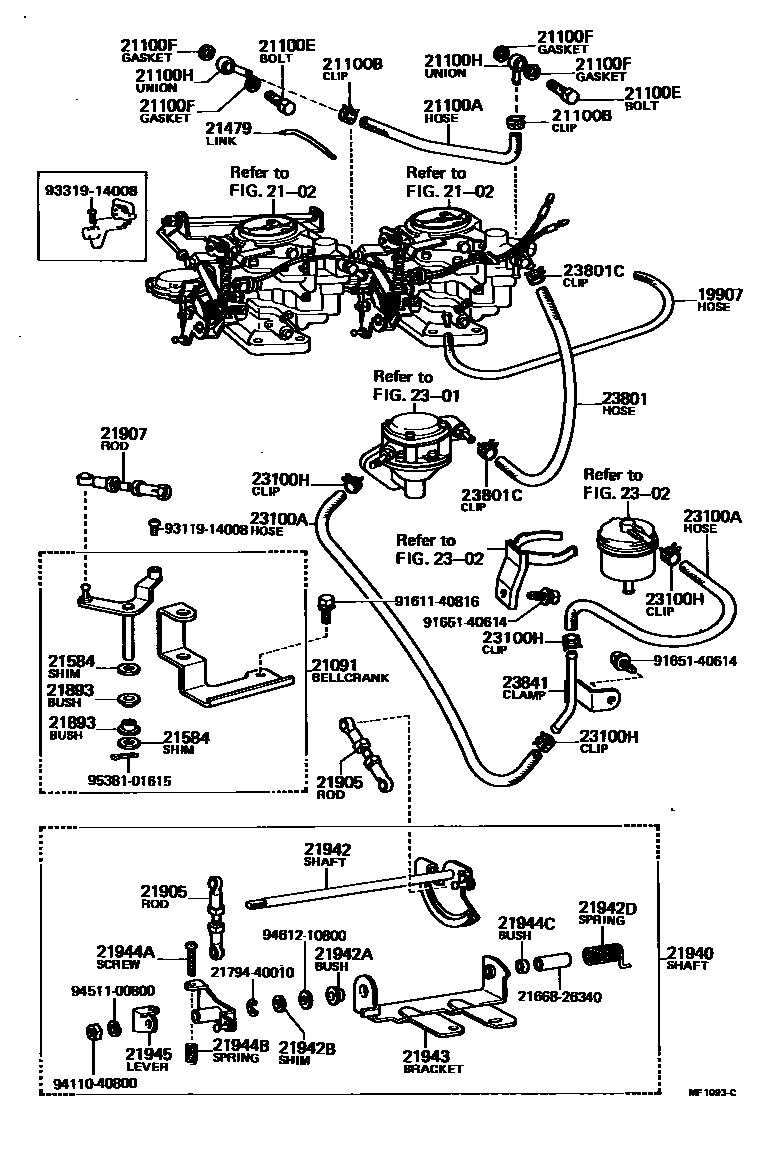

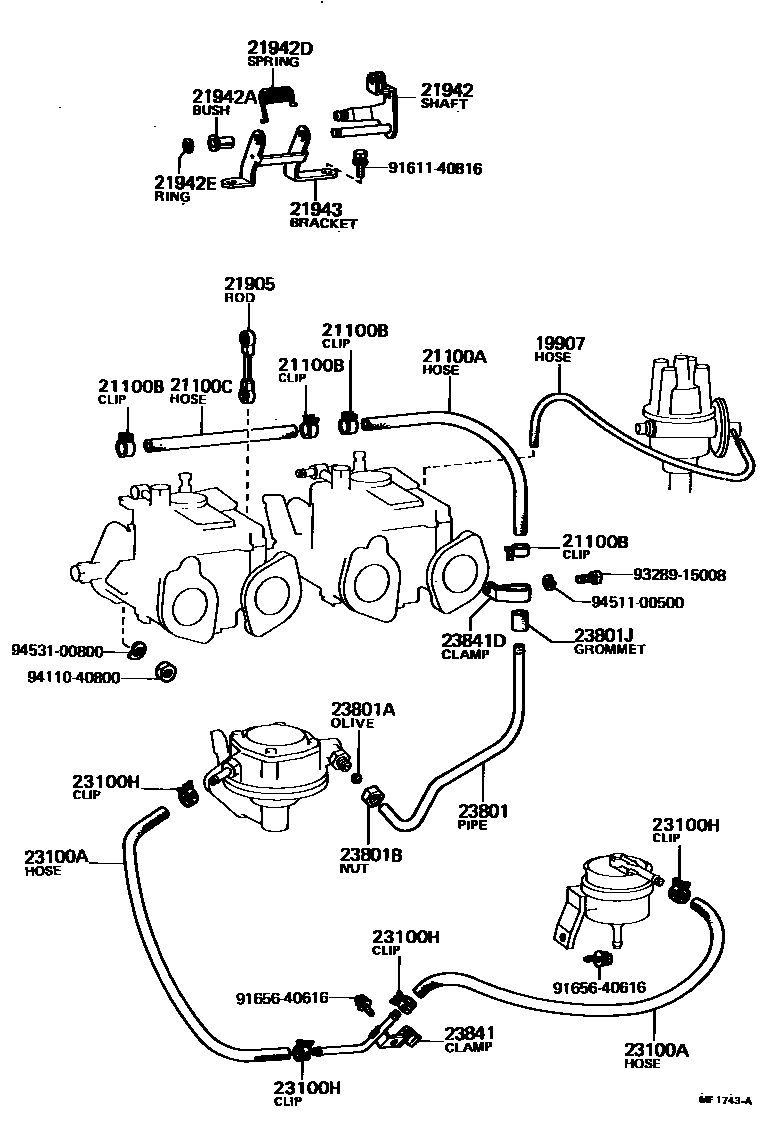

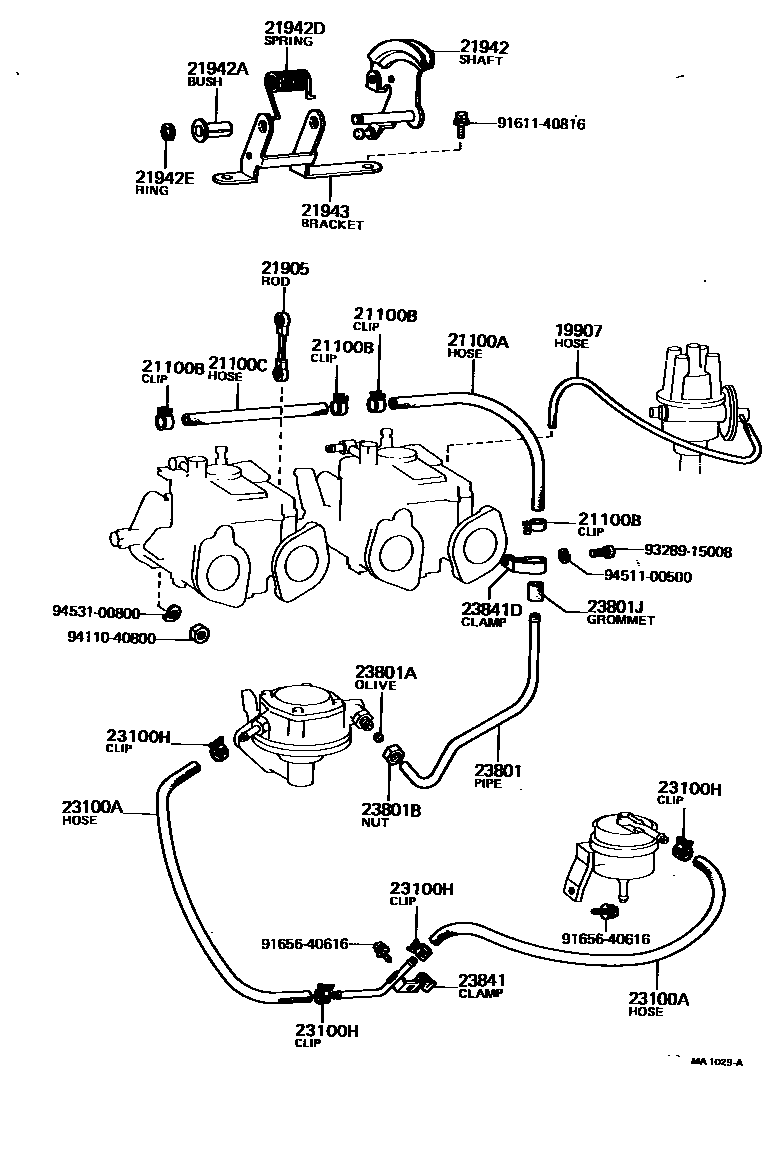

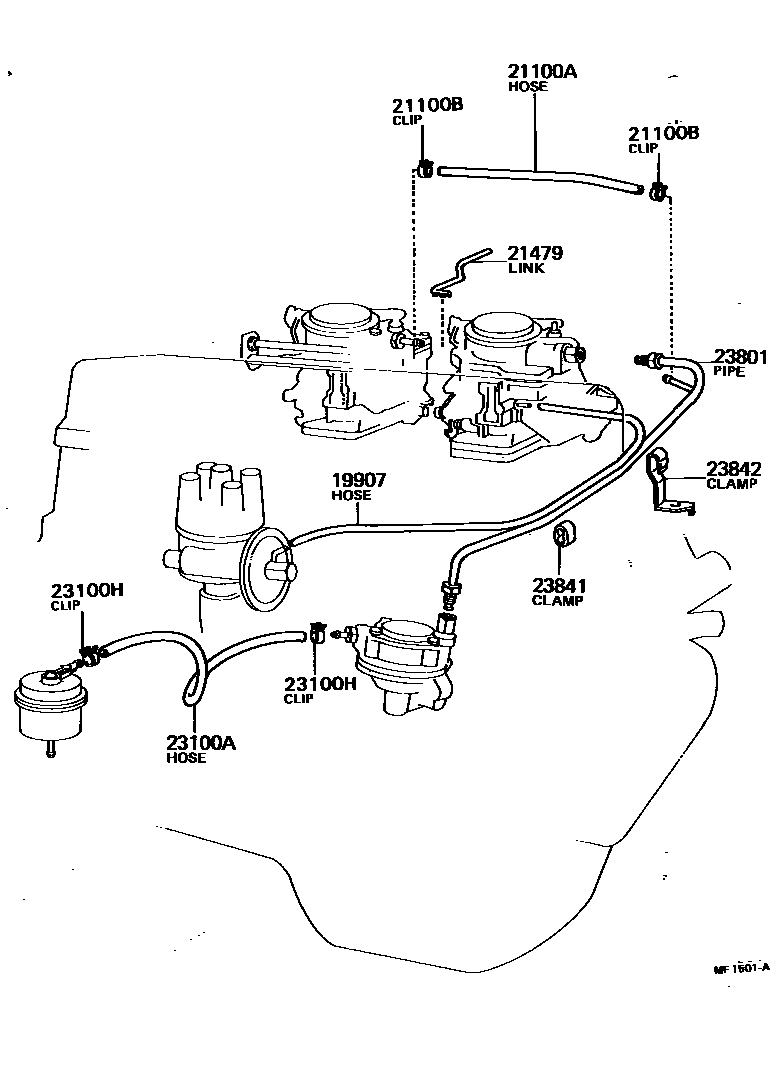

Toyota COROLLA EPC diagram 2101, 燃油管和卡箍, with 7 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19907 | No. 1 vacuum hose | 90445-07003 · 90445-07004 · 90445-07118 · 90445-07127 · 90445-07136 · 95411-19930 · 95411-19960 |
| 21091 | Accelerator pedal right-angle lever sub-assembly | 21091-26030 |
| 21100A | hose (for carburetor) | 90072-44559 · 95331-06024 · 95332-06024 · 95332-06030 |
| 21100B | Clamp (for carburetor) | 96132-30600 · 96132-30800 |
| 21100C | Hose (for carburetor to carburetor) | 90072-44559 |
| 21100E | Carburetor to carburetor hose connector bolts | 90401-13013 |
| 21100F | Carburetor to carburetor hose joint bolt gasket | 90430-13195 |
| 21100H | Connector (for carburetor) | 90405-06166 |
| 21479 | No. 2 choke lever link | 21477-24011 · 21477-26040 |
| 21584 | Choke Rod Right Angle Lever Shaft Spacer | 21581-32010 · 21581-41010 · 21583-41010 |
| 21893 | Choke lever right angle lever shaft bushing | 21895-41080 |
| 21905 | Accelerator pedal connecting rod sub-assembly | 21483-26010 · 21483-26120 · 21484-26120 · 21905-88222 · 21905-88223 |
| 21907 | Choke connecting rod sub-assembly | 21907-26010 |
| 21940 | Accelerator pedal connecting rod shaft assembly | 21940-26030 · 21940-26031 · 21940-26040 · 21940-26041 |
| 21942 | accelerator pedal connecting rod shaft | 21417-26030 · 21417-26340 · 21417-26341 · 21903-88220 · 21903-88221 · 21903-88222 · 21903-88223 |
| 21942A | Bushing (for accelerator pedal connecting rod shaft) | 21895-41080 · 90072-38607 |
| 21942B | First throttle shaft gasket | 21581-25010 · 21582-25010 · 21583-25010 · 21585-25010 |
| 21942D | Spring (for accelerator pedal connecting rod shaft) | 21756-26031 · 21756-26340 · 90072-50818 |
| 21942E | Snap ring (for accelerator pedal connecting rod shaft) | 96160-00600 |
| 21943 | Bracket (for accelerator pedal connecting rod shaft) | 21893-26030 · 21893-26340 · 21943-88223 · 21943-88224 |
| 21944 | Accelerator pedal connecting rod shaft rear rod | 21444-26030 · 21444-26220 · 21444-26340 |
| 21944A | Screw (for accelerator pedal connecting rod shaft) | 21844-33010 |
| 21944B | Spring (for accelerator pedal connecting rod shaft) | 21726-40010 |
| 21944C | Accelerator pedal connecting rod shaft bushing | 21895-26030 |
| 21945 | Adjustment lever (for accelerator pedal connecting rod shaft) | 21462-26030 · 21462-26340 |
| 23100A | fuel hose | 90445-12061 · 90447-12006 · 95331-06019 · 95331-06026 · 95331-06030 · 95331-06034 · 95331-06038 · 95332-06016 · 95332-06020 · 95332-06024 · 95332-06026 · 95332-06038 |
| 23100H | Clamp (for fuel hose) | 96132-30600 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 23801-13010 · 23801-24011 · 23801-24022 · 23801-24060 · 23811-88220 · 95331-06026 · 95331-06030 |
| 23801A | Olive nut (for fuel pipe) | 96395-71400 |
| 23801B | Connecting nut (for fuel pipe) | 90402-13041 |
| 23801C | Clamp (for carburetor fuel hose) | 96132-30600 |
| 23801D | No. 1 fuel line hose | 95331-06006 |
| 23801J | Fuel pipe clamp seal | 90072-48006 |
| 23841 | No. 1 fuel pipe (hose) clamp | 23801-25010 · 23801-25021 · 23801-25022 · 23801-26020 · 23801-26021 · 23841-25020 · 23841-26011 · 23842-11010 · 90464-00082 |
| 23841D | card holder | 90072-46137 |
| 23842 | No. 2 fuel pipe (hose) clamp | 90461-08532 |
