Toyota COROLLA Air Cleaner — Figure 1703

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 11 images and 17 PNC and OE references.

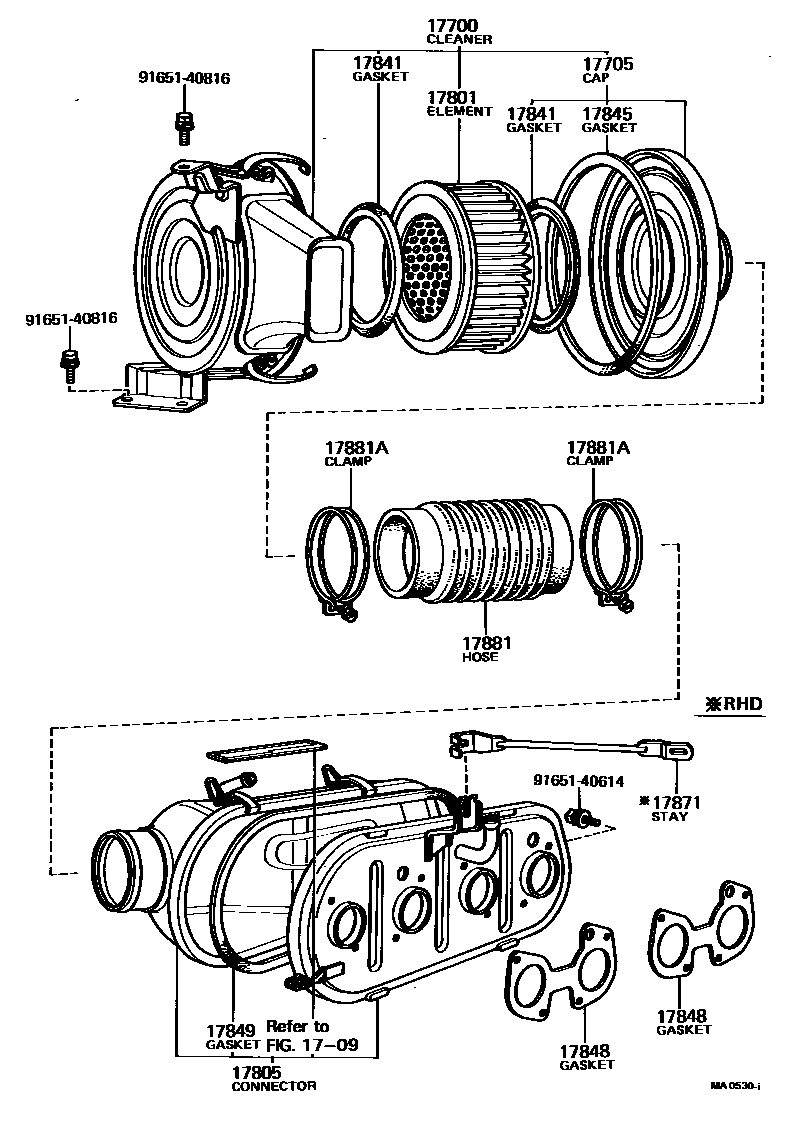

Toyota COROLLA Air Cleaner EPC diagram — MA0530I — Air Cleaner — MA0530I (197408 – 197902)

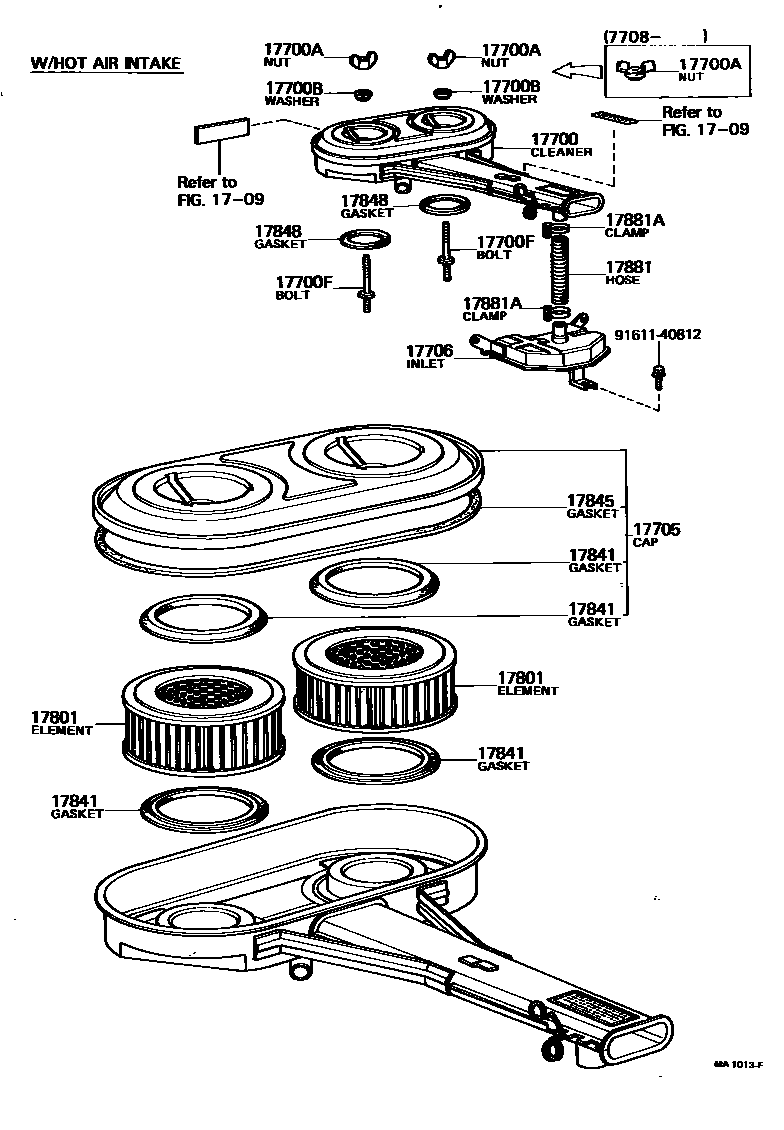

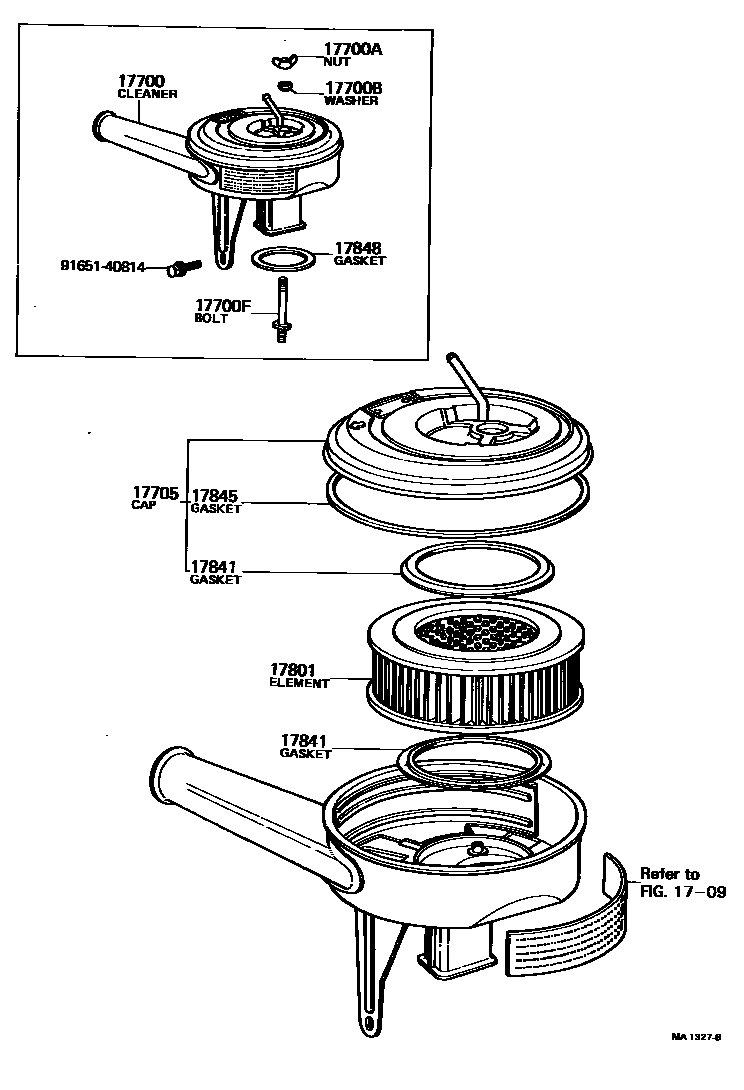

Toyota COROLLA Air Cleaner EPC diagram — MA1013F — Air Cleaner — MA1013F (197408 – 198004)

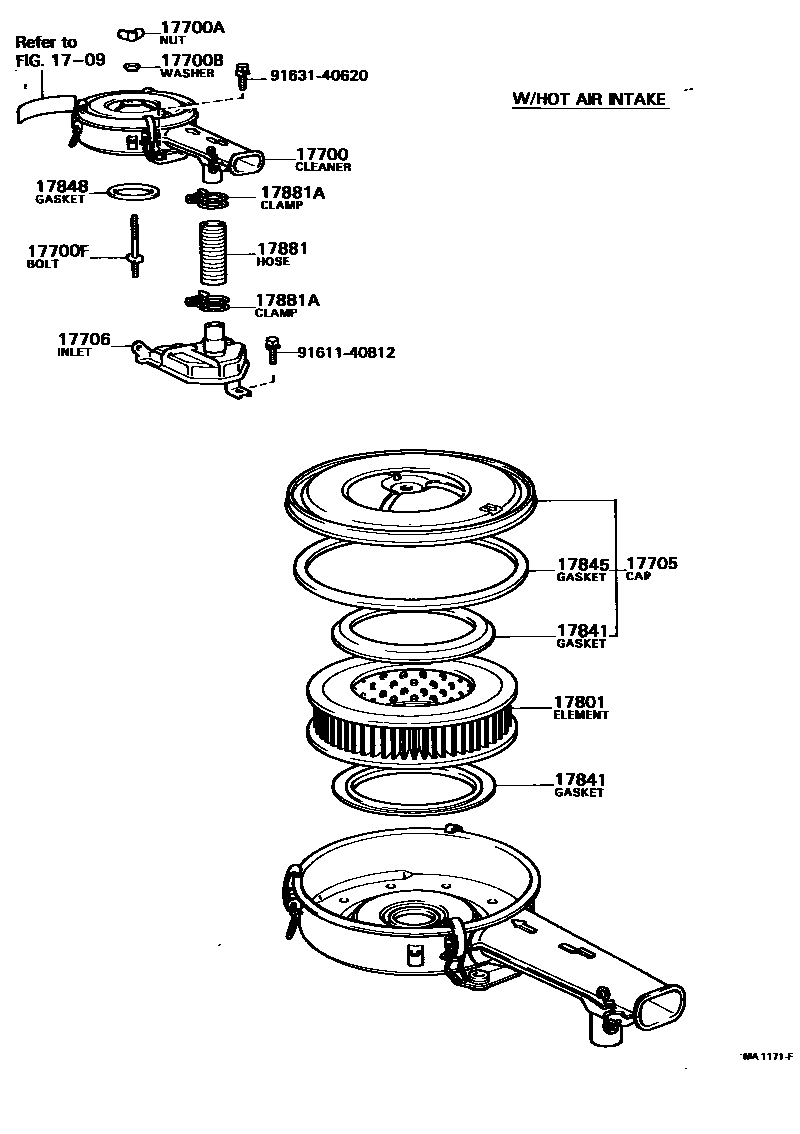

Toyota COROLLA Air Cleaner EPC diagram — MA1171F — Air Cleaner — MA1171F (197408 – 198004)

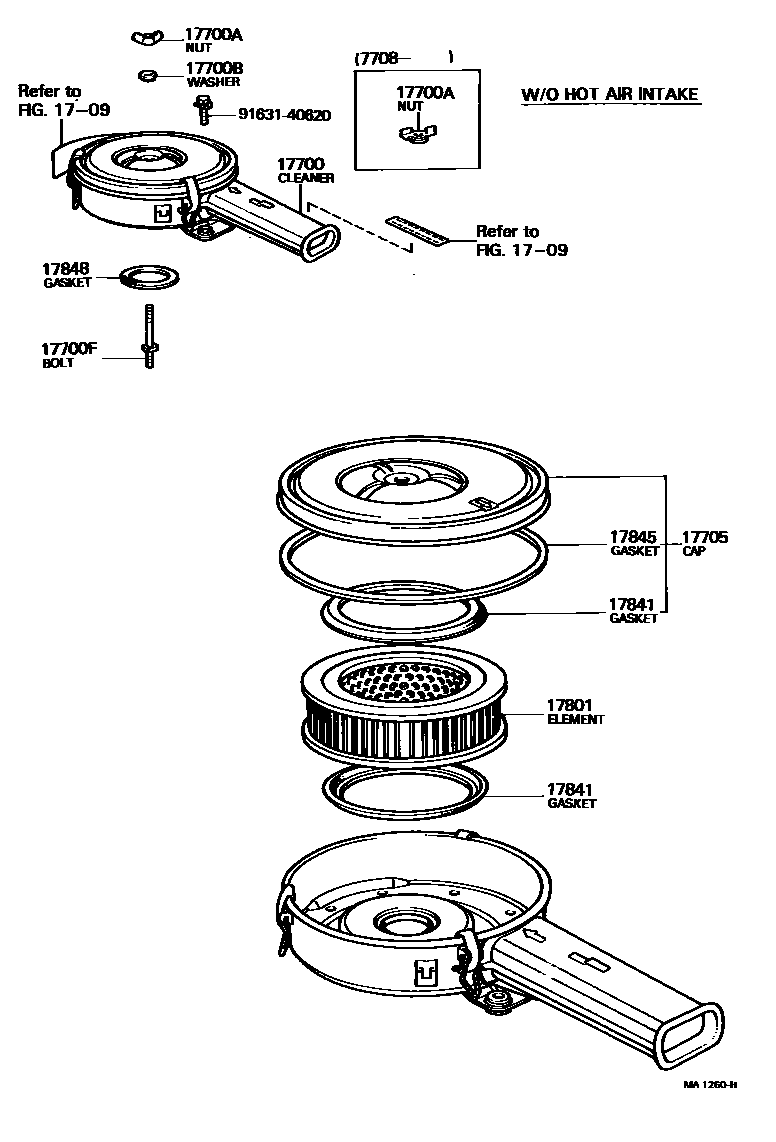

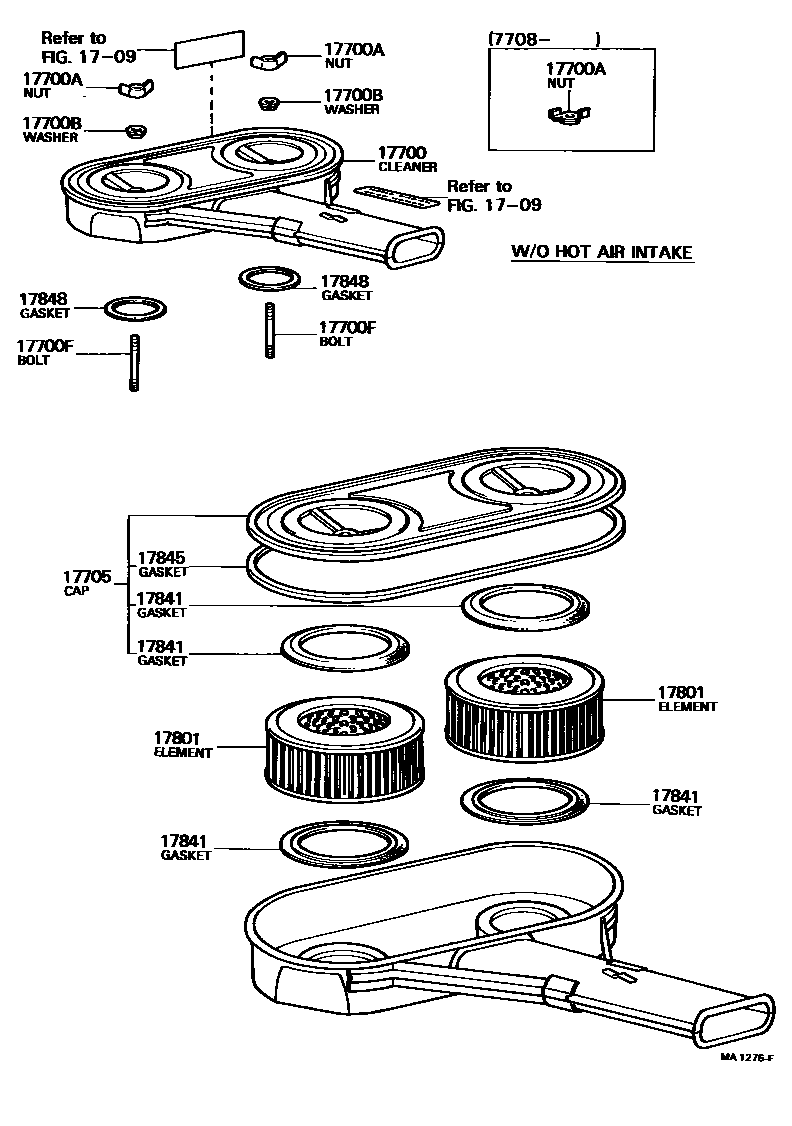

Toyota COROLLA Air Cleaner EPC diagram — MA1260H — Air Cleaner — MA1260H (197408 – 198004)

Toyota COROLLA Air Cleaner EPC diagram — MA1276F — Air Cleaner — MA1276F (197408 – 198004)

Toyota COROLLA Air Cleaner EPC diagram — MA1327B — Air Cleaner — MA1327B (197408 – 197511)

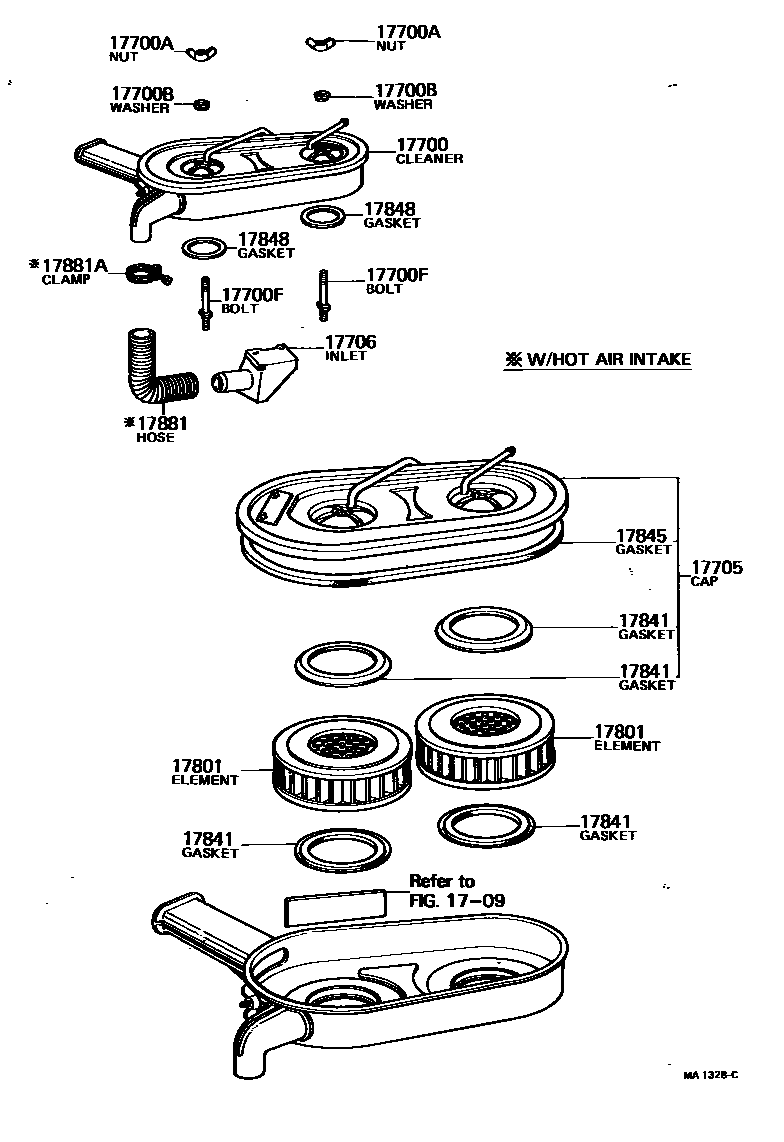

Toyota COROLLA Air Cleaner EPC diagram — MA1328C — Air Cleaner — MA1328C (197408 – 197511)

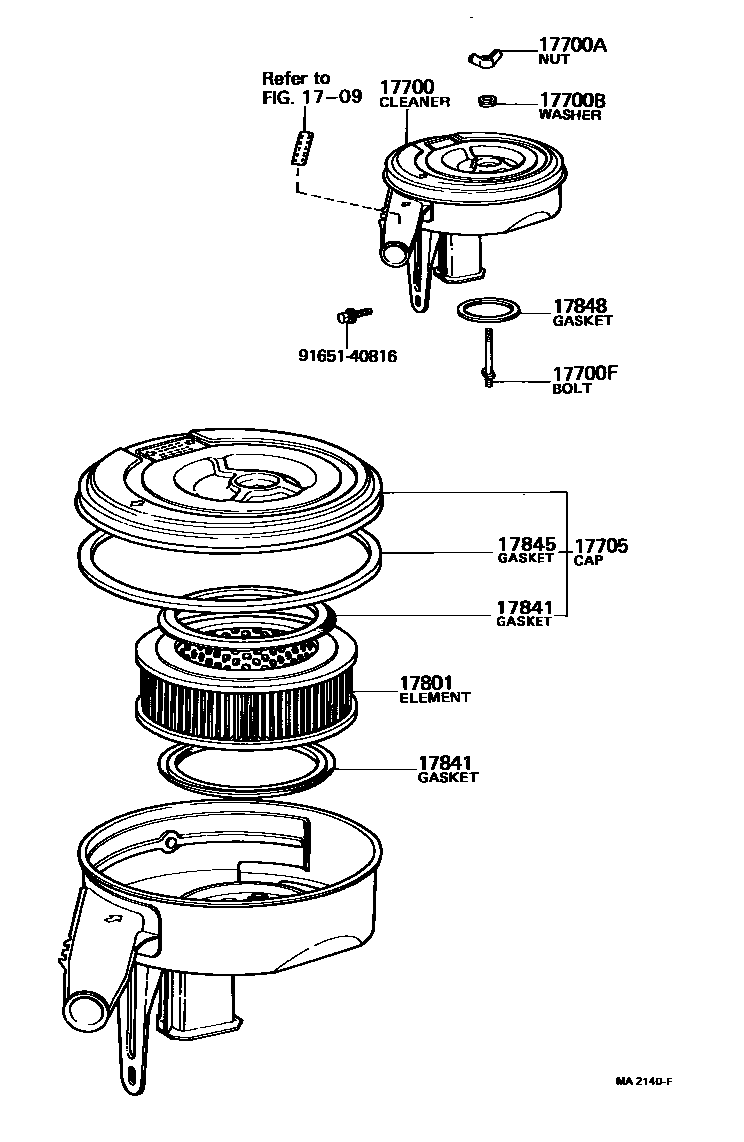

Toyota COROLLA Air Cleaner EPC diagram — MA2140F — Air Cleaner — MA2140F (197511 – 999999)

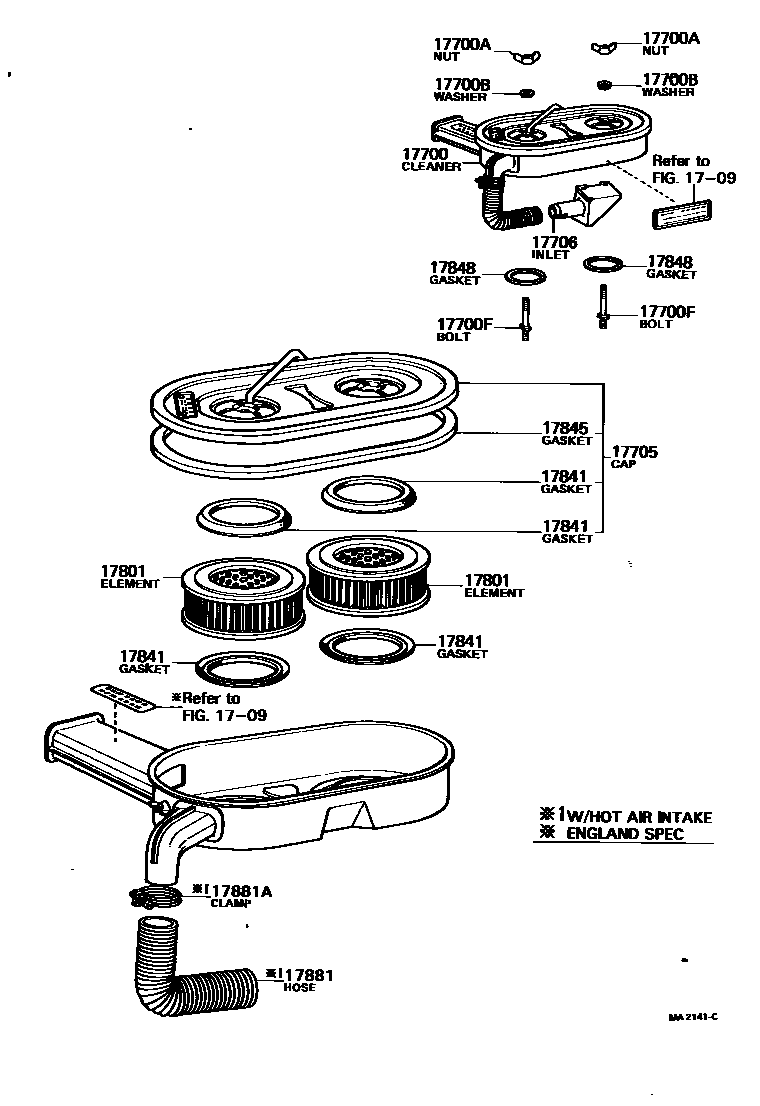

Toyota COROLLA Air Cleaner EPC diagram — MA2141C — Air Cleaner — MA2141C (197511 – 197908)

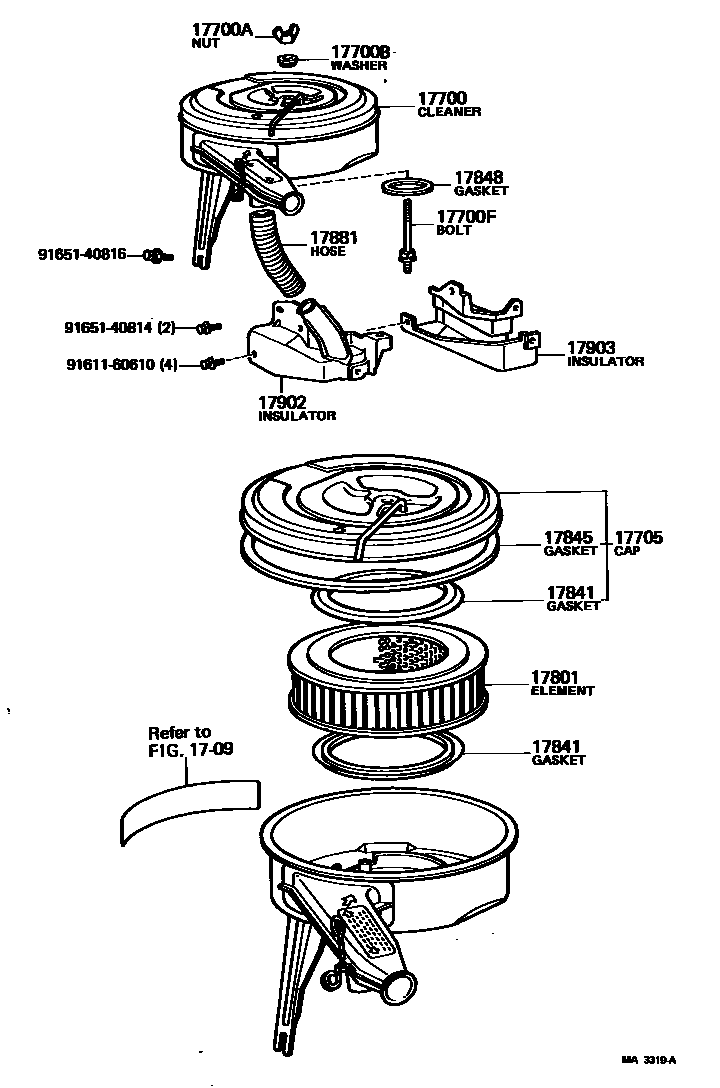

Toyota COROLLA Air Cleaner EPC diagram — MA3319A — Air Cleaner — MA3319A (197808 – 197908)

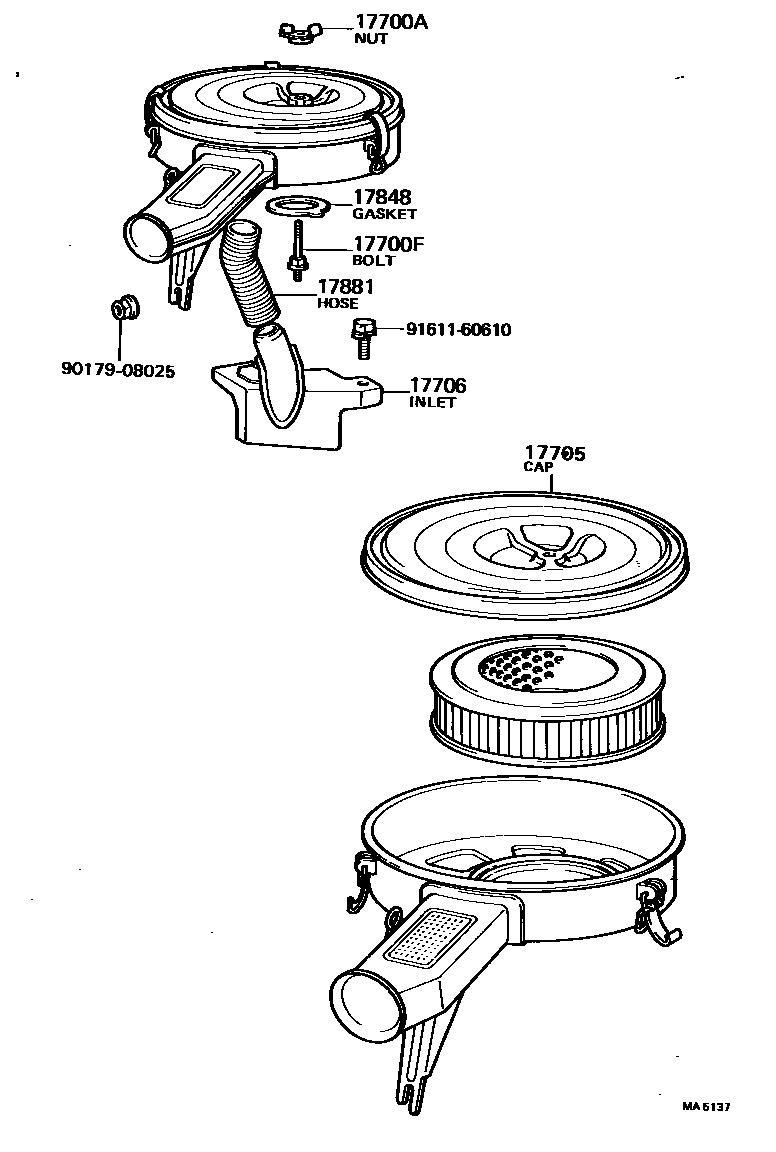

Toyota COROLLA Air Cleaner EPC diagram — MA5137 — Air Cleaner — MA5137 (198012 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17700	air filter assembly	17700-24300 · 17700-24320 · 17700-24323 · 17700-24324 · 17700-24330 · 17700-24332 · 17700-24360 · 17700-24361 · 17700-24370 · 17700-24371 · 17700-24372 · 17700-24470 · 17700-24560 · 17700-25050 · 17700-25051 · 17700-25060 · 17700-25061 · 17700-26014 · 17700-26021 · 17700-26050 · 17700-34323
17700A	Wing nut (for air cleaner)	90175-06003 · 94271-00600
17700B	Gasket (for air cleaner)	90210-06023
17700F	Stud bolt (for securing air filter)	90116-06131 · 90116-06142 · 90116-06222 · 90116-06230
17705	Air filter cover sub-assembly	17705-13050 · 17705-24160 · 17705-24163 · 17705-24170 · 17705-24180 · 17705-24200 · 17705-24210 · 17705-24310 · 17705-24311 · 17705-24320 · 17705-25030 · 17705-25031 · 17705-26011 · 17705-37010
17706	No. 2 air filter air inlet sub-assembly	17752-24040 · 17752-25010 · 17895-24010
17801	Air filter element sub-assembly	17801-24010 · 17801-24020 · 17801-24030 · 17801-31010
17805	Intake connecting pipe sub-assembly	17860-88224 · 17860-88226
17841	filter liner	17841-24011 · 17841-24020 · 17841-25010 · 17841-31020
17845	air cleaner cover gasket	17845-24010 · 17845-24040 · 17845-25010 · 17845-26010 · 17845-37010
17848	Gasket from air cleaner to carburetor	17848-88110 · 90430-63187
17849	Intake connecting pipe gasket	17849-88220
17871	Air intake connecting pipe stay	17871-88220
17881	No. 1 air cleaner hose	17881-13010 · 17881-24021 · 17881-24022 · 17881-26010 · 17881-26020 · 17881-27010
17881A	Clamp (for No. 1 air cleaner hose)	90072-46002 · 90460-47036
17902	No. 1 hot air intake sub-assembly	17167-24020
17903	No. 2 hot air intake sub-assembly	17168-24010
