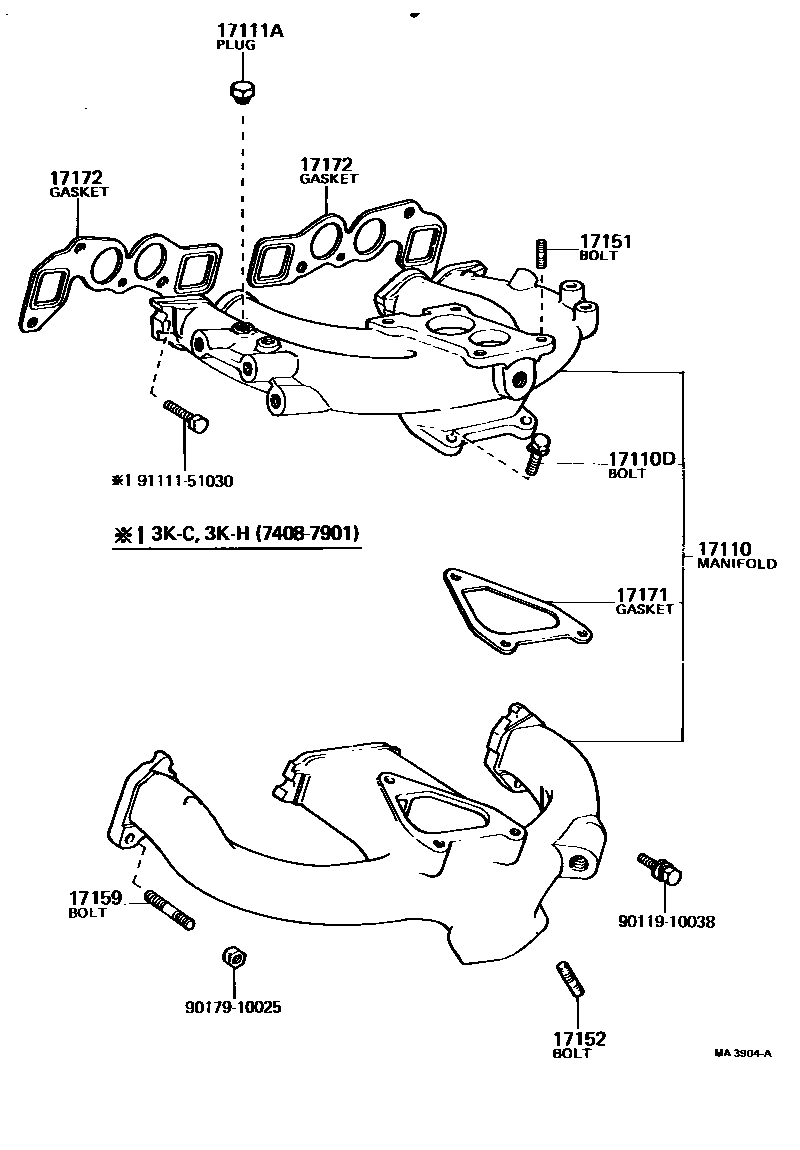

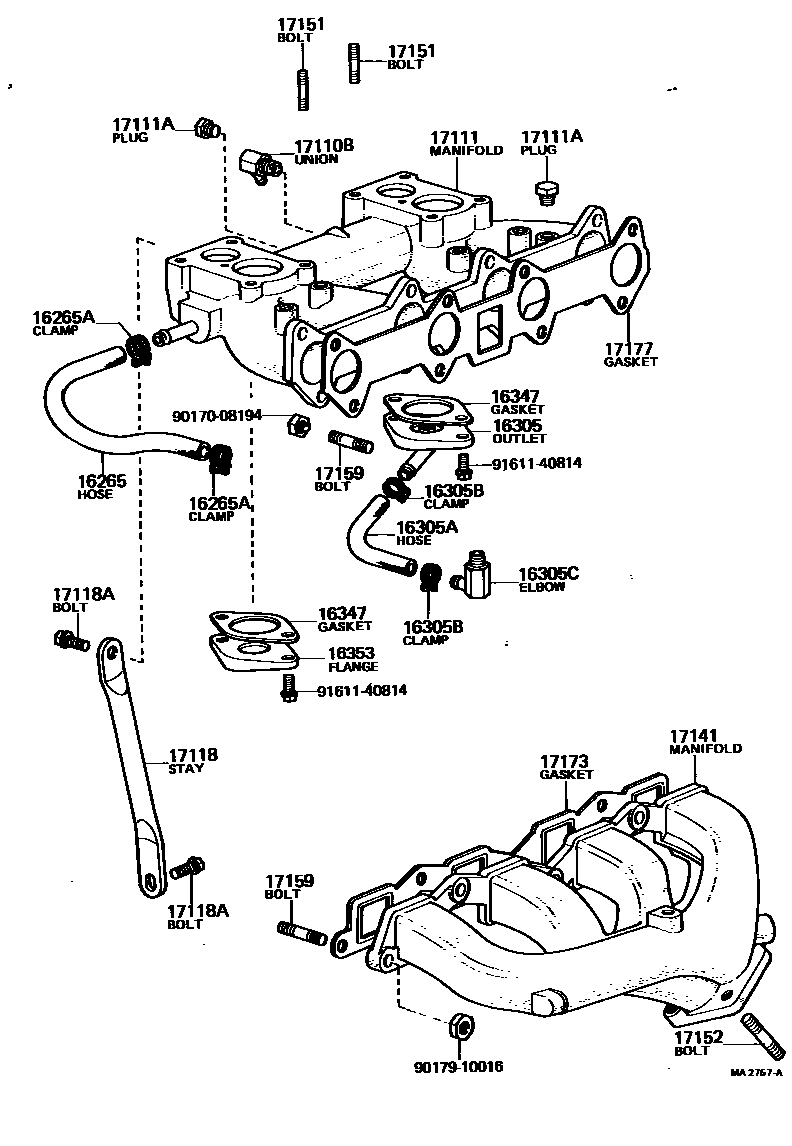

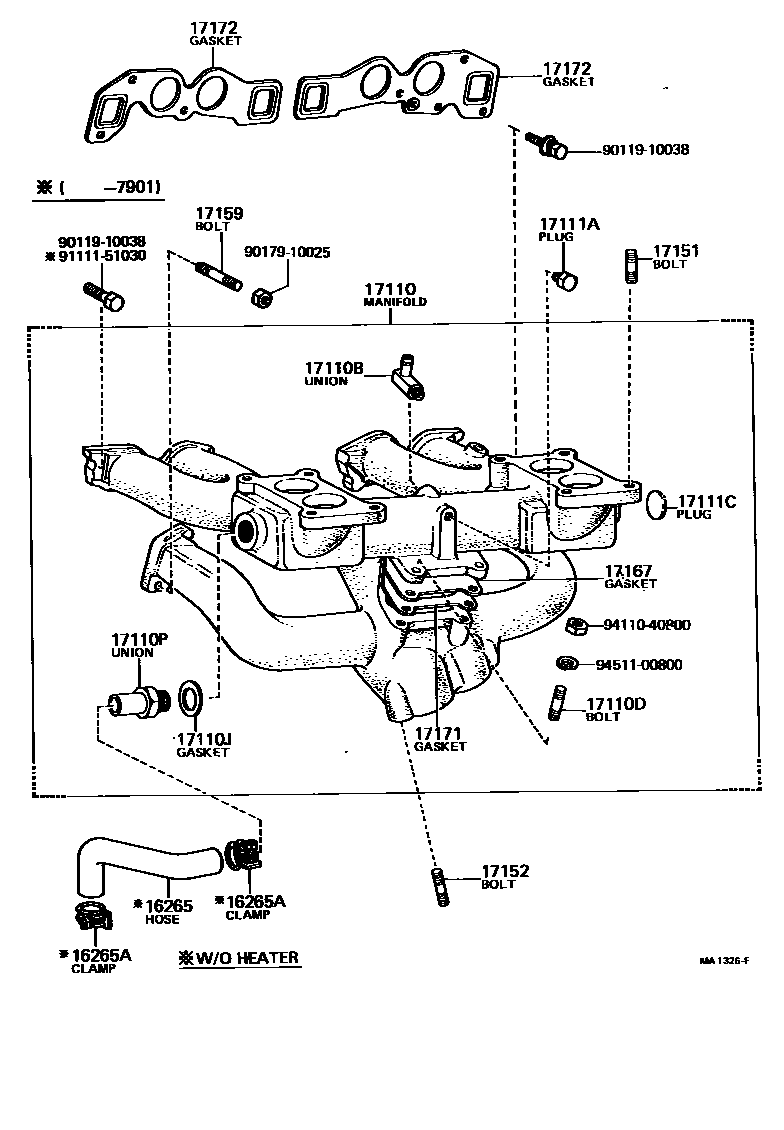

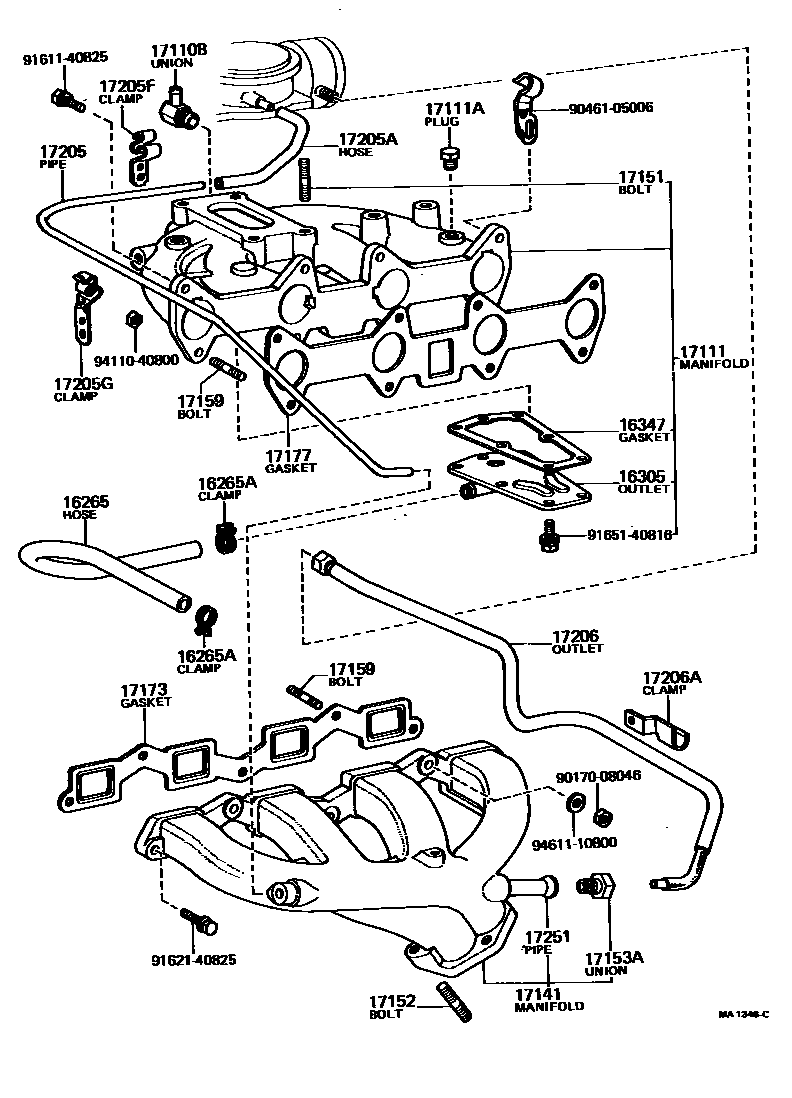

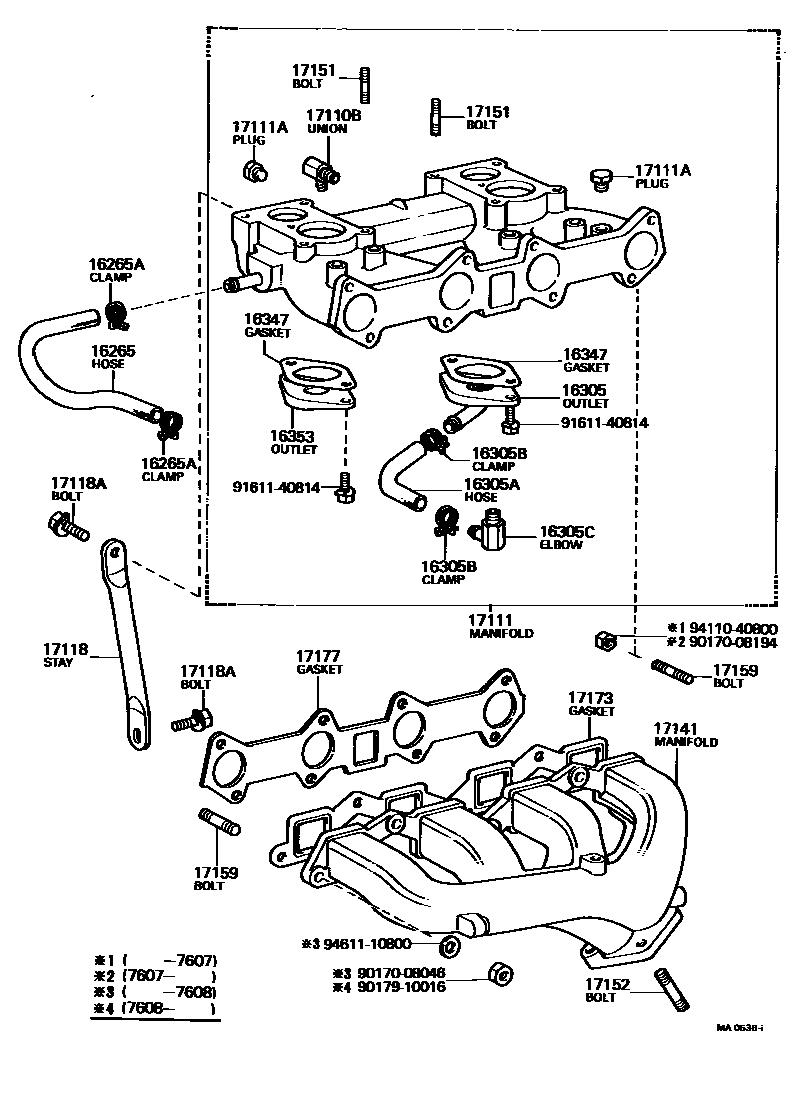

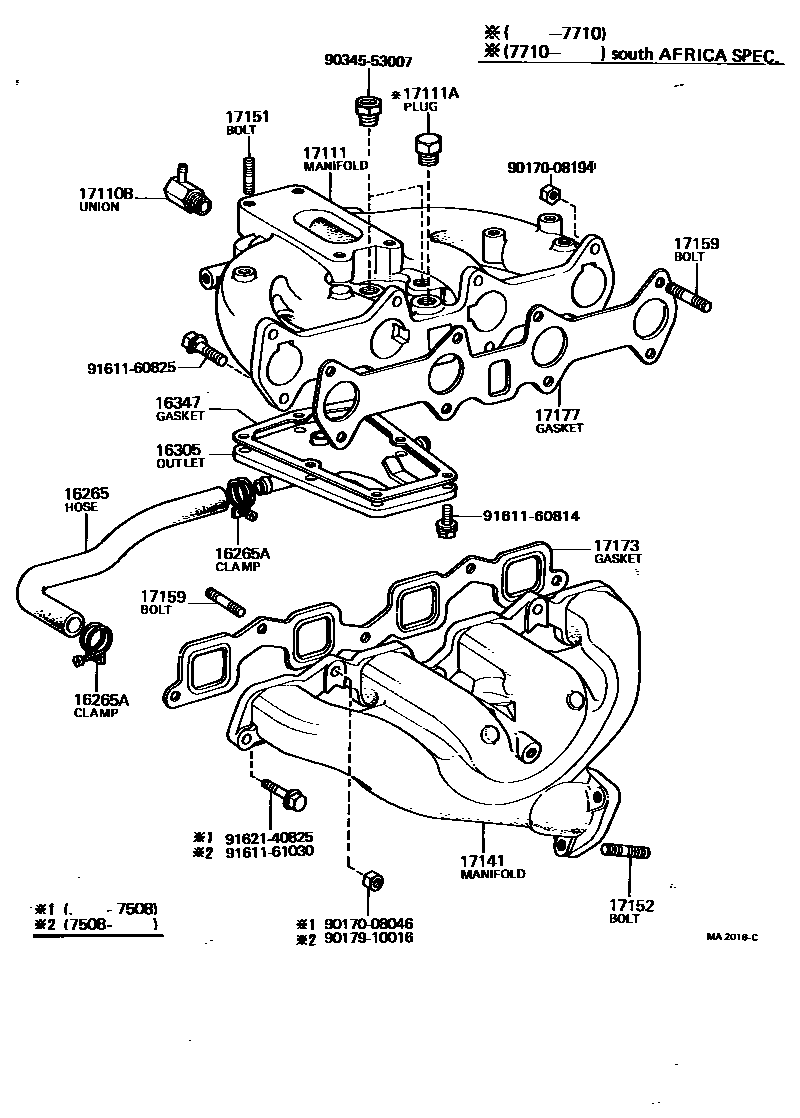

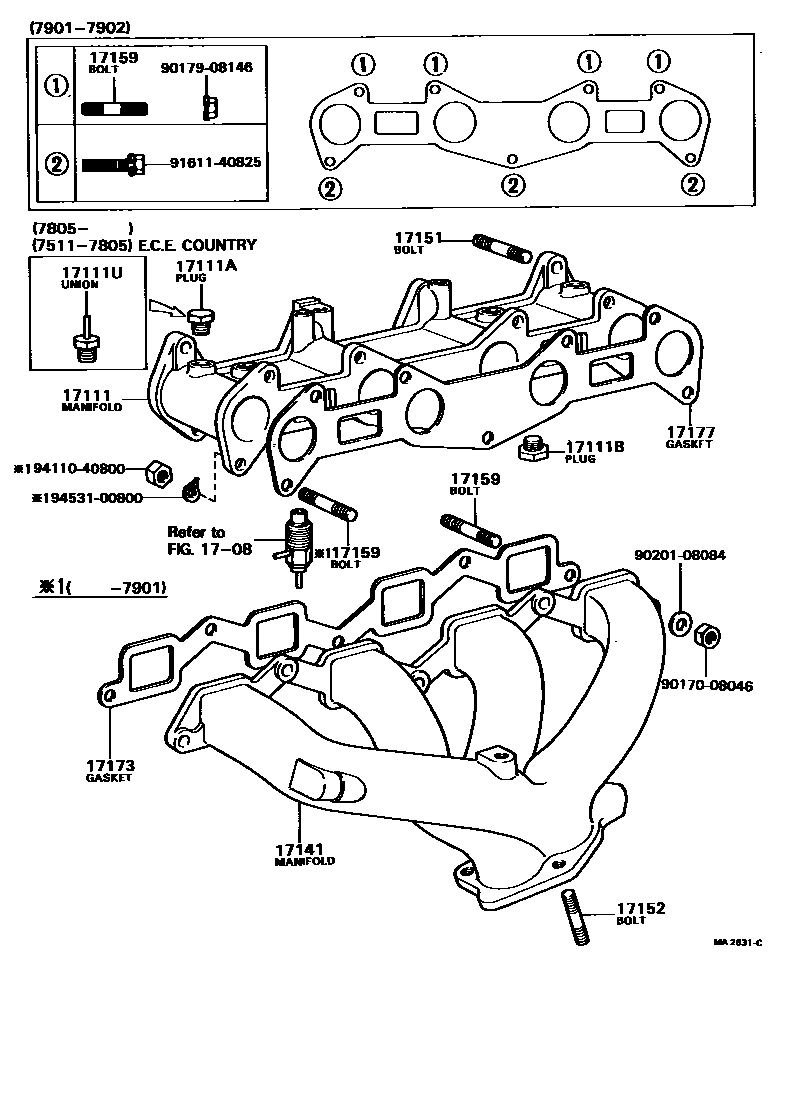

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 7 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16265 | Intake manifold water hose | 16265-24010 · 90445-21611 · 90445-21748 |
| 16265A | Hose clamp or clip (for intake manifold water hose) | 96111-10220 · 96112-10250 |
| 16305 | Water bypass outlet sub-assembly | 16305-25011 · 16305-25020 |
| 16305A | Water bypass outlet hose | 16261-25010 |
| 16305B | Water bypass outlet hose clamp | 96111-10220 |
| 16305C | Water bypass outlet hose elbow | 90407-14051 |
| 16347 | water bypass liner | 16347-25011 · 16347-41010 |
| 16353 | water bypass flange | 16353-25020 |
| 17110 | Manifold assembly | 17110-13030 · 17110-13070 · 17110-13071 · 17110-24040 · 17110-24042 · 17110-24043 · 17110-24050 · 17110-24051 |
| 17110B | Fitting (for vent hose to manifold) | 90407-08041 · 90407-09001 · 90407-09045 |
| 17110D | Bolts (for intake manifold to exhaust manifold) | 90116-08212 · 91611-40820 · 91611-60822 |
| 17110J | Gasket (manifold to heater water pipe connection) | 90430-20018 |
| 17110P | Connector (manifold to heater water pipe) | 90404-20008 · 90404-20190 |
| 17111 | Intake Manifold | 17101-25020 · 17101-25903 · 17101-88220 · 17111-25020 · 17111-25901 · 17111-26020 · 17111-26050 · 17111-26051 · 17111-88220 |
| 17111A | No. 1 screw plug | 90072-34107 · 90345-51005 · 90345-51025 |
| 17111B | No. 2 screw plug | 90344-53011 |
| 17111C | No. 3 screw plug | 96412-82500 |
| 17111U | Connector (for vacuum switching valve) | 90404-51093 |
| 17118 | Manifold stays | 17118-26010 |
| 17118A | Studs (for manifold stays) | 91619-61220 · 91659-61228 |
| 17141 | exhaust manifold | 17104-25010 · 17141-26010 · 17141-26011 · 17141-26012 · 17141-26050 · 17141-26051 |
| 17151 | Studs (for manifold to carburetor) | 90116-08008 · 90116-08009 · 90116-08010 · 90116-08023 · 90116-08110 |
| 17152 | Studs (for manifold to exhaust) | 90116-10007 · 90116-10017 · 90116-10042 · 92122-41022 |
| 17153A | Connector (for automatic choke preheater tube) | 90402-18062 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08002 · 90116-08015 · 90116-08035 · 90116-08201 · 90116-10021 · 92122-41028 · 92122-61025 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-24010 |
| 17171 | Gasket (intake manifold to exhaust manifold) | 17171-24010 |
| 17172 | Gasket (manifold to cylinder head) | 17172-24010 · 17172-24011 · 17172-24020 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-25010 · 17173-25011 · 17173-25012 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-25010 · 17177-25020 · 17177-25030 · 17177-88220 |
| 17205 | Automatic choke preheater oil inlet pipe | 17253-25010 |
| 17205A | Hoses (for automatic choke preheater tubes) | 90445-11530 |
| 17205F | Clamp (for automatic choke preheater fuel inlet pipe) | 90461-06896 |
| 17205G | Clamp No. 2 (for automatic choke preheater fuel inlet pipe) | 90461-06895 |
| 17206 | Automatic choke preheater oil outlet pipe | 17206-25010 |
| 17206A | Clamp (for automatic choke preheater oil outlet pipe) | 90461-05569 |
| 17251 | Automatic choke preheater tube | 17204-25010 |
