Toyota COROLLA Water Pump — Figure 1601

Toyota COROLLA EPC diagram 1601, Water Pump, with 4 images and 15 PNC and OE references.

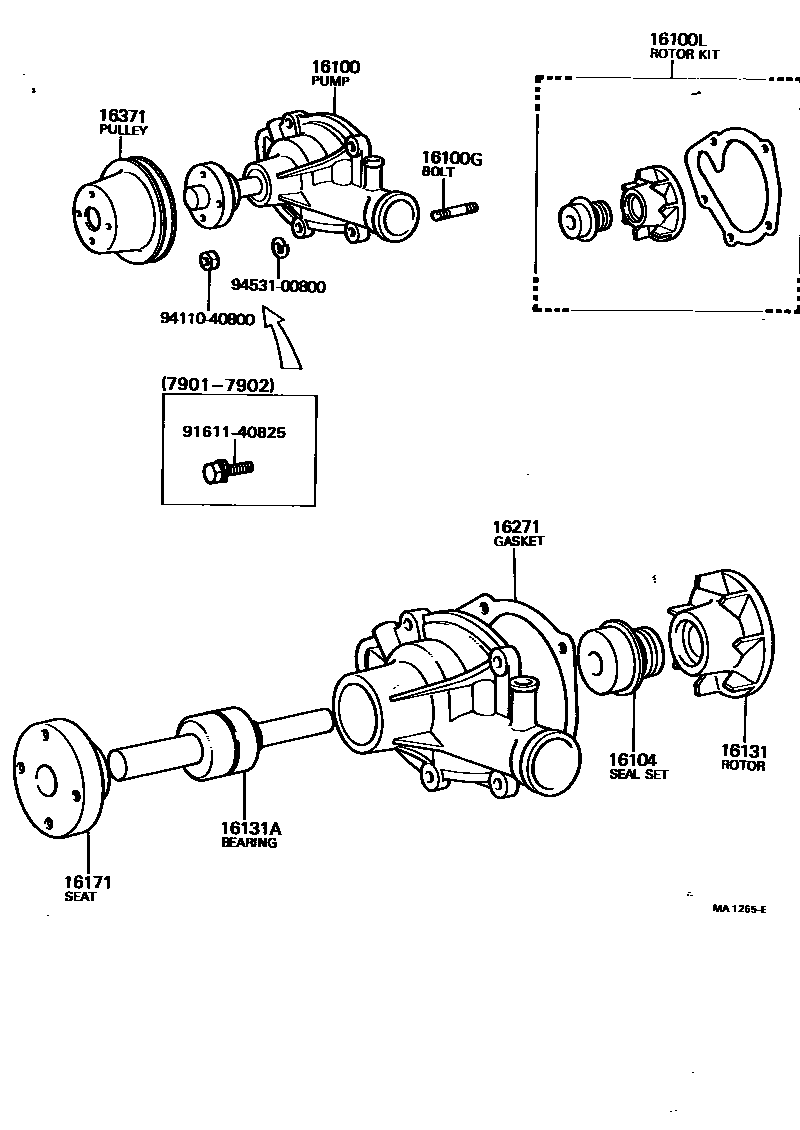

Toyota COROLLA Water Pump EPC diagram — MA1265E
Water Pump — MA1265E (197408 – 197902)

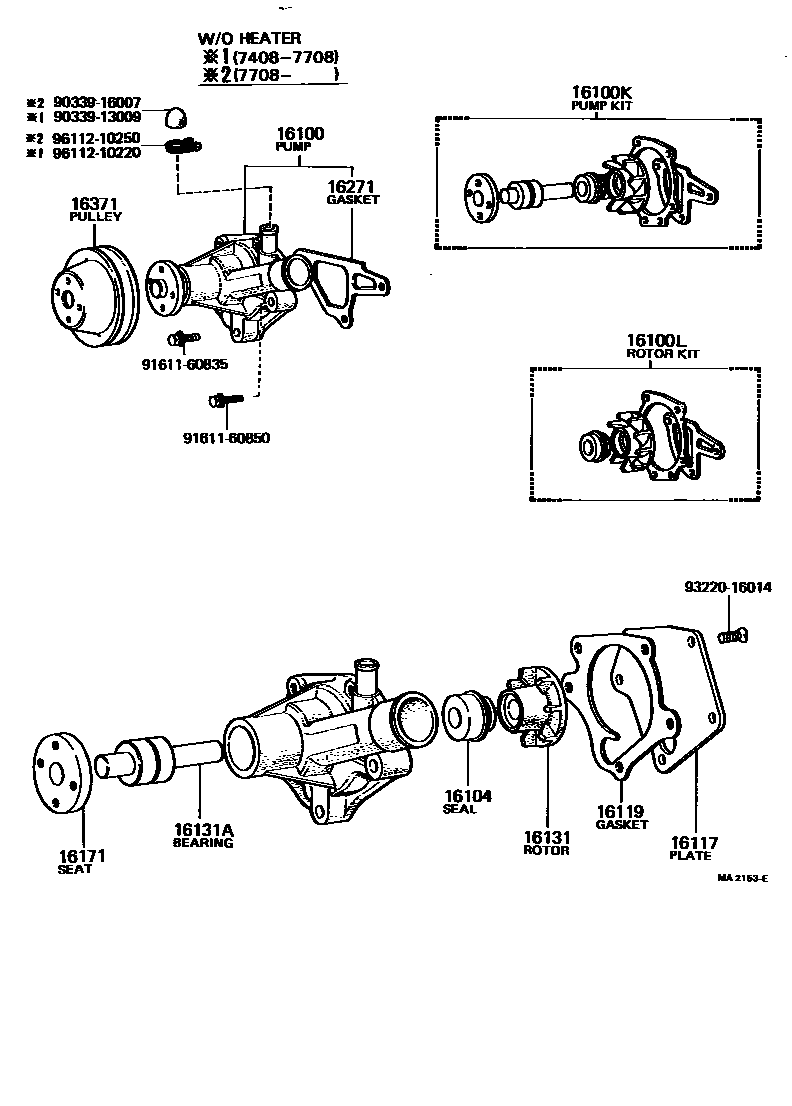

Toyota COROLLA Water Pump EPC diagram — MA2153E
Water Pump — MA2153E (197408 – 999999)

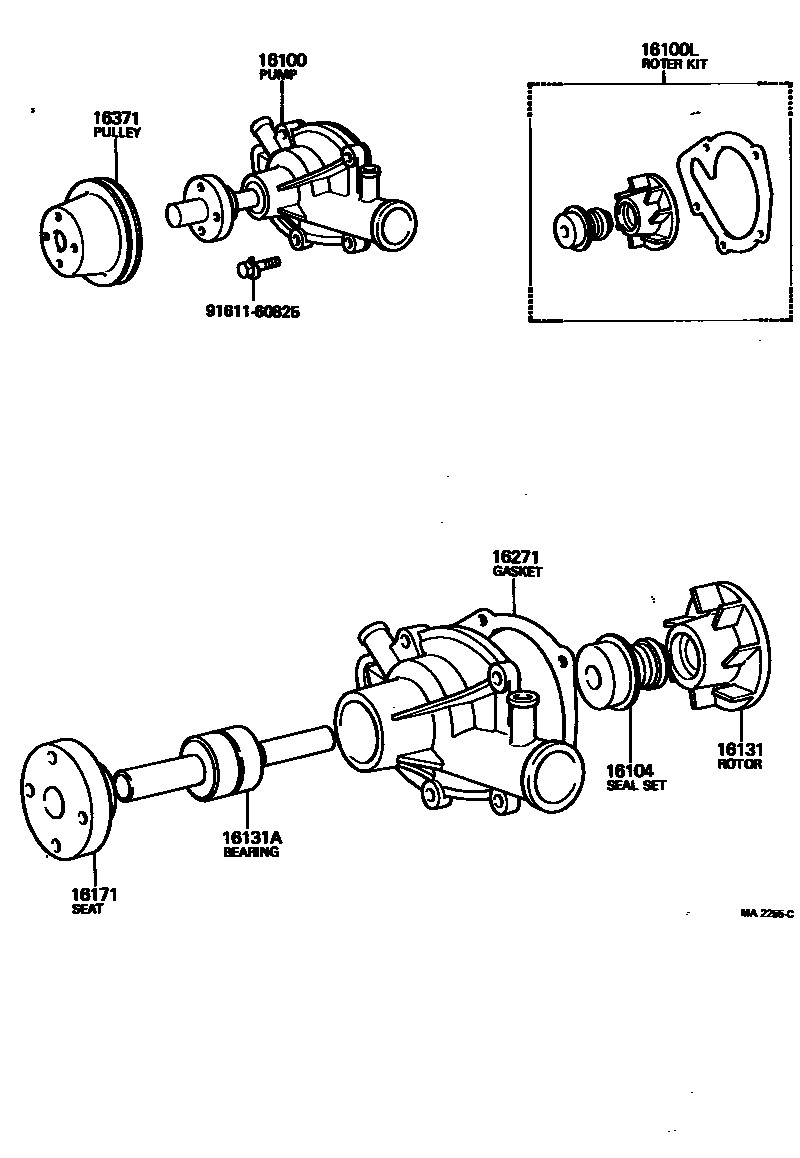

Toyota COROLLA Water Pump EPC diagram — MA2255C
Water Pump — MA2255C (197408 – 999999)

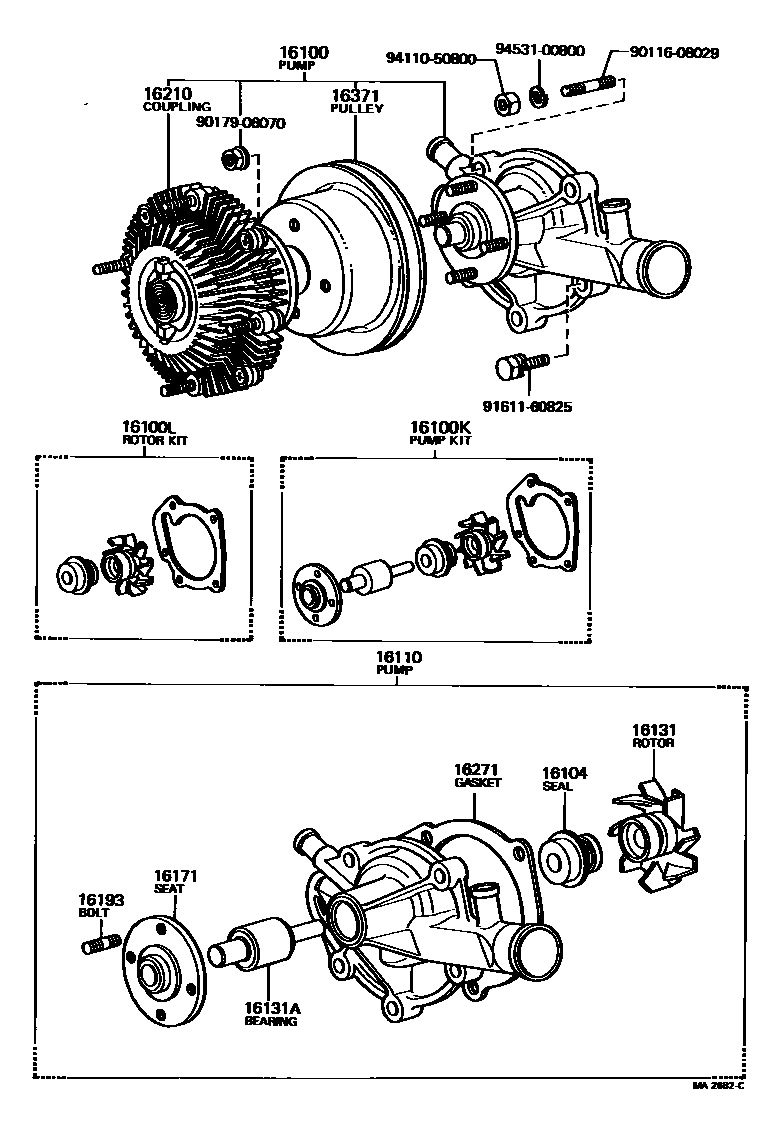

Toyota COROLLA Water Pump EPC diagram — MA2682C
Water Pump — MA2682C (197708 – 197908)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-19015 · 16100-25012 · 16100-28010 · 16100-28020 · 16100-29045 · 16100-29046 · 16100-88221
16100GStuds (for water pump assembly)90116-08009
16100KWater pump components04161-13010 · 04161-24010 · 04161-24011 · 04161-28010
16100LWater pump rotor assembly04162-13010 · 04162-22011 · 04162-22012 · 04162-25011 · 04162-25012 · 04162-28010
16104Water pump seal components16104-22010 · 16104-41110 · 16104-41111
16110Water pump assembly without coupling16110-28010
16117water pump plate16117-13010 · 16117-22011
16119Water pump body gasket16124-22010
16131water pump rotor16131-13010 · 16131-22011 · 16131-22012 · 16131-24030 · 16131-25011 · 16131-26010
16131Awater pump bearings16140-38011 · 90369-30035 · 90369-30063
16171water pump pulley seat16171-24030 · 16171-24031 · 16171-26021 · 16171-31030
16193Studs (for water pump cover)16193-33030
16210Hydraulic coupler assembly16210-28010 · 16210-28020
16271water pump gasket16129-25010 · 16129-25011 · 16271-13020 · 16271-13021 · 16271-22010
16371fan pulley16173-28010 · 16371-24040 · 16371-24050 · 16371-25010 · 16371-25020
