Toyota COROLLA 正时链条 — Figure 1303

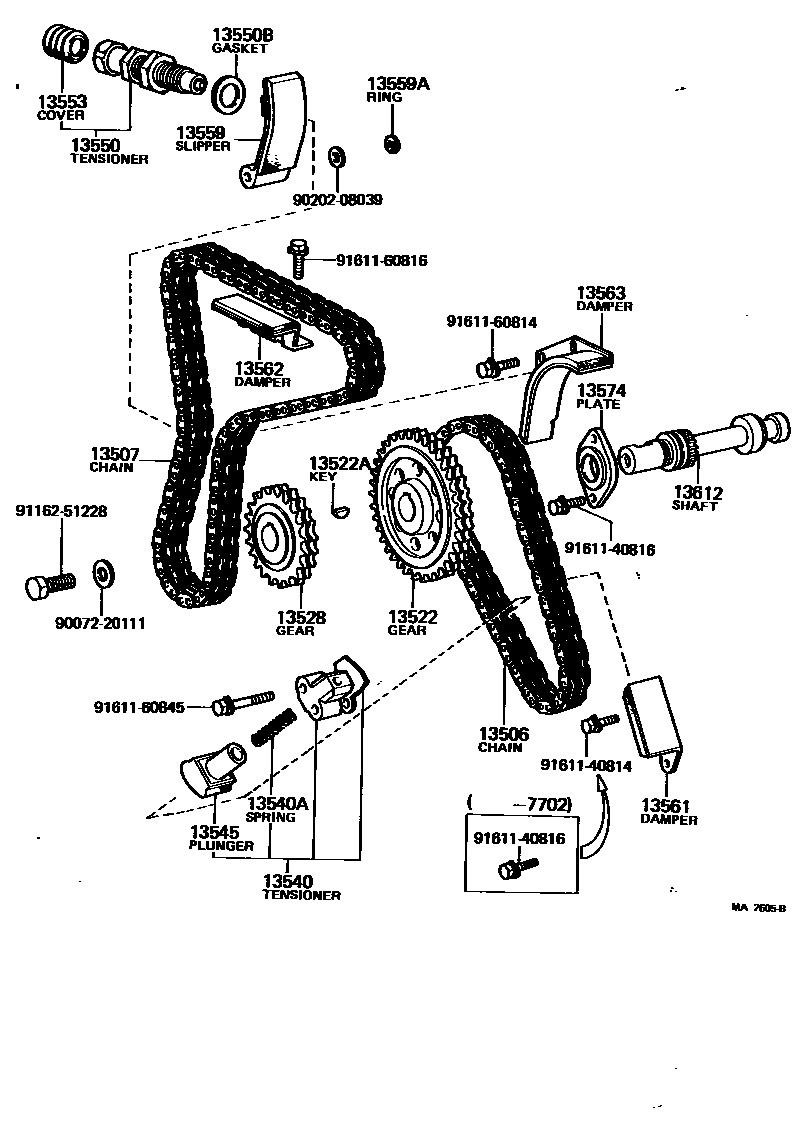

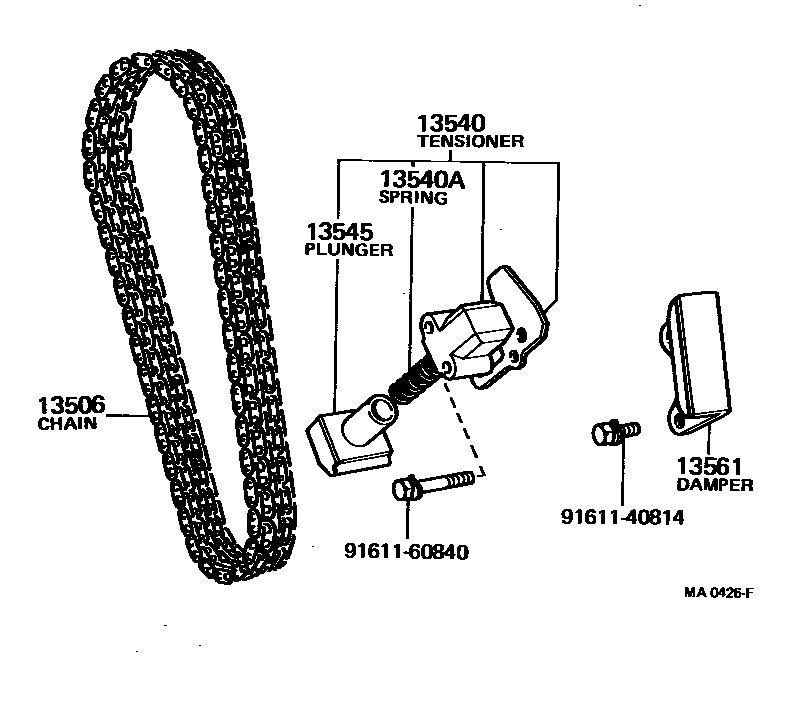

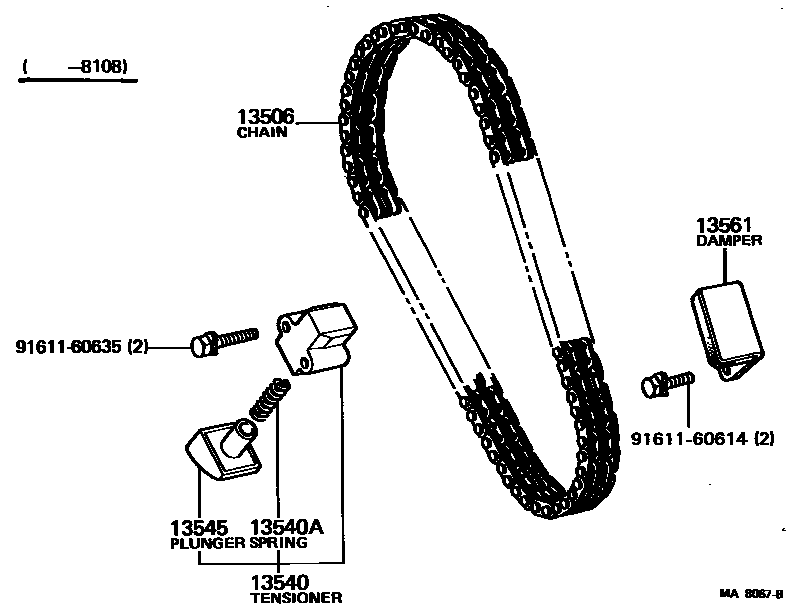

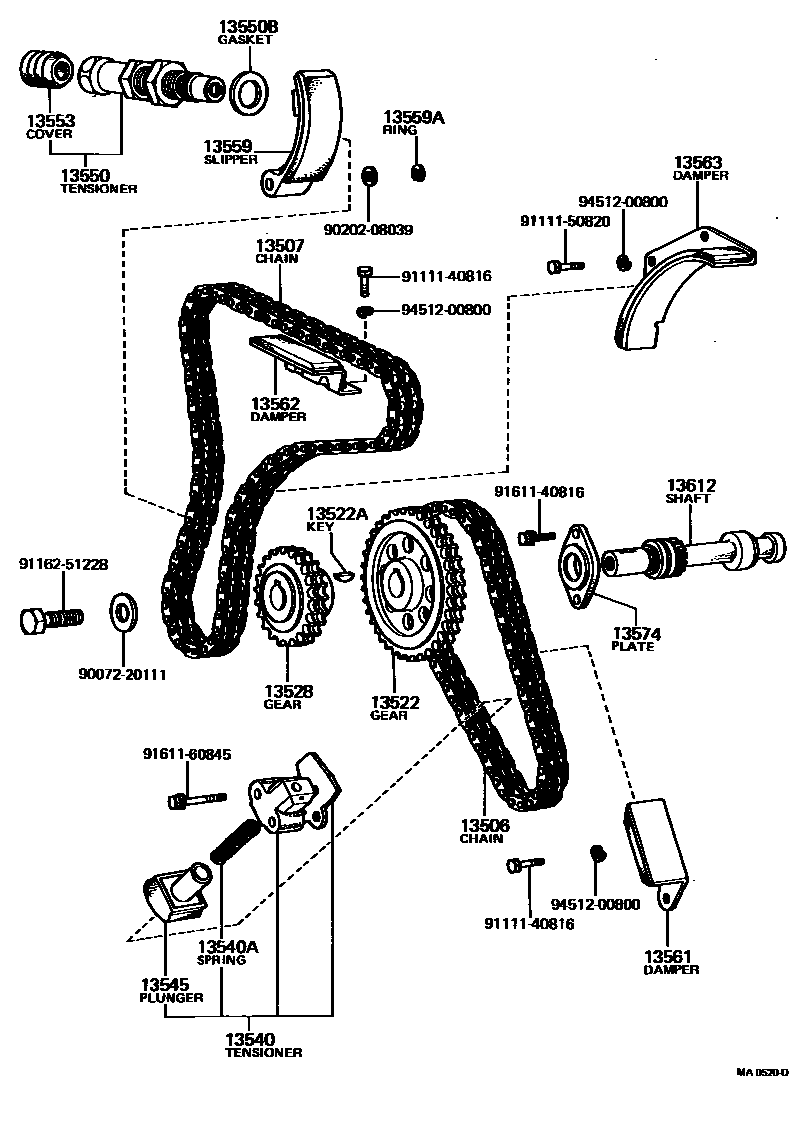

Toyota COROLLA EPC diagram 1303, 正时链条, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13506 | Chain sub-assembly | 13506-22010 · 13506-25010 |
| 13507 | No. 2 chain sub-assembly | 13507-88210 |
| 13522 | pump drive shaft gear | 13522-33010 |
| 13522A | Half-moon pin (for pump drive shaft gear) | 90280-05001 |
| 13528 | Camshaft driving gear | 13528-33010 |
| 13540 | No. 1 chain tensioner assembly | 13540-22012 · 13540-25010 · 13540-88221 |
| 13540A | Compression spring (for chain tensioner) | 90072-50129 · 90501-10595 |
| 13545 | chain tensioner plunger | 13545-22010 · 13545-25010 |
| 13550 | No. 2 chain tensioner assembly | 13550-88210 |
| 13550B | Chain Tensioner Pad No. 2 | 90430-22135 |
| 13553 | Chain tensioner dust cover | 13553-88210 |
| 13559 | chain tensioner guide plate | 13559-88220 |
| 13559A | E-ring (for chain tensioner guide) | 96160-00700 |
| 13561 | No. 1 chain shock absorber | 13561-22010 · 13561-25010 |
| 13562 | No. 2 chain shock absorber | 13562-88210 |
| 13563 | No. 3 chain shock absorber | 13563-88220 |
| 13574 | Oil pump drive shaft plate | 13571-51010 |
| 13612 | Fuel injection pump drive shaft | 13612-88220 |
