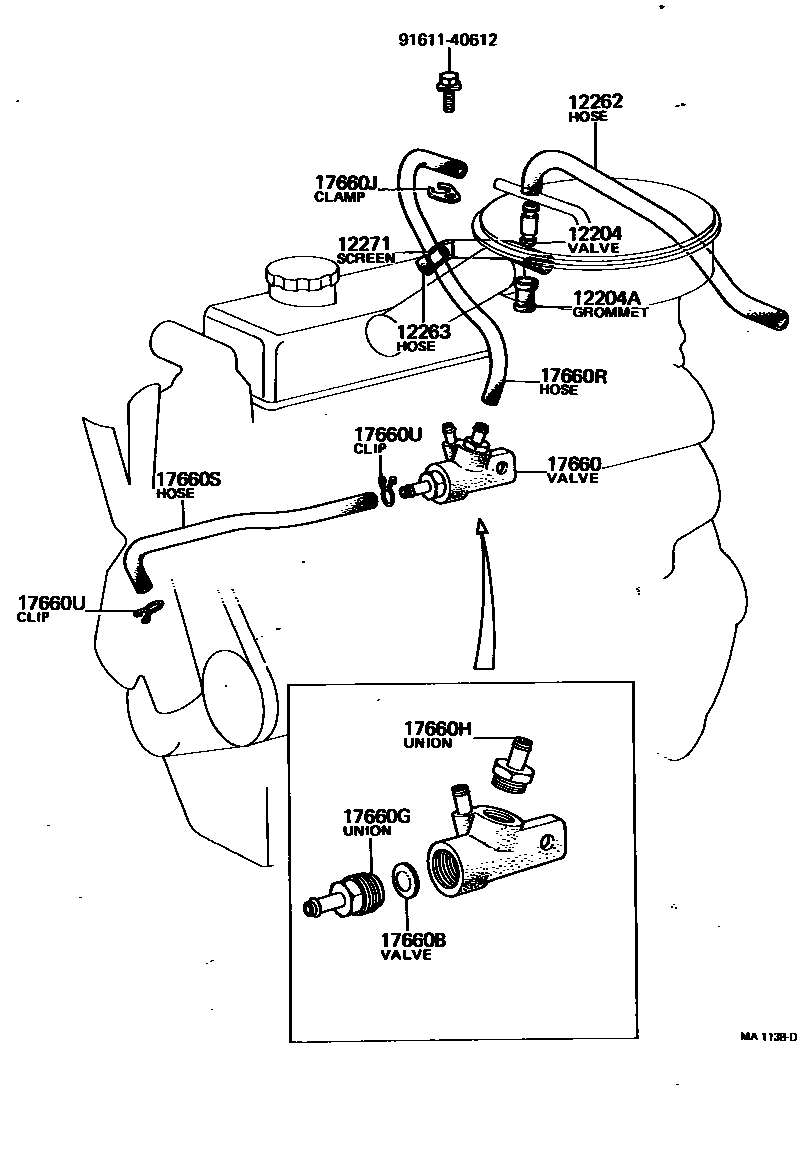

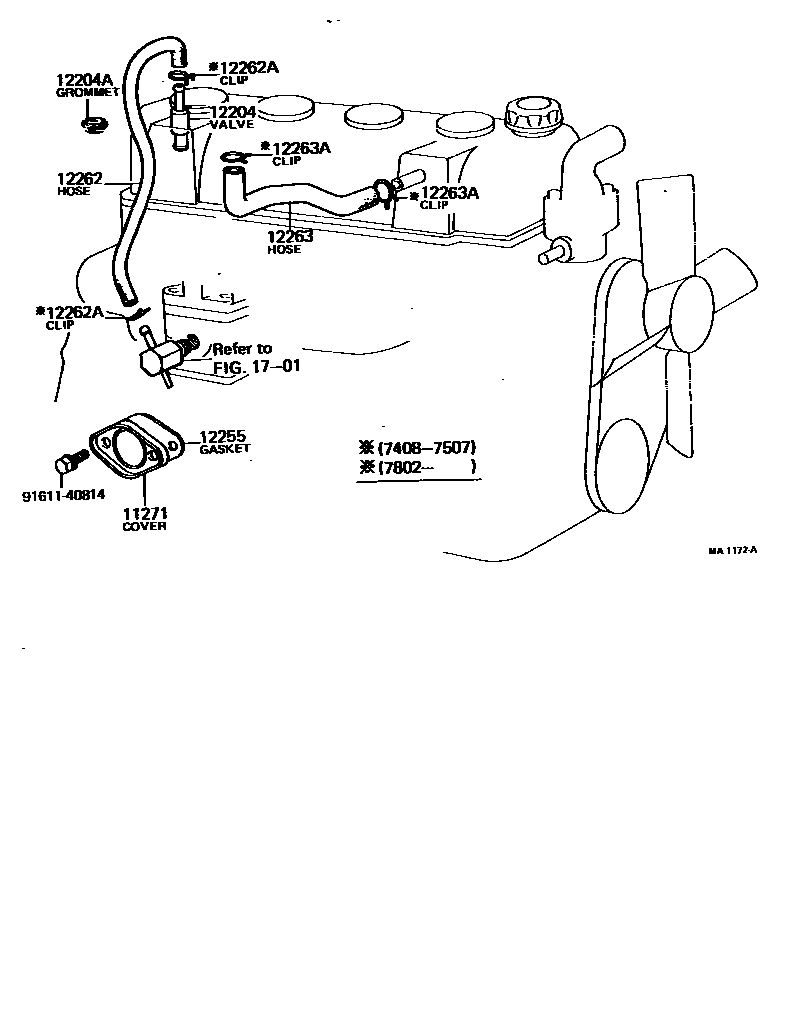

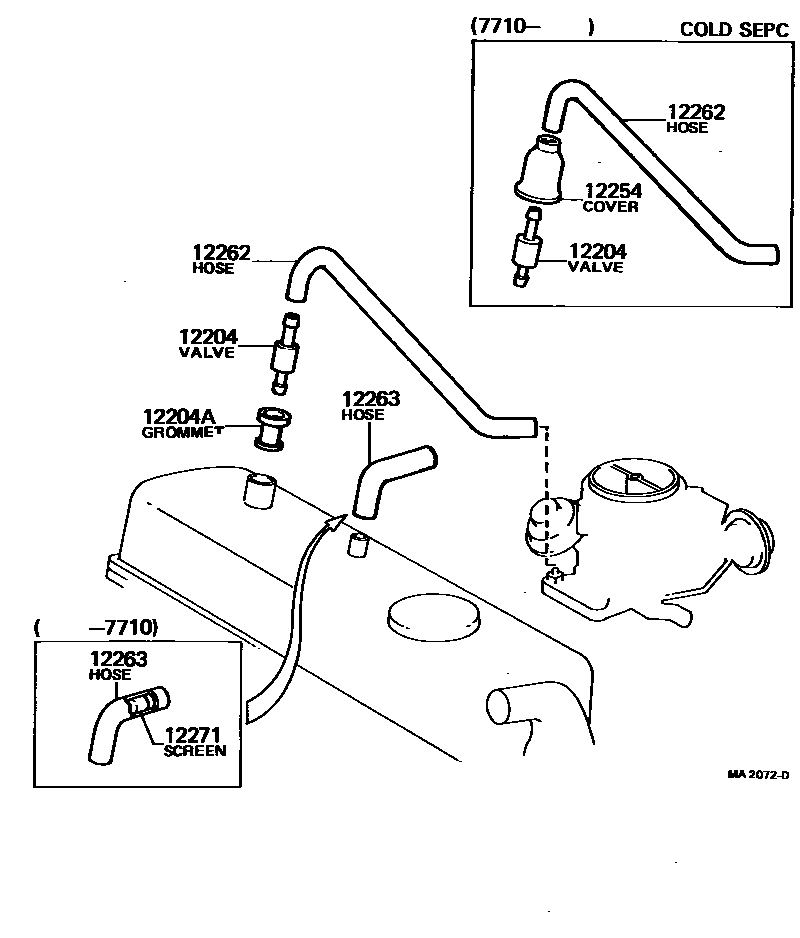

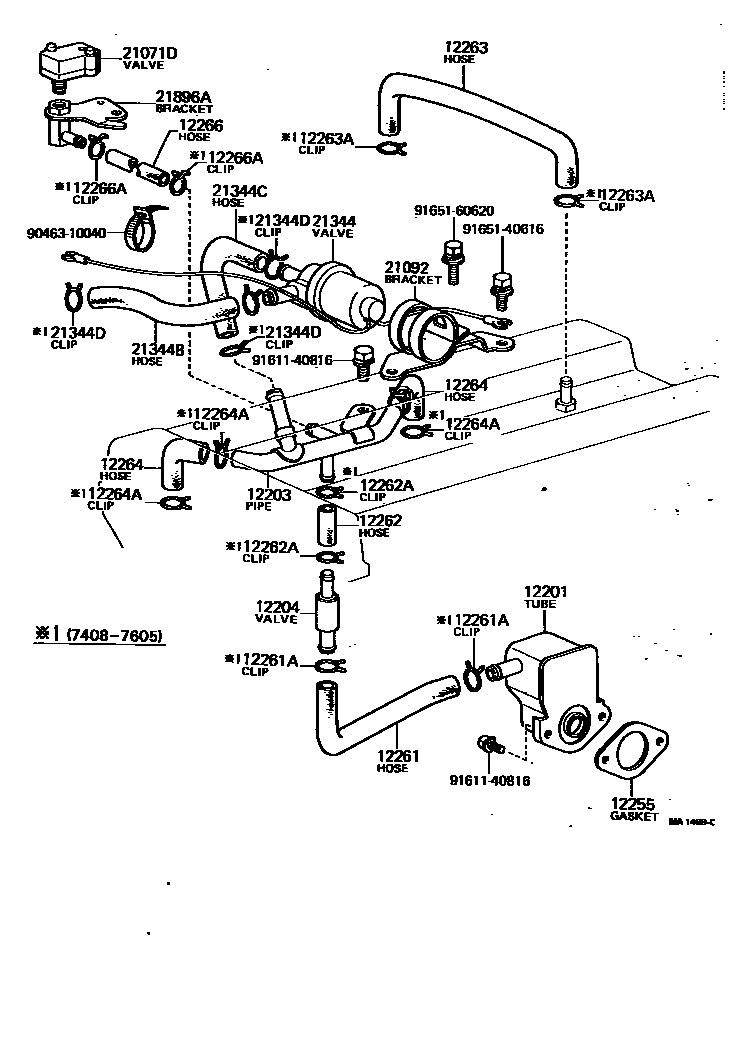

Toyota COROLLA Ventilation Hose — Figure 1201
Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11271 | Cylinder block side cover | 11271-25010 |
| 12201 | Ventilation pipe sub-assembly | 12201-25010 |
| 12203 | Ventilation pipe sub-assembly | 12203-88225 |
| 12204 | Ventilation valve sub-assembly | 12204-15020 · 12204-24011 · 12204-34010 · 12204-88250 |
| 12204A | Gasket (for ventilation system) | 90480-16003 · 90480-16157 · 90480-18180 |
| 12254 | Ventilation valve cover | 12236-24010 |
| 12255 | Ventilation padding | 12255-25010 |
| 12261 | Ventilation Hose | 12262-88220 |
| 12261A | Clip or clip (for vent hose) | 90467-17042 |
| 12262 | Ventilation hose No. 2 | 12261-22010 · 12261-24020 · 12261-24021 · 12261-25011 · 12261-25012 · 12261-25020 · 12261-25021 · 90072-44552 |
| 12262A | Clamp (for vent hose No. 2) | 90467-14044 · 90467-16010 |
| 12263 | No. 3 ventilation hose | 12261-88210 · 12261-88220 · 12262-25010 · 12262-25020 · 90445-17571 · 90910-05040 · 90910-05130 |
| 12263A | Clip (for ventilation hose) | 90467-20020 · 90467-21026 |
| 12264 | No. 4 ventilation hose | 12264-88220 |
| 12264A | Clip (for ventilation hose) | 90467-20020 |
| 12266 | Hoses (vent pipe to thermostat valve) | 90072-44554 |
| 12266A | Clamp (ventilation pipe to thermostat valve hose) | 90467-08036 |
| 12271 | Oil separator partition | 12271-24010 |
| 17660 | Purge control valve assembly | 17660-24060 |
| 17660B | Valve (for purge control valve to timing gear cover) | 90917-10009 |
| 17660G | Connector (for purge control valve to timing gear cover) | 90404-22286 |
| 17660H | Connector (for purge control valve to air filter) | 90917-10015 |
| 17660J | Clamp (for valve hose to air cleaner) | 90461-16925 |
| 17660R | Hose (for valve to air cleaner) | 90445-08964 |
| 17660S | Hose (for valve to timing gear) | 95331-06040 |
| 17660U | Clamp (for valve hose to timing gear cover) | 90467-12058 |
| 21071D | Thermostat valve sub-assembly (for ventilation hose) | 21071-41010 |
| 21092 | Throttle solenoid valve bracket sub-assembly | 21092-88232 |
| 21344 | Throttle solenoid valve | 21344-41010 · 21344-88250 |
| 21344B | No. 1 hose (solenoid valve to tee) | 17921-88220 |
| 21344C | No. 2 hose (solenoid valve to ventilation pipe) | 17922-88220 |
| 21344D | Hose clip | 90467-21026 |
| 21896A | Thermostat valve bracket (for vent hose) | 21896-88220 |
