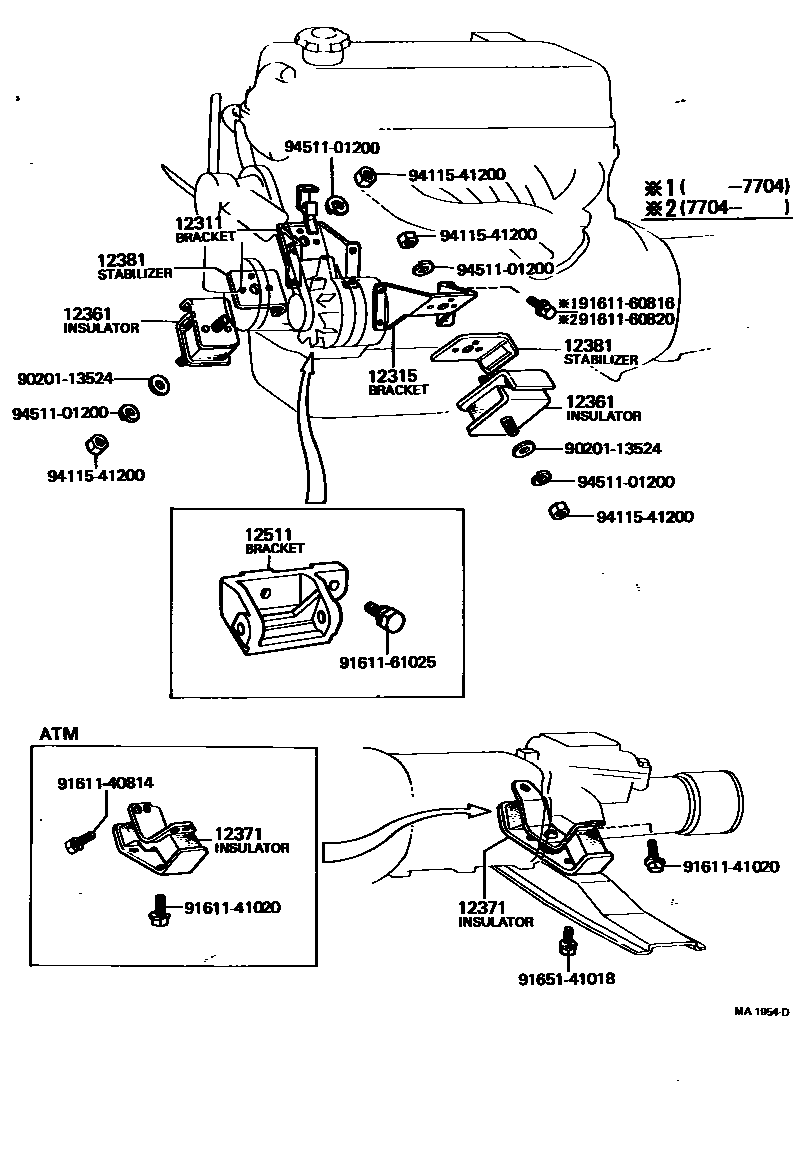

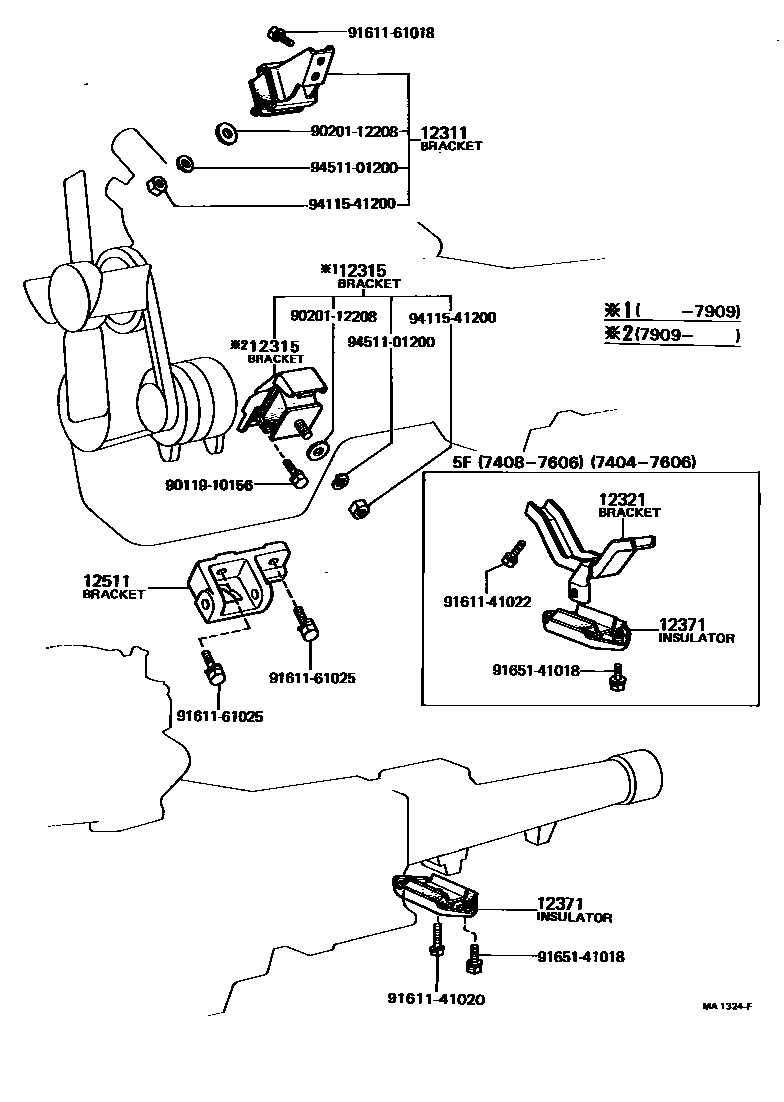

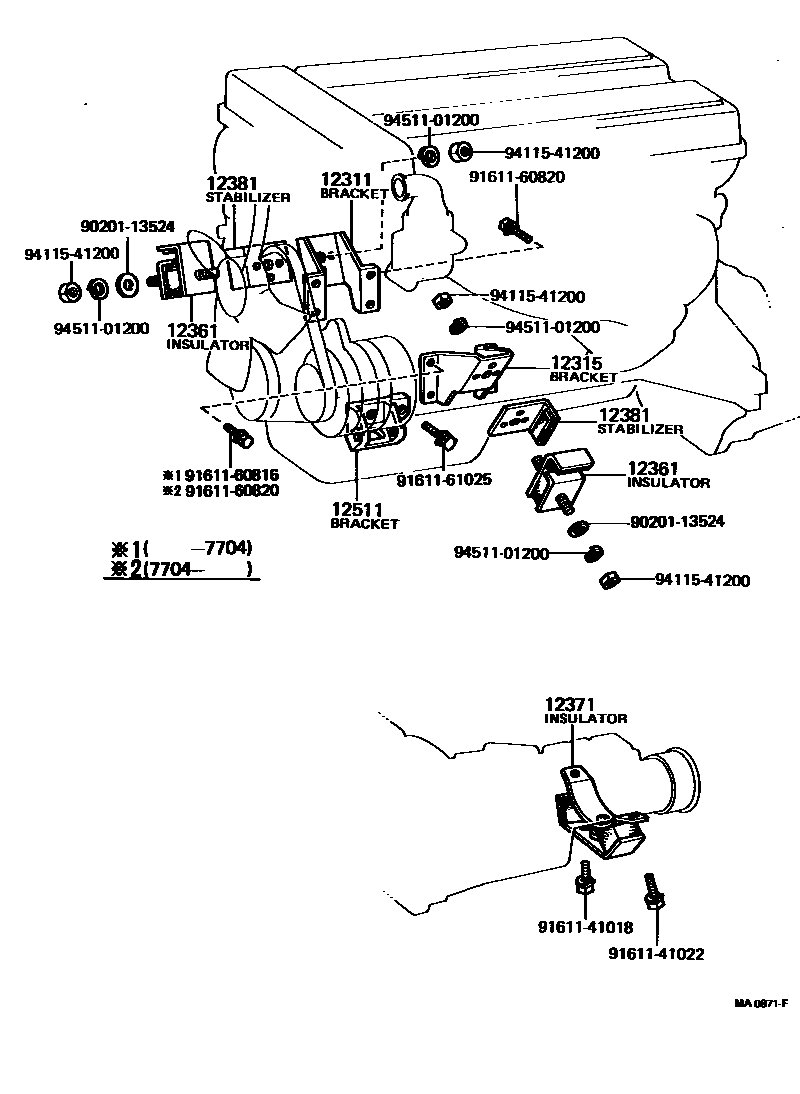

Toyota COROLLA Engine Mounting — Figure 1107
Toyota COROLLA EPC diagram 1107, Engine Mounting, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12301-29045 · 12301-29046 · 12311-25011 · 12311-25012 · 12311-26010 · 12311-26011 · 12311-26020 |
| 12315 | Engine No. 1 left front suspension bracket | 12302-13011 · 12302-19015 · 12302-29025 · 12315-25011 |
| 12321 | Engine No. 1 rear suspension bracket | 12321-24022 |
| 12361 | Engine front mounting vibration isolation pad | 12361-25012 · 12361-25013 · 12361-28020 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-24010 · 12371-33010 · 12371-34020 |
| 12381 | engine mount stabilizer bar | 12381-25010 |
| 12511 | No. 1 generator bracket | 12511-24011 · 12511-25010 |
