Toyota COROLLA Cylinder Head — Figure 1104

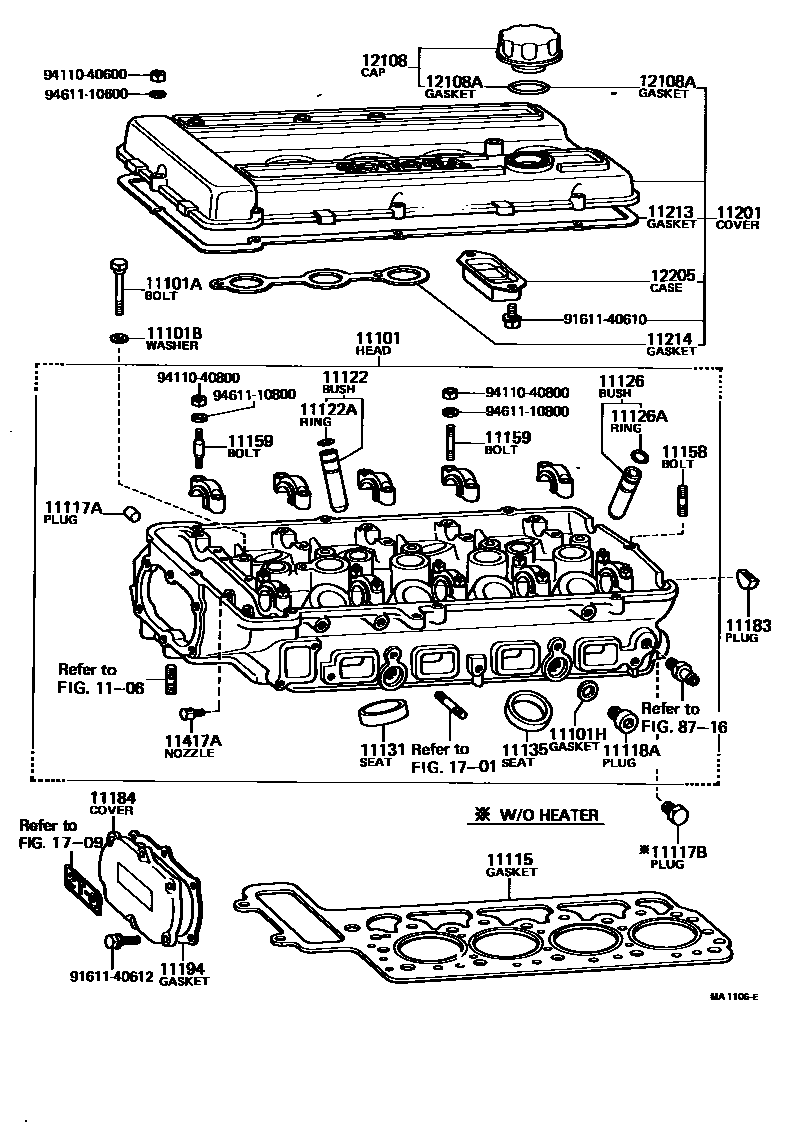

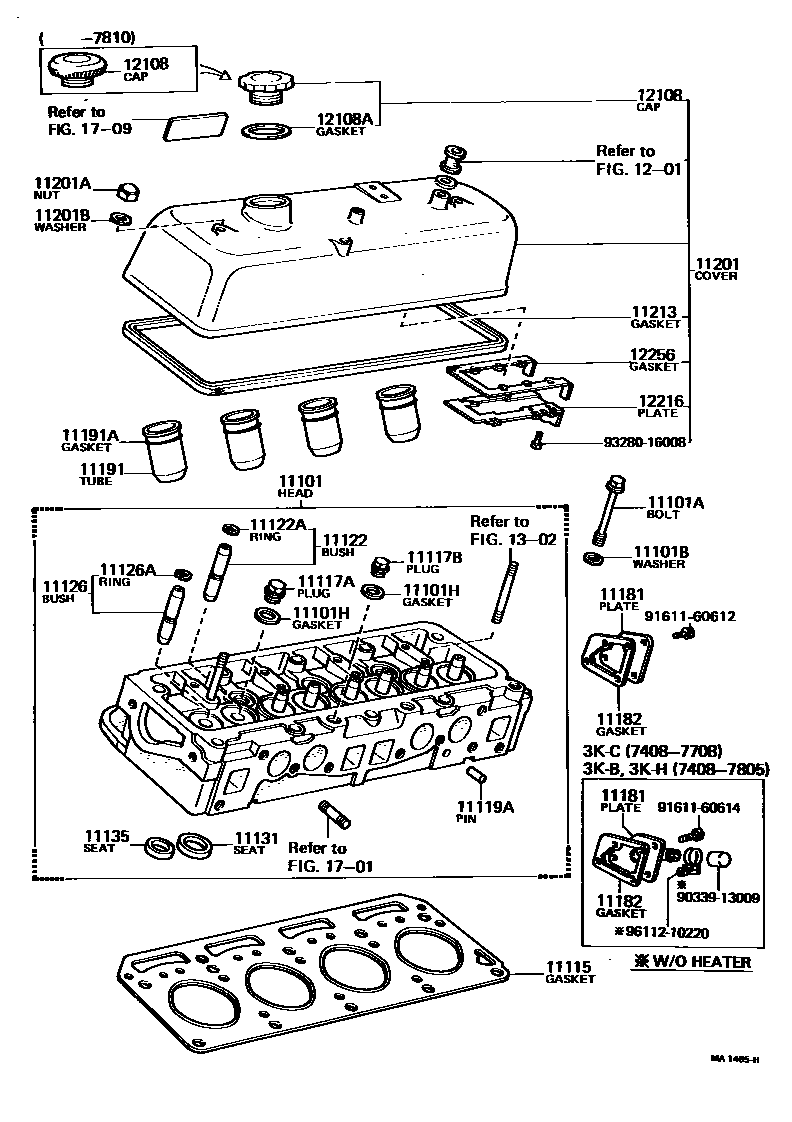

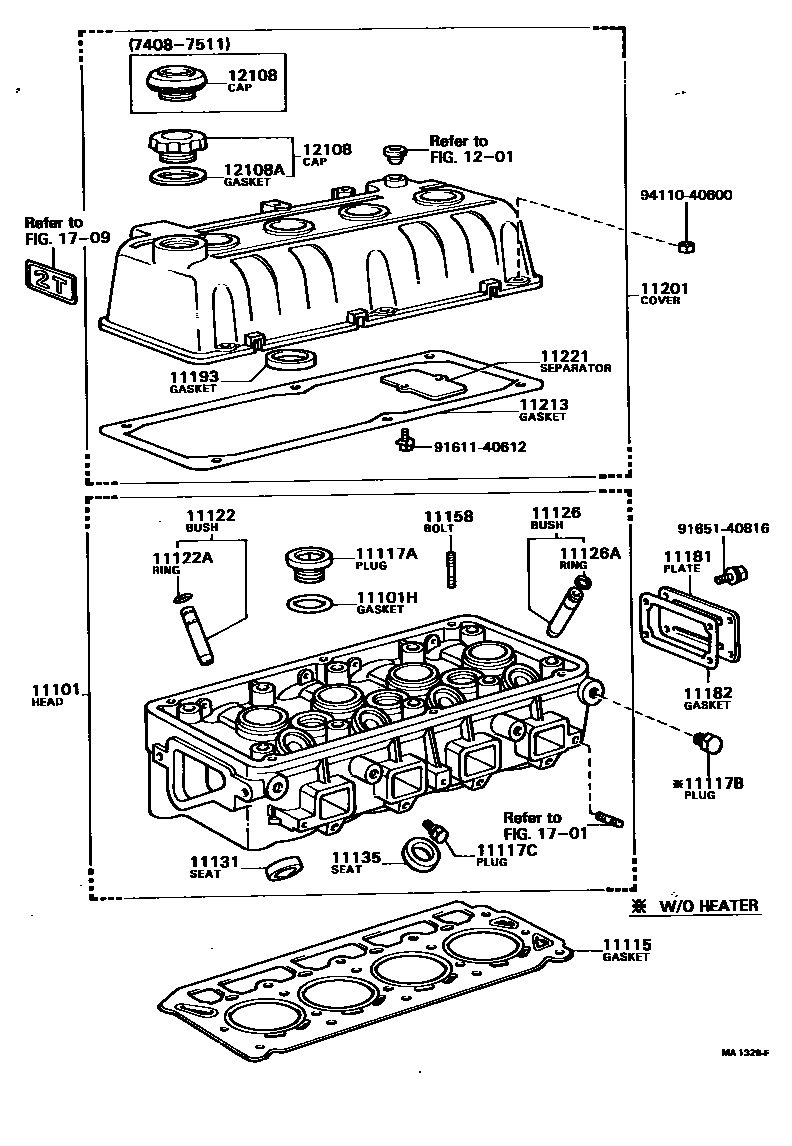

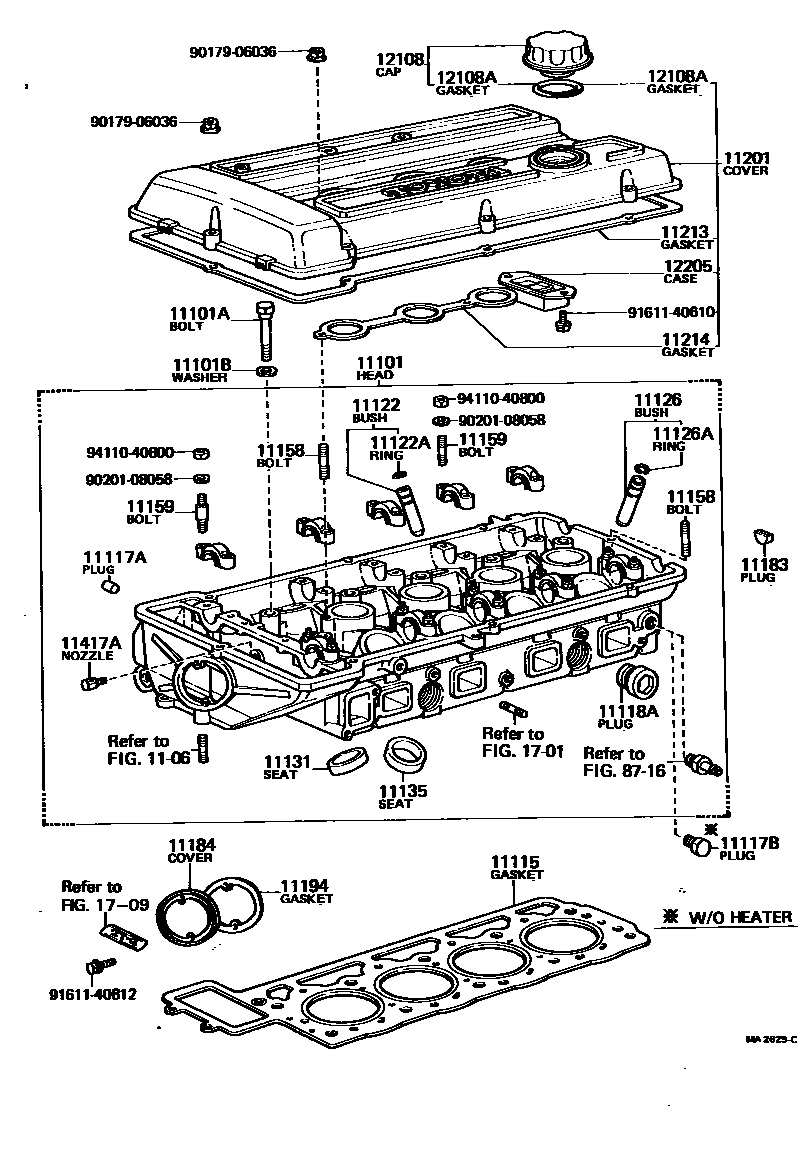

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 4 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-19045 · 11101-19065 · 11101-29088 · 11101-29098 · 11101-29107 · 11101-29145 · 11101-29146 · 11101-29147 · 11101-29155 · 11101-29156 · 11101-29157 · 11101-29206 · 11101-29207 · 11101-29226 · 11101-29227 · 11101-29228 · 11101-29237 · 11101-29238 · 11101-29295 · 11101-29305 · 11101-29355 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90072-70103 · 90910-02020 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10005 · 90201-10344 · 90201-12222 |
| 11101H | Gasket (for cylinder head thread plug) | 90430-15151 · 90430-18152 · 90430-24246 · 90430-33133 |
| 11115 | GASKET, CYLINDER HEAD | 11115-13010 · 11115-24012 · 11115-24013 · 11115-26021 · 11115-26022 · 11115-26023 · 11115-26024 · 11115-88220 |
| 11117A | No. 1 headed tapered thread plug | 90072-33614 · 90341-18063 · 90341-24090 |
| 11117B | No. 2 headed tapered thread plug | 90341-15045 · 90345-53007 |
| 11117C | No. 3 headed tapered thread plug | 90341-14004 |
| 11118A | No. 1 straight screw plug | 90341-32028 · 90341-32031 |
| 11119A | No. 1 direct sales | 90250-08120 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-22020 · 11122-24020 · 11122-25021 · 11122-37020 · 11122-88250 · 11123-22020 · 11123-24020 · 11123-25021 |
| 11122A | Shaft snap ring (for valve guide bushing) | 90520-12049 · 90520-13092 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-88250 · 11126-22020 · 11126-24020 · 11126-25021 · 11126-37020 · 11127-22020 · 11127-24020 · 11127-25021 |
| 11126A | Shaft snap ring (for valve guide bushing) | 90520-12049 · 90520-13092 |
| 11131 | intake valve seat | 11131-24010 · 11131-25010 · 11131-26010 · 11131-88222 · 11132-24010 · 11132-25010 · 11132-26010 · 11132-26011 |
| 11135 | Exhaust valve seat | 11135-13010 · 11135-24012 · 11135-25011 · 11135-26011 · 11135-26012 · 11136-13010 · 11136-24010 · 11136-25010 · 11136-26010 · 11136-26011 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 90072-11617 · 92122-40618 · 92122-40620 |
| 11159 | Studs (for mounting cylinder head to camshaft bearing cap) | 90072-11601 · 90116-08080 · 92132-60835 |
| 11181 | cylinder head rear plate | 11181-24010 · 11181-24020 · 11181-25010 |
| 11182 | Rear cylinder head gasket | 11182-24010 · 11182-25010 |
| 11183 | PLUG, SEMICIRCULAR | 11183-88210 |
| 11184 | front cylinder head cover | 11184-88220 · 11184-88260 |
| 11191 | spark plug sleeve | 11191-22010 |
| 11191A | Gasket (for spark plug bushing) | 90430-31141 |
| 11193 | spark plug bushing gasket | 11193-25011 · 11193-25012 |
| 11194 | Front cylinder head cover gasket | 11194-88220 · 11194-88260 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-19015 · 11201-19025 · 11201-19026 · 11201-29037 · 11201-29038 · 11201-29066 · 11201-29067 · 11201-29106 · 11201-29107 · 11201-29108 · 11201-29116 · 11201-29117 · 11201-29125 · 11201-29127 |
| 11201A | Cap nut (for cylinder head cover) | 94171-10800 |
| 11201B | Gasket (for cylinder head cover) | 90210-08017 · 90210-09007 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-22010 · 11213-25010 · 11213-25011 · 11213-88221 |
| 11214 | No. 2 cylinder head cover gasket | 11214-88221 |
| 11221 | No. 1 cylinder head cover separator | 11221-25010 |
| 11417A | oil nozzle | 90072-73103 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12108-49015 · 12180-13010 · 12181-12903 · 12181-12904 · 12181-31020 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90301-44049 · 90430-37140 |
| 12205 | Ventilation box sub-assembly | 12205-88210 |
| 12216 | ventilation baffle | 12216-22010 |
| 12256 | ventilation baffle | 12256-22010 |
