Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 4 images and 1 PNC and OE references.

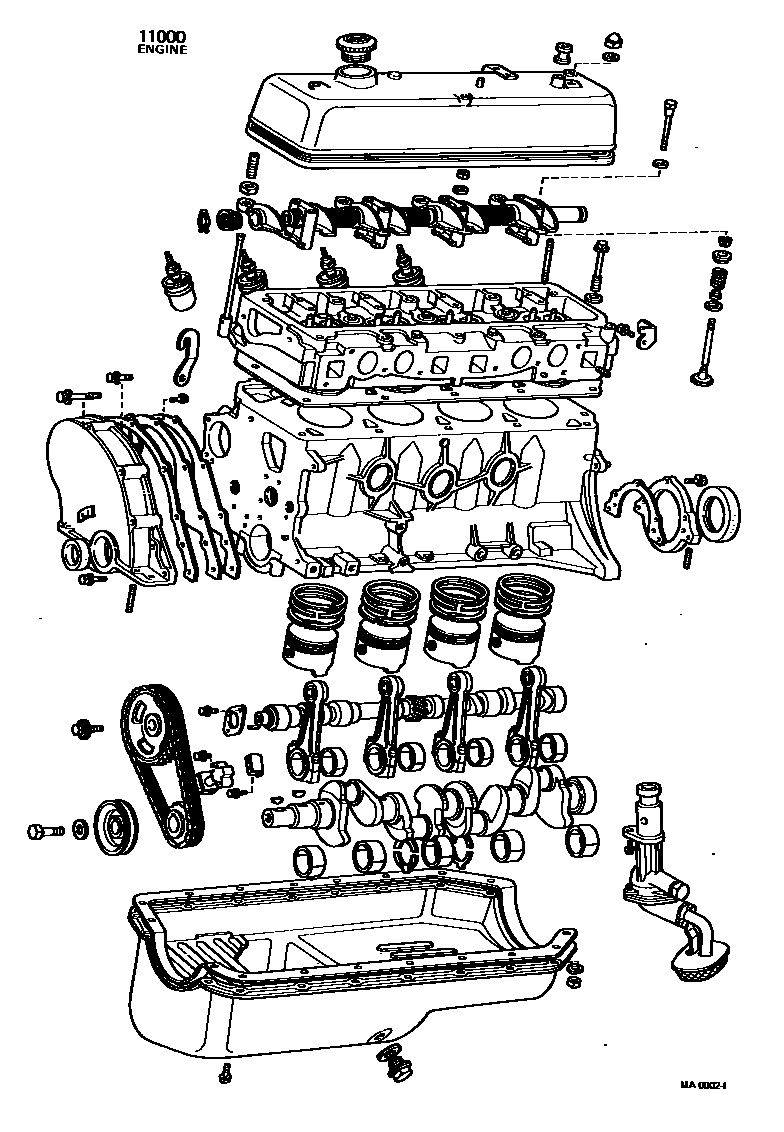

Toyota COROLLA Partial Engine Assembly EPC diagram — MA0002I
Partial Engine Assembly — MA0002I (197408 – 999999)

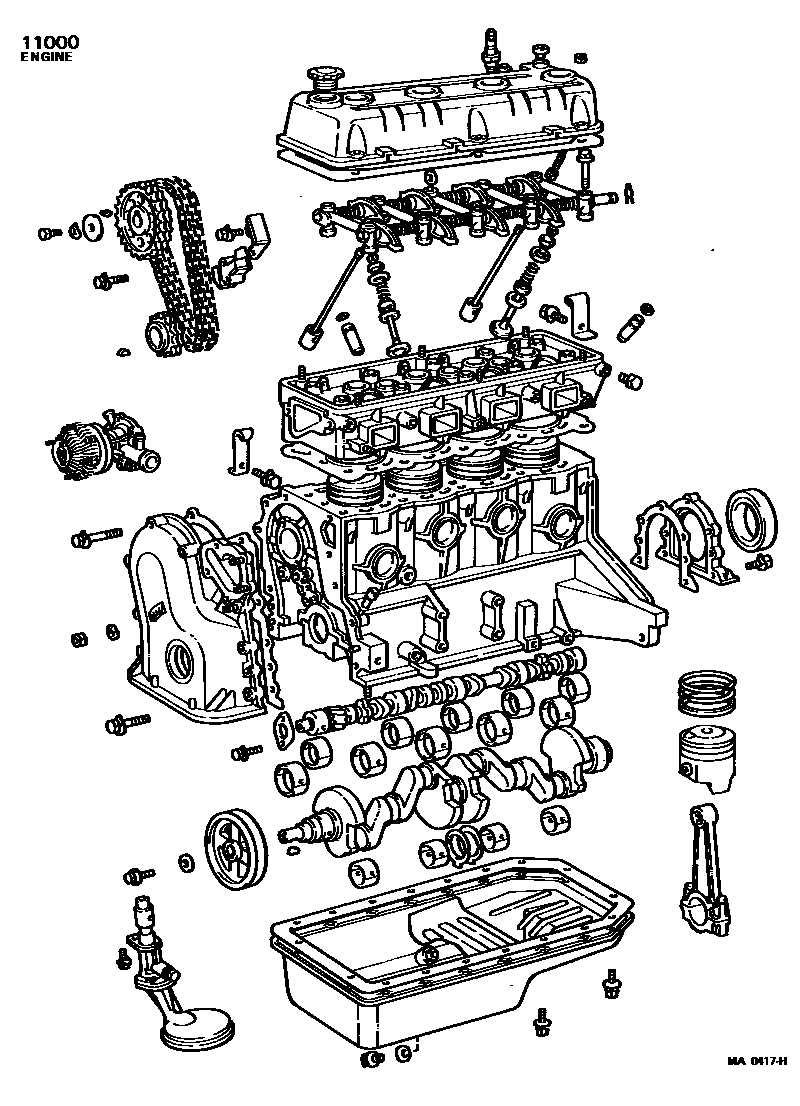

Toyota COROLLA Partial Engine Assembly EPC diagram — MA0417H
Partial Engine Assembly — MA0417H (197408 – 197908)

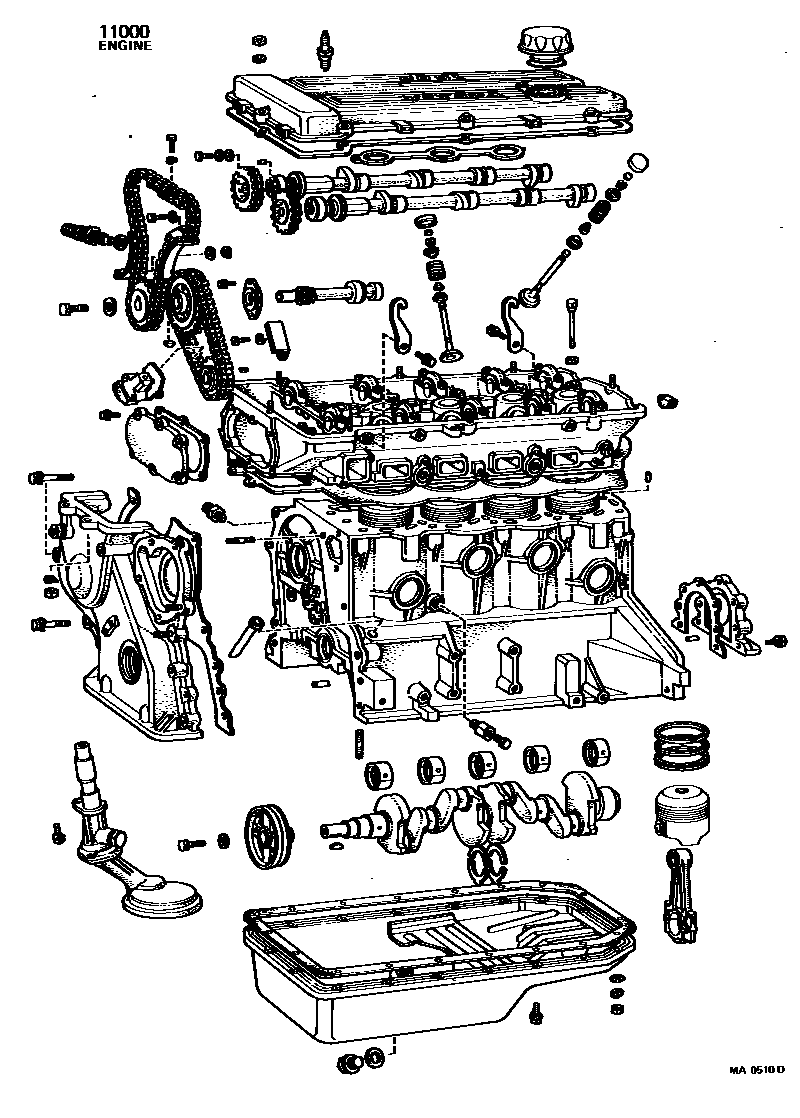

Toyota COROLLA Partial Engine Assembly EPC diagram — MA0510D
Partial Engine Assembly — MA0510D (197408 – 197611)

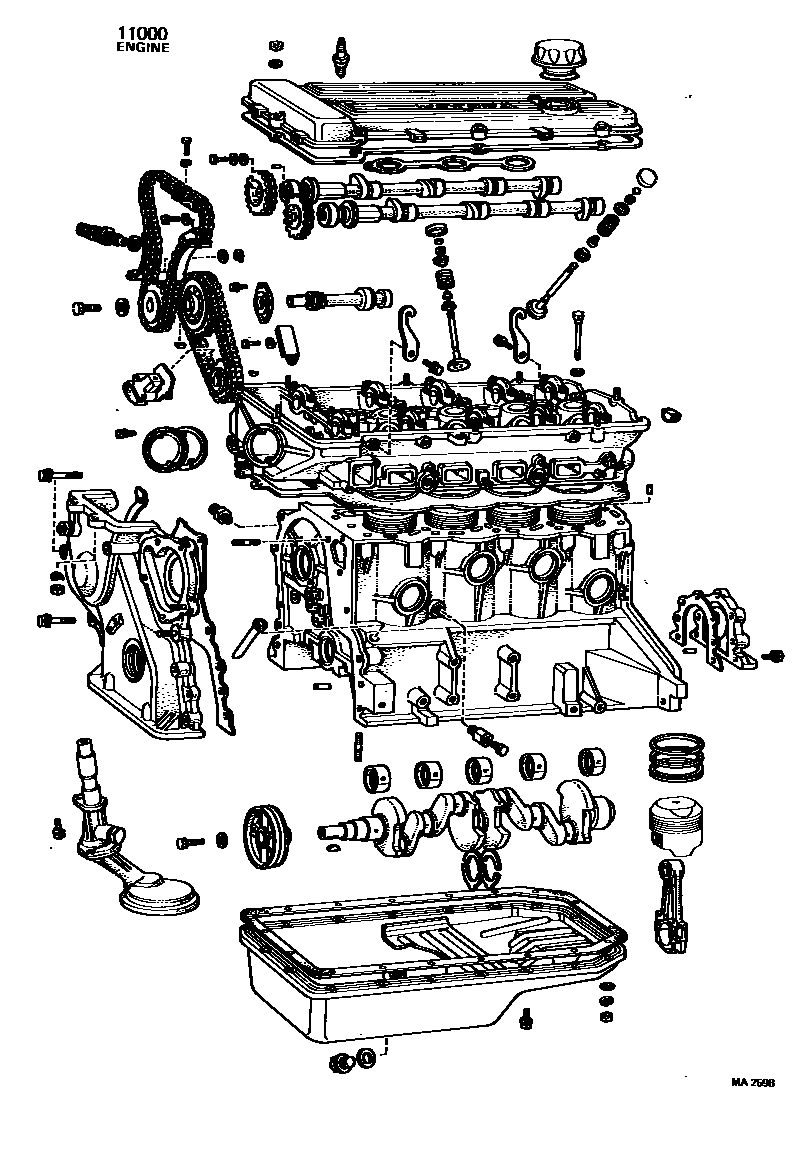

Toyota COROLLA Partial Engine Assembly EPC diagram — MA2598
Partial Engine Assembly — MA2598 (197611 – 197902)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-13030 · 19000-24160 · 19000-24161 · 19000-24162 · 19000-24163 · 19000-24170 · 19000-24171 · 19000-24172 · 19000-24173 · 19000-24210 · 19000-24211 · 19000-24212 · 19000-24250 · 19000-24251 · 19000-24252 · 19000-24253 · 19000-26060 · 19000-26061 · 19000-26062 · 19000-26063 · 19000-26064 · 19000-26070 · 19000-26071 · 19000-26072 · 19000-26073 · 19000-26133 · 19000-26143 · 19000-26170 · 19000-26240 · 19000-26241 · 19000-27014
