Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 3 PNC and OE references.

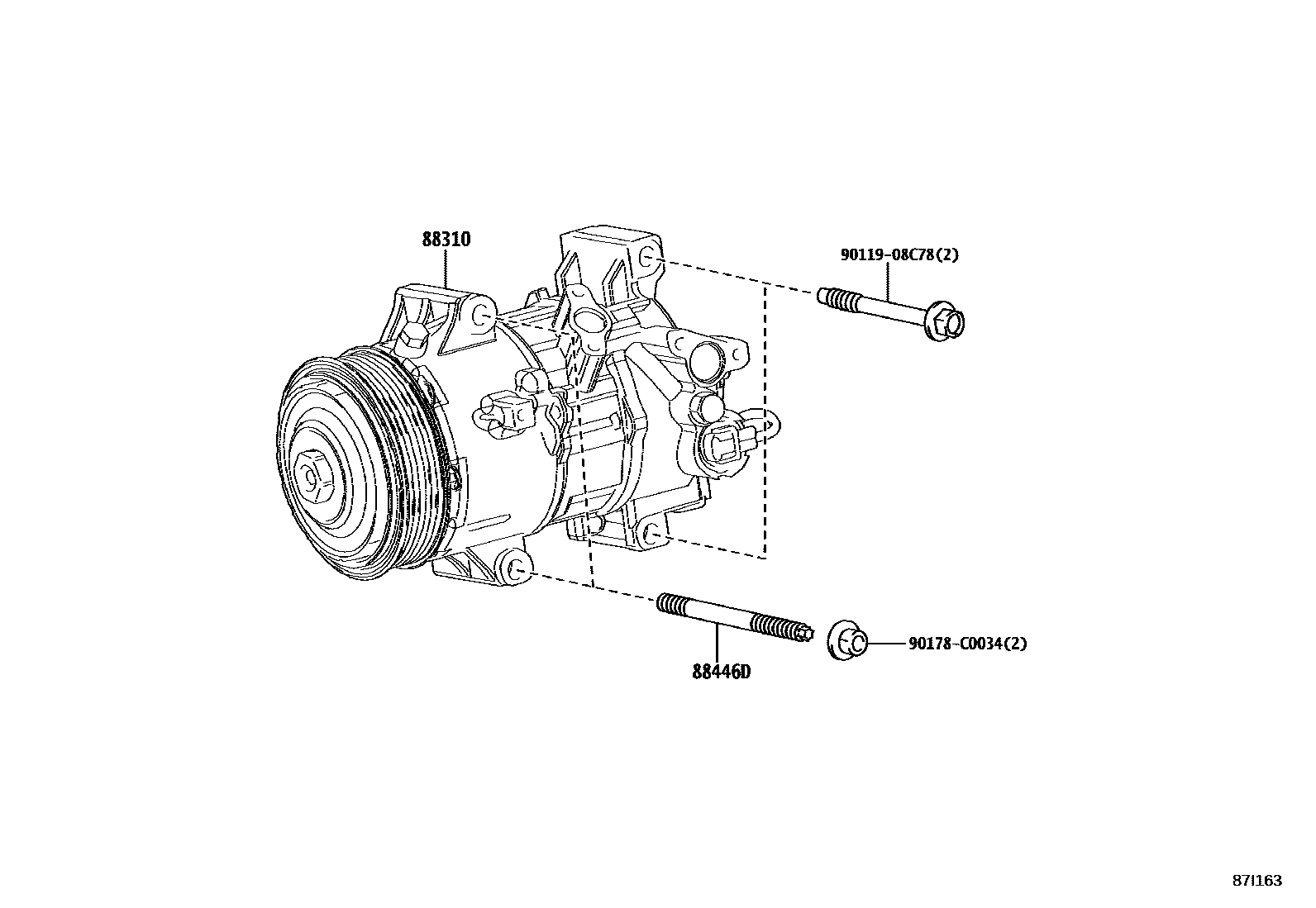

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87I163
Heating & Air Conditioning - Compressor — 87I163 (201908 – 999999)

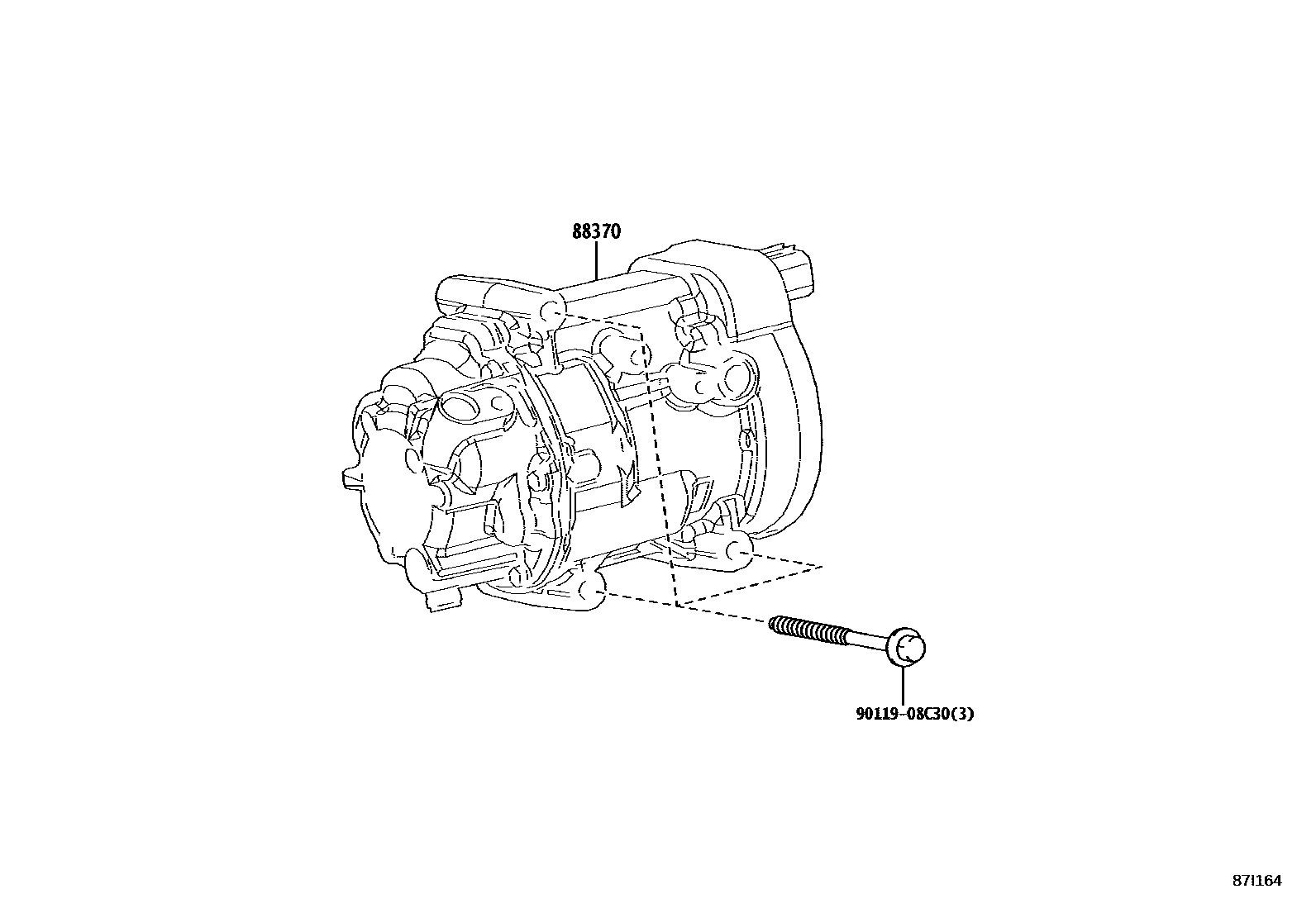

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87I164
Heating & Air Conditioning - Compressor — 87I164 (201908 – 999999)

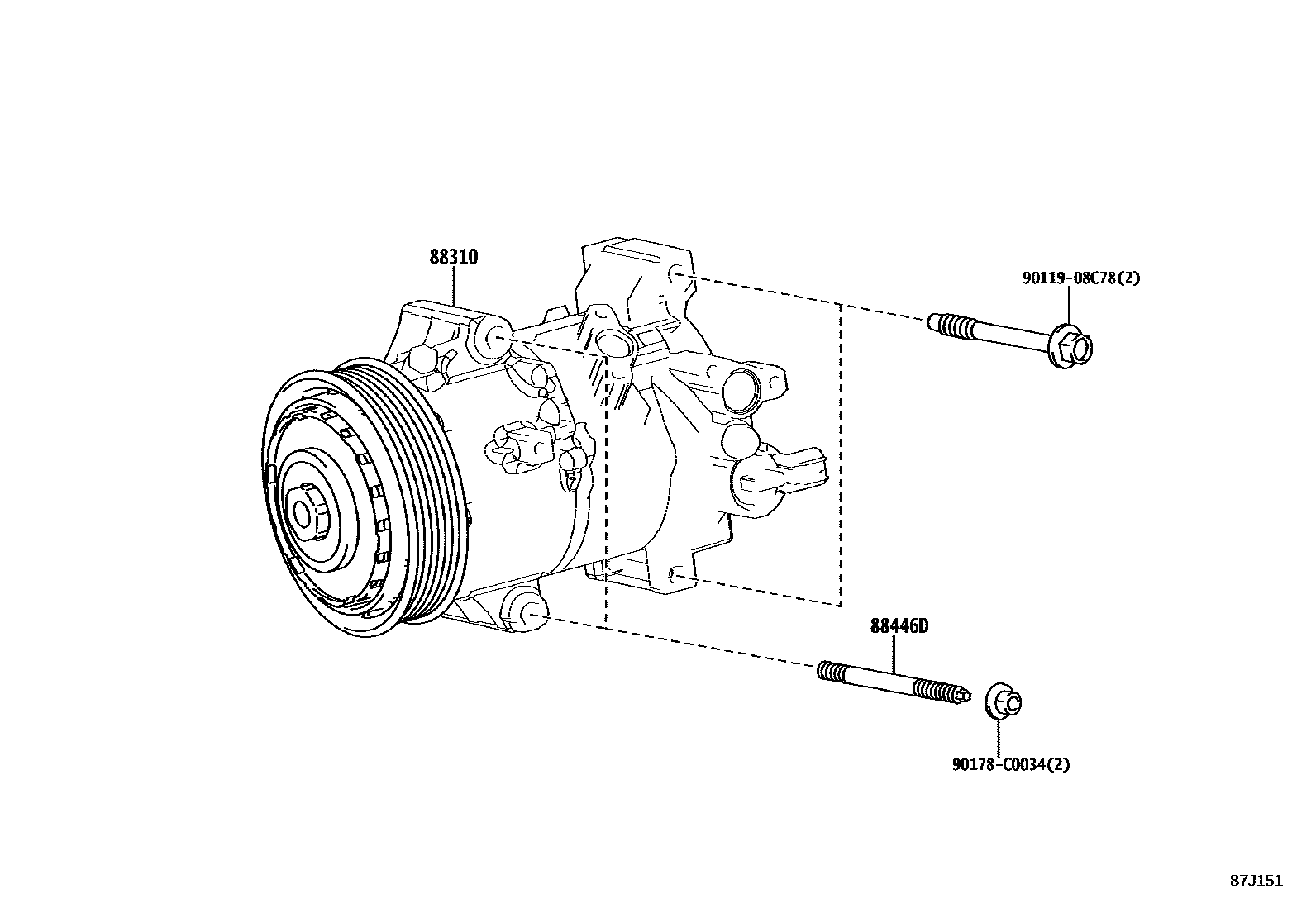

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87J151
Heating & Air Conditioning - Compressor — 87J151 (202101 – 999999)

PNC and OE references

PNCPart nameOE numbers
88310Compressor assembly with pulley88310-02B30 · 88310-02C70
88370Compressor assembly with motor88370-02010 · 88370-47092
88446Dcooler bolt88446-60050
