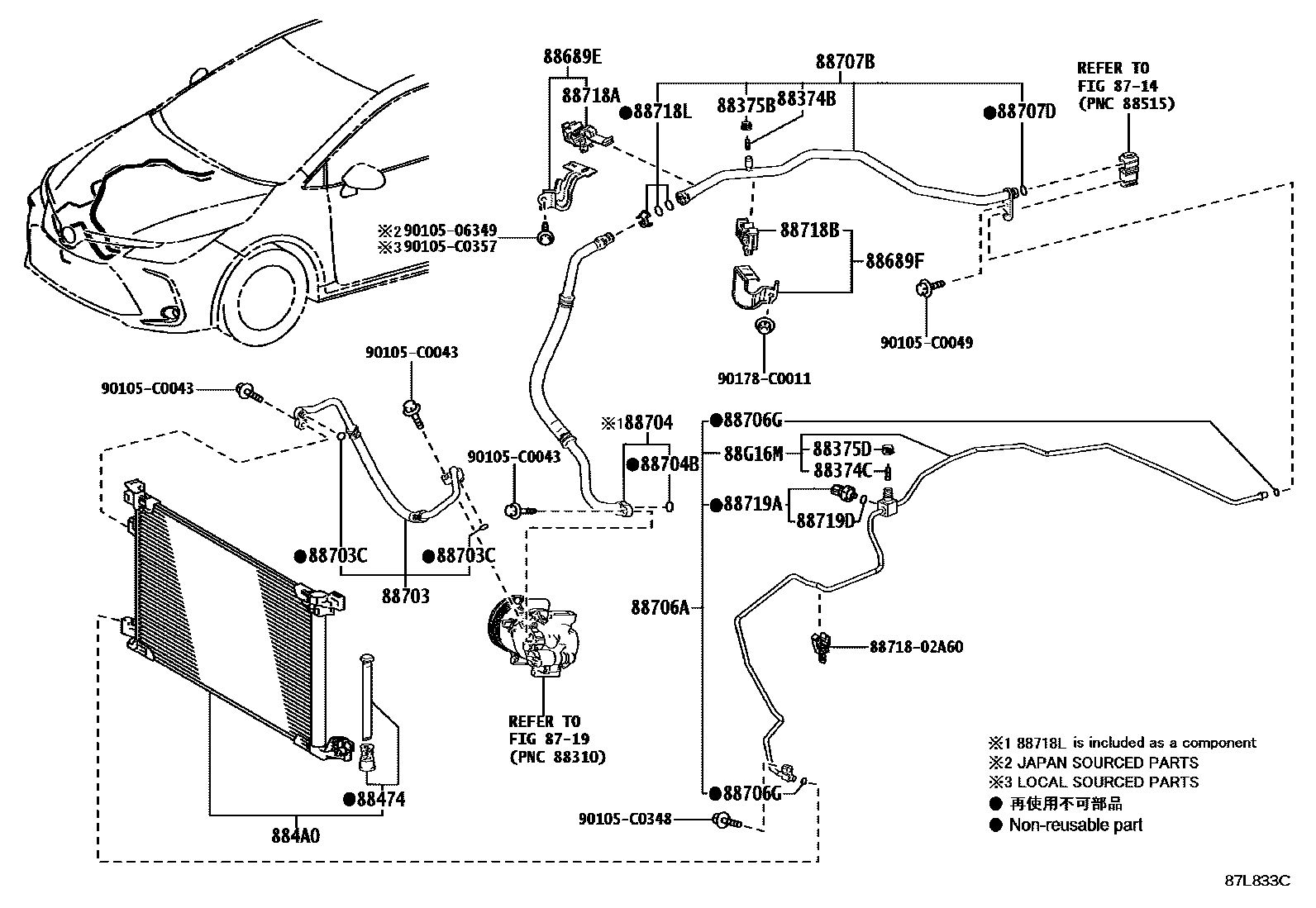

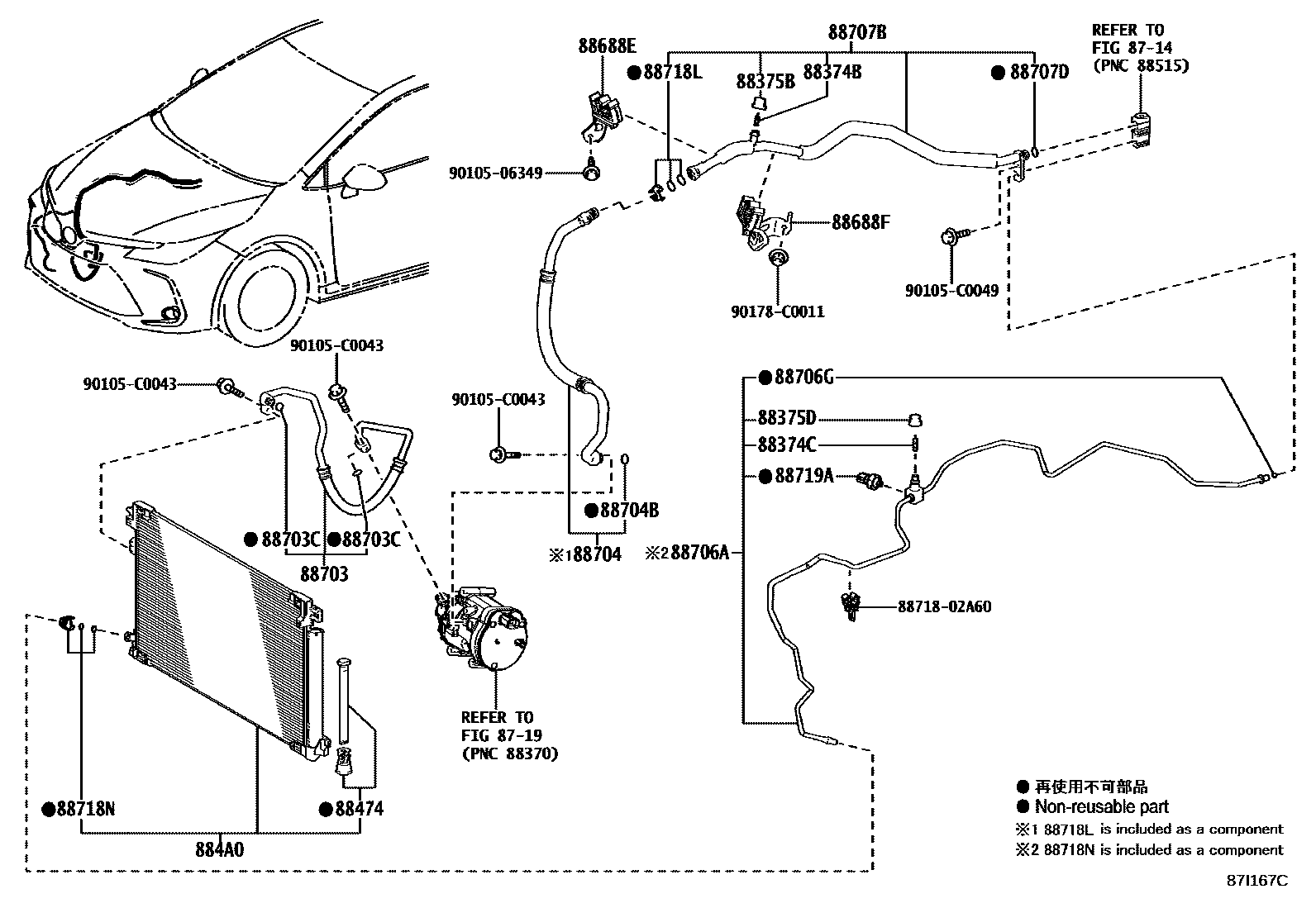

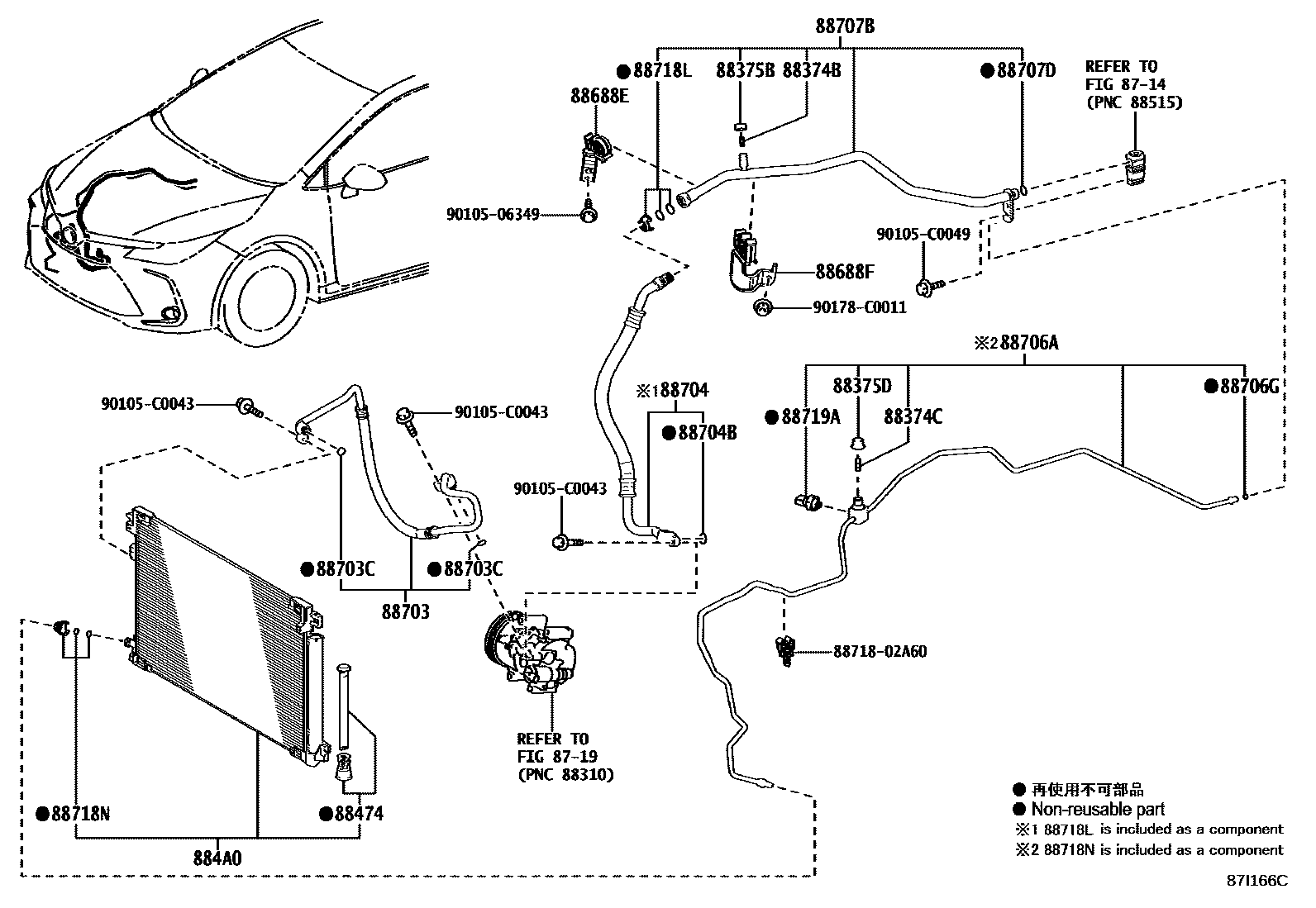

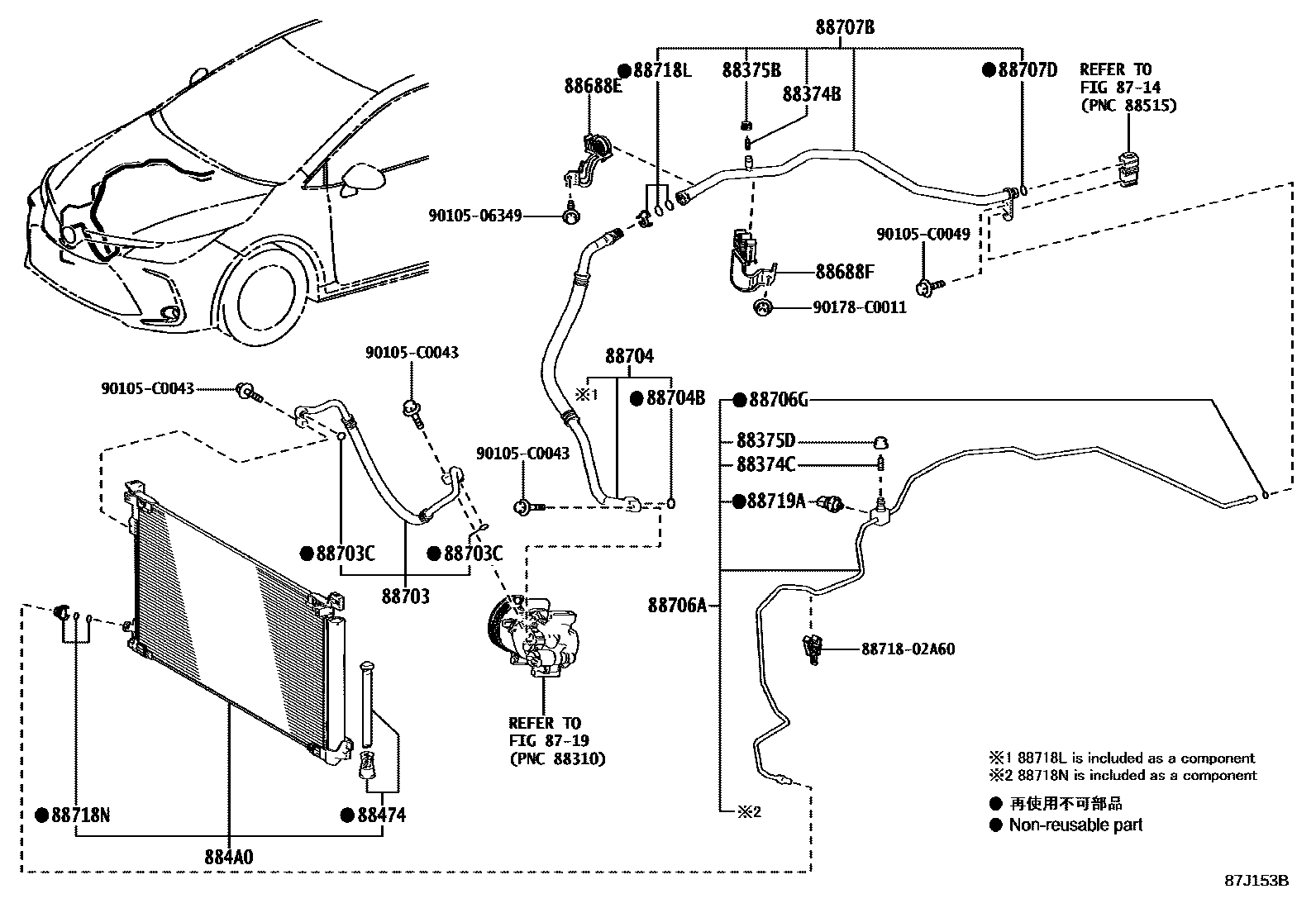

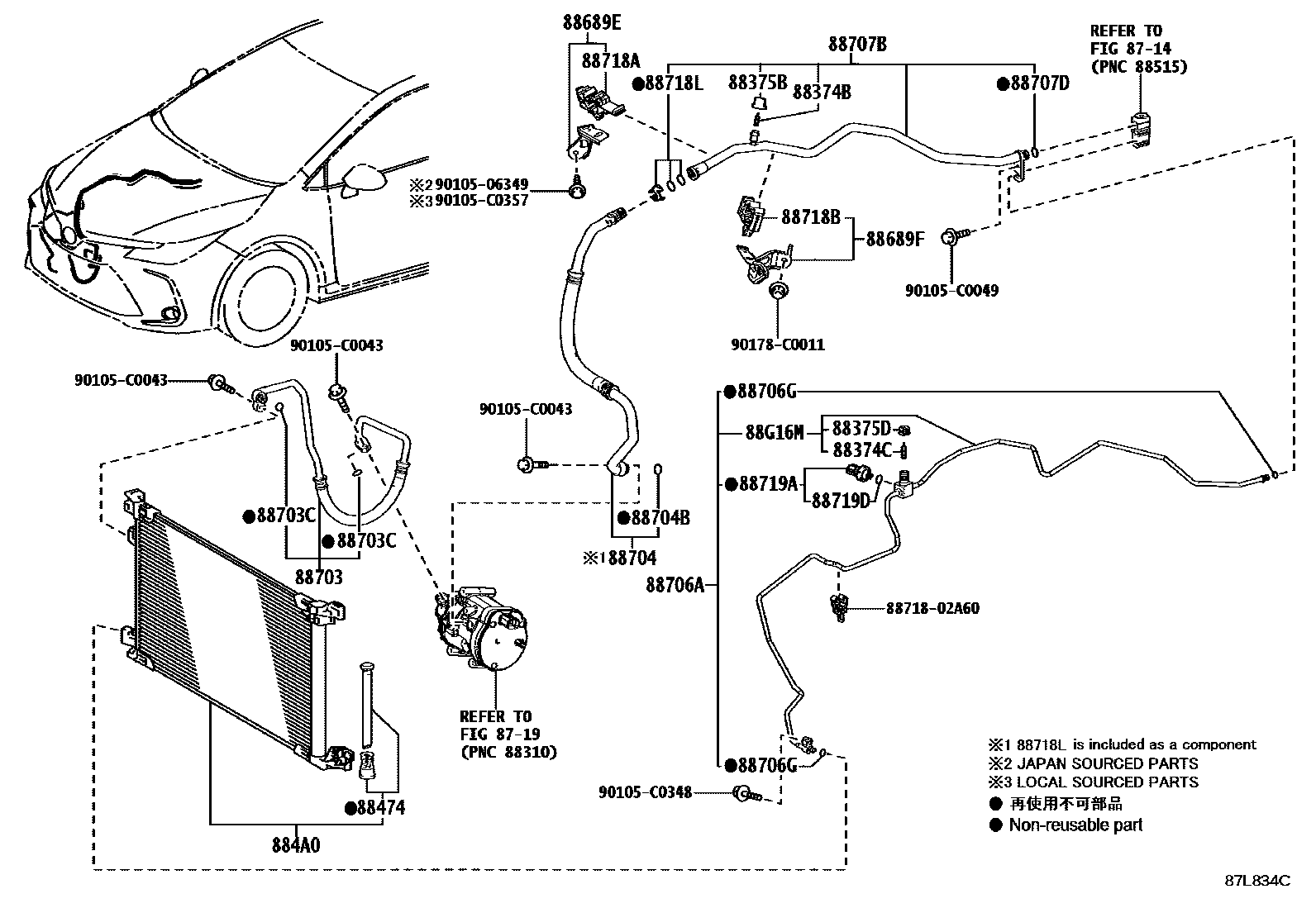

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-0D010 · 88375-30280 |
| 88474 | cooler dryer | 88474-02040 · 88474-12020 |
| 884A0 | Air conditioning condenser assembly | 884A0-02240 · 884A0-02250 · 884A0-02280 · 884A0-02380 · 884A0-02390 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-02E80 · 88688-02E90 · 88688-F4101 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-02F00 · 88688-F4110 |
| 88689E | Cooler Bracket No. 1 | 88688-02G40 · 88688-02G90 |
| 88689F | Cooler bracket No. 2 | 88688-02G50 · 88688-0A030 |
| 88703 | Discharge hose sub-assembly | 88703-02E50 · 88703-02E60 · 88703-02E70 · 88703-02F20 · 88703-02F30 |
| 88703C | O-ring (for drain hose) | 90099-14120 |
| 88704 | Oil suction hose sub-assembly | 88704-02E70 · 88704-02E80 · 88704-02E90 · 88704-02F80 · 88704-02F90 |
| 88704B | O-ring (for suction hose) | 90099-14121 |
| 88706A | Liquid pipe A sub-assembly | 88710-02C10 · 88710-02G50 · 88710-02G60 · 88710-02J80 · 88710-02J90 |
| 88706G | O-ring (for liquid pipe) | 90099-14119 |
| 88707B | Suction pipe B sub-assembly | 88707-02760 · 88707-02770 · 88707-02810 · 88707-02820 · 88707-F4060 |
| 88707D | O-ring (for suction pipe) | 90099-14121 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-02B60 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-0A130 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718N | Pipe clamp | 88718-1E150 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88719D | O-ring (for air conditioning pressure sensor) | 90099-14122 |
| 88G16M | Liquid tube No. 1 | 88716-02J20 · 88716-02J30 |
