Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

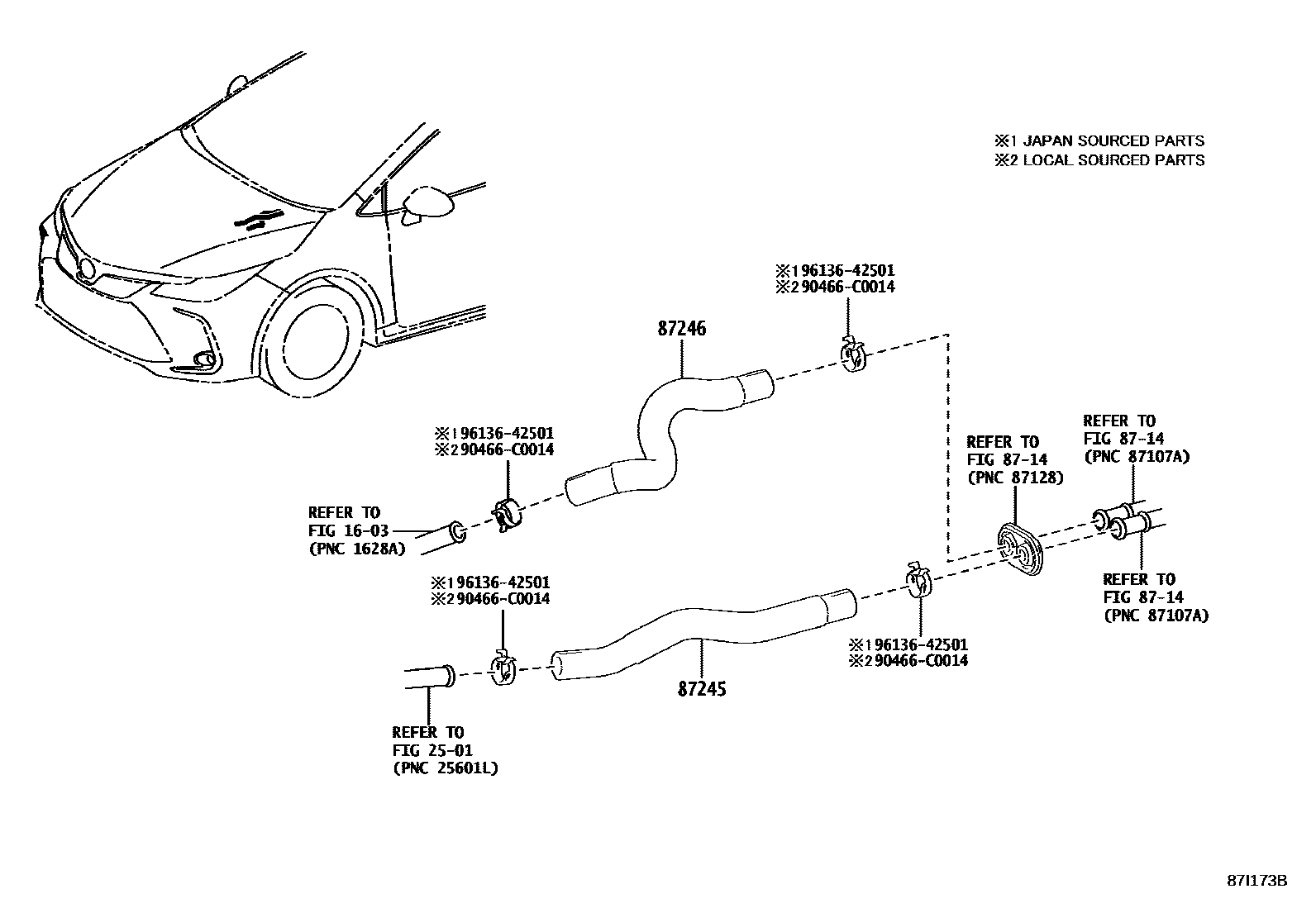

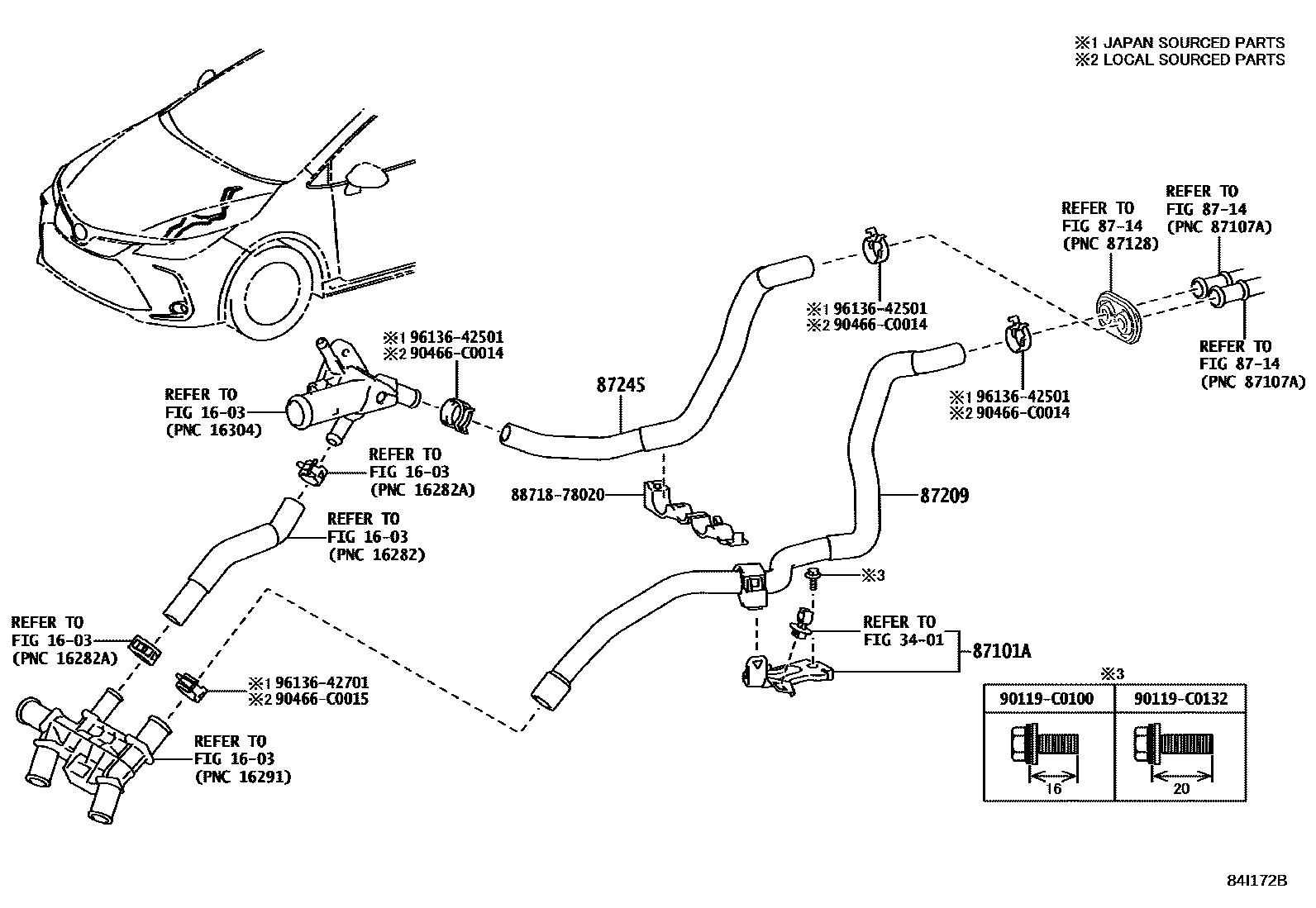

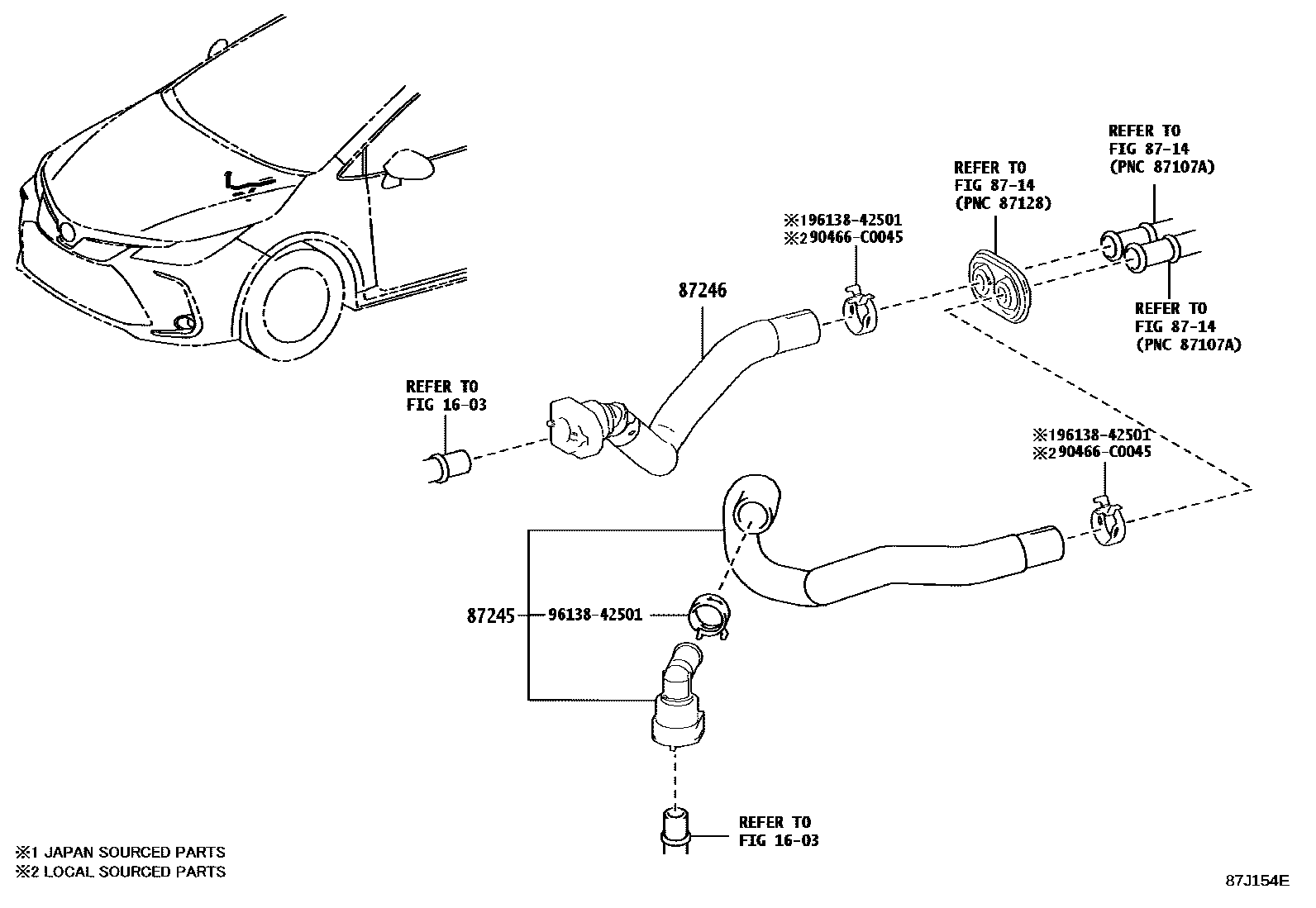

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101A | No. 1 heater bracket sub-assembly | 87101-02140 |
| 87209 | Water hose sub-assembly | 87209-02570 |
| 87245 | Heater water inlet hose | 87209-02250 · 87209-02750 · 87245-02U80 · 87245-02U90 |
| 87246 | Heater outlet hose | 87209-02620 · 87209-02770 · 87245-02V00 |
