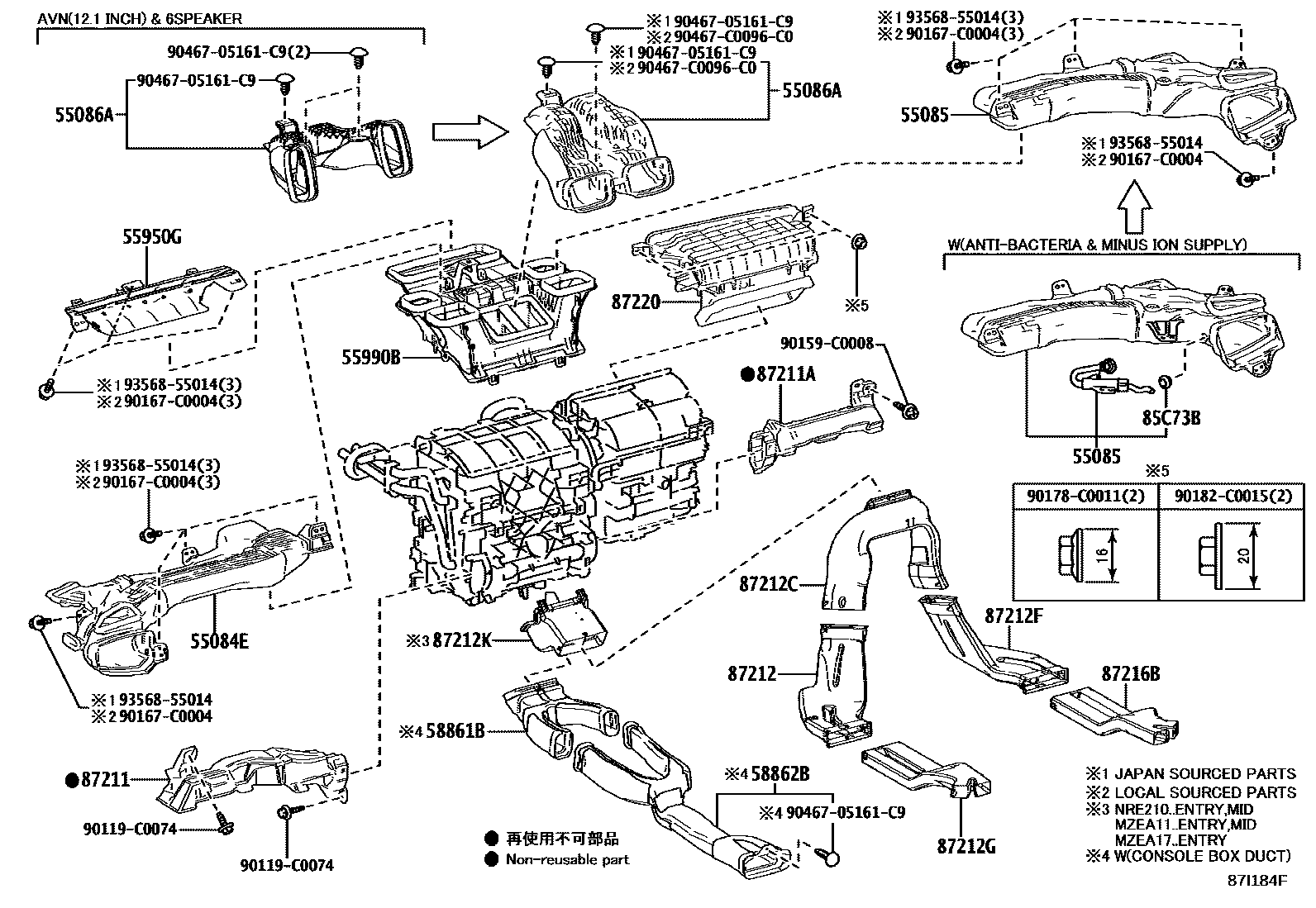

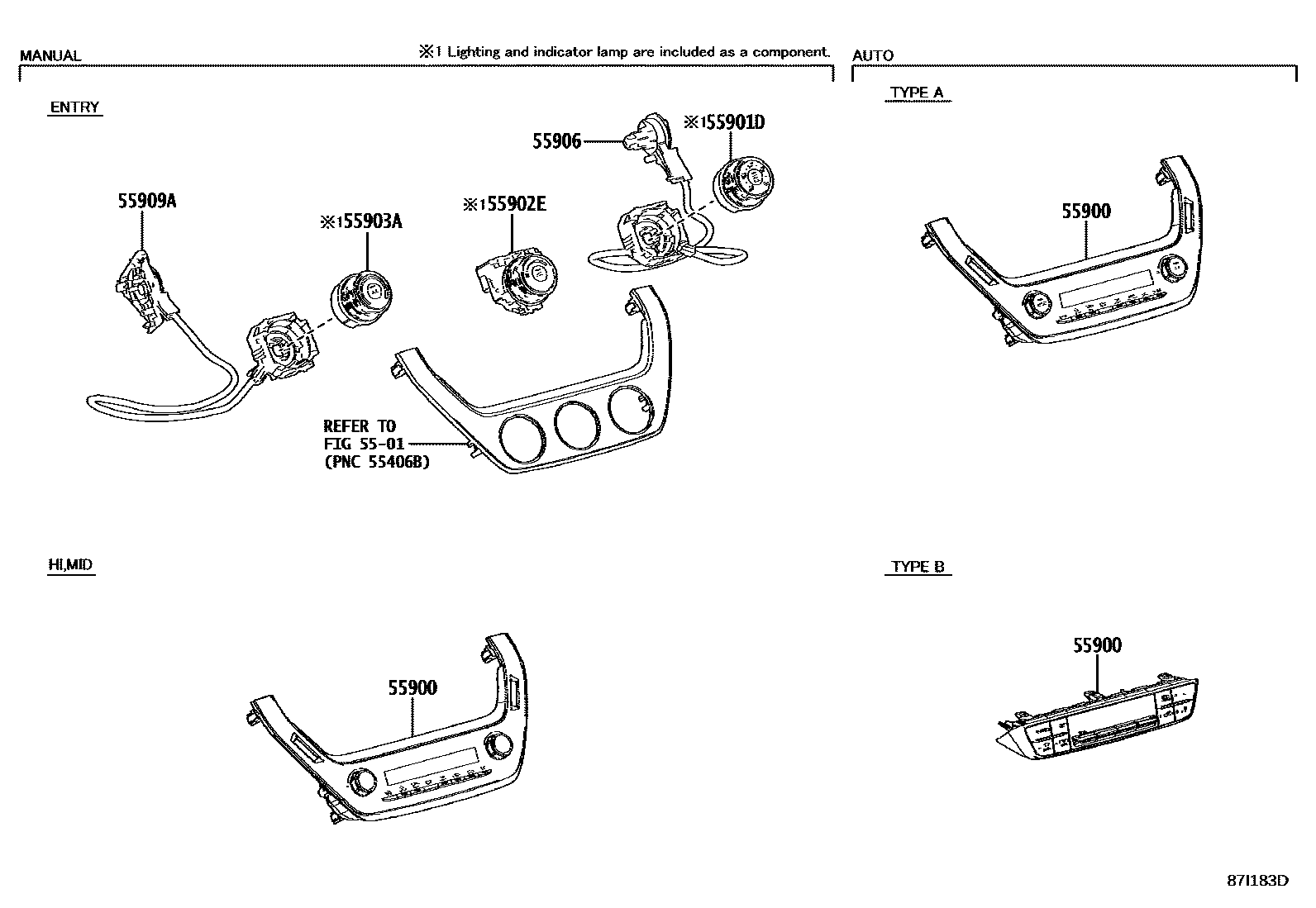

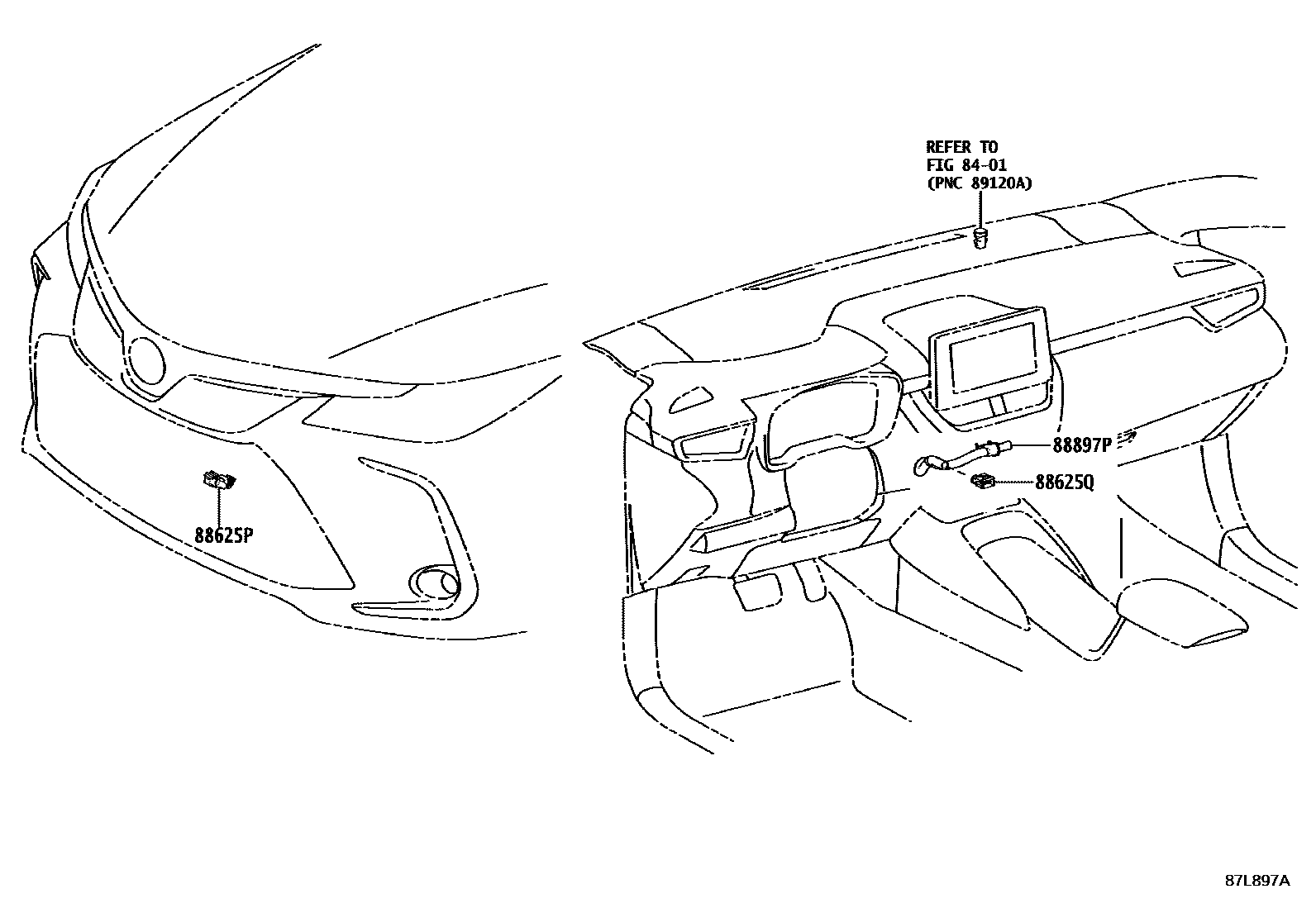

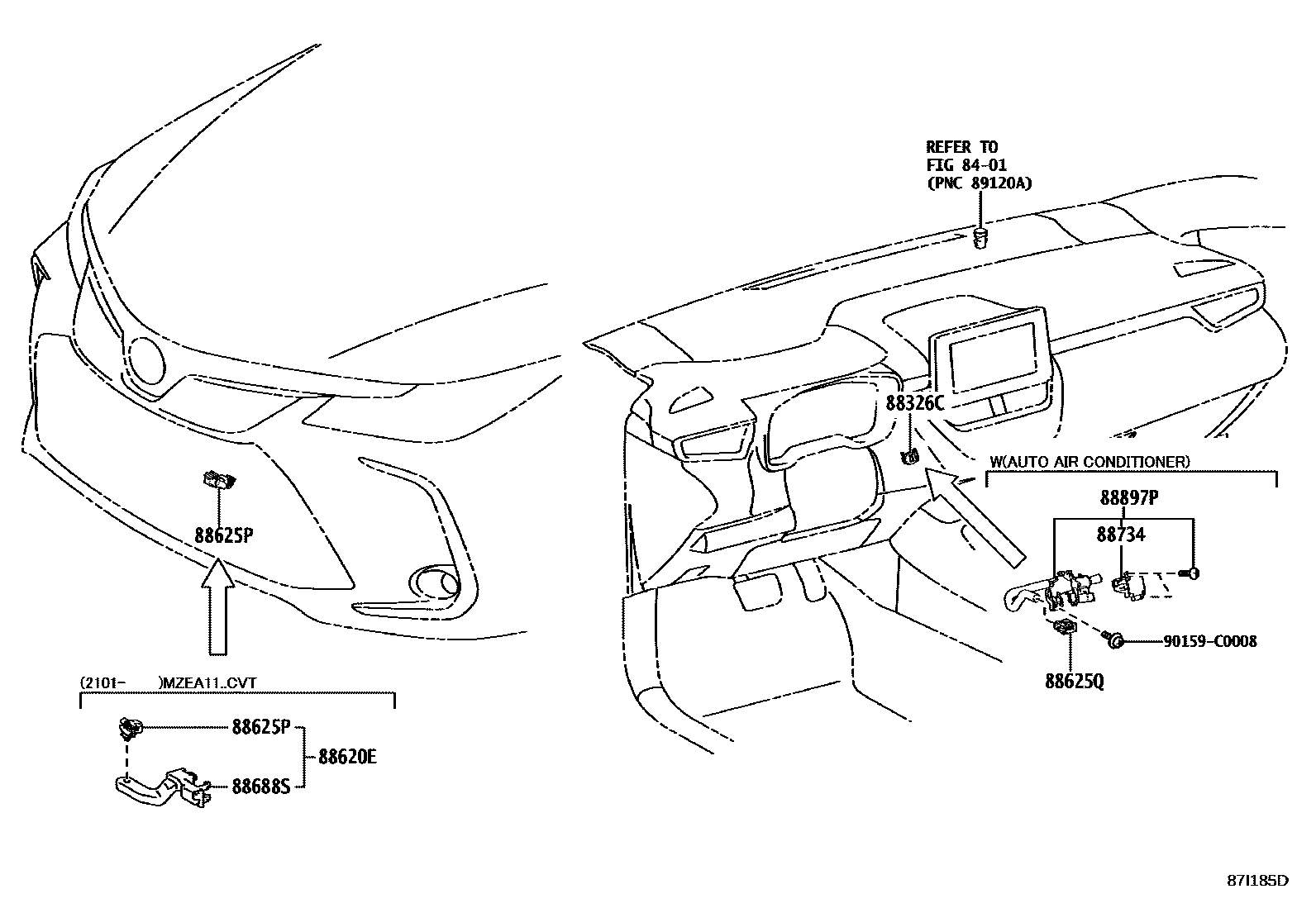

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02530 · 55084-02710 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55085-02280 · 55085-02340 · 55085-02350 |
| 55086A | Heater to central air register air duct sub-assembly | 55086-02390 · 55086-02680 |
| 55900 | Air conditioning control assembly | 55900-02L30 |
| 55901D | No. 1 heater control sub-assembly | 55901-02160 · 55901-02240 · 55901-02260 · 55901-02270 · 55901-12340 |
| 55902E | No. 2 heater control sub-assembly | 55902-02160 · 55902-02310 · 55902-02330 · 55902-02340 · 55902-26150 |
| 55903A | No. 3 heater control sub-assembly | 55903-02280 · 55903-02460 · 55903-02480 · 55903-02490 · 55903-12390 |
| 55906 | Heater control cable sub-assembly | 55906-26090 · 55906-26091 |
| 55909A | Air mix damper control cable sub-assembly | 55909-26140 · 55909-26141 |
| 55950G | Defroster nozzle assembly | 55950-02480 · 55950-02540 |
| 55990B | Lower defroster nozzle assembly | 55990-02410 |
| 58861B | Air duct No. 1 for armrest box | 58861-02120 |
| 58862B | Air duct No. 2 for armrest box | 58862-02150 · 58862-02180 |
| 85C73B | Cleaner seal | 85373-33020 |
| 87211 | No. 1 air duct | 87211-02790 · 87211-0A090 |
| 87211A | Duct No. 2 | 87211-02800 · 87211-0A100 |
| 87212 | No. 1 rear air duct | 87213-F4020 |
| 87212C | Rear air duct | 87215-02190 · 87215-F4030 |
| 87212F | No. 2 rear air duct | 87212-F4020 |
| 87212G | No. 3 rear air duct | 87217-02060 |
| 87212K | No. 6 rear air duct | 87413-02050 |
| 87216B | No. 4 rear air duct | 87216-02110 |
| 87220 | Air duct assembly | 87220-02360 · 87220-02361 · 87220-02480 |
| 88326C | Cover plate | 88899-0A050 · 88899-F4370 |
| 88620E | Air conditioning thermistor assembly | 88620-02250 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-0D020 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-07050 · 88625-47021 |
| 88688S | Bracket (for cooler thermistor) | 88688-02C00 · 88688-47880 |
| 88734 | Air conditioning PM sensor | 88734-12030 |
| 88897P | aspirator | 88505-02330 · 88505-02350 · 88505-02390 · 88505-12130 |
