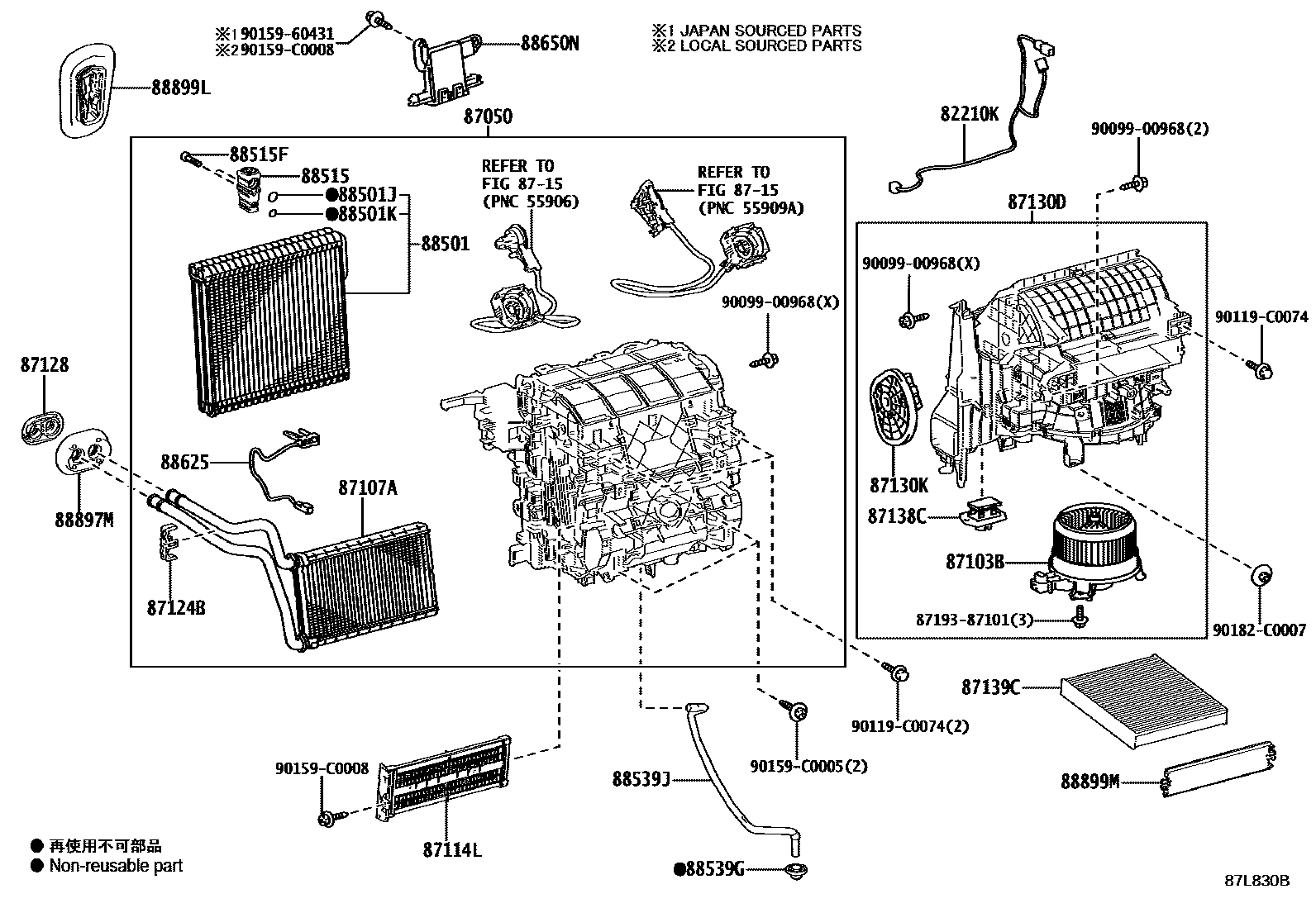

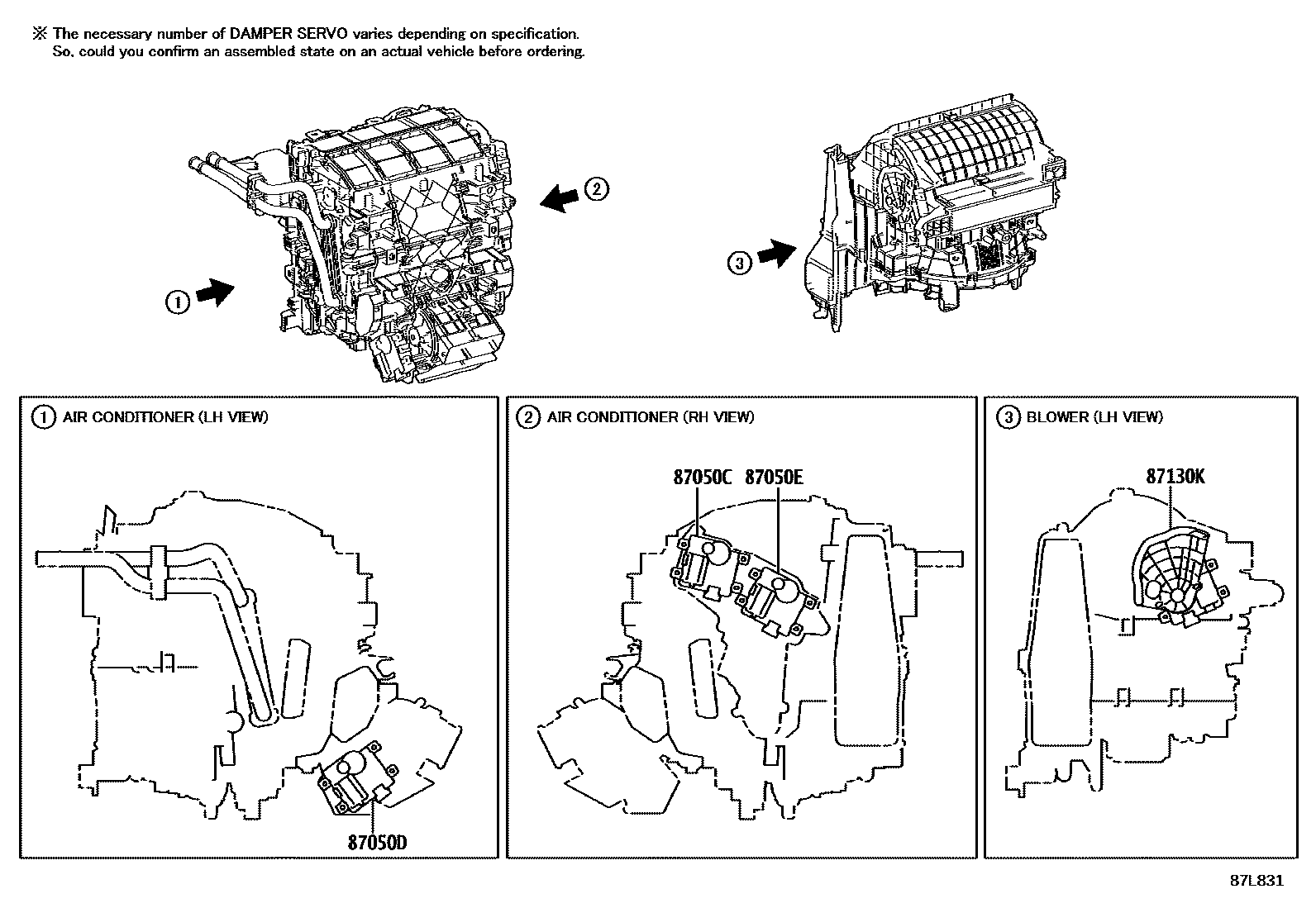

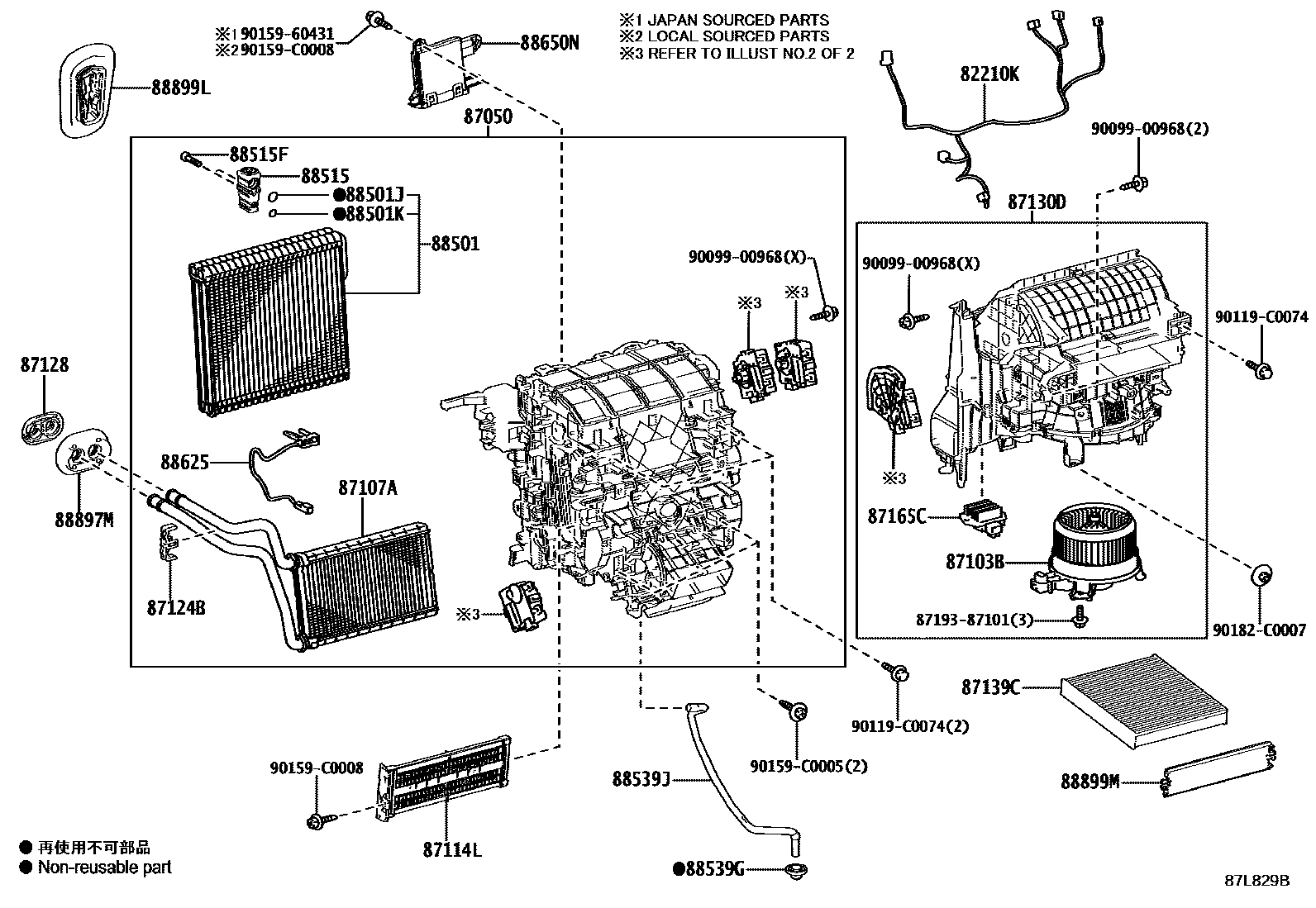

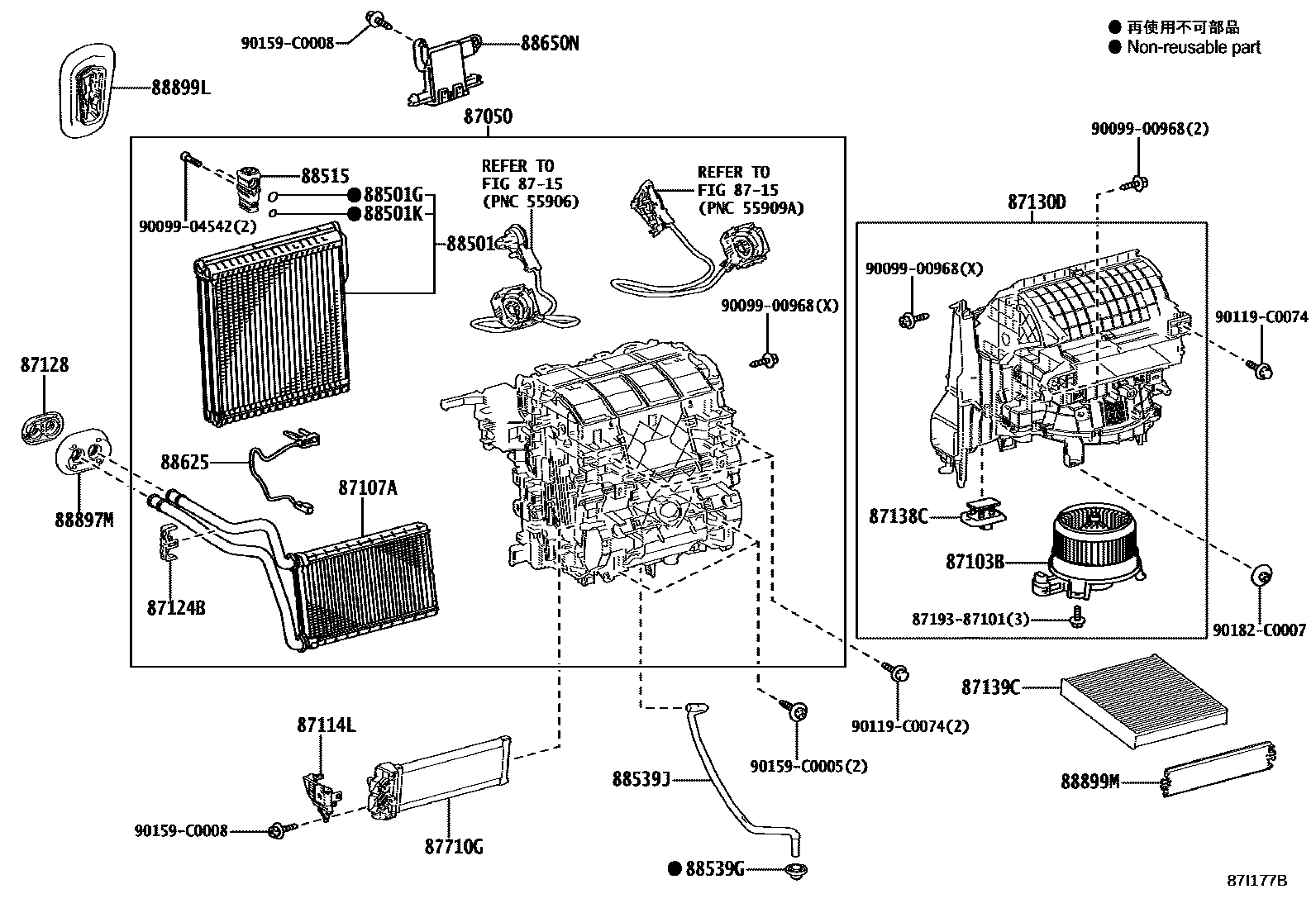

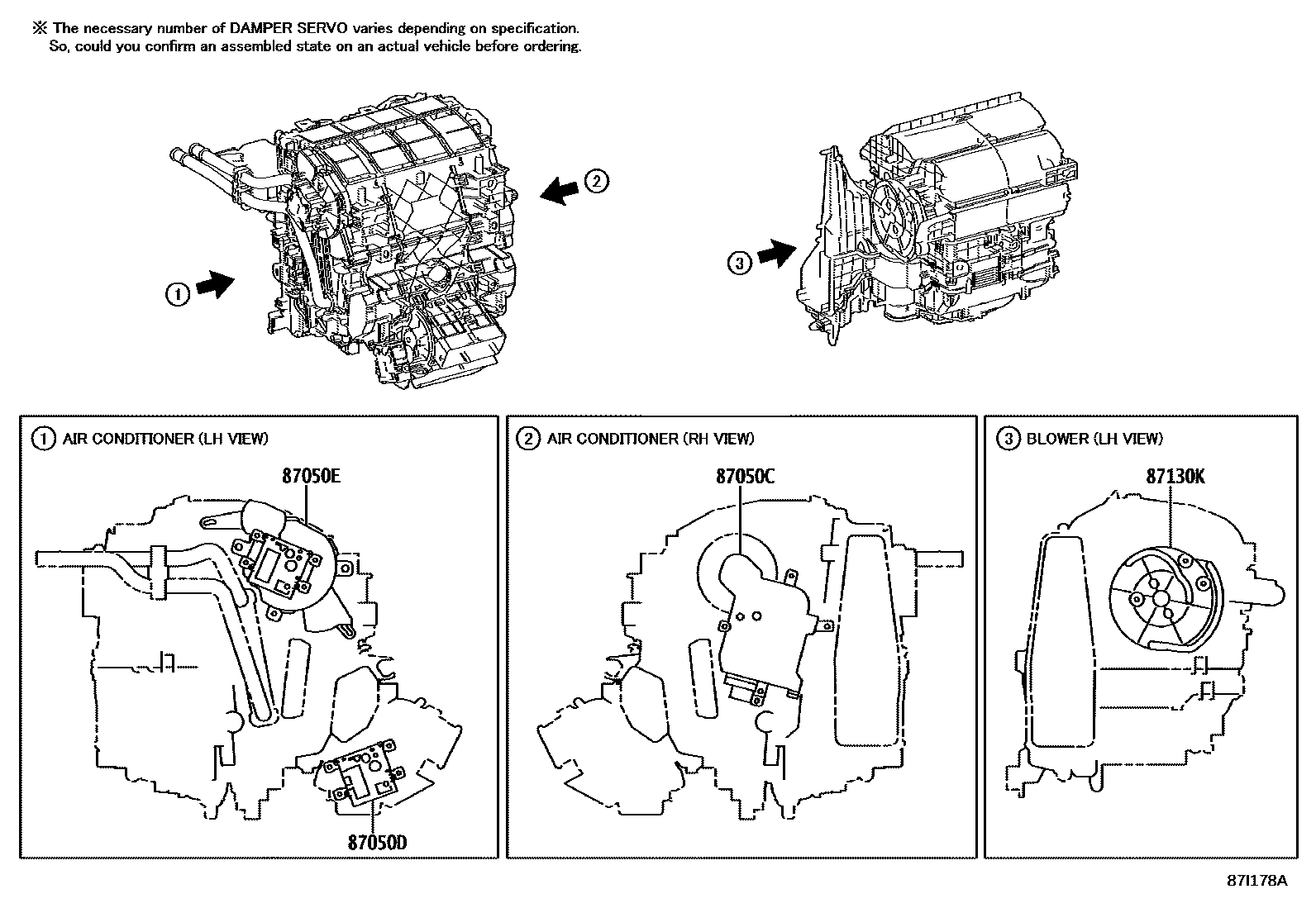

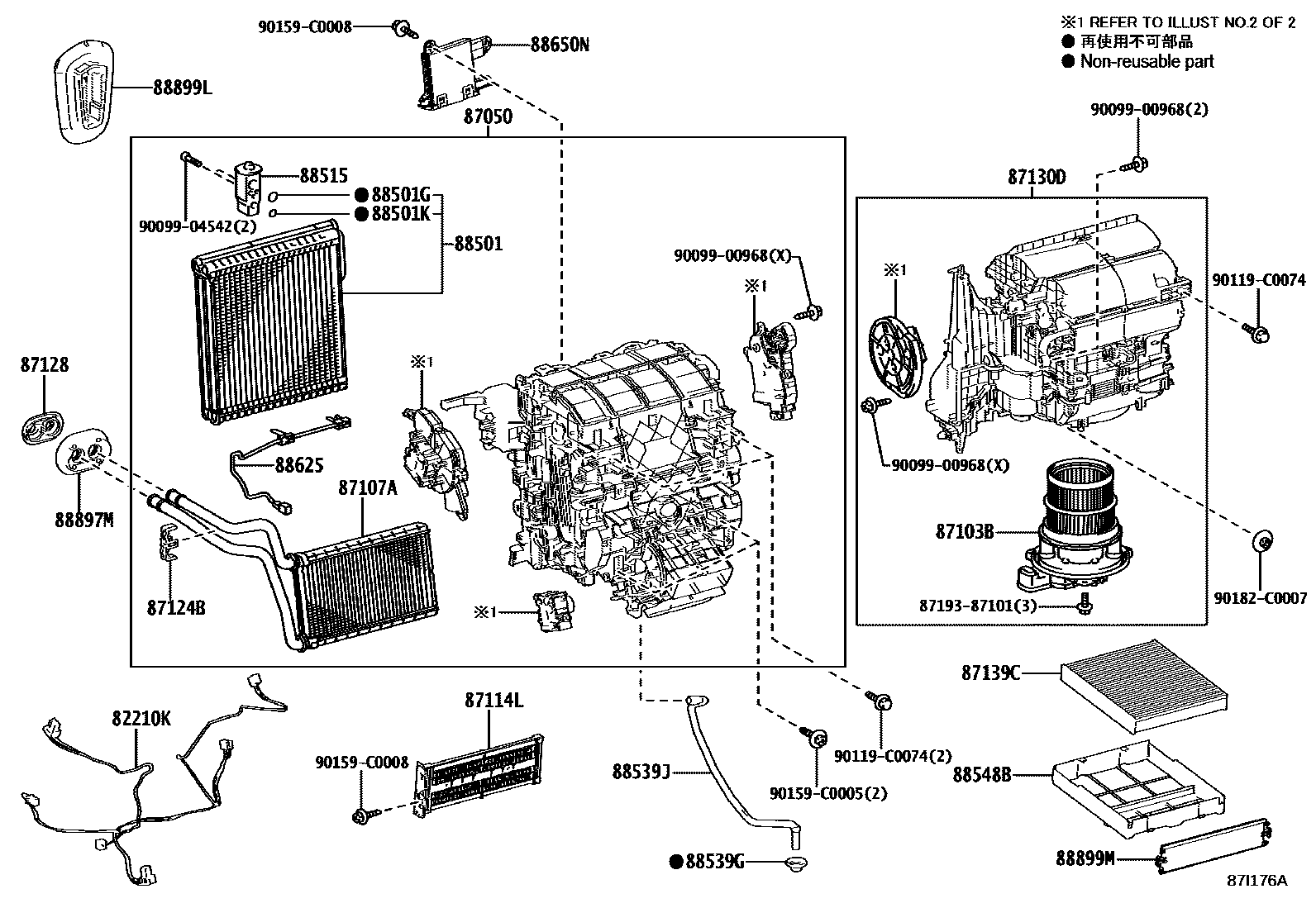

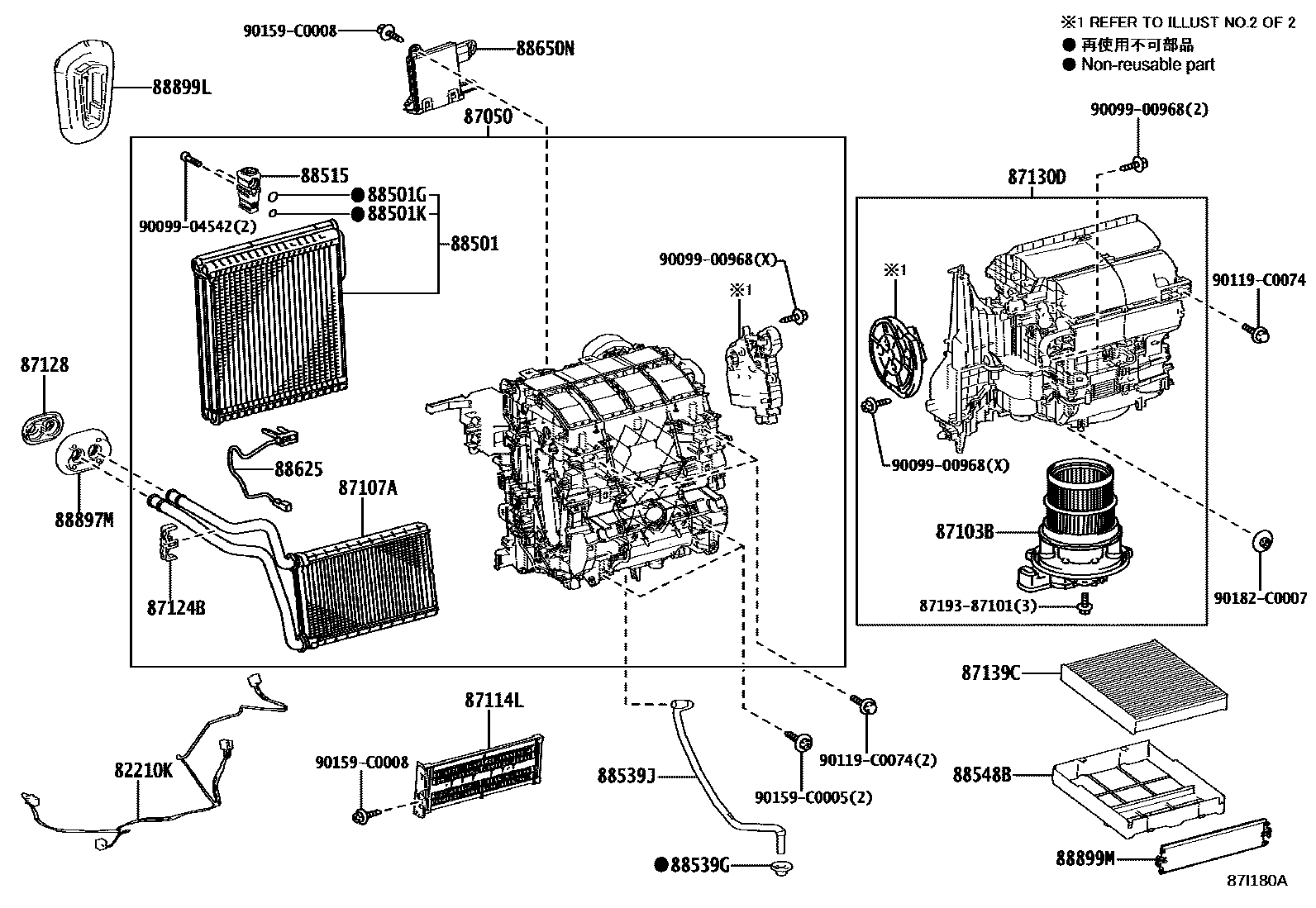

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 7 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-02370 · 82212-02390 · 82212-02400 · 82212-02710 · 82212-02730 · 82212-F4040 |
| 87050 | Air conditioning radiator assembly | 87050-0Z320 · 87050-0Z330 · 87050-0Z350 · 87050-0Z360 · 87050-0ZG50 · 87050-0ZJ00 · 87050-0ZJ10 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-02A00 · 87106-F4150 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-02730 · 87106-02890 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-02B20 · 87106-07180 |
| 87103B | Blower motor sub-assembly with fan | 87103-02650 · 87103-02760 · 87103-F4060 |
| 87107A | Heater radiator device sub-assembly | 87107-F4040 |
| 87114L | Heater cover No. 2 | 87114-02200 · 87114-0A050 · 87114-F4100 |
| 87124B | heater clip | 87124-F4060 |
| 87128 | heater seal | 87128-0A040 · 87128-28010 |
| 87130D | Blower assembly | 87130-02C70 · 87130-02C80 · 87130-02C90 · 87130-F4070 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-02B30 · 87106-02B40 · 87106-F4090 |
| 87138C | Blower resistor | 87138-02240 · 87138-02250 |
| 87139C | air purification filter | 87139-02260 · 87139-02290 · 87139-58010 · 87139-F4050 |
| 87165C | Blower motor control device | 87165-02010 |
| 87710G | Rapid heater assembly | 87710-F4040 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02460 · 88501-02470 · 88501-F4130 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90099-14121 |
| 88501J | No. 2 cooler evaporator O-ring (suction) | 90099-14121 |
| 88501K | No. 1 cooler evaporator O-ring (liquid) | 90099-14120 |
| 88515 | Cooler expansion valve | 88515-07050 · 88515-F4040 |
| 88515F | Bolt (for cooler expansion valve) | 90099-04542 |
| 88539G | Seal (for cooler unit drain hose) | 88888-06030 |
| 88539J | Cooler drain hose | 88539-0A070 · 88539-F4070 |
| 88548B | air filter housing | 88899-02260 · 88899-02261 · 88899-F4350 |
| 88625 | Cooler No. 1 Thermistor | 88620-07020 · 88620-F4030 |
| 88650N | Air conditioning amplifier assembly | 88650-02J50 · 88650-02M30 · 88650-02M31 · 88650-02M32 · 88650-02N40 · 88650-02N41 · 88650-02N50 · 88650-02P40 · 88650-12K90 |
| 88897M | Seals (for heater tubes) | 87128-F4060 |
| 88899L | Cooling unit parts | 88899-02400 · 88899-F4330 |
| 88899M | cover (for air cleaner) | 88899-0E060 · 88899-F4290 |
