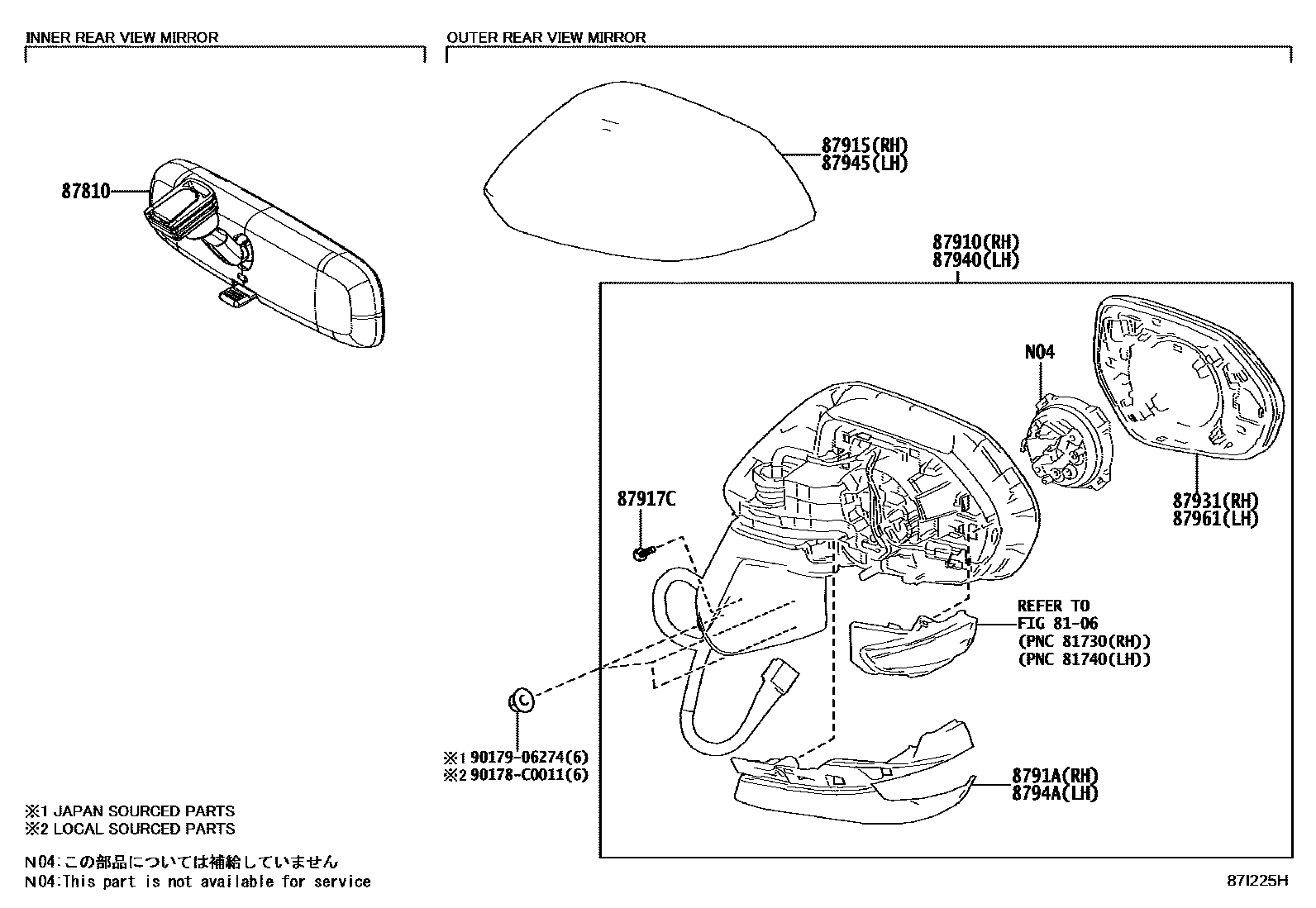

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-07160 · 87810-07180 |
| 87910 | Right exterior rearview mirror assembly | 87910-02P80 · 87910-02R30 · 87910-02R31 · 87910-02R60 |
| 87915 | Right exterior rearview mirror cover | 87915-02620 · 87915-02935 |
| 87917C | Exterior rearview mirror screws | 87917-02P80 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791A-02P80 · 8791A-02R30 |
| 87931 | Right exterior rearview mirror | 87902-02190 · 87902-02240 |
| 87940 | Left exterior rearview mirror assembly | 87940-02P70 · 87940-02R40 · 87940-02R41 · 87940-02R70 |
| 87945 | Left exterior rearview mirror cap | 87945-02620 · 87945-02935 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794A-02P70 · 8794A-02R40 |
| 87961 | Left exterior rearview mirror | 87907-02180 · 87907-02230 |
