Toyota COROLLA 预碰撞安全系统 — Figure 8617

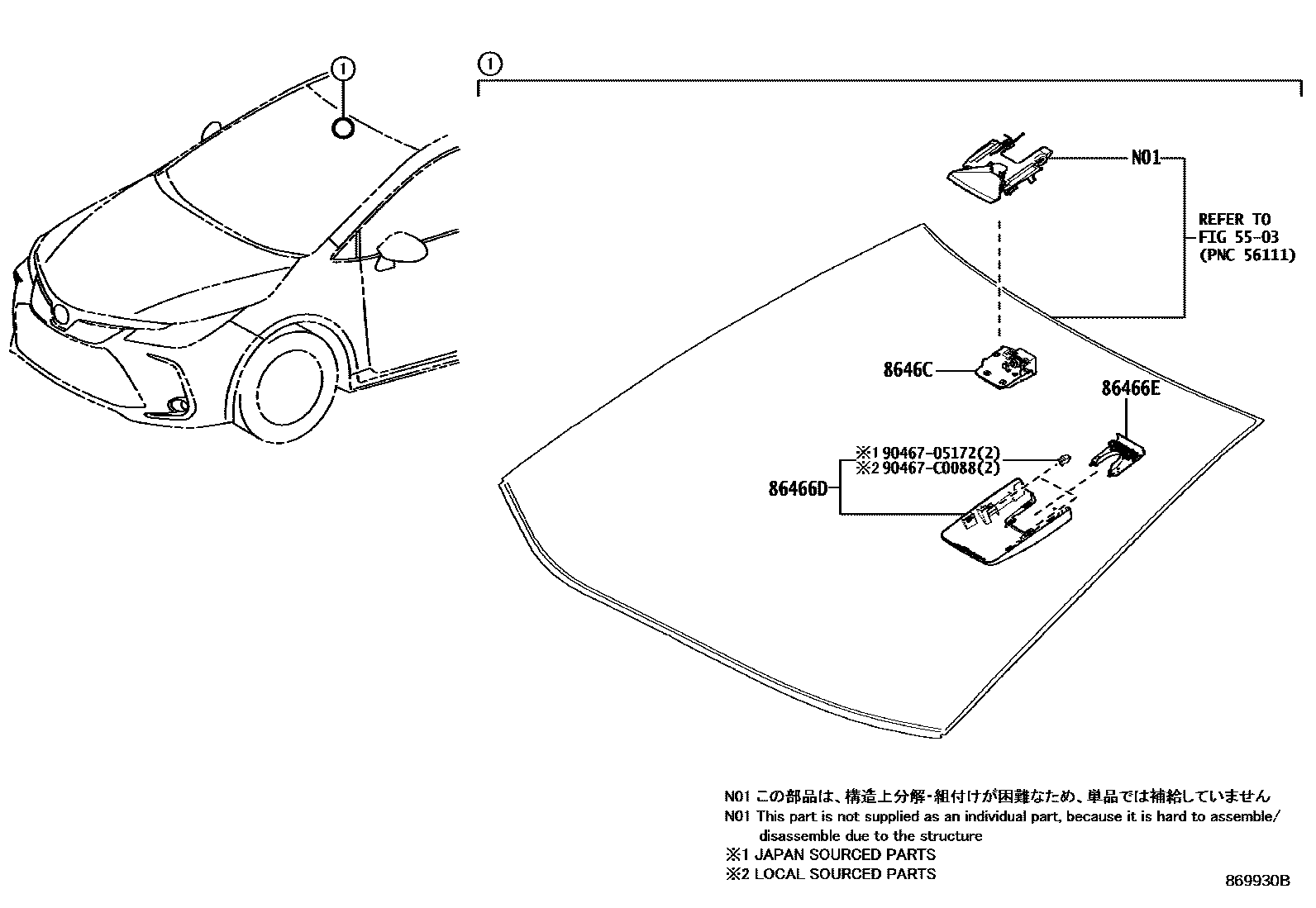

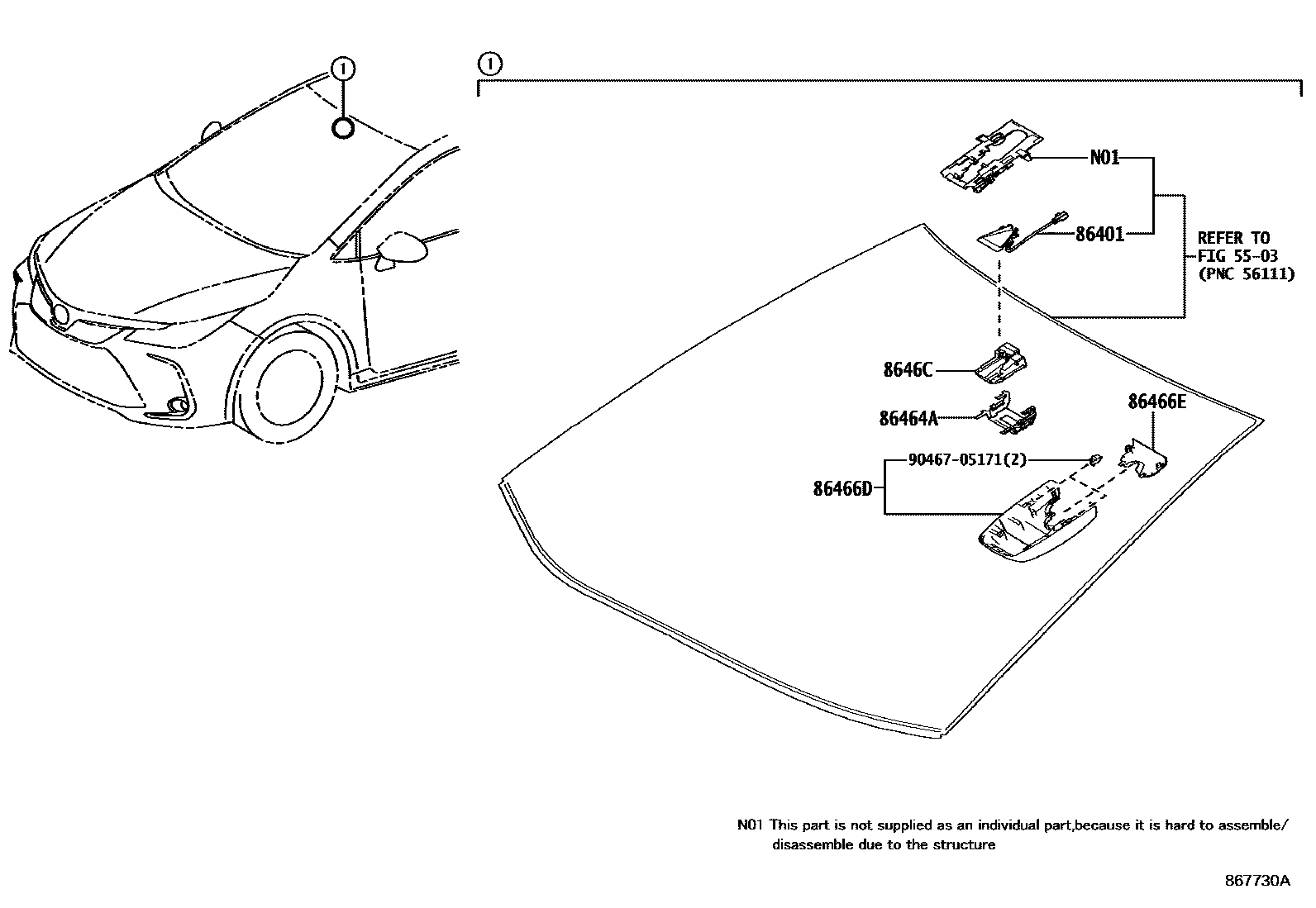

Toyota COROLLA EPC diagram 8617, 预碰撞安全系统, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86401 | Front identification hood sub-assembly with heater | 86401-02010 · 86401-12010 |
| 86464A | Front identification lock | 86464-0E020 · 86464-26010 |
| 86466D | Front identification cover No. 1 | 86466-02010 · 86466-02060 · 86466-12030 |
| 86466E | Front identification cover No. 2 | 86466-02020 · 86466-12040 · 86467-02040 |
| 8646C | front recognition camera | 8646C-02030 · 8646C-02060 · 8646C-02061 · 8646C-12020 |
