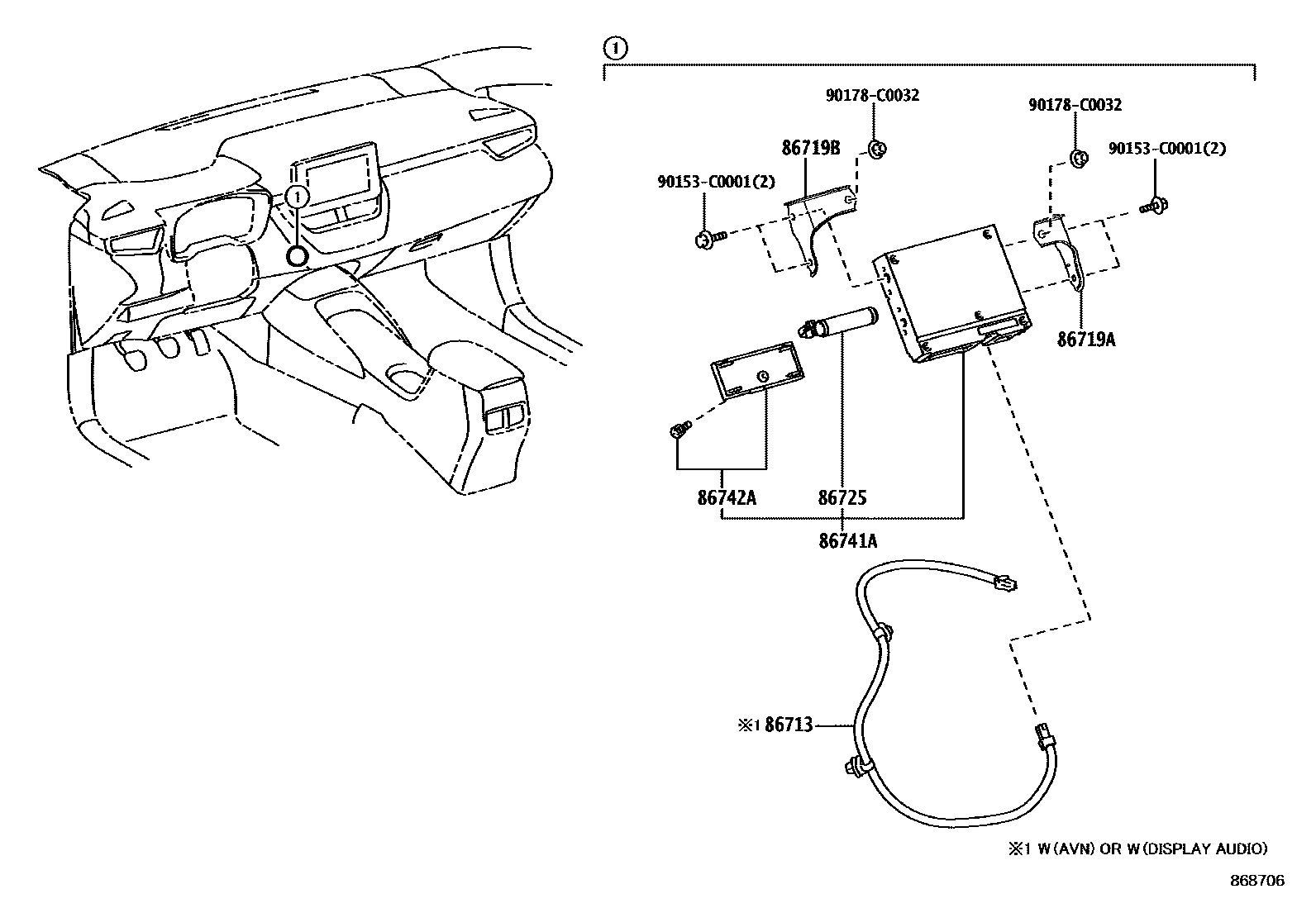

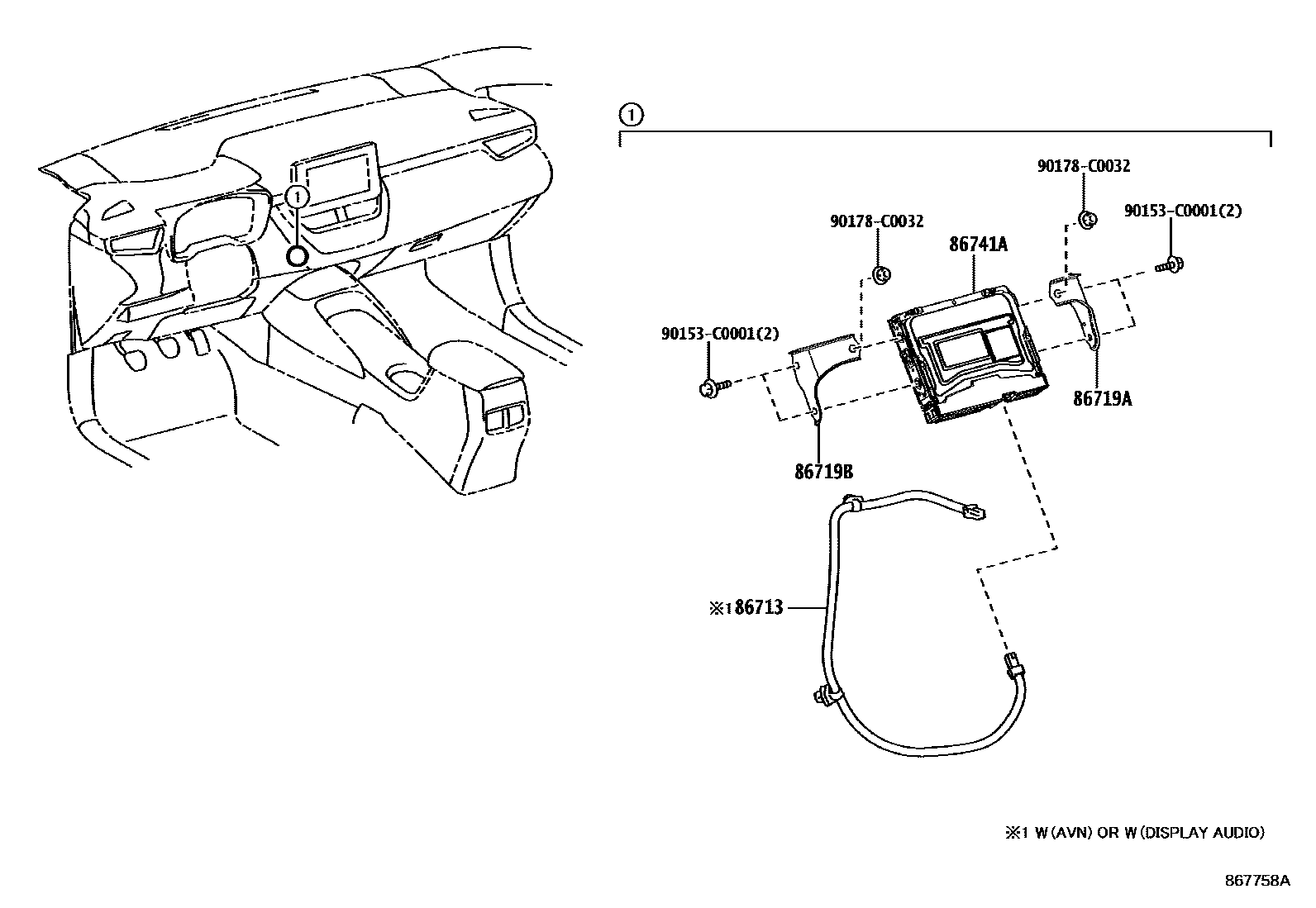

Toyota COROLLA 车载电话和呼救装置 — Figure 8615
Toyota COROLLA EPC diagram 8615, 车载电话和呼救装置, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86713 | Telephone ECU wiring harness | 86713-02040 · 86713-02050 · 86713-02090 · 86713-02130 |
| 86719A | Phone holder No. 1 | 86719-02120 |
| 86719B | Phone holder No. 2 | 86719-02130 |
| 86725 | mobile phone battery | 86725-F4010 |
| 86741A | Telecommunications transceiver | 86741-02051 · 86741-02100 · 86741-02230 · 86741-06100 · 86741-08020 · 86741-0A010 · 86741-F4060 |
| 86742A | transceiver cover | 86742-0A010 · 86742-F4010 |
