Toyota COROLLA 喇叭 — Figure 8611

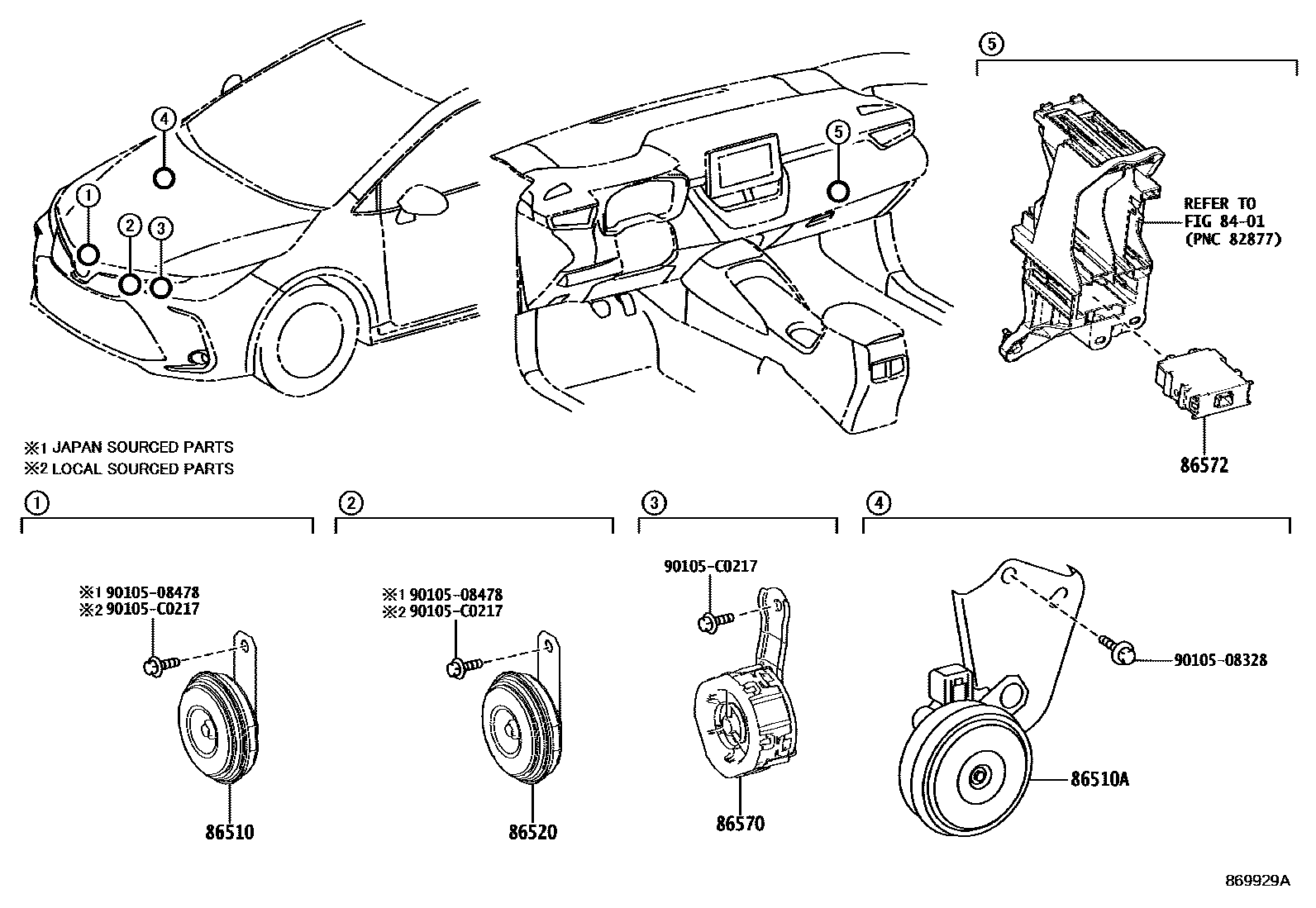

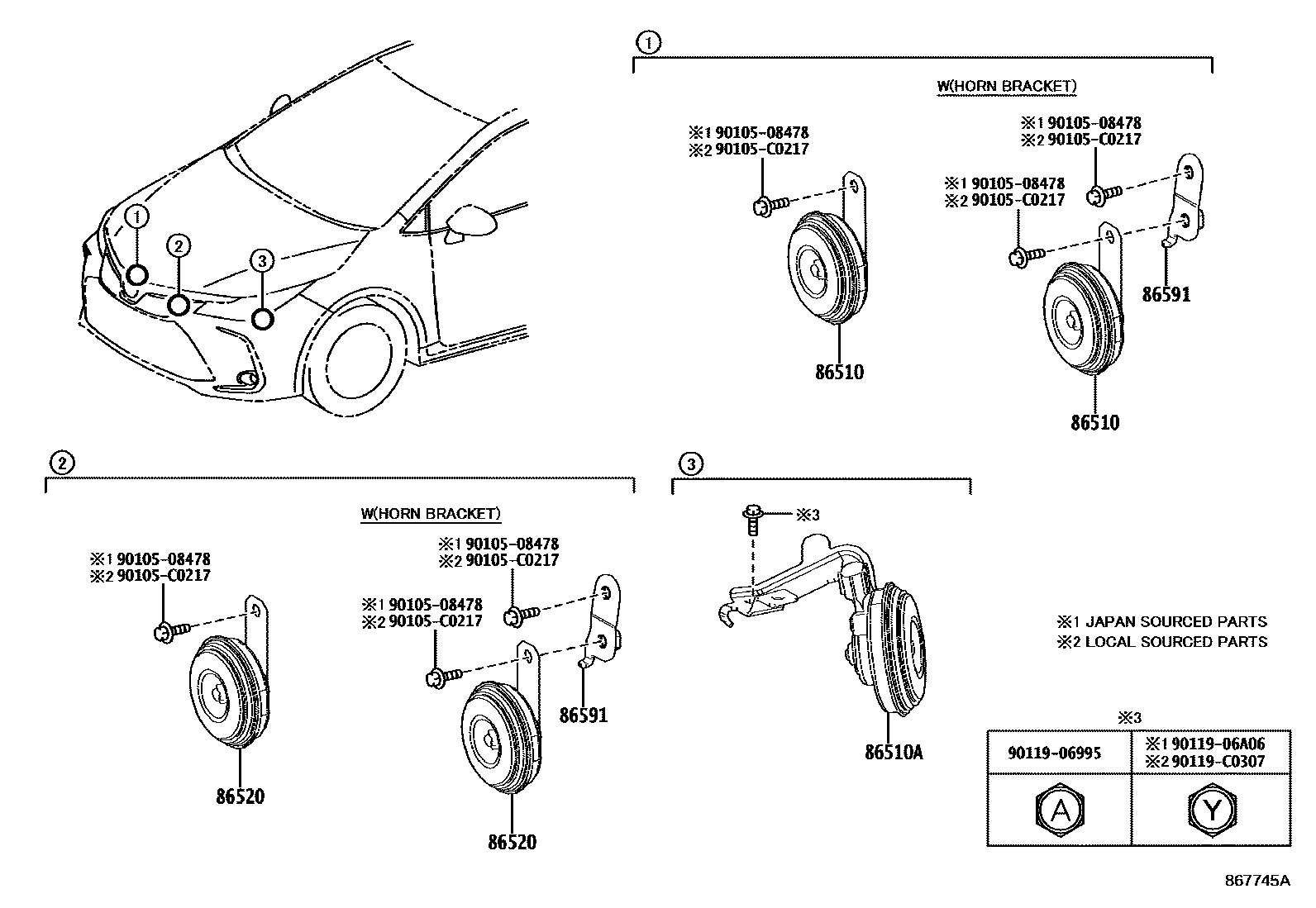

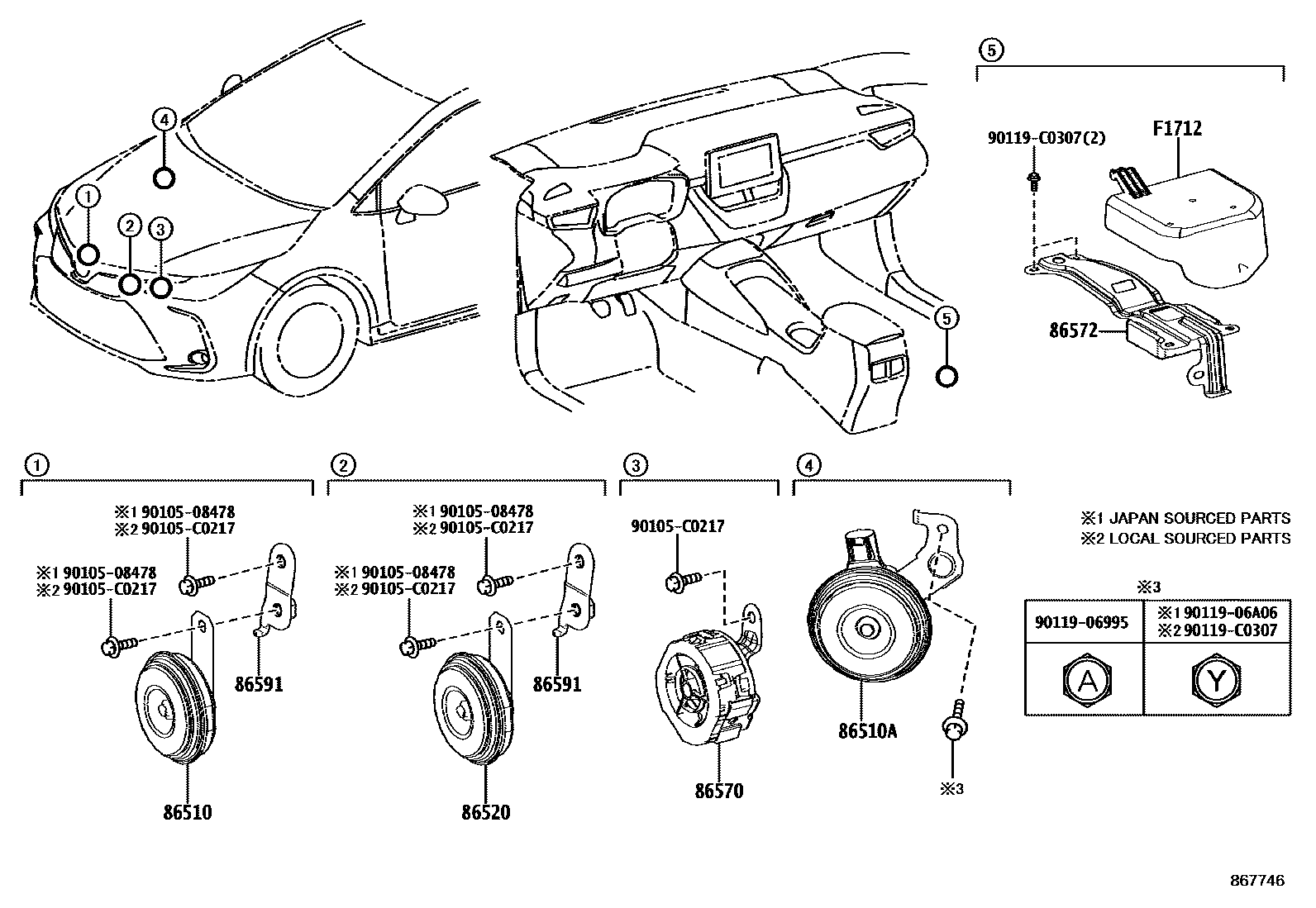

Toyota COROLLA EPC diagram 8611, 喇叭, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86510 | tweeter assembly | 86510-02231 · 86510-0E060 · 86510-0E061 · 86510-0R041 |
| 86510A | Alarm horn assembly | 86560-02180 · 86560-02190 · 86560-02210 |
| 86520 | Subwoofer assembly | 86520-02361 · 86520-0A030 · 86520-0A031 · 86520-0R041 |
| 86570 | Vehicle intrusion speaker assembly | 86570-02030 · 86570-02040 · 86570-12030 |
| 86572 | vehicle hacking speaker controller | 86572-02040 · 86572-02060 · 86572-12080 |
| 86591 | speaker bracket | 86591-02060 |
| F1712 | Vehicle Intrusion Speaker Controller Cover | F1712-02010 |
