Toyota COROLLA 收音机通信和ETC — Figure 8610

Toyota COROLLA EPC diagram 8610, 收音机通信和ETC, with 1 images and 3 PNC and OE references.

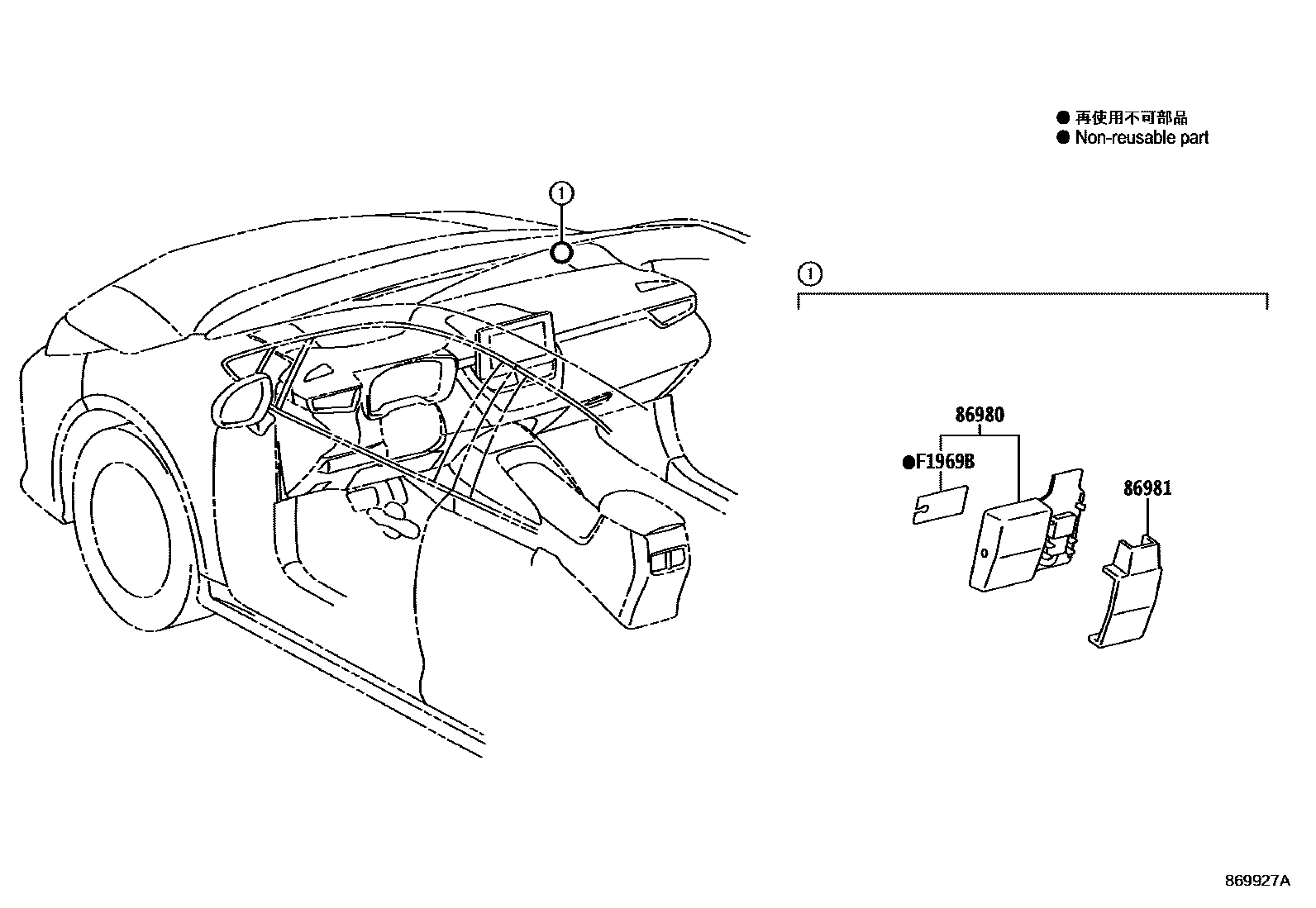

Toyota COROLLA 收音机通信和ETC EPC diagram — 869927A
收音机通信和ETC — 869927A (202305 – 999999)

PNC and OE references

PNCPart nameOE numbers
86980Toll collection machine ECU assembly86980-YY020
86981Toll cover86980-YY030
F1969BSealing tape (for toll collection machine ECU)F1969-YY020
