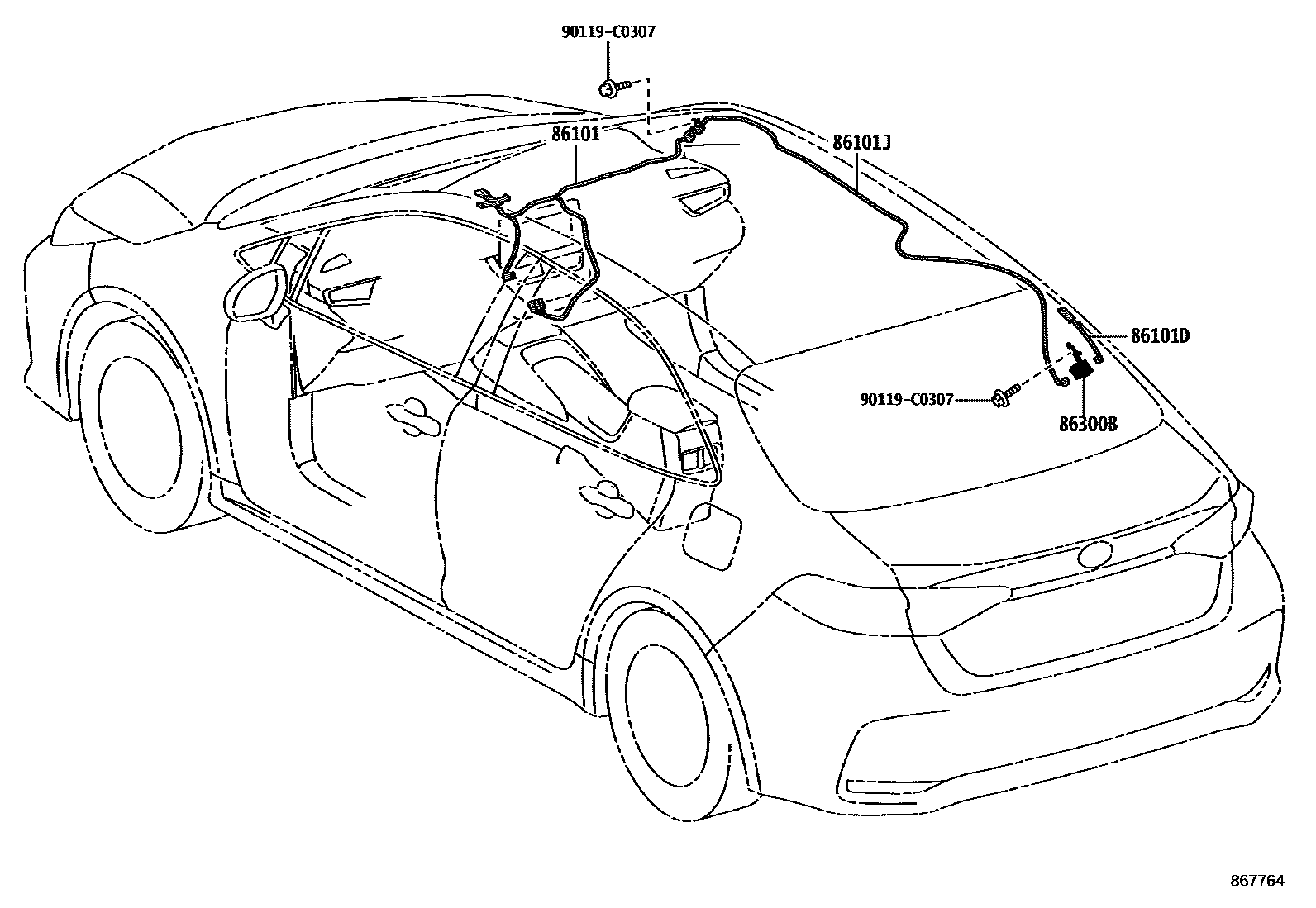

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-02L50 · 86101-02L60 · 86101-02S80 · 86101-02Z90 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-02J60 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-02J70 · 86101-02L90 · 86101-0Z010 · 86101-0Z020 |
| 86300B | No. 1 amplifier antenna assembly | 86300-02630 · 86300-02670 |
