Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

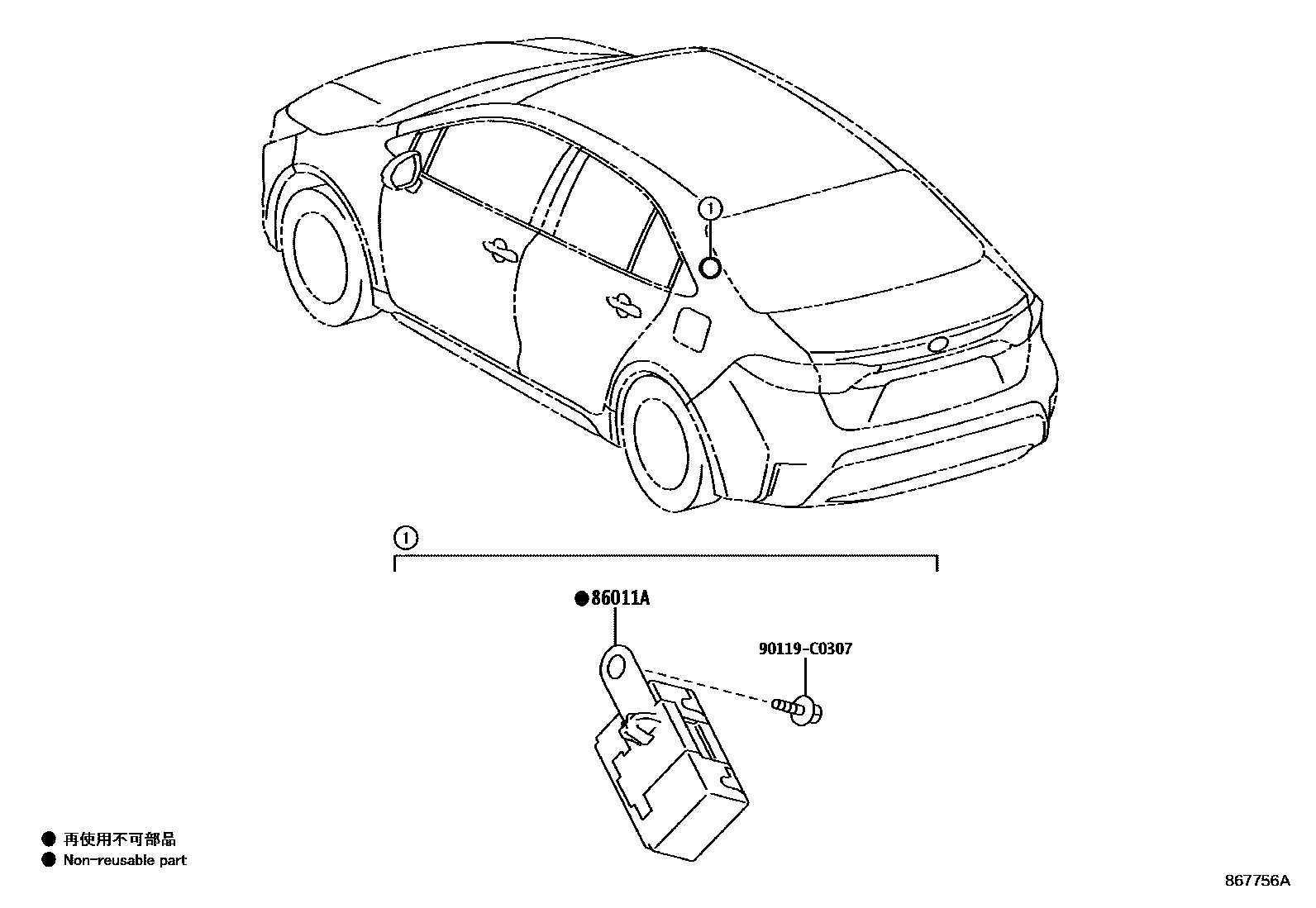

| 86011A | radio settings phase modulator | 90980-04204 |

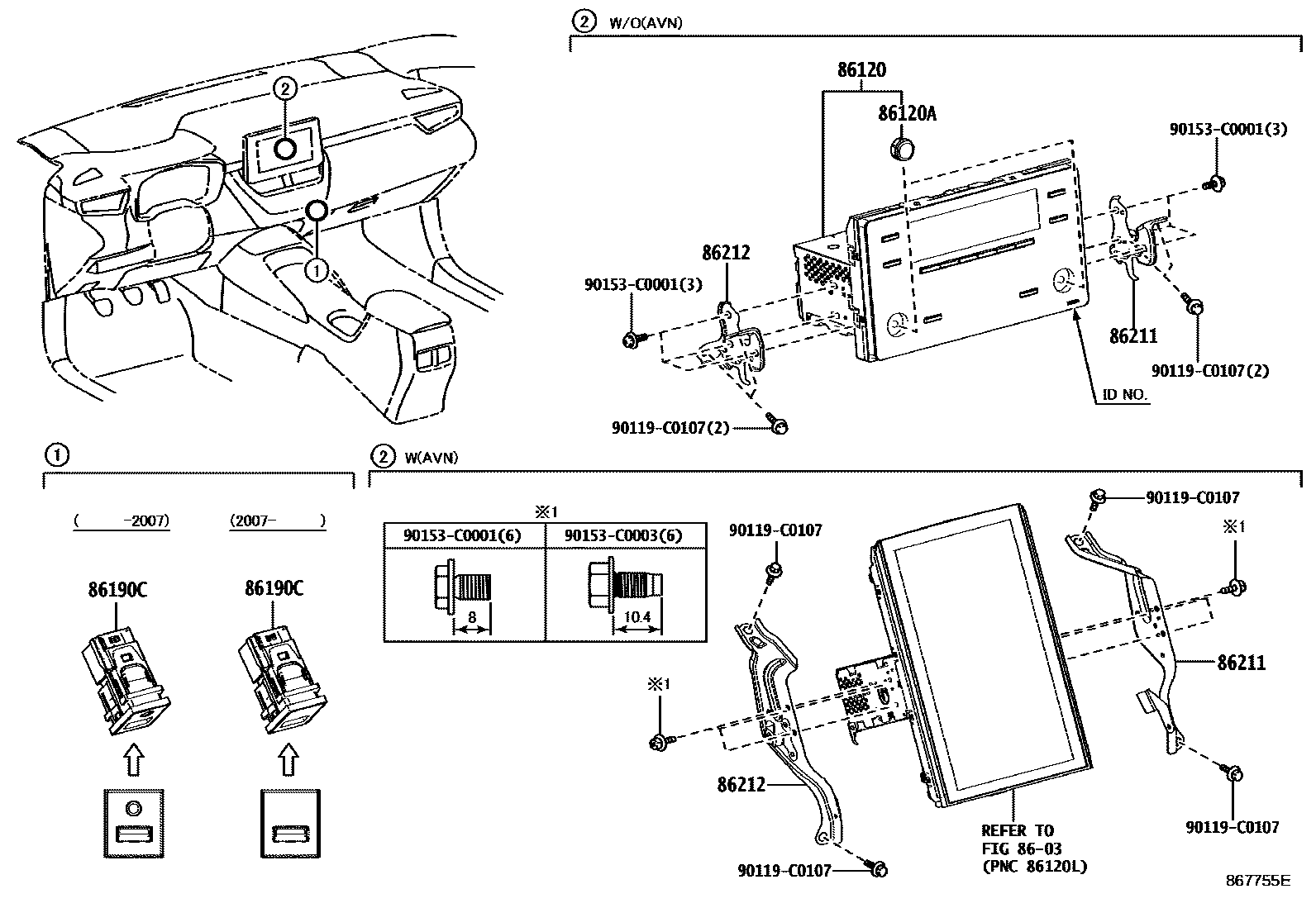

| 86120 | Radio assembly | 86120-02M20 |
| 86120A | Radio switch knob | 90011-25318 |

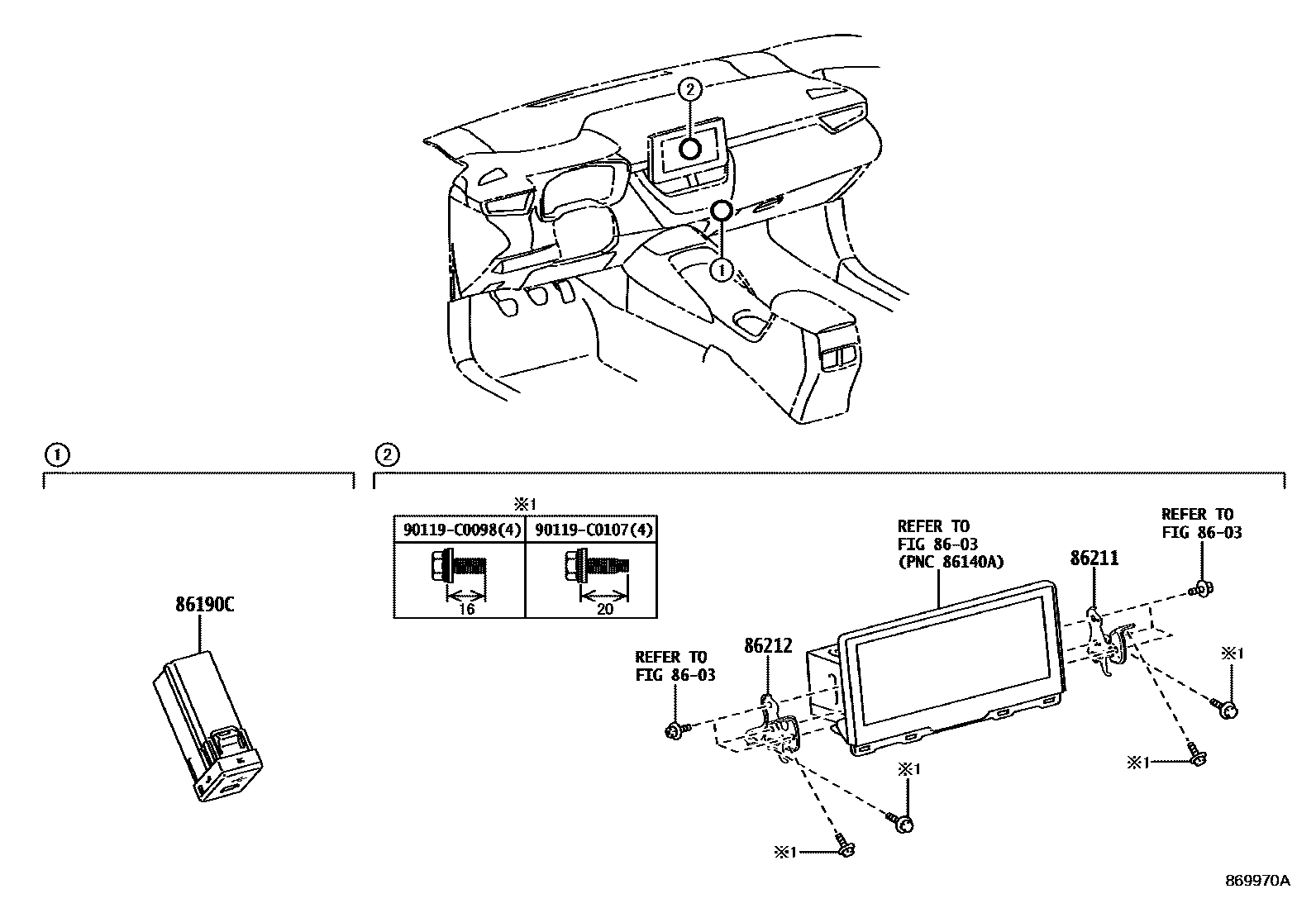

| 86190C | Stereo socket connector assembly No. 1 | 86190-02120 · 86190-06070 · 86190-0A010 · 86190-12070 |
| 86211 | No. 1 radio bracket | 86211-02630 · 86211-02690 · 86211-02750 · 86211-02751 |
| 86212 | No. 2 radio bracket | 86212-02630 · 86212-02690 · 86212-02740 · 86212-02741 |
