Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

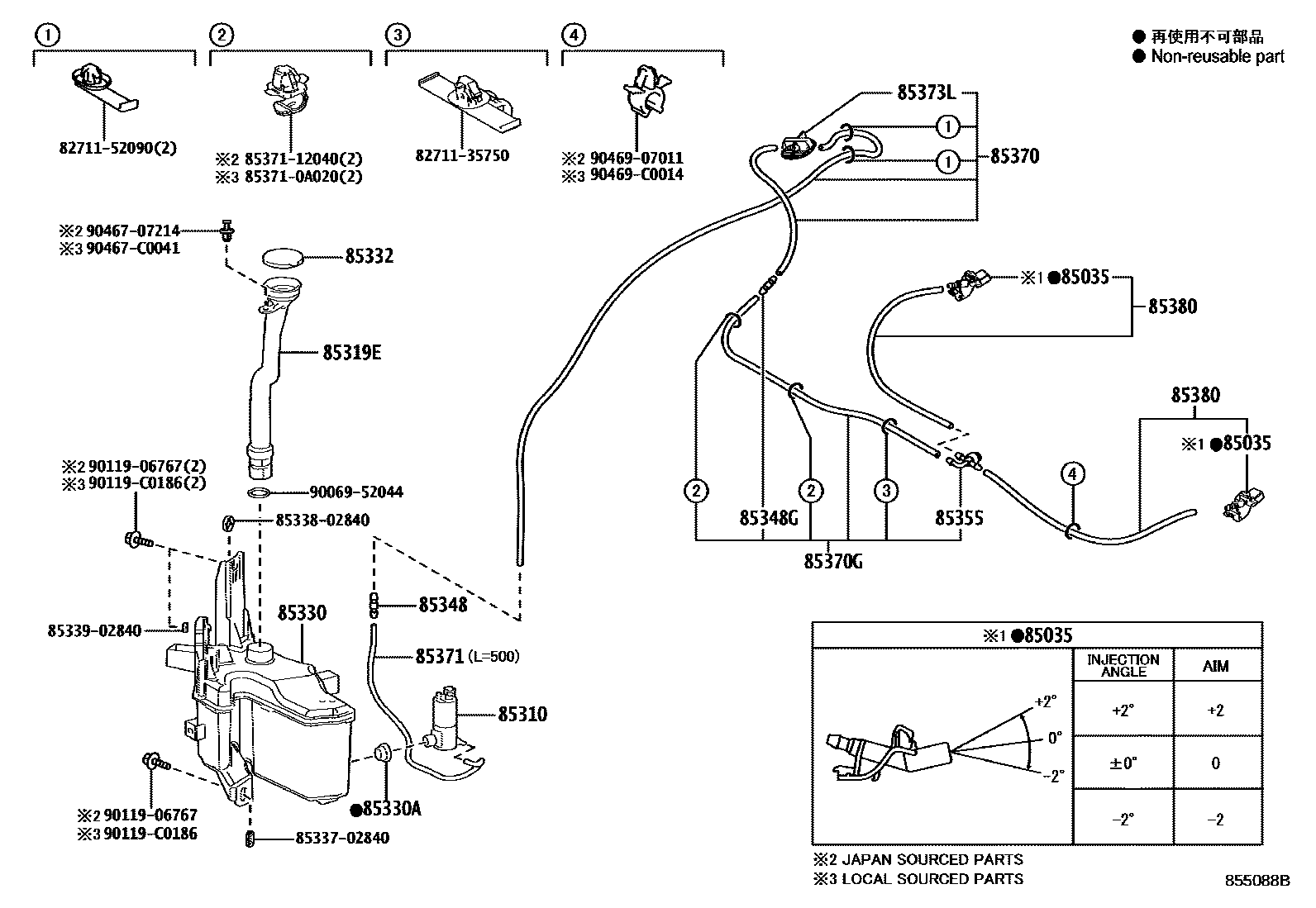

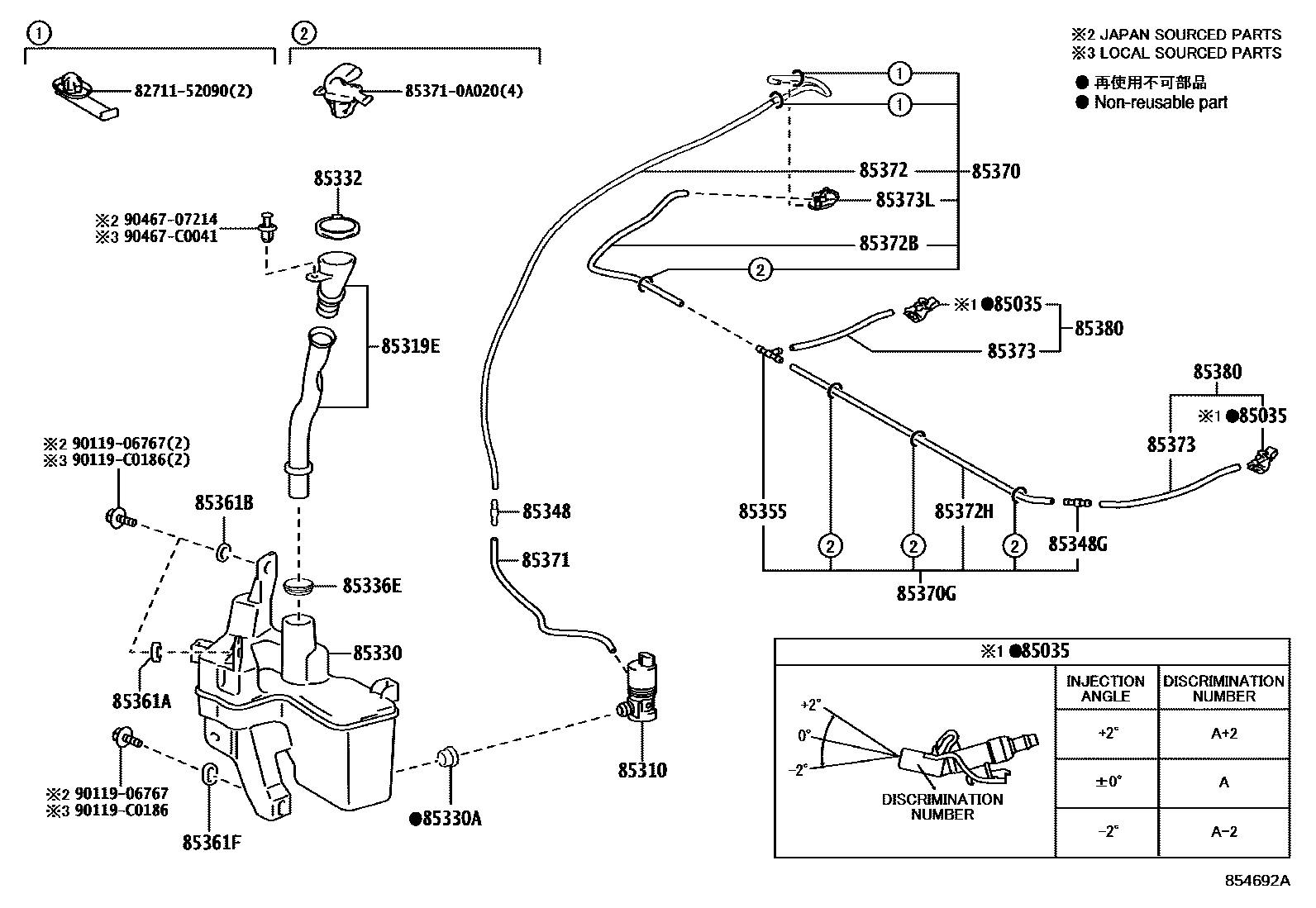

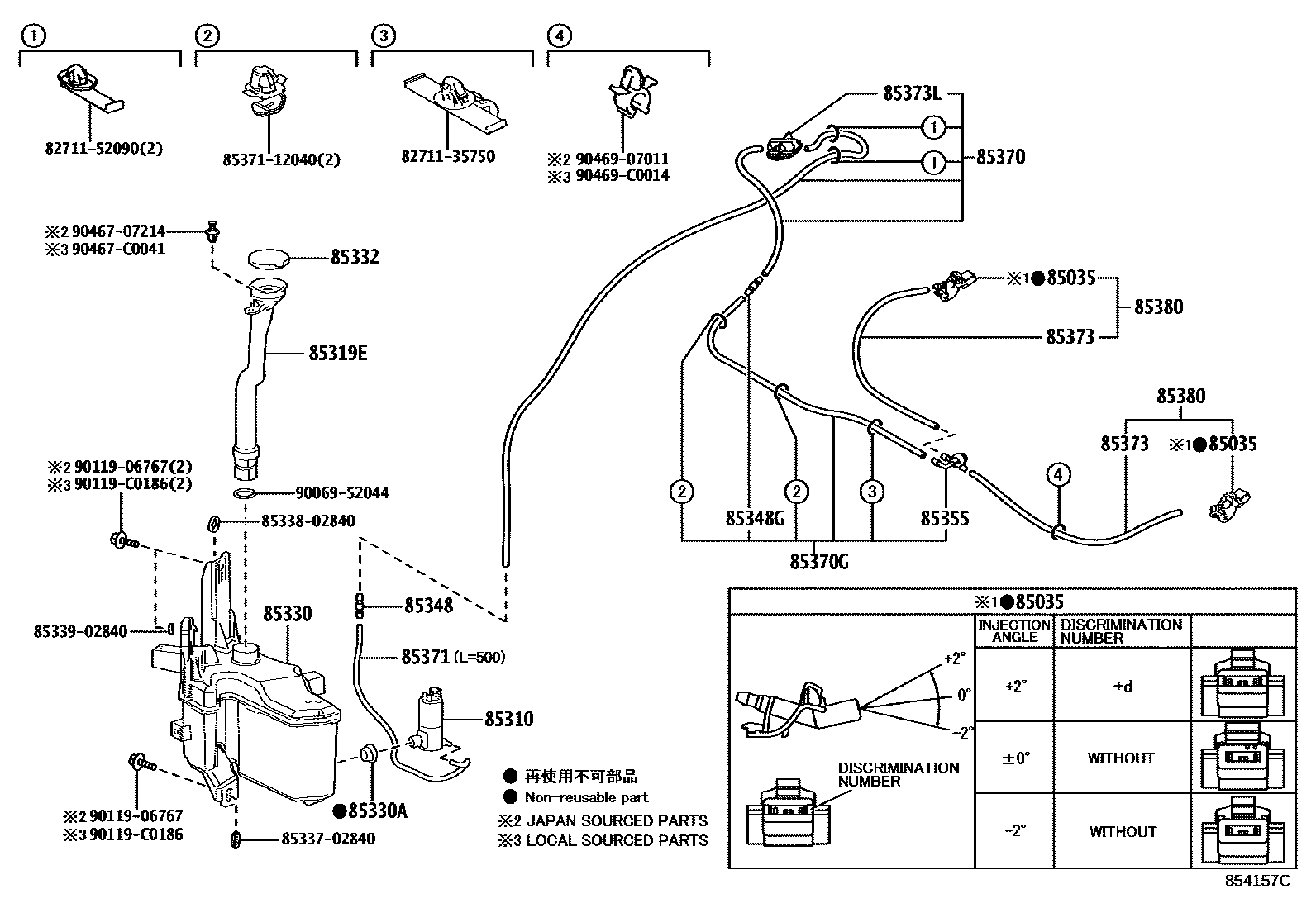

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-0A080 · 85381-0A090 · 85381-0A100 · 85381-0E090 · 85381-0E100 · 85381-0E110 · 85381-12360 · 85381-12440 · 85381-33080 |
| 85310 | Windshield washer motor and pump assembly | 85330-02080 · 85330-02100 · 85330-02120 |
| 85319E | Cleaner water inlet | 85319-02530 · 85319-02840 · 85319-02842 |
| 85330 | Windshield washer fluid tank assembly | 85315-02530 · 85315-02840 |
| 85330A | Windshield washer fluid tank bushing | 85336-02840 · 90069-52046 |
| 85332 | Windshield washer fluid tank cap | 85316-02530 · 85316-02840 · 85316-08050 |
| 85336E | Windshield washer water inlet hose seal | 90069-52047 |
| 85348 | Windshield washer hose connector No. 1 | 85375-02530 · 85375-05050 |
| 85348G | Windshield washer hose connector No. 2 | 85375-02530 · 85375-02650 |
| 85355 | Windshield washer hose valve | 85376-02650 · 85376-02750 |
| 85361A | Windshield washer bracket No. 1 | 85337-02530 |
| 85361B | Windshield washer bracket No. 2 | 85338-02530 |
| 85361F | No. 3 windshield washer bracket | 85339-02530 |
| 85370 | Windshield washer hose assembly | 85370-02640 · 85370-02740 |
| 85370G | No. 2 windshield washer hose assembly | 85370-02650 · 85370-02750 |
| 85371 | Windshield washer hose (from motor to connector) | 90069-46097 · 90069-46131 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90069-46132 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90069-46133 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90069-46134 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33343 · 90069-46135 · 90069-46136 · 90069-46137 |
| 85373L | Cleaner seal | 85373-02110 · 85373-33030 |
| 85380 | Front washer nozzle and hose assembly | 85380-02670 · 85380-02680 · 85380-02740 · 85380-02750 · 85380-02760 · 85380-02800 · 85380-02870 · 85380-02880 · 85380-02890 |
