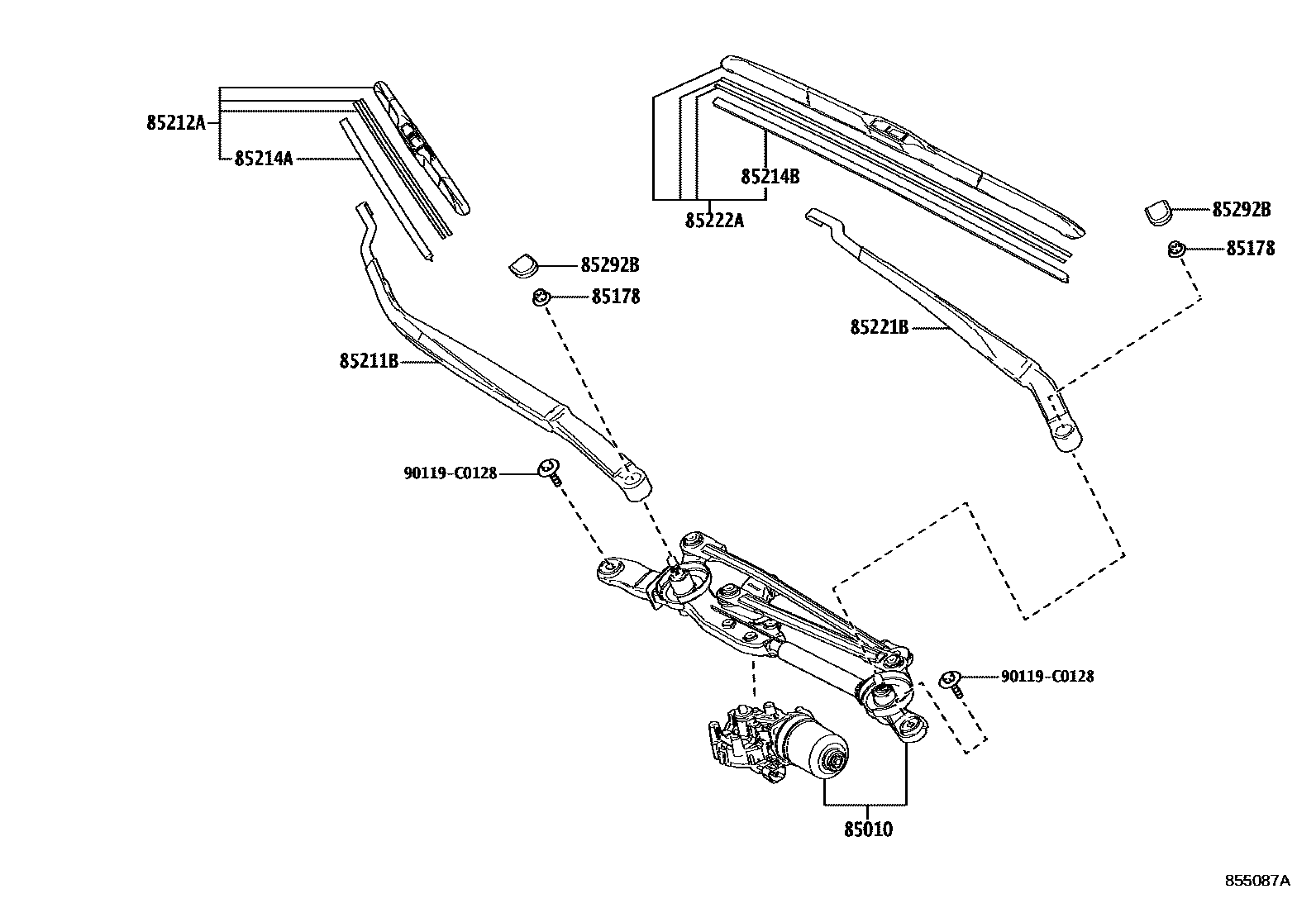

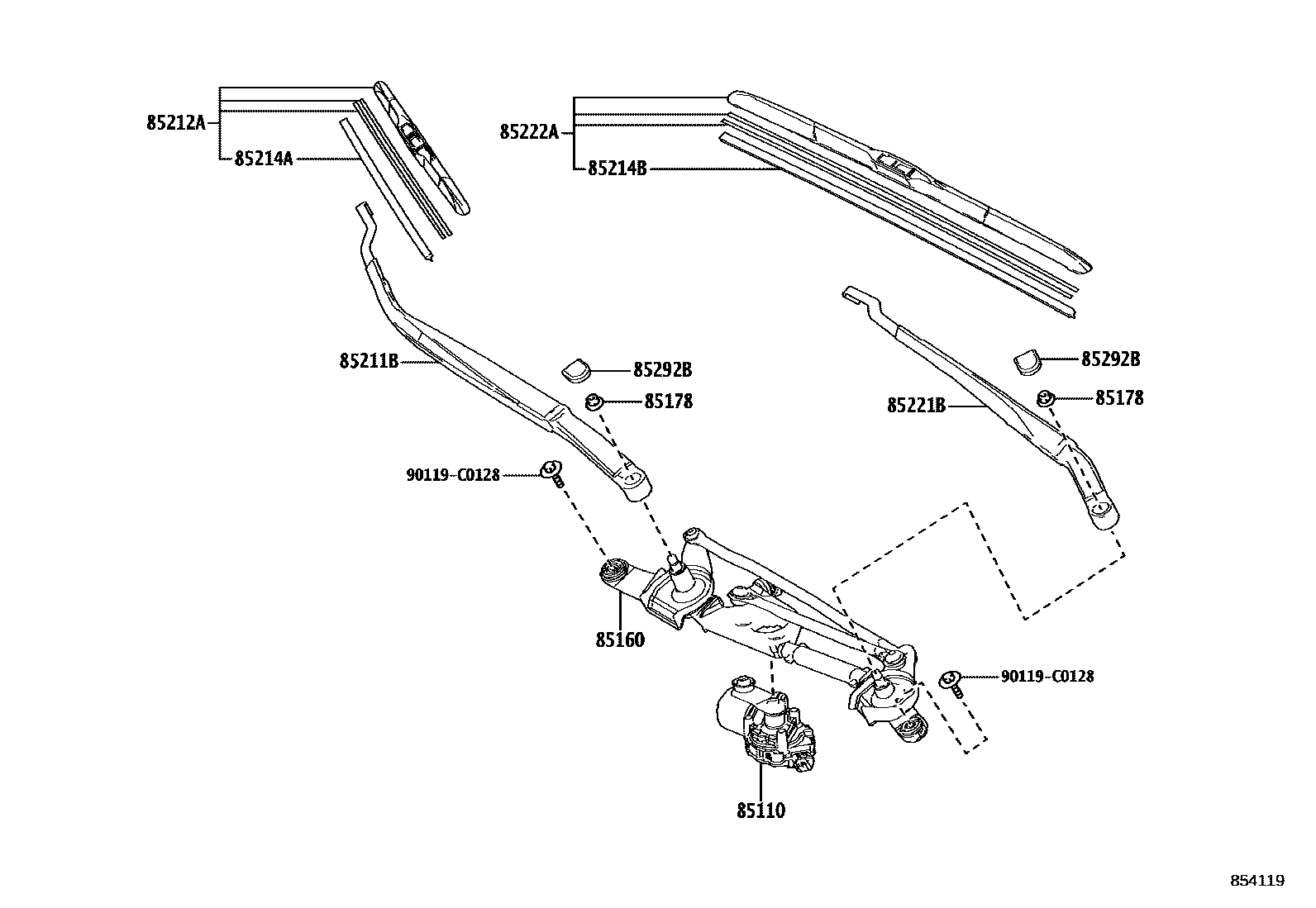

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85010 | Front wiper motor and connecting rod assembly | 85010-02540 |
| 85110 | Windshield wiper motor assembly | 85110-02580 · 85110-12C30 |
| 85160 | Windshield wiper connecting rod assembly | 85150-02510 |
| 85178 | Nut (for securing front wiper arm) | 90182-C0012 |
| 85211B | Right front wiper arm | 85211-02510 · 85211-02540 |
| 85212A | Right front wiper blade | 85212-02310 · 85212-02450 |
| 85214A | Right wiper rubber strip | 85214-02260 · 85214-02430 |
| 85214B | Left wiper rubber strip | 85214-02420 · 85214-02440 · 85214-28080 |
| 85221B | Left front wiper arm | 85221-02530 · 85221-02560 |
| 85222A | Left front wiper blade | 85222-02500 · 85222-02510 · 85222-52270 |
| 85292B | Front wiper arm cap | 85292-0D070 |
